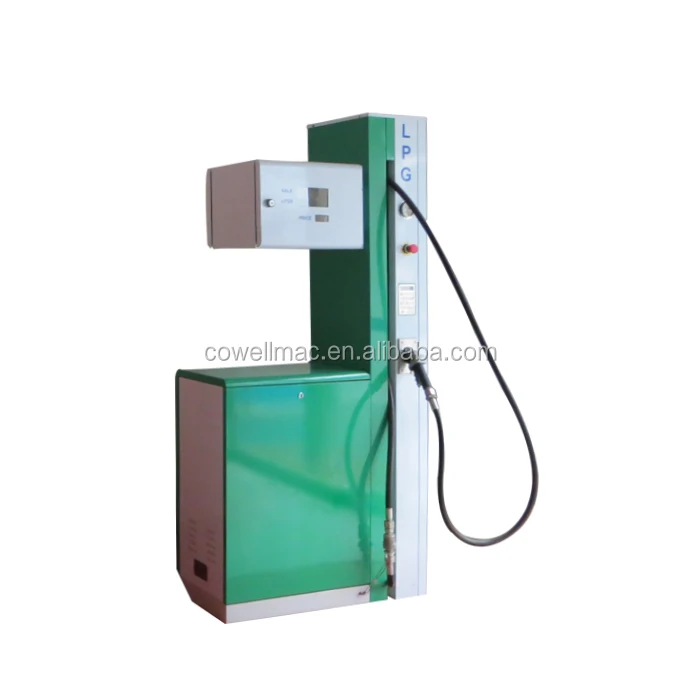

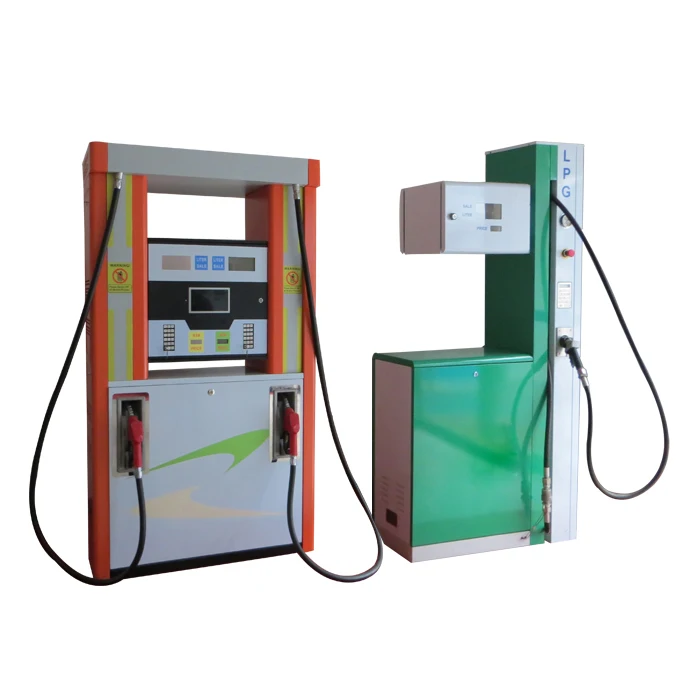

LPG dispenser

  Technical Specification

  Flow Rate:

5-50 L/min

  Accuracy:

±0.5%

  Display Resolution:

0.01 liter

  Max. Dispensing Range:

0.00 ~ 9999.99L

  Dispense Amount:

0.01 ~ 9999.99L

  Unit Price:

0.01 ~ 99.99L

  Totalizer:

0 ~ 999999L

  Temperature:

-40°C ~ 45°C

  Working Pressure:

0~2.5MPa

  Intensity Test:

2.0MPa

  Air Tightness Test:

1.8MPa

  Solenoid Valve:

AC220V Ex-proof

  Safety Return Valve:

1.6MPa

  Hose:

Internal Diameter 13mm
(Length 0.7m+5.2m)

  Power Supply:

AC380V±20% or
AC220V±20%

  Packaging Data

  Model

CWK50L111

CWK50L222

  Packaging

Strong Carton

Strong Carton

  Net Weight

160Kgs

205Kgs

  Gross Weight

180Kgs

225Kgs

  Size

93×47×200cm

93×54×200cm
