Высококачественный гибочный станок для выхлопных труб 5 дюймов на подголовник автомобильного сиденья, поставщик
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Nanjing Blma Machinery Co. Ltd.
Share on (60452816147):
Product Overview
Description
Auto seat headrest high quality gi 5" exhaust ms
tube pipe bending machine supplier
Product Description
Specifications for DW50CNC-2A-1S pipe bending machine:
| 1,Technical:cold bending |
| 2,Electrics:France Schneider |
| 3,System:Japan Mitsubishi |
| 4,Hydraulic parts:Japan Yuken |
Machine video link in youtube:https://youtu.be/o_AOsHwgCV4
Machine main features:
| 1,Using the microcomputer control, automatic bending; |
| 2,Safety:the emergengcy stop button on the bending arm; |
| 3,Dialogue operation, easy to study and understand; |
| 4,Partition hypothesis speed, high pipe-bending precision up to ±0.1°; |
| 5,16 groups pipe-bending information storage, all angles work forms a coherent whole; |
| 6,The mandrel automatically in and out, saving much time; |
| 7,Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc; |
| 8,Can install auxiliary push die, low returning-core function, can bend thin pipes; |
| 9,Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc. |
Technical data:
| Main specification | DW50CNC-2A-1S |
| Max bending capacity | ø50mmX3mm |
| Max bending radius | R250mm |
| Min bending radius | According to pipe diameter |
| Max bending degree | 190° |
| Max feeding length | 3000mm |
| Bending speed | Max 85°/s |
| Rotary speed | Max 200°/s |
| Feeding speed | Max 1000mm/s |
| Bending accuracy | ±0.1° |
| Rotary accuracy | ±0.1° |
| Feeding accuracy | ±0.1mm |
| Bending method | Hydraulic bending(2A) Servo bending(3A) |
| Rotary servo motor power | 750W |
| Feeding servo motor power | 1KW |
| Motor power | 5.5KW |
| Max oil pressure | 12Mpa |
| Machine weight | 2500kg |
| Machine size | 5000X1300X1500mm |
We also have other models of pipe bending machine,such as DW25CNC, DW38CNC, DW63CNC, DW75CNC, DW89CNC...PLEASE send us your requirement,we will quote accordingly.

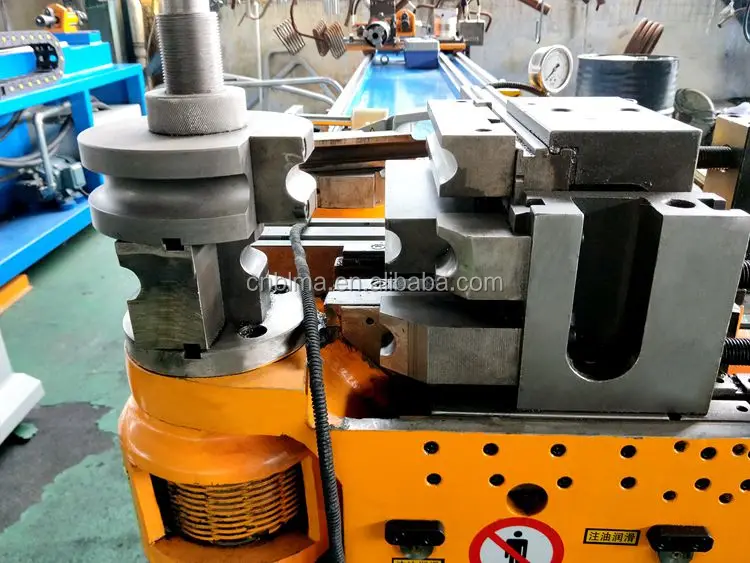

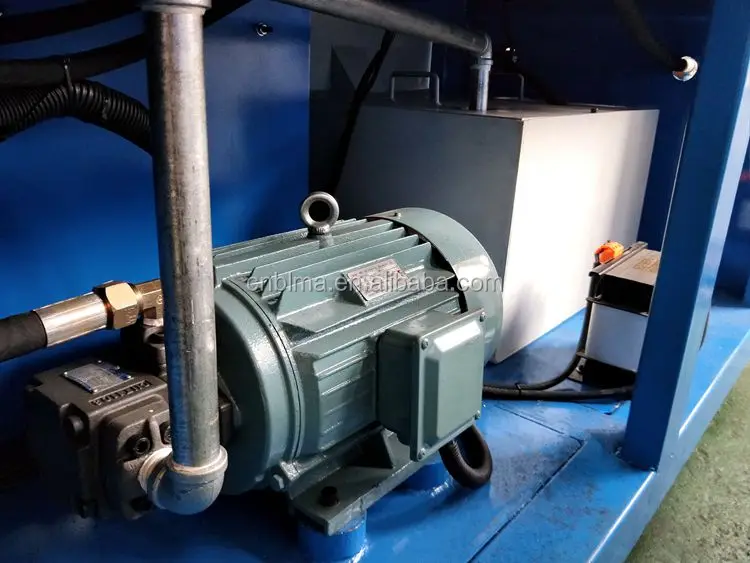

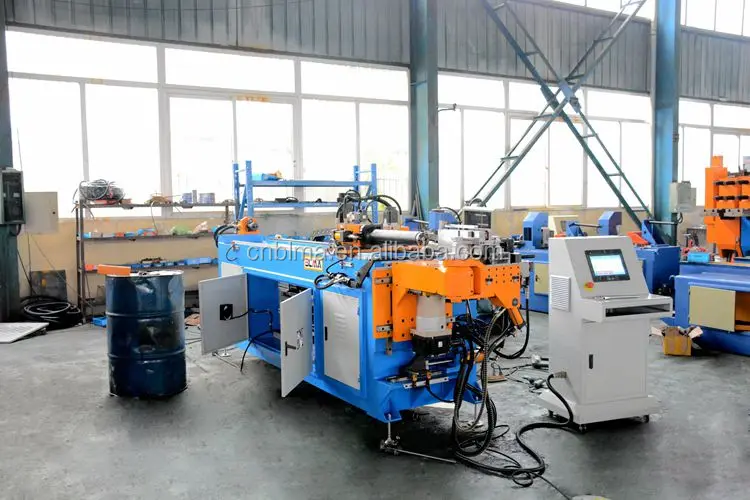

Machine detailed pictures:
Bending samples:

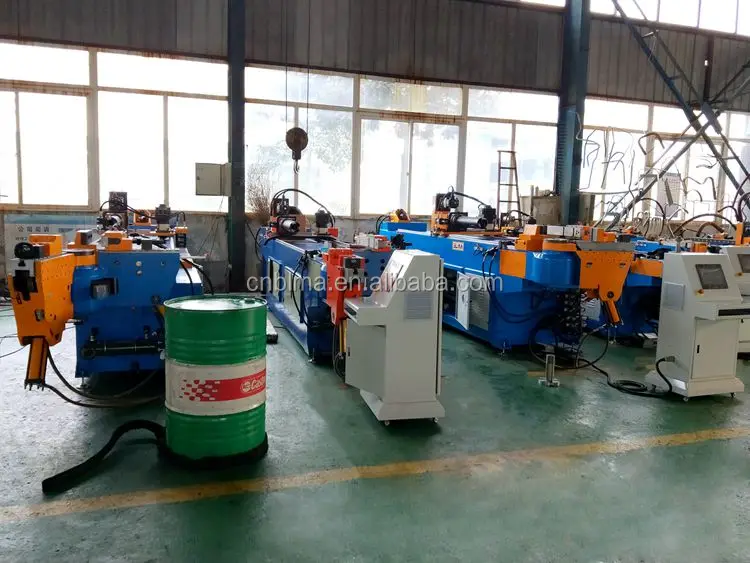

Our workshop:
Packaging & Shipping
| Our cnc pipe bending machine is delivered within 20 days after deposit confirmed. |
| The machine is usually packed in a professional exported case by shipping way. |
Our Services
| Pre-service: |
| 1.We will help you confirm the model of our machine according to your offered pipe information. |
| 2.You are very welcome to see our machine how to work in the factory before you place an order with us. |
| Aftersales-service |
1.Free installation, trial start and adjustment, training. |
| 2.We guarantee machine quality for one year. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL,TNT freely. |
| 3.Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service. |
FAQ
1.Are you a manufacturer or trading company?
Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
4.What about your machine warranty?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
5.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can designing the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period,you can also learn how to use this machine well!
6.What certificate do you have?
We have both ISO and CE certificate.
7.Where is your factory located?
Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to Shanghai Hongqiao or PVG airport directly.
Contact Way
If you have an interest to know more about our machine,please contact us at any time.
Our company website:www.chinablma.com
Welcome to inquire our machine!
Your satisfaction is our greatest movitation.
