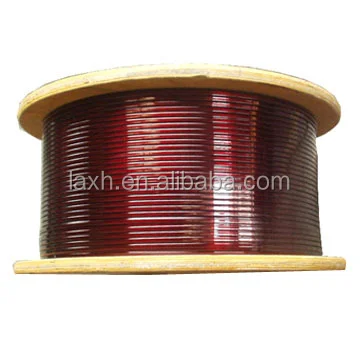

Плоские эмалированные медные провода
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Hangzhou Xinhui Cable Co. Ltd.
Share on (60453661316):
Product Overview
Description
Hangzhou Xinhui Cable Co.,Ltd specialized in Hifi wire, coaxial cable,Enameled wire,copper braided wire,such as:RG6,RG59,RG11,silver wire,OCC wire,Silver plated copper,Nickel wire,Headphone wire ,audio cable,Braided copper wire,CCS(copper clad steel wire),CCA(Copper clad aluminum wire),Al-mg wire,Enameled wire ,aluminum wire
enamelled copper wires
Specifications
Name | enamelled copper wire | ||
Type | QZXYL-2/180 | ||
Diameter | 2.40mm | ||
Standard | IEC60317-15 | ||
Test Item | Unit | Technical Requirement | Test Result |
Appearance |
| bright and clean, Uniform color, | Ok |
Overall Diameter | mm | <2.518 | 2.483 |
Conductor Diameter | mm | ±0.024 | 2.402 |
Thickness of insulation film | mm | >0.079 | 0.081 |
resistance | Ω/m | <0.006354 | 0.006069 |
Elongation |
| >15% | 27% |
winding test |
| no cracking | Ok |
Tensile Test |
| 15% No cracking | no cracking |
Peel twist |
| insulation film Without losing adhesion | Ok |
Jerk test |
| insulation film Without losing adhesion | Ok |
Resistance to heat shock | C | 200C insulation film no cracking | Tensing 15% half an hour, no cracking |
Resistance to solvent |
| Standard solvent "H" Pencil | 2H is ok |
Breakdown Voltage | KV | 5.0KV | 14.8,14.8,14.9,14.2,14.8 |
package |
| Meet the export standards | Ok |
Quality Control Result |
| Ok | |
EAL and ECu wire is our hot selling wire. We are leading factory in Enamelled wire production base.
1.Specifications of enamelled copper wire:
Diameter:0.2mm-8.0mm
Standard: IEC, NEMA,GB
Thermal Class: 130/155/180/200/220 °C
Certification:SGS Approved,iso9001,iso14001
2.Features of enamelled copper wire:
a) Excellent resistance to abrasion and solvent,
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility
d) High cut through
3.Main Applications of enamelled copper wire
a)Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
b)Automotive sensors and coils as relais and ignition coils.
c)Generators,dry-type or oil-immersed.
d)Anti-explosion motor,air-conditioner compressor,washing machines.
e)Military and space applications.

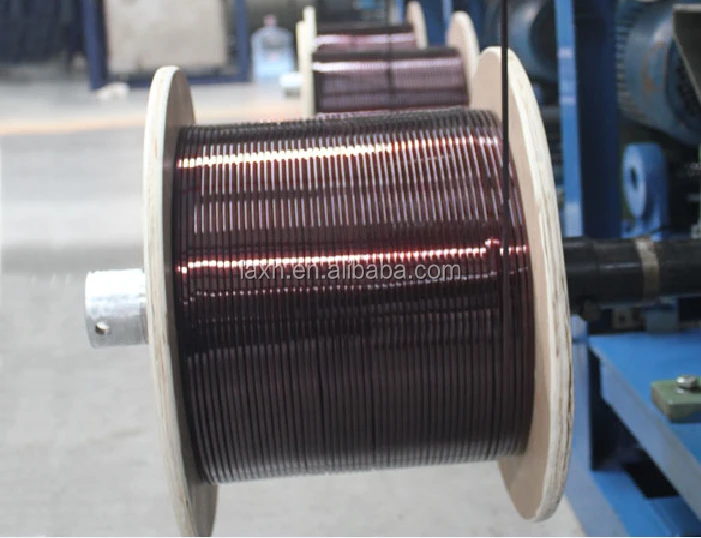

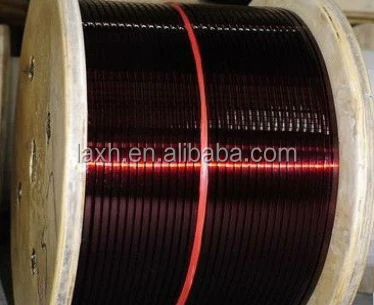

4.Packing of enamelled copper wire : plastic spool,wooden spool and also can pack the goods according to the requirement of each client
