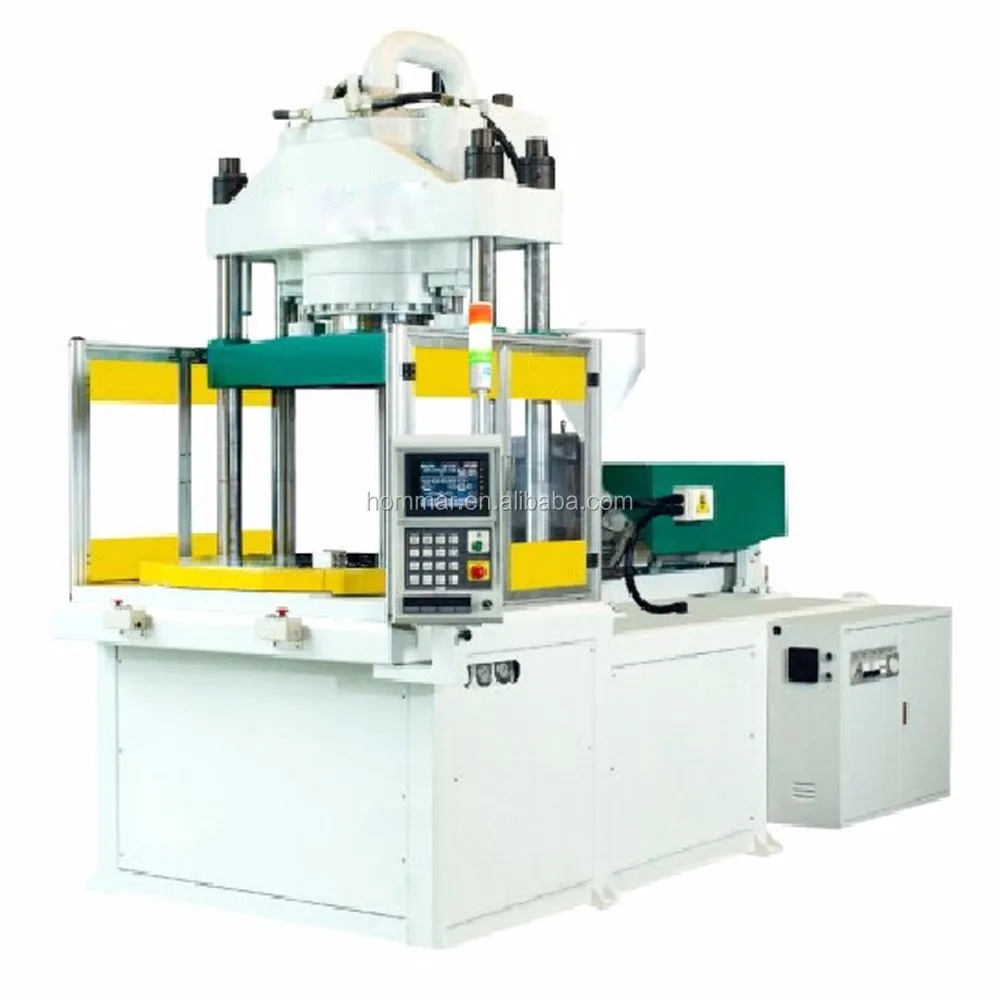

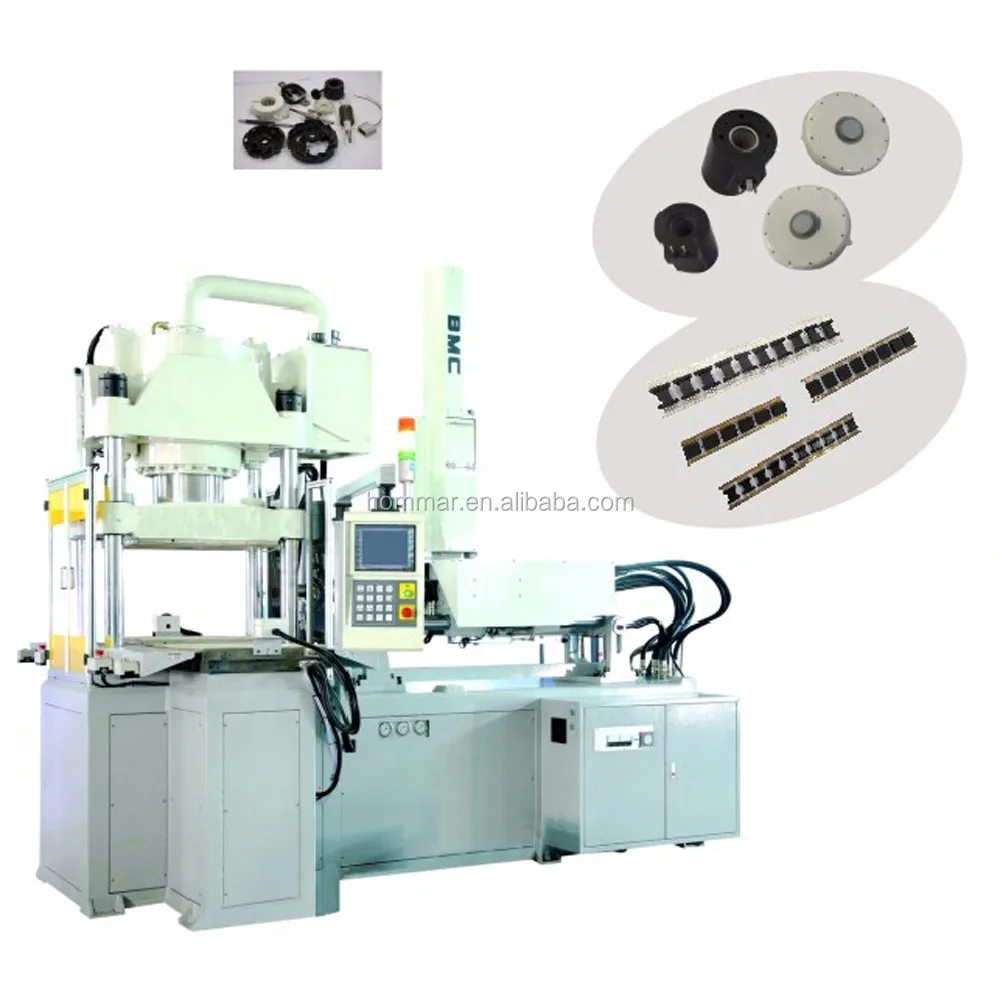

100T Full Automatic H-injection V-Clamp fishing lure spoon injection moluding machine HM0186-26
Product Description

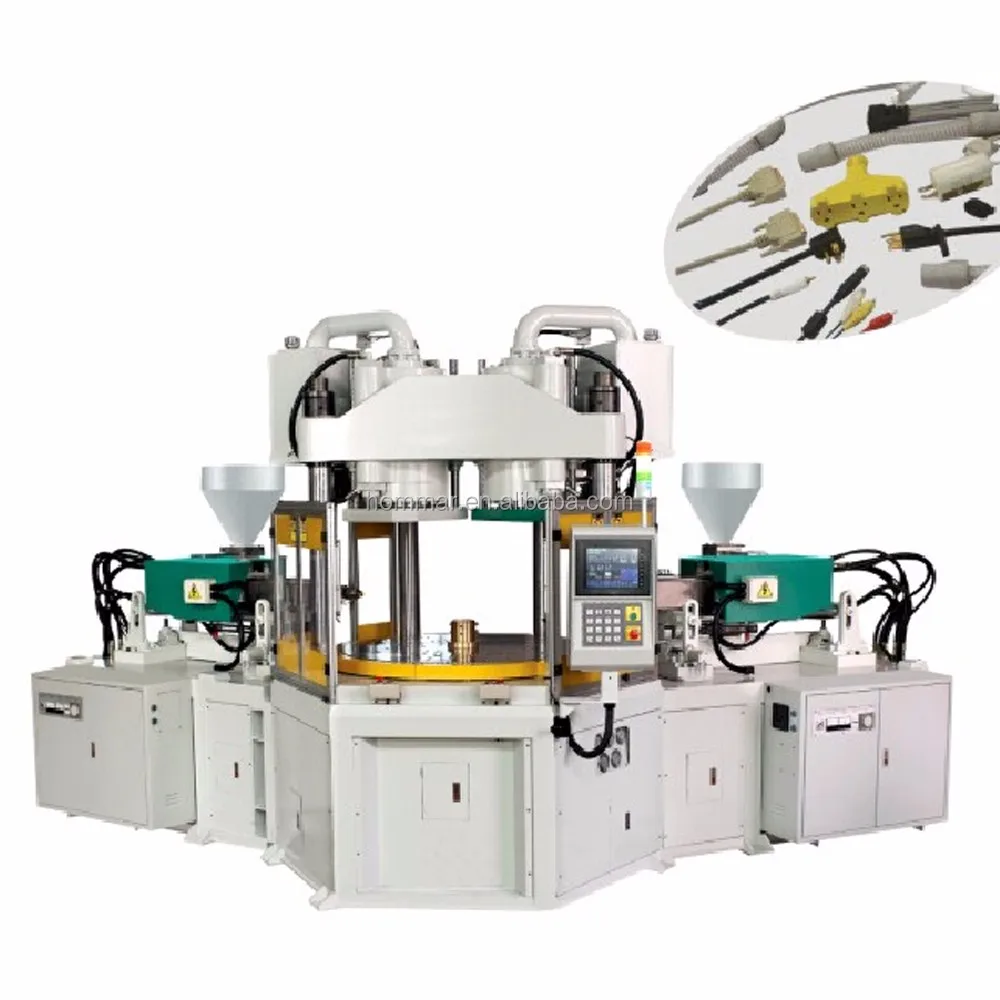

What is T structure injection molding machine?

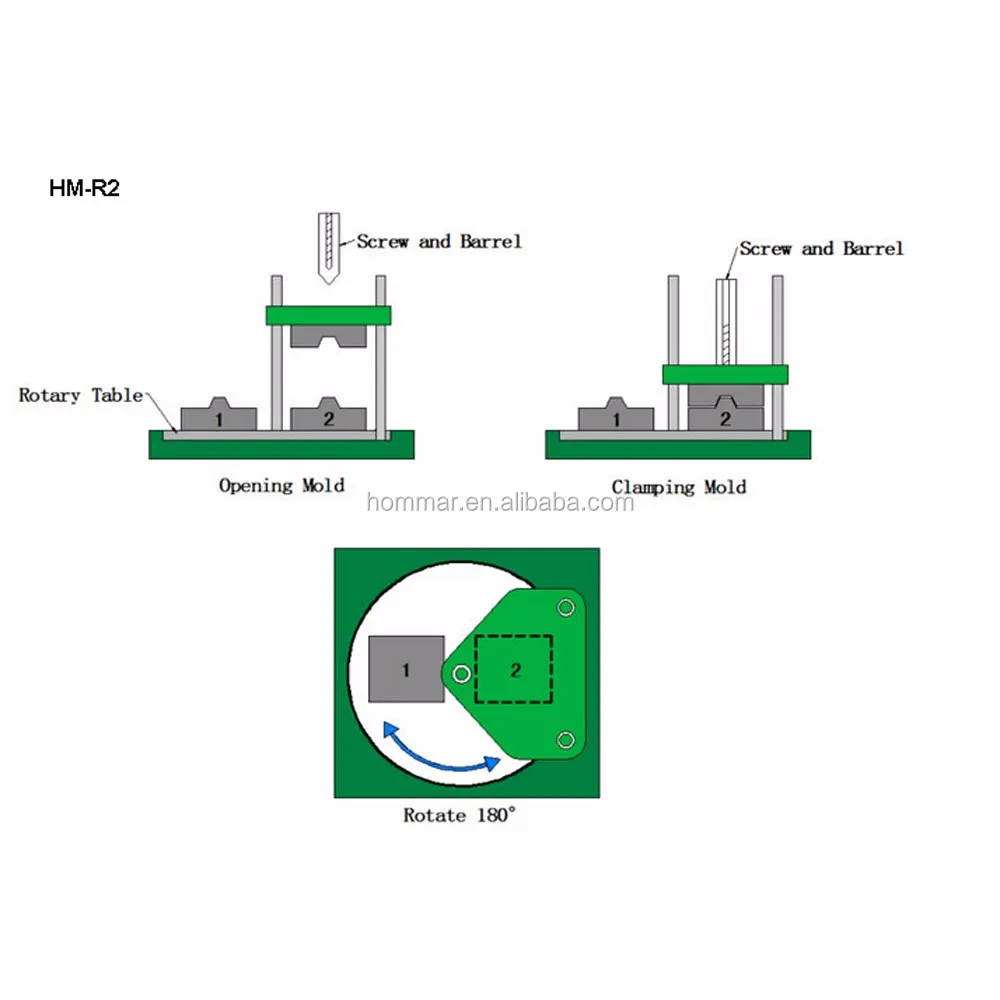

T structure injection molding machine is not as vertical injection molding machine ,vertical stroke and vertical ejection and not as horizontal injection machine, horizontal stroke and horizontal ejection.
It is combined both of them.It clamps molds vertically but ejects horizontally.
It's suitable for big size plastic parts with insert(s).
| Spec | |||||||
| Model | HM-35TR-C | HM-55TR-C | |||||
| Injection | Screw Diameter | mm | 26 | 32 | 32 | 36 | 40 |
| Injection Pressure | Kgf/cm3 | 2071 | 1367 | 1807 | 1427 | 1156 | |
| Injection Capacity | cm3 | 64 | 96 | 104 | 132 | 163 | |
| Injection Weight | gr | 57 | 87 | 94 | 119 | 146 | |
| oz | 2 | 3 | 3.3 | 4.1 | 5.1 | ||
| Injection Rate | cc/s | 44 | 67 | 63 | 80 | 98 | |
| Screw Speed | r.p.m | 0-180 | 0-180 | ||||
| Screw Stroke | mm | 120 | 130 | ||||
| Nozzle Stroke | mm | 150 | 150 | ||||
| Nozzle Contact Force | tf | 3.5 | 3.5 | ||||
| Clamping | Clamping System | Hydraulic | |||||
| Clamping Force | tf | 35 | 55 | ||||
| Clamping Stroke | mm | 200 | 200 | ||||
| Max.Mould Space | mm | 375 | 375 | ||||
| Min.Mould Height | mm | 175 | 175 | ||||
| Overall size of platens(HxV) | mm | 420*240 | 480*280 | ||||
| Hydraulic Ejector Force | tf | 1.7 | 1.7 | ||||
| Ejector Stroke | mm | 40 | 40 | ||||
| Ejector Nozzle Stroke | mm | 140+/-25 | 140+/-25 | ||||
| Dist. Between Center and Ejector nozzle | mm | 75 | 75 | ||||
| Tableda | Diameter of Table | mm | 750 | 856 | |||
| Table Rotation Angle | ° | 180° | 180° | ||||
| Max.Mould Dimensions | mm | 350*150 | 400*200 | ||||
| Number of Molds | set | 2 | 2 | ||||
| Electrical | Drive Motor | kw | 5.5(7.5HP) | 7.5(10HP) | |||
| Heater | kw | 4.1 | 5.1 | ||||
| Oil Tank Capacity | L | 160 | 220 | ||||
| Cooling Water | L/hr | 600-800 | 600-800 | ||||
| Packing | Dimension of Machine | mm | 3.0*1.4*2.5 | 3.2*1.5*2.6 | |||
| Weight of Machine | T | 3.5 | 4.5 | ||||
| Shipping size | M | 3.2*1.8*2.7 | 3.4*1.9*2.8 | ||||
| Shipping weight | T | 4.5 | 5.5 | ||||
| Model | HM-80TR-C | HM-100TR-C | ||||||
| Injection | Screw Diameter | mm | 38 | 45 | 50 | 45 | 50 | 55 |
| Injection Pressure | Kgf/cm3 | 1628 | 1167 | 950 | 1588 | 1287 | 1063 | |
| Injection Capacity | cm3 | 181 | 254 | 314 | 278 | 343 | 415 | |
| Injection Weight | gr | 163 | 228 | 282 | 250 | 309 | 374 | |
| oz | 5.7 | 8 | 9.6 | 8.8 | 10.8 | 13.1 | ||
| Injection Rate | cc/s | 90 | 127 | 157 | 122 | 154 | 182 | |
| Screw Speed | r.p.m | 0-180 | 0-160 | |||||
| Screw Stroke | mm | 160 | 175 | |||||
| Nozzle Stroke | mm | 200 | 250 | |||||
| Nozzle Contact Force | tf | 7.2 | 7.2 | |||||
| Clamping | Clamping System | Hydraulic | ||||||
| Clamping Force | tf | 80 | 100 | |||||
| Clamping Stroke | mm | 300 | 300 | |||||
| Max.Mould Space | mm | 480 | 500 | |||||
| Min.Mould Height | mm | 180 | 200 | |||||
| Overall size of platens(HxV) | mm | 580*380 | 650*420 | |||||
| Hydraulic Ejector Force | tf | 2.7 | 2.7 | |||||
| Ejector Stroke | mm | 40 | 40 | |||||
| Ejector Nozzle Stroke | mm | 150+/-25 | 150+/-25 | |||||
| Dist. Between Center and Ejector nozzle | mm | 125 | 125 | |||||
| Tableda | Diameter of Mold | mm | 945 | 1060 | ||||
| Table Rotation Angle | ° | 180° | 180° | |||||
| Max.Mould Dimensions | mm | 450*240 | 500*290 | |||||
| Number of Molds | set | 2 | 2 | |||||
| Electrical | Drive Motor | kw | 11.1(15HP) | 14.9(20HP) | ||||
| Heater | kw | 7.6 | 9.5 | |||||
| Oil Tank Capacity | L | 260 | 340 | |||||
| Cooling Water | L/hr | 800-1000 | 1000-1200 | |||||
| Packing | Dimension of Machine | mm | 3.6*1.7*2.7 | 3.8*2.0*3.0 | ||||
| Weight of Machine | T | 6.7 | 8.1 | |||||
| Shipping size | M | 3.8*2.1*3.0 | 4.0*2.4*3.2 | |||||
| Shipping weight | T | 7.9 | 9.5 | |||||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, High sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |
| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
