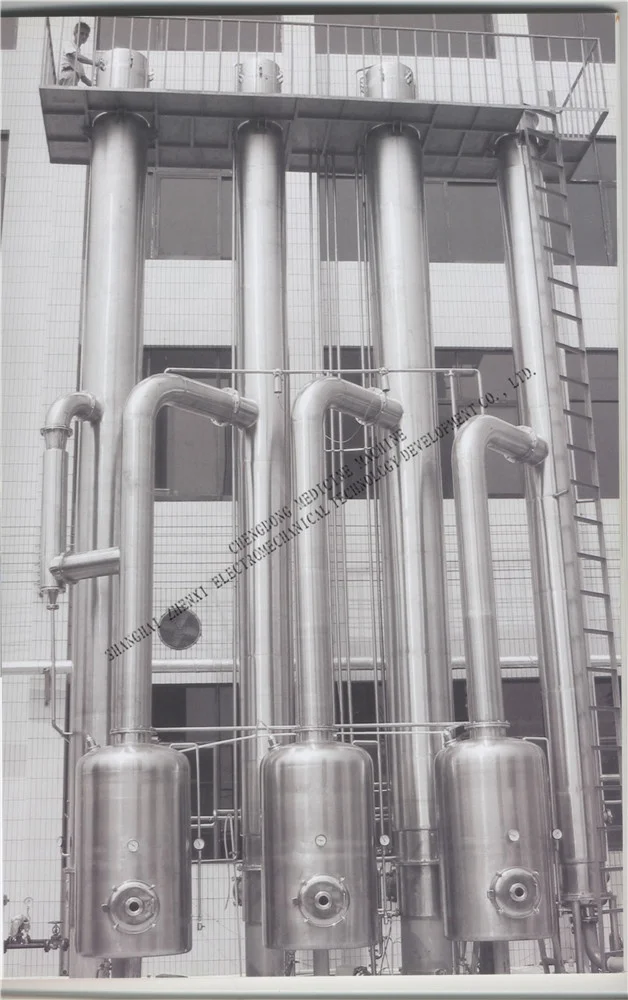

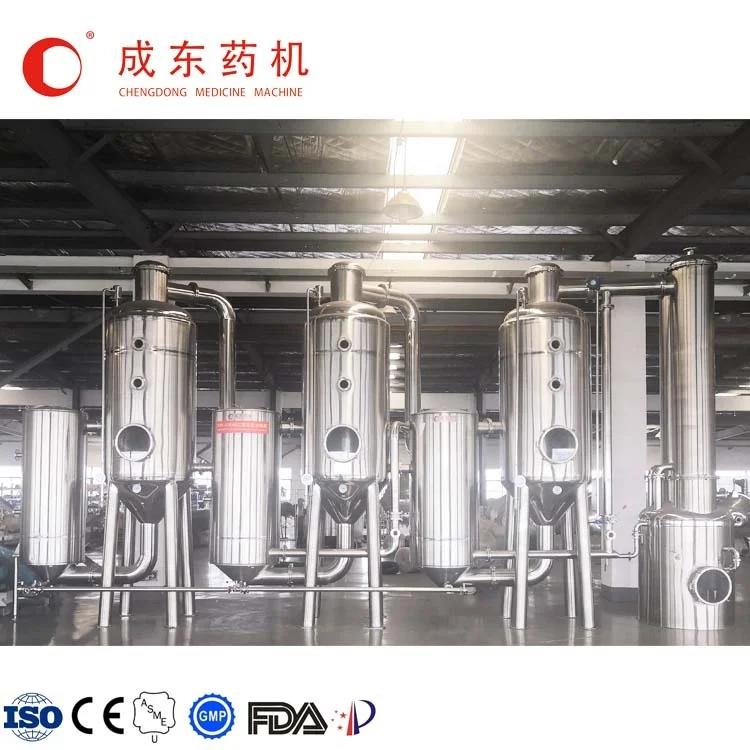

SJZ 3000 Triple Effect Falling Film Concentrator / Evaporator for Herbal Extract

The concentrator is used for the concentration on herbal extraction liquid, dextrin, fructose syrup, and other starch etc.

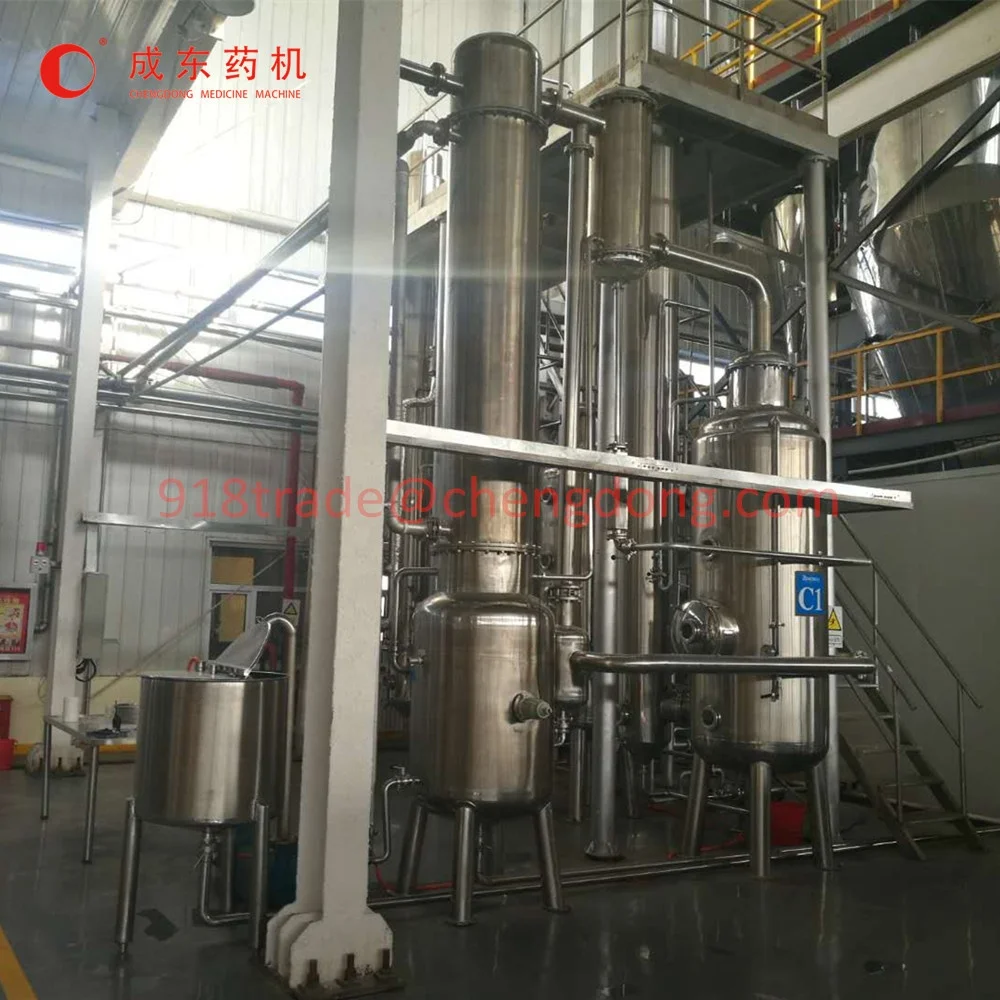

Material is distributed evenly into each tubes through the distribution device at the top of each Evaporator, material turns to film and flow from up to down due to its self-gravitating, pump pressure and 2^nd Vapor Stream, meanwhile, containing water is evaporated when material heat exchange with the heating steam outside the evaporating tubes.

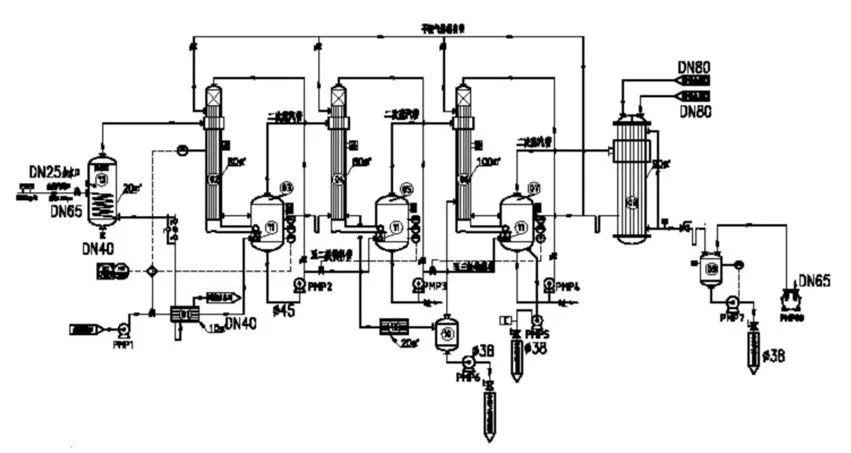

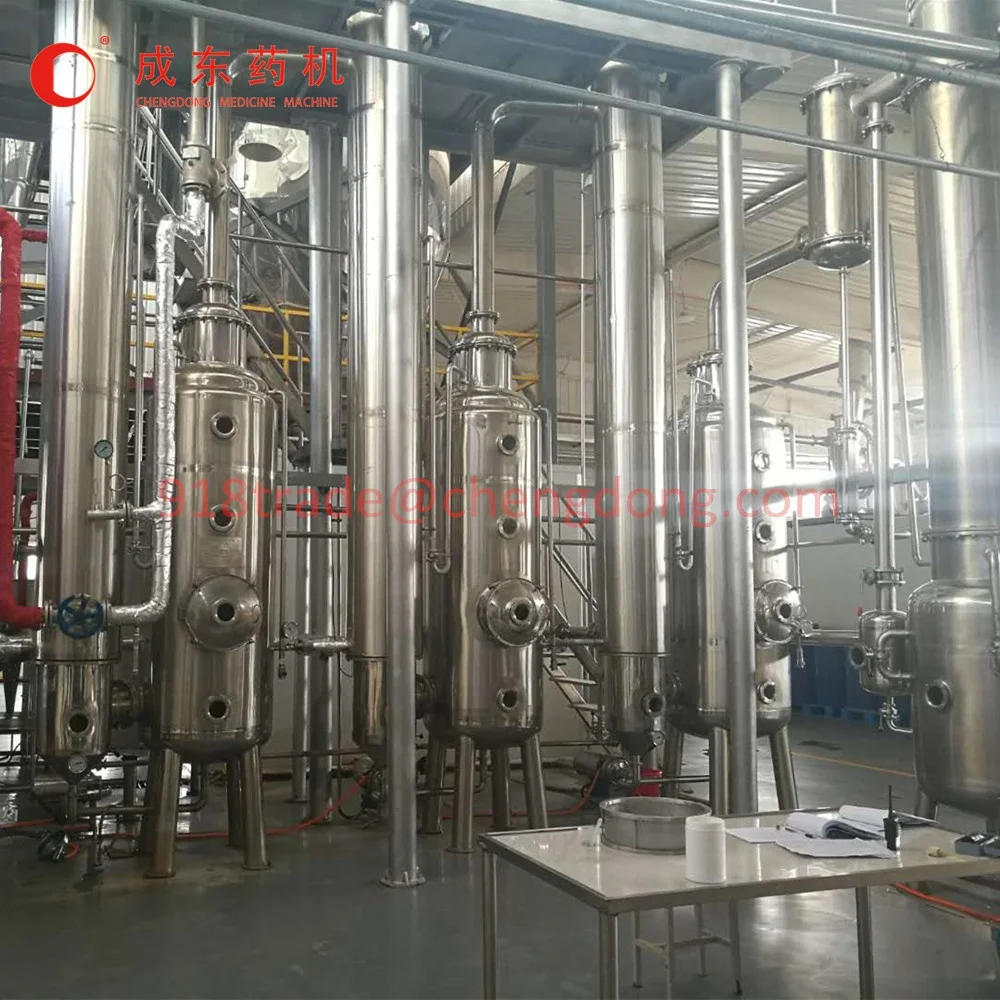

Process as per flow chart: Liquid material goes into the upper inlet of middle part of Condenser first, after preheating, flows down from distribution device at upper part of 3^rd Evaporator, then pump from the bottom of 3^rd Evaporator and 3^rd Separator to the distribution device at the upper part of 1^st Evaporator by material pump, then flows down, then pump from the bottom of 1^st Evaporator and 1^st Separator to the distribution device at the upper part of 2^nd Evaporator by material pump, then flows down, final product can be discharged from the bottom of 2^nd Evaporator and 2^nd Separator directly.
