Price:1 185 908,10 ₽ - 1 285 371,36 ₽

Quantity:


Product Overview

Description

Product Description

Product Application

KDT Style Full Automatic PVC Edge Bander T-600G Made in Foshan Guangdong has additional functions such as  double trim and corner rounding, it's good for wood, MDF, plywood edge band work. The edge bander material can be PVC, Acrylic and ABS. Wood and veneer belt is also optional! Minimum working thickness of boards is 9mm!

It's ideal selection when you need edge banding corner rounding machine.


YouTube Video Link:
https://youtu.be/1DEyVqJ9Bec
https://youtu.be/a_5sGL56038


T600G Automatic Edge Banding Machine Specification
Model No.
T600G
Motor Power
11Kw
Overall size
6100*1000*1600mm
Feeding Speed
12-20mm/min
Panel Thickness
12-60mm
Edge banding tape thickness
0.4-3mm
Panel Width
≥80mm
Working air pressure
0.6Mpa
Weight
2500kgs

Main Features of Edge bander

1. Taiwan Delta frequency controller, insured the duration and precision of our wood edge banding machine.
2. PLC use LG brand, air cylinder use SMC from Japan, HIWIN liner track, Honeywell limitation switch,  Taiwan CPG conveyor motor, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers enjoy to use our machines.
3. Independent lifting up and down system, simple and convenient.
4. Precise encoder control, high speed.
5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS/Veneer band polishing and buffing to the best.
6. Glue spray clean system is optional, it's good to remove the glue and dirty on MDF/Wood during edge banding process.

7. PUR edge band function is optional to give you more durable, no gap banding experience!

8. Veneer/wood edge band is optional to be installed!

Funtions: Corner Rounding / Gluing / End Trim/ Rough Trim / Fine Trim / Scraping / Buffing

Certifications
Detailed Images

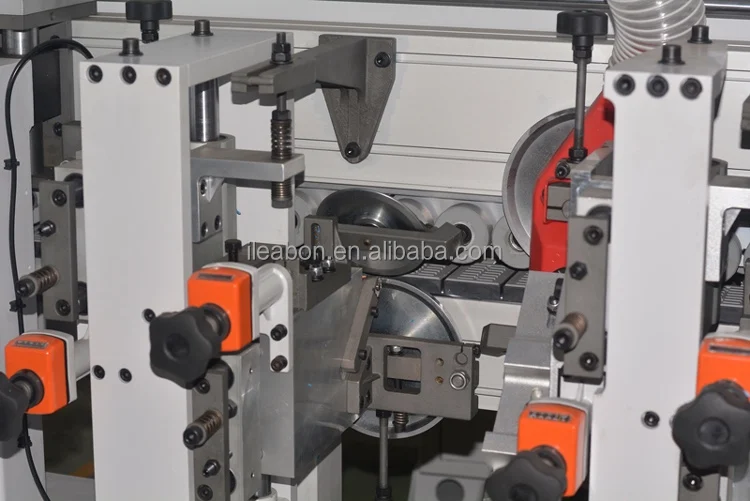

Pre-milling and End Trim

Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.

End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

Buffing and Gluing

The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.


Gluing facilities use special structure to evenly spread the glue on both banding panel and band, ensure a more solid adhesion force.

Fine Trim / Rough Trim and Scrapping

Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.


Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

Grooving

Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.
