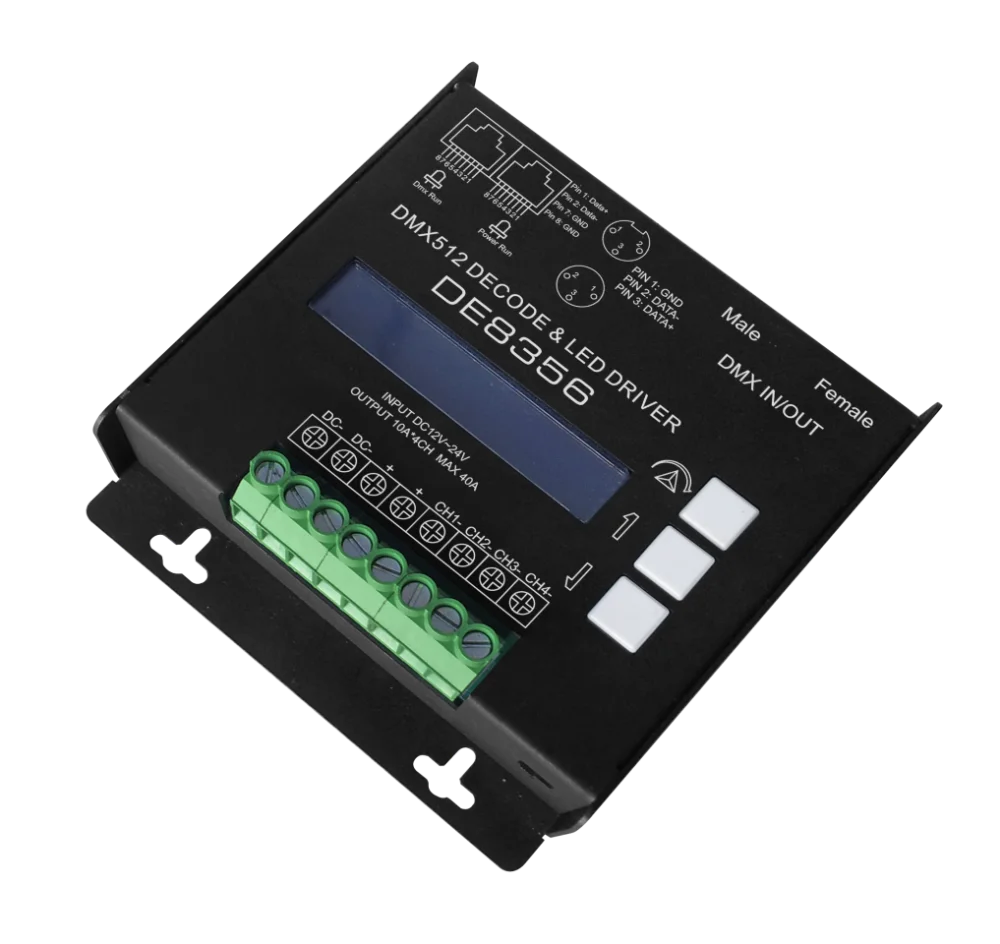

High Power RGBW DMX Driver&Decoder DE8356

Details of RGBW DMX Driver&Decoder :

This 4CH DMX Decoder features a LCD Screen Display that is much easier to work with than traditional dip-switches, as well as a secure screw-down terminal for strong connections.

1,Converts standard DMX signals to PWM output for driving 12V or 24VDC LED lighting.
2,High 4x10A power rating supports large installations up to 480/960W at 12/24V.
3,5000Hz or Higher PWM Frequency to avoid flicker when in Cameras.
4,Can drive up to four-wire RGBW LED lighting,achieving asynchronous color changes effect under working with dmx master controller ,dmx console or dmx swtich.

5,Setting the DMX address freely by LCD screen display.

6,With the light selected mechanism that can be dimming every channel with Red-Green-Blue-White colors.

7,256-levels brightness,full-color with driver controls.

8,Can be matched with different LED module neatly.

9,Customized/3 Years Warranty.

Specification of RGBW DMX Driver&Decoder:

:

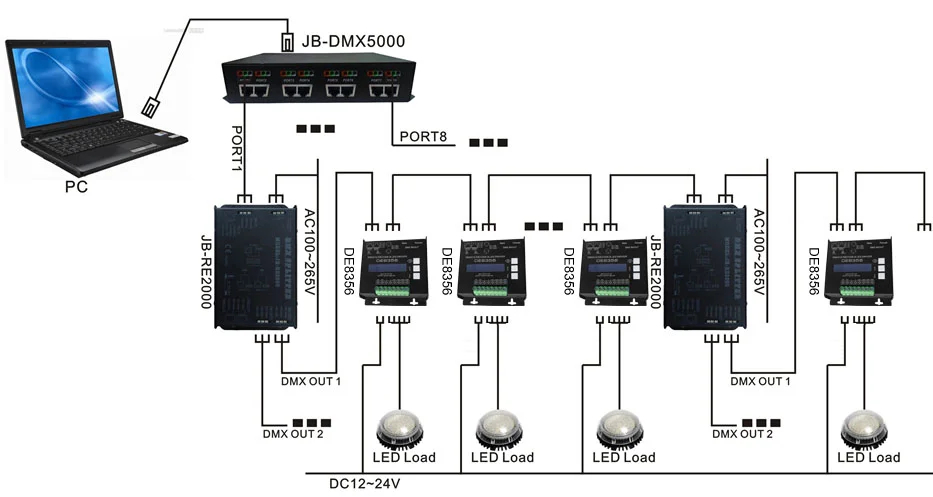

Wiring Diagram:

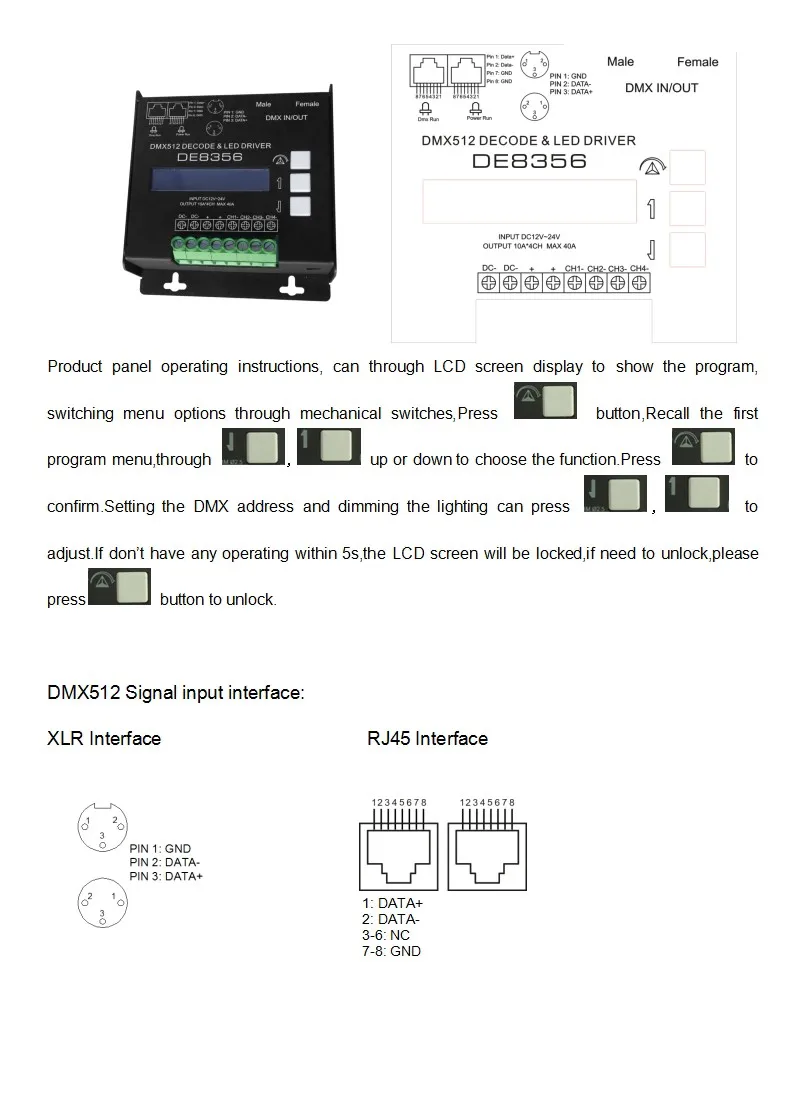

DMX-512 control signal connection

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity.DMX512 controller output signal positive, signal negative, signal ground with DE8356 input interface corresponding connection.

2, DMX5000 output and DE8356's transmission lines can't be over 300 meters.

3, DMX5000 each interface can with not more than 170 pieces of DE8356. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights.

4, When connected 32 pieces of DE8356, DMX signal must add a signal amplifier RE2000 . Cascade can't more than 4 PCS.
