Ball Vacuum Evaporator Concentrator
- Category: Evaporator >>>
- Supplier: Shanghai Chengdong Technology Co. Ltd.
Share on (60464401109):
Product Overview
Description

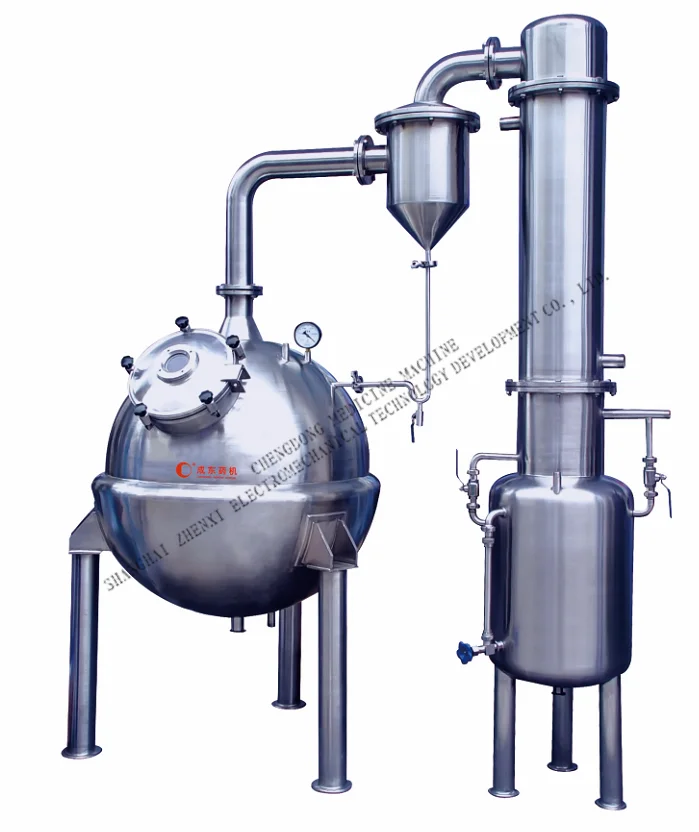

Ball Vacuum Evaporator Concentrator
Use
This Ball Vacuum Evaporator Concentrator is suitable for vacuum condense, crystallization, extraction, distillation and alcohol retrieval in Chinese medicine, western medicine, foodstuff, glucose, fruit juice, sugar and chemical industry.
Main Structure
This Ball Vacuum Evaporator Concentrator is mainly made up of 4 parts: gas-liquid separator, condensing pot, cooler and collector, all are made of stainless steel, meet GMP standard.
Feature
This Ball Vacuum Evaporator Concentrator has a complete set of meters and sight glass, open the man hole, you can wash or change material. It’s very convenient.
Because Ball Vacuum Concentrator uses the reduced pressure concentration, the concentration time is short, also would not destroy the material active principle.
Technology Parameter
| Model | QN250 | QN500 | QN1000 | QN1500 |
| Volume(L) | 250 | 500 | 1000 | 1500 |
| Jacket Pressure(MPa) | 0.15 | |||
| Vacuum Degree(MPa) | 0.08 | |||
| Evaporation Capacity(kg/h) | 70 | 100 | 200 | 300 |
| Heating Area(m2) | 1.1 | 1.5 | 3.1 | 4 |
| Condensation Area(m2) | 3 | 5 | 8.5 | 12 |
| Outer Size(LxWxH)(m) | 2100x1200x2500 | 2100x1200x2500 | 2035x1500x2765 | 2500x2300x4550 |
Remarks
Payment terms may vary by product, region and country.
