scrap metal prices per ton slotted angle rolling machine roll forming
- Category: Tile Making Machinery >>>
- Supplier: Gongyi Hengxu Machinery Manufacture Co. Ltd.
Share on (60464963477):
Product Overview
Description
scrap metal prices per ton slotted angle rolling machine roll forming

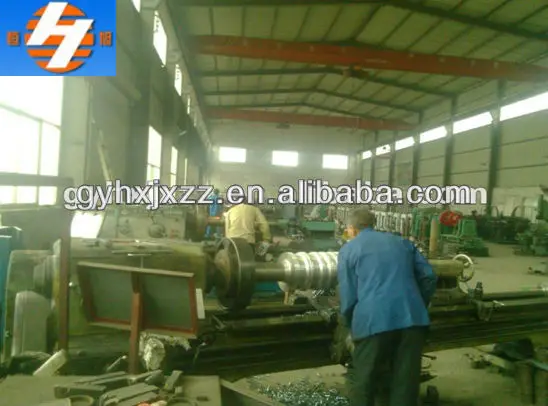

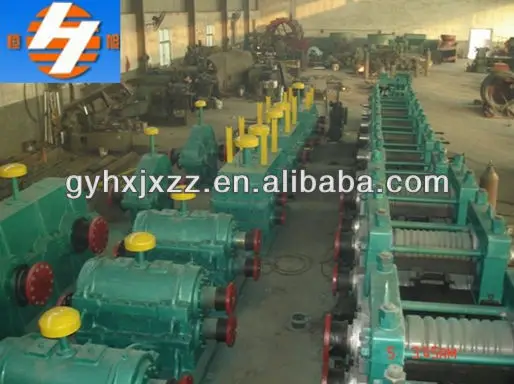

1. rolling mills in our workshop
2. international customers

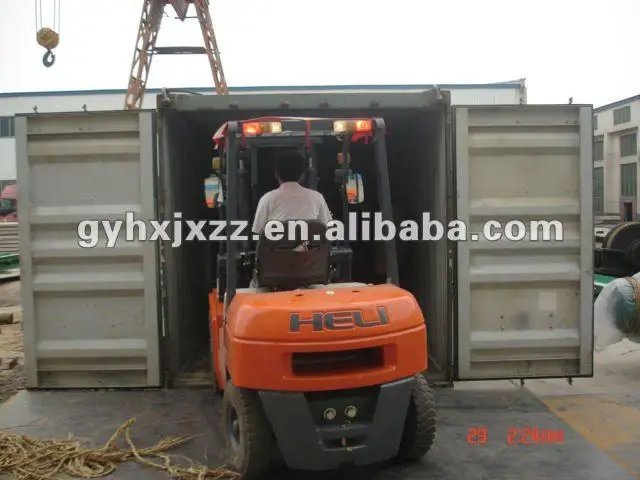

3. loading containers
4. production lines abroad
5. certifications
6. rolling mill parameter
Input billet size: 100*100--120*120--150*150mm
Capacity: 10-30 tons per hour
Output size: 8-32mm deformed rebar/flat bar/angle bar etc.
Steel rolling procedure:
waste steel ----melting---- casting----mold unloading----sorting-----deliver to heating furnace----heating to 1150 degree to 1200 degree----- come out furnace----- rolling----- finished product ----packing---- sales
Technical Parameters of Rolling Mills | ||||||||
Facility Model | Power (KW) | Linear Speed (m/s) | Production (T) | Rolling Pressure (T) | Feeding Section | Weight(T) | Rolling Specification | Annotations |
JY200 | 22-30 | 1.2 | 1.5-3 | / | 30×30 | 2.2 | Max Φ20 | rebar, flat, square steel |
Φ200×32 | 75/100 | 1.5 | 3-5 | 20 | 30×30 | 6.8-8.6 | Max Φ20 | rebar, flat, square steel |
Φ220×3 | 130/155 | 1.5-2 | 4-8 | 25 | 50×50 | 14.3 | Max Φ25 | rebar, flat, square steel |
Φ250×23 | 185/240 | 1.8-2.5 | 5-15 | 30 | 60×60 | 22.5/27.5 | Max Φ34 | whorl, flat, deformed, angle steel |
Φ250×5
| 500 | 2.5-5 | 30-40 | 30 | 60×60 | 38 | 6.5 wire rod | all |
Φ300×23 | 380/560 | 2-2.5 | 10-15/20-30 | 50 | 90×90 | 43.6/58 | Max Φ36 | rebar, angle, channel steel |
Φ300×5 | 630 | 2-2.5 | 50-100 | 50 | 90×90 | 88 | Max Φ36 | rebar, angle, channel steel |
Φ350×23 | 680 | 2-2.5 | 30-50/40-60 | 80 | 100×100 | 65/80 | All | / |
Φ350×5
| 800 | 2-2.5 | 80-120 | 80 | 100×100 | 115 | All | / |
Φ400×2
| 850 | 2-2.5 | 50-100 | 100 | 120×120 | 84 | 402-902 | / |
Φ500×2 | 1000 | 2-2.5 | 150 | 150 | 165×165×1400 | 152 | 502-1002 | except the motor weight |
