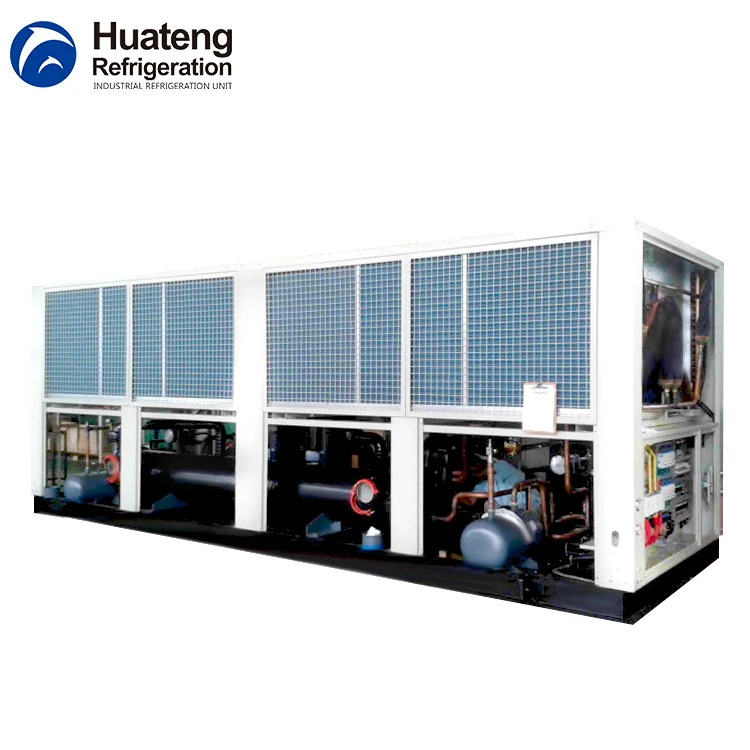

Горячая Распродажа CE промышленный винтовой водяной охладитель с воздушным охлаждением
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Jiangsu Huazhao Refrigeration Equipment Co. Ltd.
Share on (60465570710):
Product Overview
Description

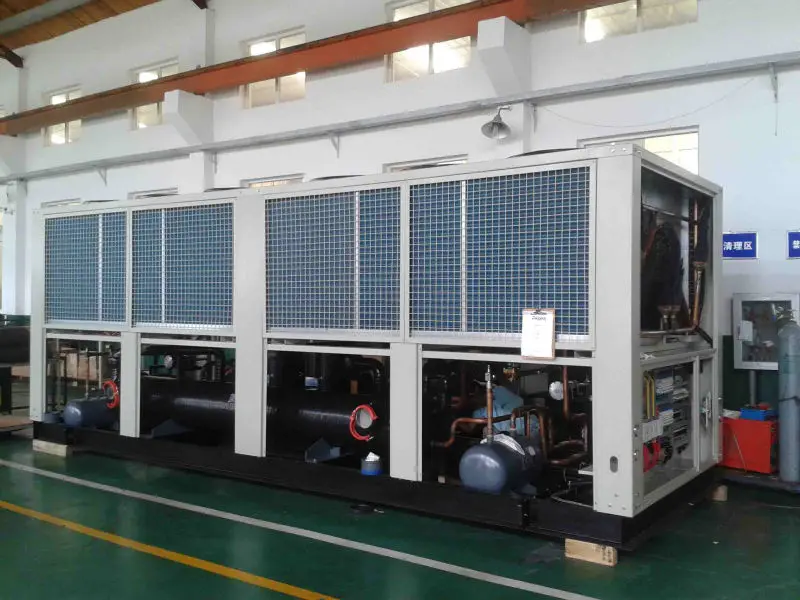

Hot selling CE industrial screw air-cooled water chiller
Product Description
| Model | HTK-M120F | HTK-M140F | HTK-M160F | HTK-M180F | HTK-M200F | HTK-M260F | HTK-M300F | HTK-M350F | |
| Cooling | KW | 117 | 143 | 162 | 181 | 195 | 260 | 299 | 349 |
| Capacity | Kcal/Hr | 10620 | 122980 | 139320 | 155631 | 167700 | 223600 | 257140 | 300140 |
| RT | 33.27 | 40.66 | 46.06 | 51.46 | 55.44 | 73.93 | 85.02 | 99.23 | |
| Power | 50HZ | 3P-380V-50HZ | |||||||
| Input power(KW) | 37.2 | 51.5 | 57.3 | 64.1 | 68.8 | 86.2 | 99.6 | 115.7 | |
| EER | COP | 3.15 | 2.78 | 2.83 | 2.82 | 2.83 | 3.02 | 3 | 3.02 |
| Freezing medium | R134a | ||||||||
| control mode | Thermal expansion valve | ||||||||
| Comprosser | Mode | Semi-closed double screw | |||||||
| Working style | Y-Δ/Δ-Δ | ||||||||
| Capacity | 0-25%-50%-75%-100% | ||||||||
| Condensor | Mode | Finned type | |||||||
| Cooling air tempreture | In 35℃/Out 45℃ | ||||||||
| Wind flow (m³/h) | 60000 | 60000 | 90000 | 90000 | 120000 | 120000 | 180000 | 180000 | |
| Fan quantity | 4 | 4 | 6 | 6 | 6 | 8 | 12 | 12 | |
| Motor power(KW) | 0.85*4 | 0.85*4 | 0.85*6 | 0.85*6 | 0.85*6 | 0.85*8 | 0.85*12 | 0.85*12 | |
| Evaporater | mode | Efficient finned tube filled with liquid | |||||||
| Freeze water tempreture | In 12℃/Out 7℃ | ||||||||
| Freeze water flow (m³/h) | 20.1 | 24.6 | 27.9 | 31.1 | 33.5 | 44.7 | 51.4 | 60 | |
| Pressure loss (Kpa) | 52 | 52 | 55 | 58 | 58 | 58 | 58 | 61 | |
| waterpipe | DN80 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
| Safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; | ||||||||
| high pressure safety valve protection; oil pressure protection; exhaust over heat protection | |||||||||
| Units Weight | Kg | 2000 | 2500 | 2600 | 2700 | 3500 | 3600 | 4400 | 4600 |
| Size | L(mm) | 2080 | 2080 | 3060 | 3060 | 4040 | 4040 | 6000 | 6000 |
| W(mm) | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
| H(mm) | 2220 | 2220 | 2220 | 2220 | 2260 | 2260 | 2260 | 2260 | |
| Noise(dB) | 72 | 72 | 72 | 73 | 74 | 74 | 75 | 75 | |
Note:
1. Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃,water temperature(out)7℃
2.We can make order according to your requirement.
3.Please indicate the hot recycled if needed,as the recycle rate can be up to 25%-30% of the unit refrigerating capacity,the temperature can be up to 55℃.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
Model Description:
1. Employing original double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life
2. Employing all-new imported high class component
3. Employing two sets of compressor which can be used jointly or independent
4. Switch control, easy operation and maintenance
5. The weld of brass pipe is non-oxidization
6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe
