T 1000S with SD card 2048 pixels programmable pixel led light controller / rgb led controller

Product Overview

Description

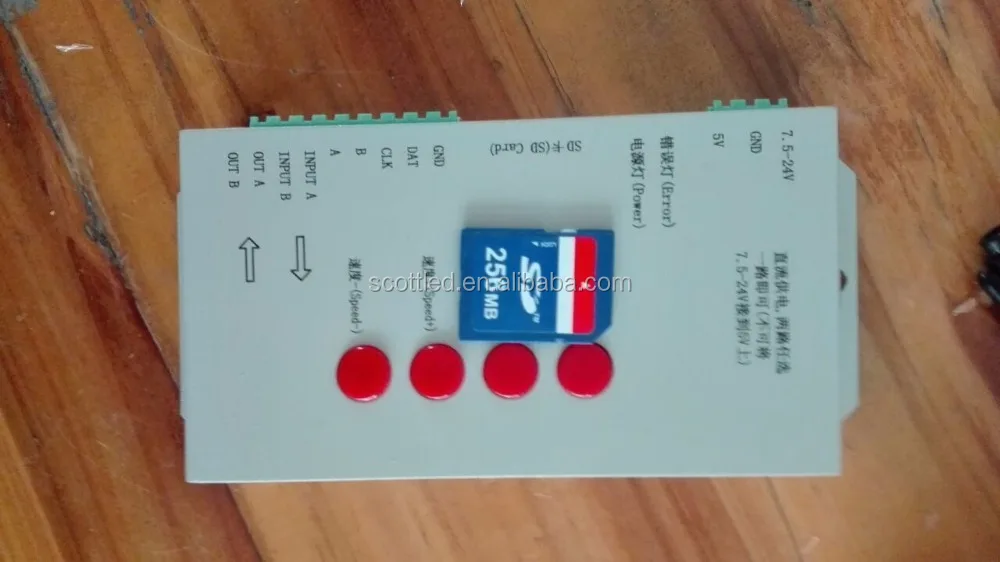

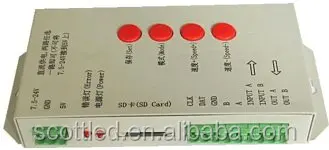

T-1000S SD card 2048 pixels led pixel controller / rgb led controller



1,T-1000S System features

1,32—256 Gray level,Support software Gamma correction.

2,Support the rules and special-shaped handle.

3,Single-port output,can support 2048 pixels.

4,Off-line(SD Card) control, play back content stored in the SD card.

5,T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6,The program must be named in orders . just as :00_1.led, 01_1.led, 02_1.led.



7,Compatible with single line or double line chips.

Support chips:

Support IC type	Module in LedEdit software	Pixel numbers	Remark
LPD6803,D705,1101,6909, 6912	T-1000S-6803	2048 pixel
LPD8806,LPD8809	T-1000S-8806	2048 pixel
TM1803,TM1804,TM1809,TM1812	T-1000S-TM	2048 pixel	TM1804 and TM1809 low speed and high speed
TM1903TM1904TM1909TM1912	T-1000S-TM19	2048 pixel
UCS6909UCS6912UCS7009UCS5903	T-1000S-UCS-32	2048 pixel
UCS1903UCS1909UCS1912	T-1000S-UCS-256	2048 pixel	low speed and high speed
UCS3903	T-1000S-UCS-1024	2048 pixel
DMX512	T-1000S-DMX	170/512 pixel	Compatible DMX512
WS2801,WS2803	T-1000S-WS	2048 pixel
WS2811	T-1000S-WS2811	2048 pixel	low speed and high speed
DS189	T-1000S-DS189	2048 pixel
TLS3001,TLS3002TLS3008	T-1000S-TLS	* pixel
P9813	T-1000S-P9813	2048 pixel
SM16715	T-1000S-SM16715	2048 pixel	low speed and high speed
SM16716	T-1000S-SM16716	2048 pixel
BS0901,BS0902	T-1000S-0901	2048 pixel
BS0815	T-1000S-0815	2048 pixel

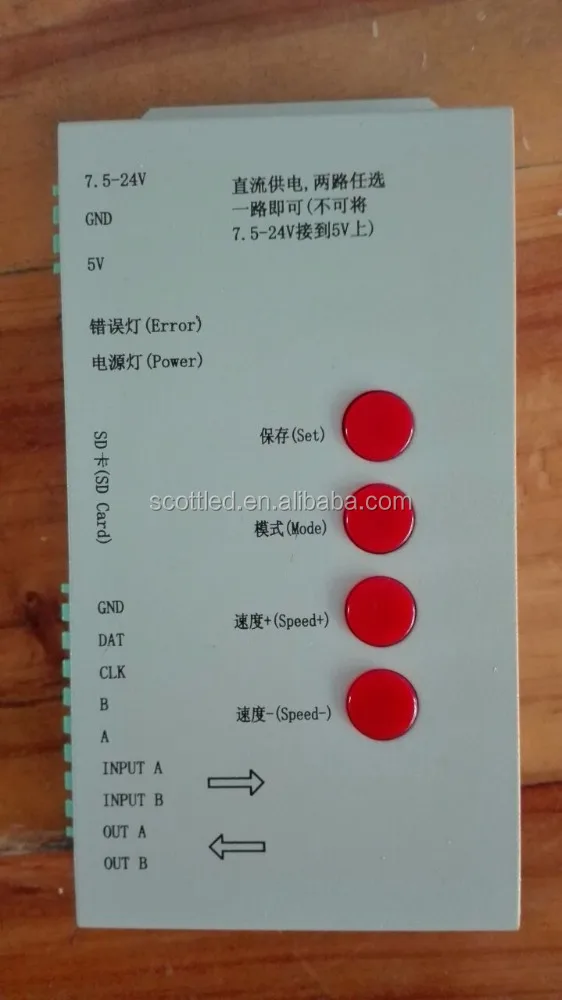

Connection diagram:

7.5V-24V	DC power input, to provide two sets of power input, select a group can be.
5V	Power Ground.
GND	Error indicator
ERROR	Power LED
POWER	SD card slot
SD CARD	Output CLK
CLK	Output DATA
DAT	Signal Ground
GND
GND	Signal Ground

KEEP SHOPPING:   click here



2,Products:













3,Mode of connection

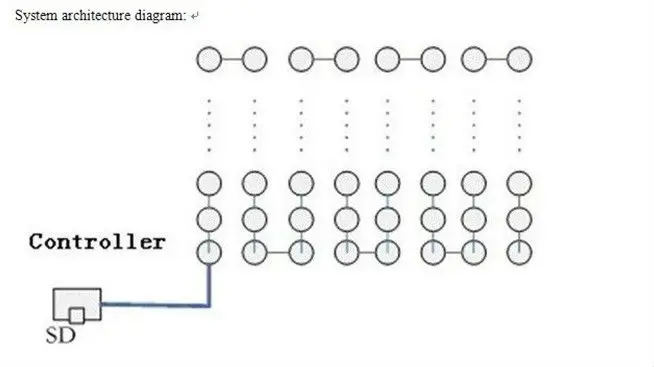

1. Multiple T-1000S controllers can be cascaded together and work synchronously.

2. T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels/lamps;

3. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

4. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-),



5. If you need to control a new IC type by the controller, software code mode is:T-1000-IC model.
