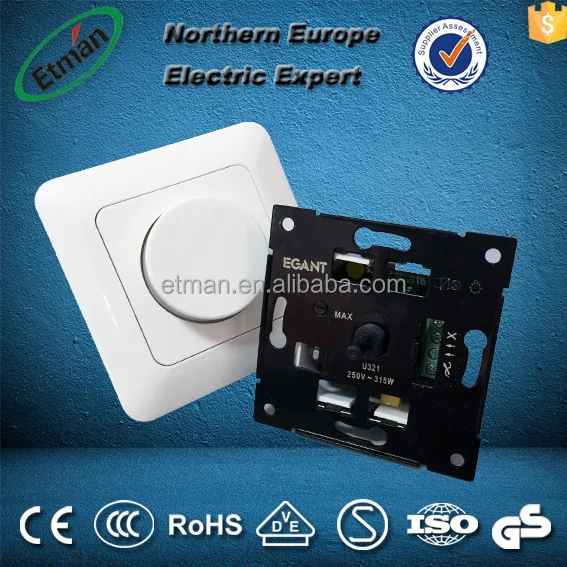

Triac Leading Edge Dimmer For LED
- Category: Dimmers >>>
- Supplier: Etman Electric(Changzhou) Co. Ltd.
Share on (60469661000):
Product Overview
Description
Dimmer LED
| Product Description |
Product Selling:
·Dimmer LED can achieve digital light-controlled technology and TRIAC light-controlled technology.
·We have leading and trailing edge Dimmer LED, compatible with a wider range of light.
·Dimmer LED can start up at the minimum brightness, and has fast start-up time.
·Dimmer LED has overload protection functionality, and safety performance is guaranteed.
·If a fault occurs, Dimmer LED can automatically return to work when the fault is excluded.It demonstrates the performance is very stable.
·Professional R&D dept and sales team support you with good service of Dimmer LED.

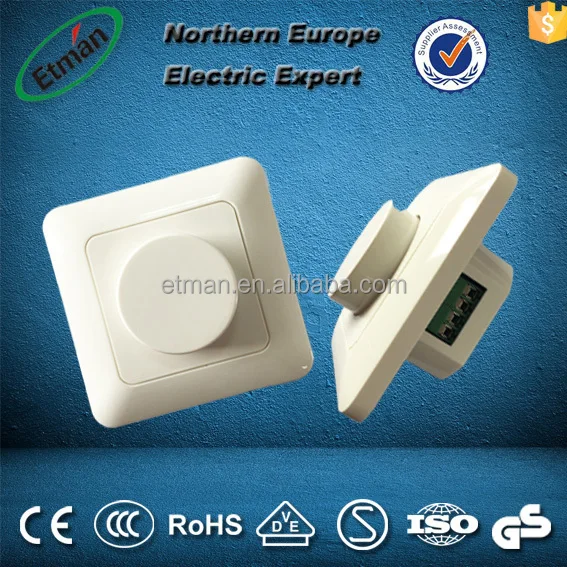

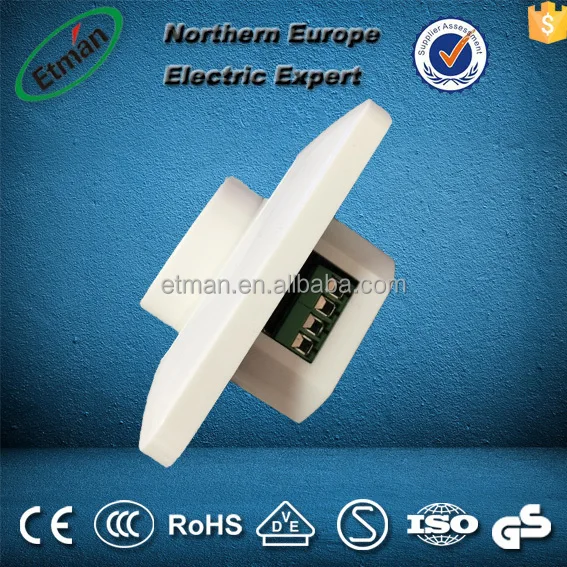

Dimmer LED has a beautiful appearance design.
Plastic material use PC. It’s harmless health and complies with RoHS standard.

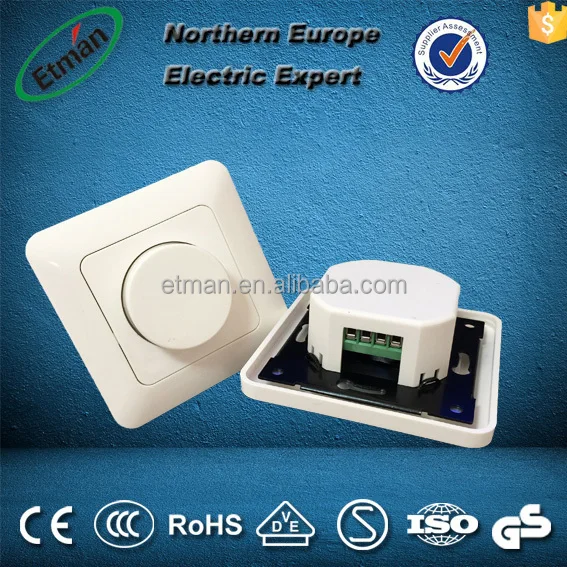

Quick installation and disassembly.
Dimmer LED dimming range can be able from 100% to 0.

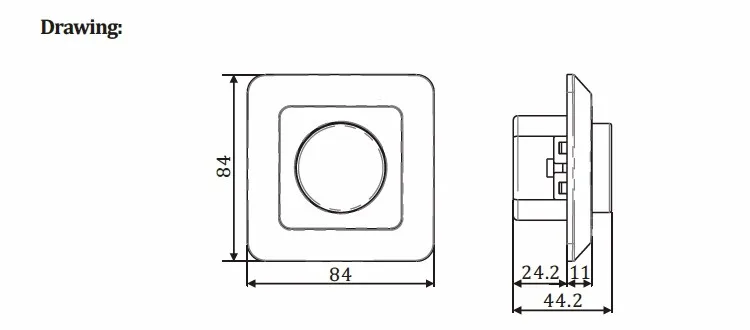

Dimmer LED plane size is: 84mm*84mm, it can be suitable for European market.
Center plane of Dimmer LED size is: 55mm*55mm,height is 47mm.
4 models Dimmer LEDes have the same appearance size.
| Flush-type dimmer for fixed installation | |
| Technical Data: | 250VAC |
| Frequency: | 50Hz |
| Colour : | White |
| Main material : | PC (Halogen free) |
| IP-Class : | IP20 |
| Max.Ambient temp.: | 45℃ |
| Fire hazard test : | 650℃/850℃ (IEC60695-2-1) |
| The product complies with the standard(s) : | EN 60669-2-1 |
| EN 60669-1 | |
The product is in conformity with the provisions of the following European directive(s) : | LVD (2006/95/EC) |
| RoHS (2002/95/EC | |
| WEEE(2002/96/EC) | |
| Certificate(s): | CE,Semko,EMC |
Technical info:
The Dimmer LED fits into standard wall boxes from ETMAN (cc 60mm) and in all ETMAN standard 55*55 combination plates. By surface fixing, please use surface house. By surface fixing, in combination with a switch or other regulators/dimmers, please use double surface house.

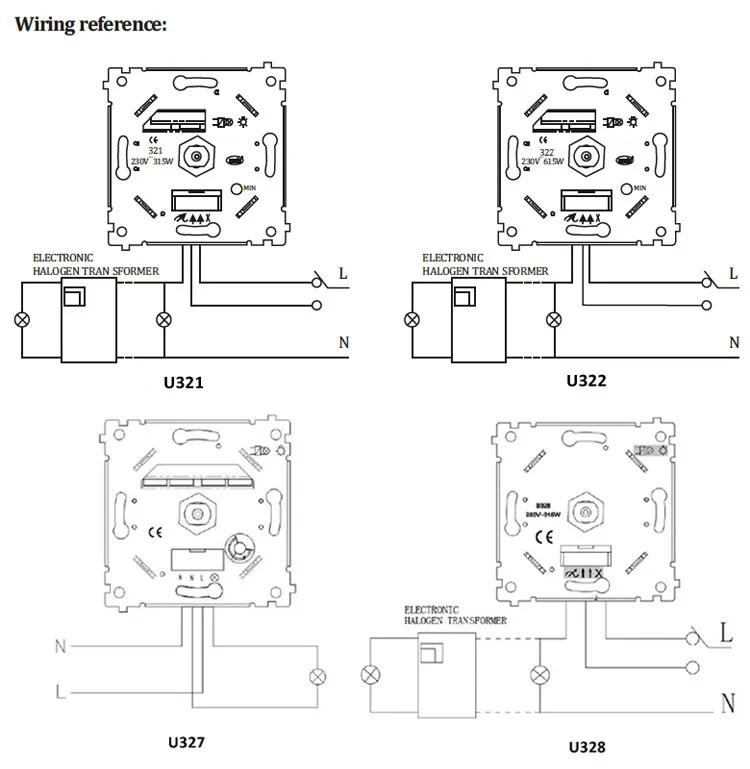

Dimmer wiring diagram
One end is connected with live wire and the other end is connected with neutral wire.
| Explosion Diagram |

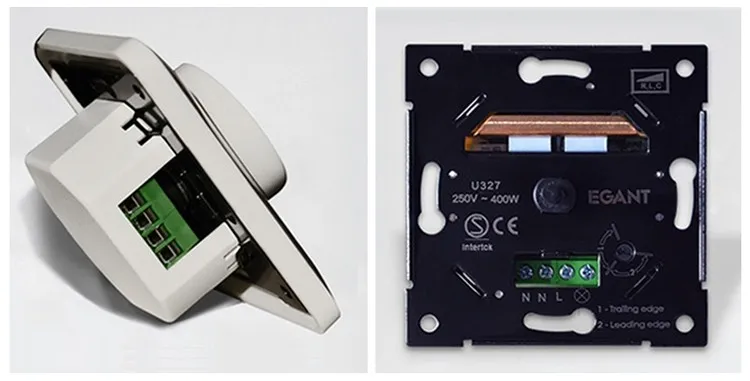

Main body unit is the most important part of the Dimmer LED.
Different models have different main body units.
Totally have 5 models: U321,U322,U327,U327-1,U328
Installation plate+Main body unit+Bottom box also can group together to sell.

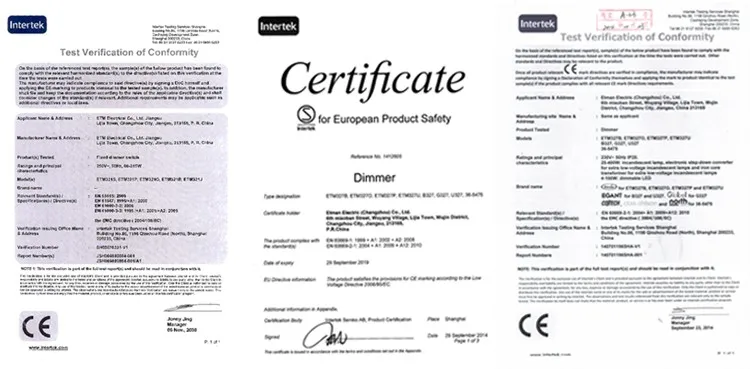

| Certifications |
U321 Dimmer LED has CE Certificate.
We can ensure the high quality of the Dimmer LED. If necessary, we can issue the RoHS declaration.
U327 Dimmer LED has CE and Semko Certificates complianced with European standards.
| Applicable Scopes |
All the places with usage of lamps need Dimmer LEDes.

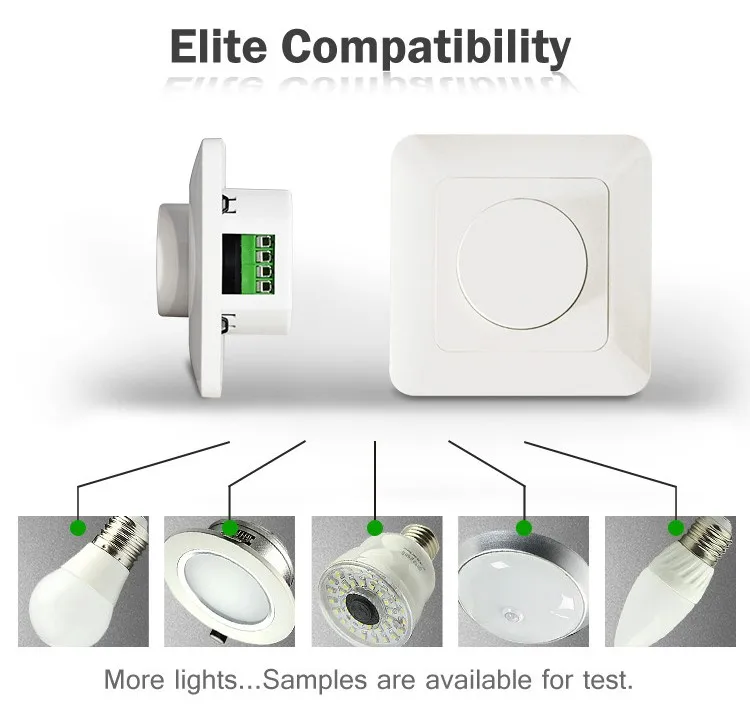

Dimmer LEDes for our R&D are suitable for the replacement from the traditional lamps to LED lights, such as incandescent lamps,halogen lamps,LED bulbs,downlights etc.
Dimmer LED is only designed for use in indoor areas.
| Family Model list |
| Production processes |
Dimmer LED flow chart:
Receive→IQC→Warehouse→Asembly→Burn in test→Packing→OQC
Dimmer LED Performance Guarantee:

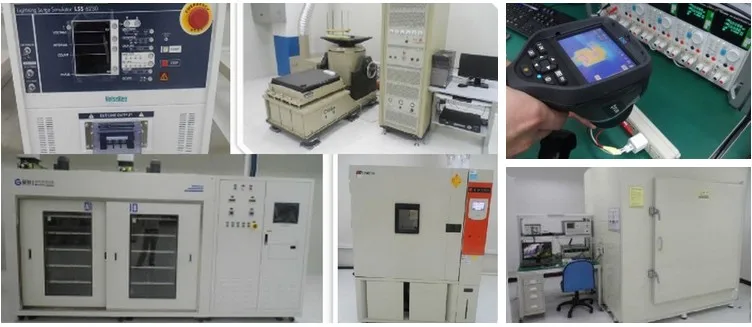

Laboratory has professional instruments and equipments to do different tests in order to guarantee the Dimmer LED quality.
Acoustic Noise test system and Infrared Thermometer.
Lightning Surge Simulator,Temperature and Humidity test,Vibration Testing System and Burn-In (ORT/DMTBF) Test etc.
| About us |

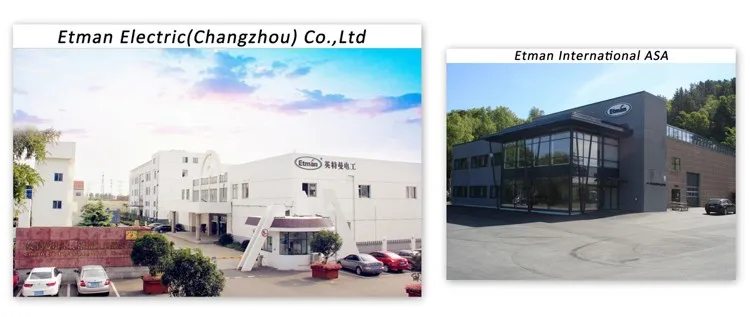

Etman International ASA
Etman International ASA is a Norwegian holding group with 4 subsidiaries located in China, Norway and Sweden. Totally has 9 outlets in Nordic area, selling products are our own Etman brand.
Etman Electric(Changzhou) Co.,Ltd
Etman Electric(Changzhou) Co.,Ltd is the manufacturing site of the group for more than 20 years and located in Changzhou, which is approximately 180km west of Shanghai, one of China's most attractive areas for production. We have lots of experienced staffs to produce products with high quality and low production cost.
Our company have certifications and test report for Dimmer LED and has more than 200ITS approved items and factory certificates.
Our main products includes:Wall Switch & Plug & Socket,Wall Box & Junction Box,Electric Cables,Energy Saving Illumination Products & Accessories,Dimmer LED
Our Service
We can do ODM and OEM for Dimmer LED. Package is as per your requirement.You can have your designed inner or outside package with your logo on it.If you need to use your design, we shall send you our dieline for your reference.
| FAQ |
Q1. How to Order Our Dimmer LED?
1 Interest in Dimmer LED, contact with us
2 Specification Confirmation
3 Sample or trail order available for check
Q2. Why Choose Us?
Advantages we have:
1Professional manufacturer with more than 20 years' experience
2High quality and top-end Dimmer LED
3Professional R&D dept and sales team support you with good service
4Alibaba Golden and Assessed Supplier, approved by TUV,Trade Assurance enterprise.
Benefit you get:
1 Stable quality Dimmer LED with high-end.
2 Delivery time: 30-45 working days for mass production.
3 Get 100% refund if quality and delivery time problem happens.
Q3. Delivery Terms&Time:
Usually FOB, as per customer requirement, CFR,CIF, EXW, DDU, DDP, Express acceptable.30-45 working days after deposit, as per product and quantity
Q4. Payment:
TT in advance(new customer), LC, etc
Q5. Delivery Terms&Time:
Shanghai, Ningbo, Shenzhen
Q6. How to select the Dimmer LED you need?
At present, totally have 5 types of Dimmer LED:

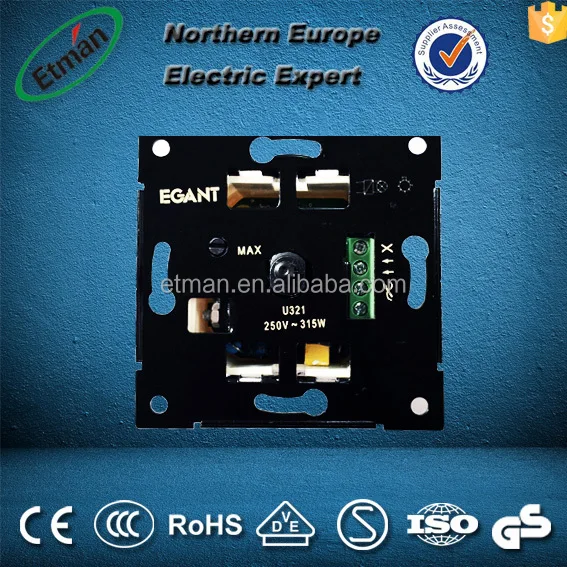

1.U321- Trailing edge, mostly uesd to LED downlights, dim range reaches to 315W.
2.U322- As the same as U321, only dim range is wider than U321 and reaches to 500W.
3.U327- Leading&Trailing edge, it has the widest scope of application, mostly uesd to the market that converting from traditional lighting to LED lighting.Dim range reaches to 400W.
4.U327-1 - As the same as U327, but dim range only has 80W.
5.U328- Leading edge, its price is the cheapest, dim range reaches to 315W.
Your choice mainly depends on the matching situation of lamps and Dimmer LED.
Sample and trial order is available.We can offer 1 piece free sample for testing.
Q7: If I don’t need the whole Dimmer LED, can I buy the internal component?
We are manufacturer, thus , we can provide both. For the whole Dimmer LED, our present design is for Schuko. The constructure is not suitable. However, we can provide the component unit to better fit.
