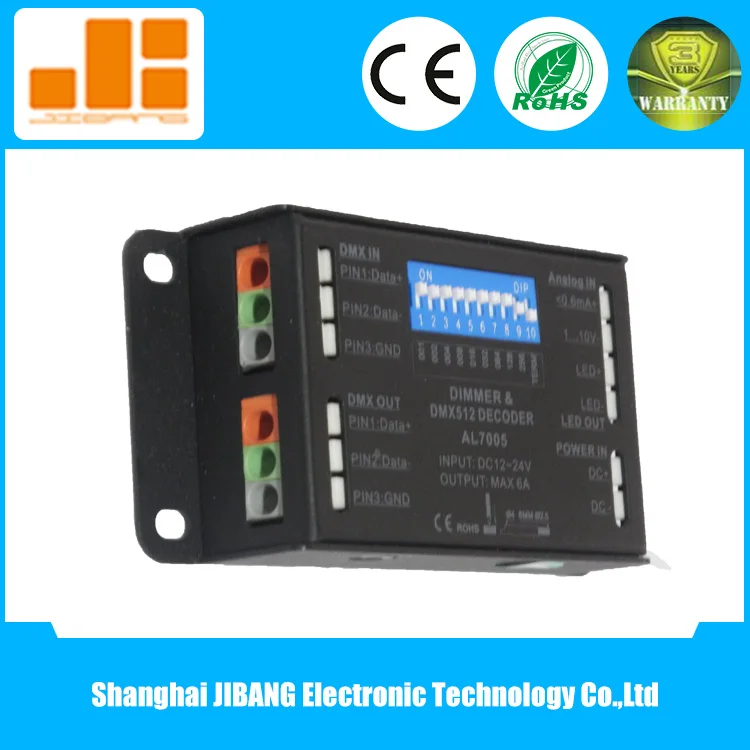

Priority DMX Signal Control 0 10V DMX512 PWM Dimmer for LED

Features of DMX512 decoder & 0-10V dimmer driver AL7005:

1, Meet with the current large scale system many signals output, this product is used for the convenience ofengineering to design.
2, Support DMX signal dimming function and 0/1-10V signal dimmer, priority DMX512 signal dimmer.
3, Single channel constant voltage to control, the nominal drive is 5A.the maximum driving ability is 6A.
4, No flicker, analog voltage active 0/1-10V dimmer, passive 0/1-10V dimmer general, can as the main dimming with the large control system.
5, Perfect dimming curve, the traditional 0/1-10V dimmer products, on the vision more than 70% brightness, then after regulation can’t see the LED brightness is still in change . But this product in the design through the chip decoding simulation value , breakthrough the dimming of straight proportion acquisition, and redefine a dimming curve value, do not jitter at low end, high-end is more than 95% of the brightness value still see the obvious change.
6, The product has test function, when has not signal input, the brightness as the maximum output, can through the input interface short circuit to test the product work or not, the input interface short circuit and the brightness will gradually dark to minimum value. When open the circuit it will keep the maximum brightness output.

Specifiction of DMX512 decoder&0-10V driver AL7005:

Input Voltage :DC12-24V                        Control Channels:1CH                    Output Current:<6A

Power:72w(12V)/144W(24V)                 Protection Grade: IP40                    Frequence:5000Hz

Light Gray Level:256                Connect Interface: Press Button Terminal

Control mode: DMX512signal (priority control)& 0/1-10V active or passive

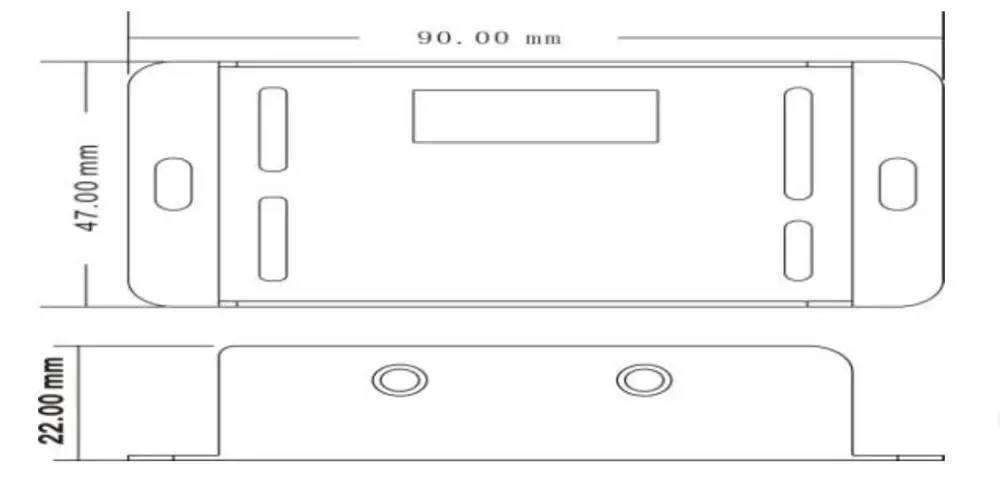

Gross  Weight:125g                                 Product Size: L90*W47*H22(mm)

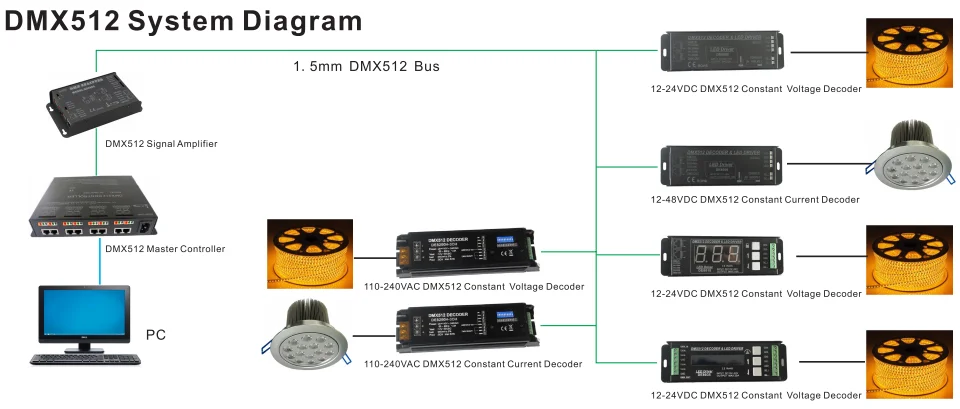

Tech-parameters of DMX512 Decoder Series:

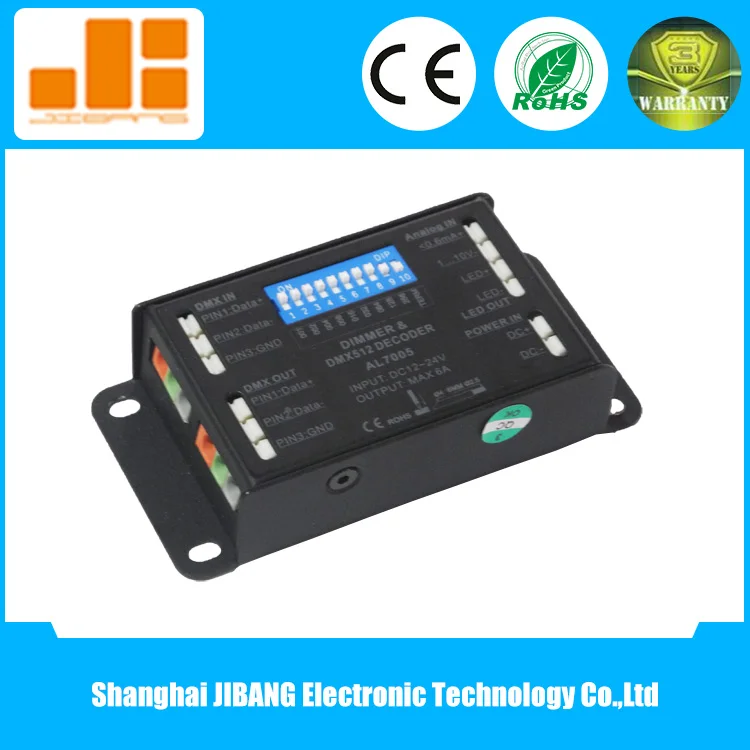

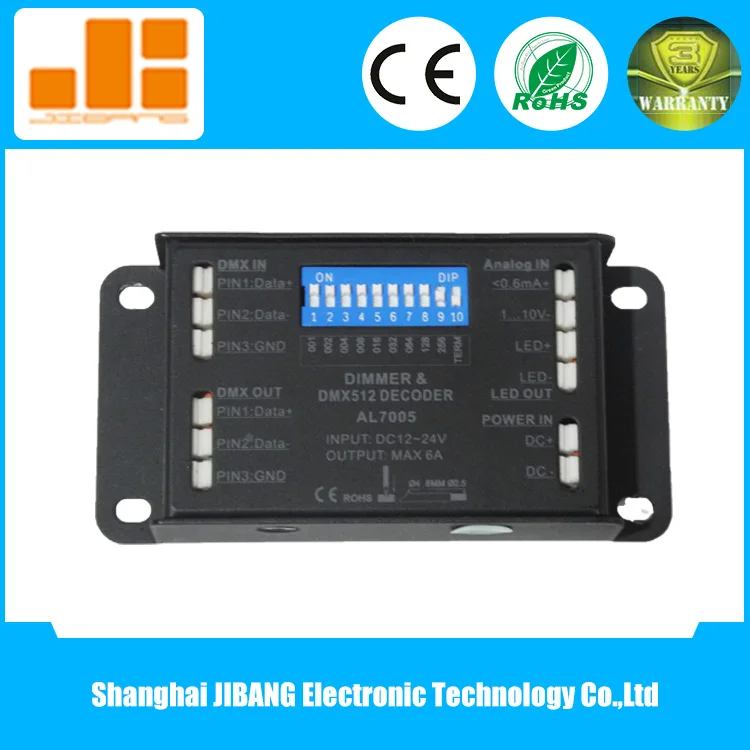

Images of DMX512 Decoder & 0-10V Dimmer Driver AL7005:

1, Product plan, connect the active 0/1-10V voltage regulator, or the passive 0/1-10V dimmer, the LED load and power’s negative and positive with the right interface, open the power supply, dimming the 0/1-10V voltage regulator,so as to change the output of the controller, until getting the satisfactory of LED output. When the[ Analog IN ] port impending. Controller all light output; when the[Analog IN] short circuit and the output closed.

2, When DMX signal input, the 1 ~ 10 V analog signal will through the CPU disconnect, priority DMX signal control.

NOTE: AL7005 canbe used as DMX decoder or 0/1-10V dimmable driver.It also can be connectted with both DMX512 controller and 0/1-10V dimmer switch at the same,which priority DMX signal control.As we can change color first by DMX512 and then change brightness by 0/1-10V,it realize both color and brightness changing.

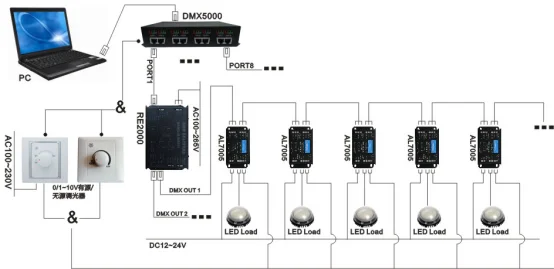

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output interface: signal positive, signal negative, signal ground, please corresponding polarity connection with AL7005.
2, DMX Master output and AL7005's transmission lines can't be over 300 meters.
3, DMX Master(DMX5000) each interface can with not more than 170 pieces of AL7005. Eight output interface.Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact theDMX lights.
4, When contacted 32 pieces of AL7005, DMX signal must add a signal amplifier RE2000. Cascade can't more than4 PCS
5, 0/1-10V simulator dimmer interface signal connection, please choose to surge of smooth curve 0/1-10V dimmers, otherwise may directly affect the smoothness of the LED light
6, The load LED and the controller of power's voltage must be consistent, and must be on the product of the input voltage regulation range.
7, If in a bus and take many pieces of AL7005 dimmer driver, please make sure the dimmer switches with the effective load capacity.
