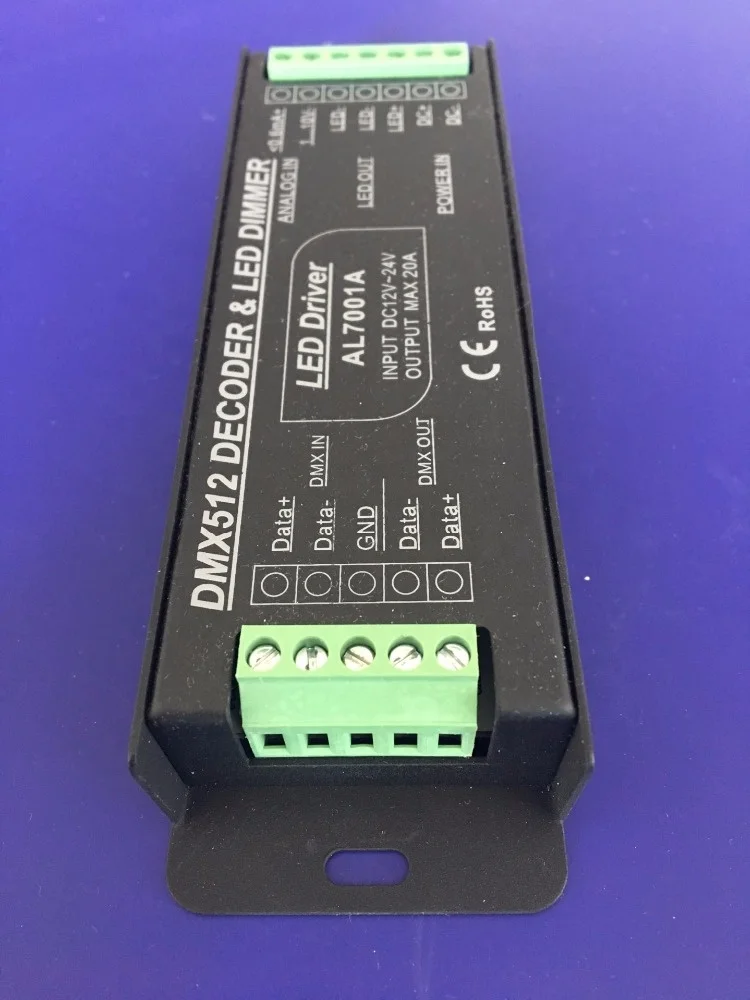

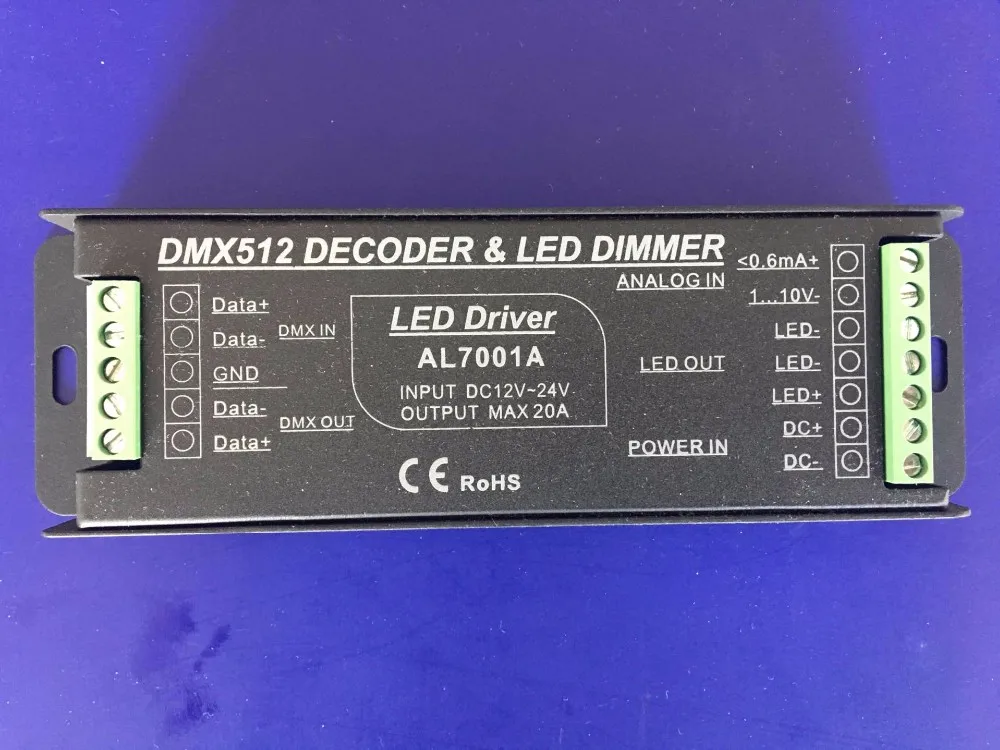

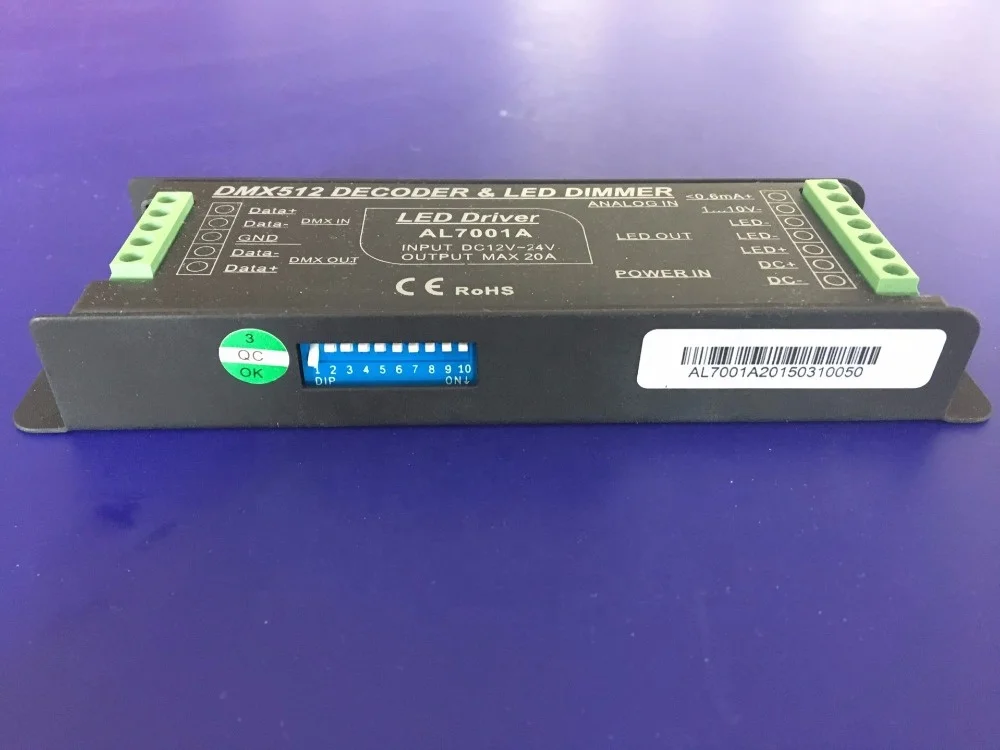

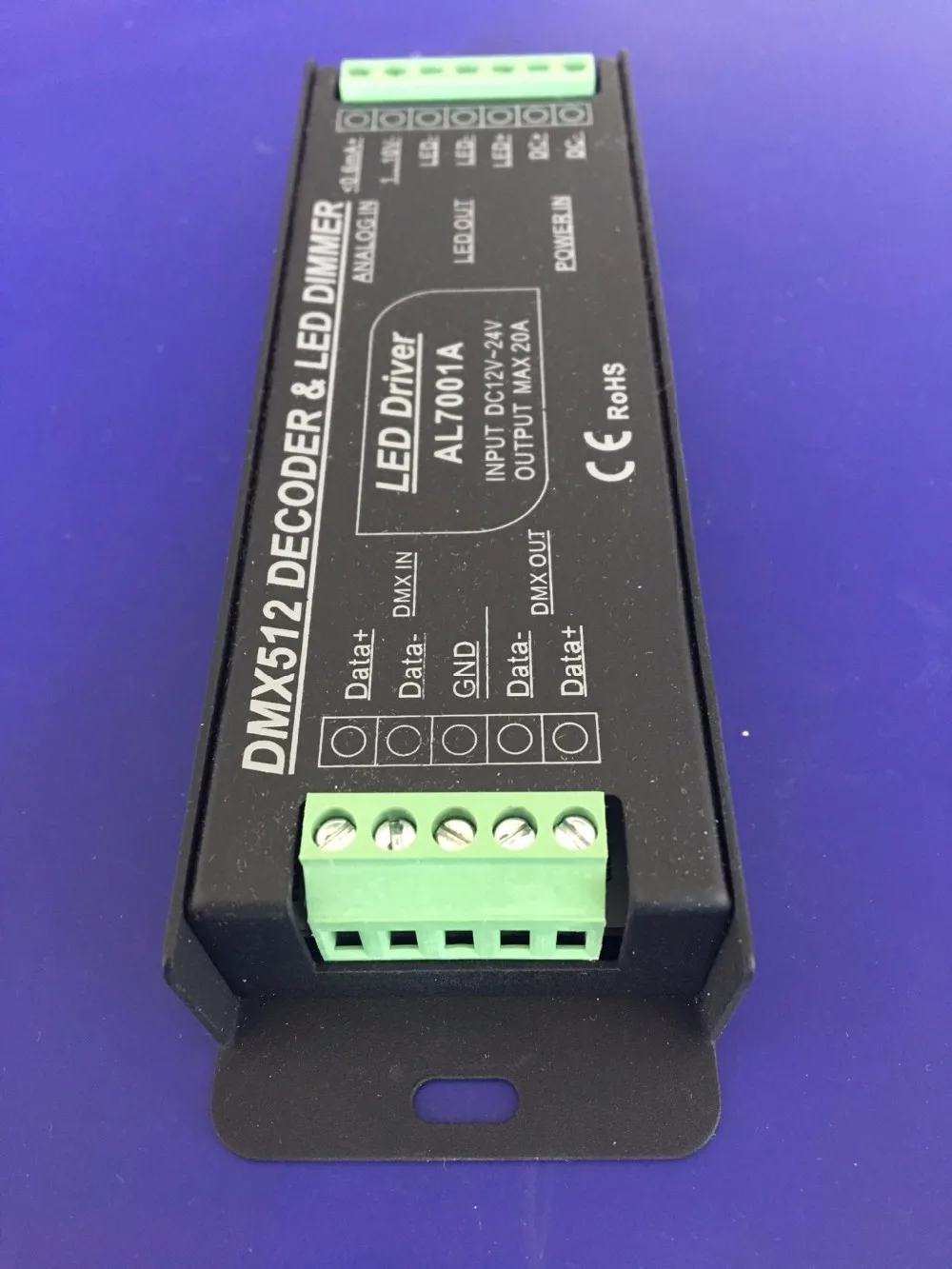

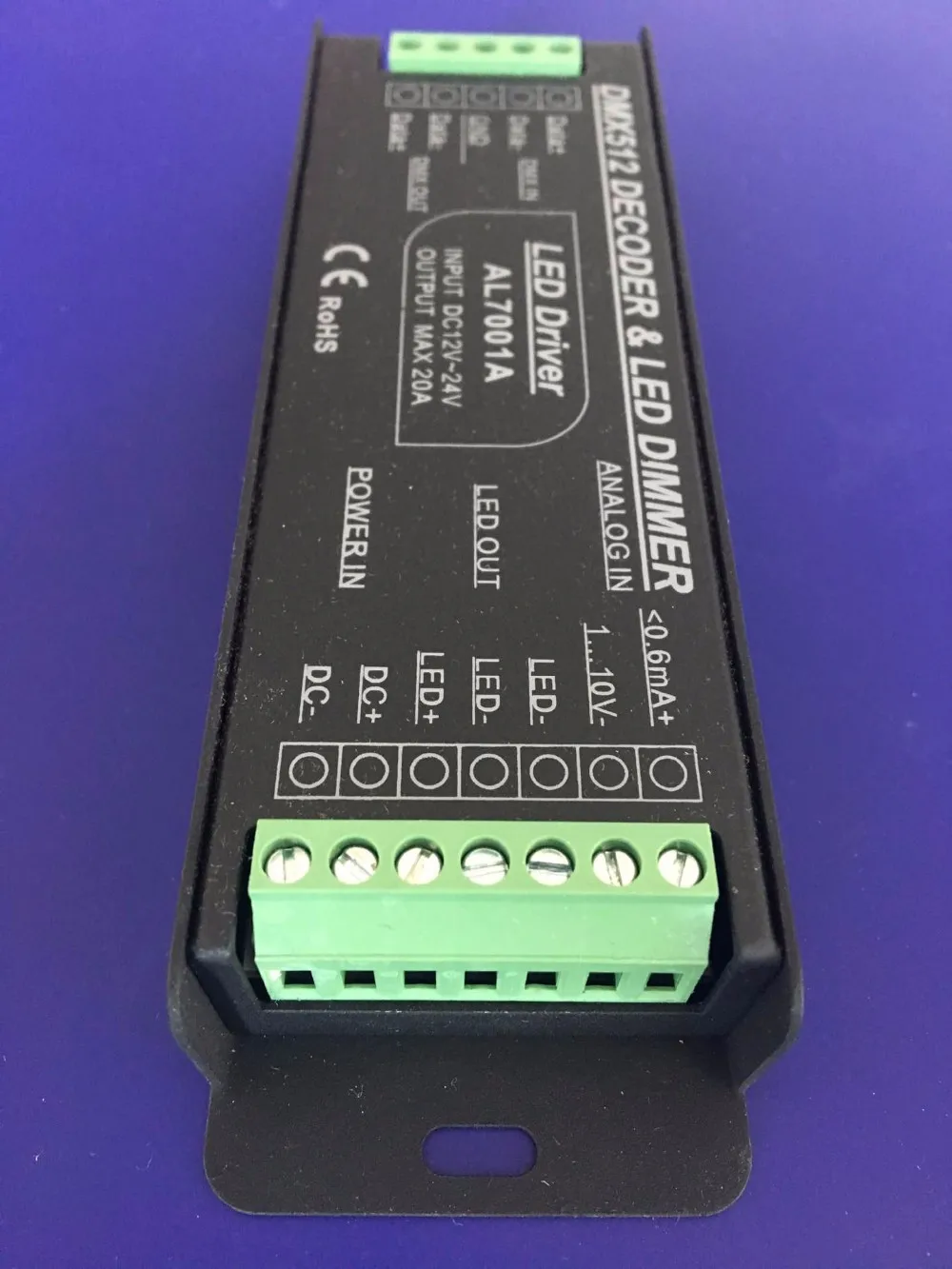

20A Dimming 0 10V PWM LED DMX Dimmer for Digital LED Light

Features of Dimming 0-10V 12 Volt LED Dimmer

1,Meet with the current large control system many signals output, this product is used for the convenience of engineering to design.

2,Support DMX signal dimming function and 0/1-10V dimmer, priority DMX512 signal dimmer.

3,Single channel constant voltage to control, the nominal drive is 8A.the maximum driving ability is 20A.

4,No flicker, analog voltage active 0/1-10V dimmer, passive 0/1-10V dimmer general, can as the main dimming with the large control system.

5,Perfect dimming curve, the traditional 0/1-10V dimmer products, on the vision more than 70% brightness, then after regulation can’t see the LED brightness is still in change . But this product in the design through the chip decoding simulation value , breakthrough the dimming of straight proportion acquisition, and redefine a dimming curve value, do not jitter at low end, high-end is more than 95% of the brightness value still see the obvious change.

6,The product has test function, when has not signal input, the brightness as the maximum output, can through the input interface short circuit to test the product work or not, the input interface short circuit and the brightness will gradually dark to minimum value. When open the circuit it will keep the maximum brightness output.

Specification of Dimming 0-10V 12 Volt LED Dimmer

Details of Dimming 0-10V 12 Volt LED Dimmer

1,Product plan, connect the active 0/1-10V voltage regulator, or the passive 0/1-10V dimmer, the LED load and power’s negative and positive with the right interface, open the power supply, dimming the 0/1-10V voltage regulator, so as to change the output of the controller, until get the satisfactory of LED output. When the[Analog IN] port impending. Controller all light output; when the[Analog IN] short circuit and the output closed.

2,When DMX signal input, the 1 ~ 10 V analog signal will through the CPU disconnect, priority DMX signal control.

Wiring Diagram:

Installation Notes :

1,DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output interface: signal positive, signal negative, signal ground, please corresponding polarity connection with AL7001A.

2,DMX Master output and AL7001A's transmission lines can't be over 300 meters.

3, DMX Master(DMX5000) each interface can with not more than 170 pieces of AL7001A. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights

4, When contacted 32 pieces of AL7001A, DMX signal must add a signal amplifier RE2000. Cascade can't more than 4 PCS

5, 0/1-10 V dimmer interface signal connection, please choose to surge of smooth curve 0/1 -10 V dimmers, otherwise may directly affect the smoothness of the LED light

6, The load LED and the controller of power's voltage must be consistent, and must be on the product of the input voltage regulation range.

7, If in a bus and take many pieces of AL7001A dimmer driver, please make sure the dimmer switches with the effective load capacity.
