Lab Microscope Camera USB3.0 CMOS Eyepiece Camera 5.1MP

Share on (60473904559):


Price:$87.00 - $97.00

Quantity:


Product Overview

Description


Choose Us,You Can Enjoy The Business





Labomed Microscope Adapter


Model:S3CMOS05100KPA











S3CMOS is an economic version with simple and compact structure USB3.0 CMOS eyepiece camera. So here, the S means simple and compact. USB3.0 is used as the data transfer interface.


Microscope eyepiece camera with 23.2 diameter and compact size;


The S3CMOS comes with high-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption;


Also the S3CMOS comes with advanced video & image processing application Software;


The S3CMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.


With 23.2 to 30mm or 23.2 to 30.75 convert ring, the S3CMOS camera can also change the stereo microscope to digital stereo microscope.



We have many other types, if you want to learn more about this product, please contact with me to get the latest catalog!! We can meet your needs!





My Information:


Skype:mindfull-tech


Whatsapp:+8613625710421

























Code



Sensor Size(mm)



Pixel(μm)



G Responsivity


Dynamic range


SNRmax



FPS/Resolution



Binning



Exposure(ms)



S3CMOS05100KPA



5.1M/IMX335(C)
1/2.8’’(5.18x3.89)



2.0x2.0



505mV


70dB


43dB



20@2592x1944
20@1280x960
20@640x480



1x1


1x1


1x1



0.1-2000 ms

























































































Other Specification for S3CMOS Camera



Spectral Range



380-650nm (with IR-cut Filter)



White Balance



Auto White Balance



Color Technique



N/A



Capture/Control API



Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)



Recording System



Still Picture and Movie



Cooling System*



Natural



Operating Environment



Operating Temperature(in Centidegree)



-10~ 50



Storage Temperature(in Centidegree)



-20~ 60



Operating Humidity



30~80%RH



Storage Humidity



10~60%RH



Power Supply



DC 5V over PC USB3.0 Port



Software Environment



Operating System



Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit),OSx(Mac OS X),Linux



PC Requirements



CPU: Equal to Intel Core2 2.8GHz or Higher







Memory:2GB or More







USB Port:USB3.0 High-speed Port







Display:17or Larger







CD-ROM








Pictures:

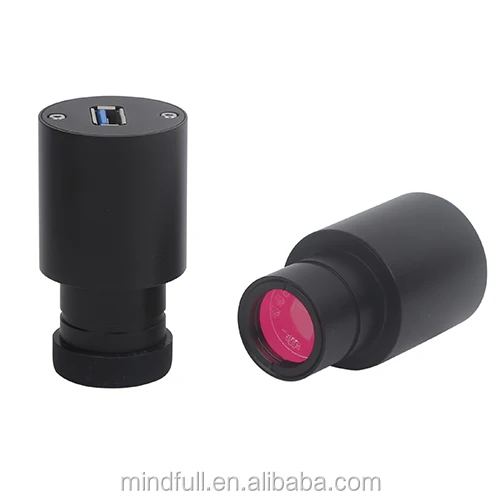

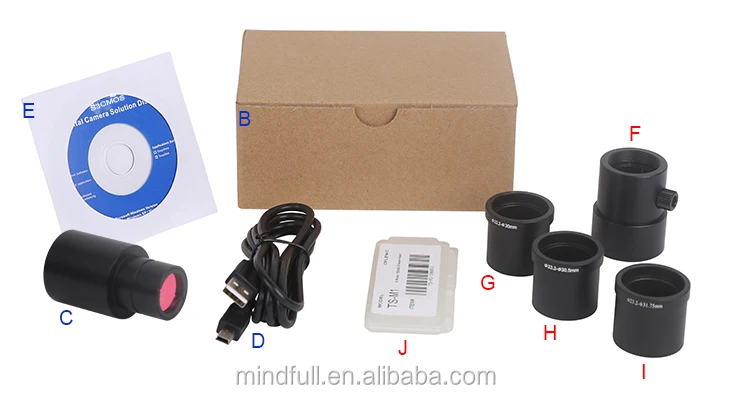

microscope camera mindfull.jpgS3CMOS05000KPA.jpg


Our Services





1.Mindfull is a professional of microscope camera exporter, which is producing and exporting camera over 15 years





2.We have the certification of ISO 9001:2008 quality management system, also the certification of ISO14001:2004  environment management systerm. We can assure you of good quality and best price.We can offer Test Report you need!





3. Strong production capacity: All the items are produced by its own production line





4.OEM /ODM is available: accepted,we can produce any your design.





5.Good Service: we treat client’s as friend.





6.Quick lead time: we are dedicated to providing the quickest times and work very hard to ensure that all of your deadlines are met.





Company Information


2





Container Loading






FAQ for Reference:








1.Q. Can we print our own logo?





   A. Yes,we offer OEM service.





2.Q. Do you provide sample?





   A. Yes,we provide sample and the sample cost will be reback to you when confirm the order





3.Q. What is the payment ?





   A. Usually 30% T/T Deposit and the balance before the shippment





4.Q.How can i contact you?





  A.You can enter you detail questions or inquiries at below table,then just click "send".





  If you have any urgent questions,you can click the TM direct contact me.





5.Q. How is your quality control?


 (1) confirm everything with our client before moving to sourcing and production;


 (2) check all the materials to ensure they are correct;


 (3) employ experienced workers and give them proper training;


 (4) inspection throughout the whole production process;


 (5) final inspection before loading.





6.Q.Can you design for us?


   Yes. We have a professional team having rich experience in trophy design and manufacturing. Just tell us your ideas and    we will help to carry out your ideas into perfect trophy.





7:Q.When can I get the price?


   We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.





Please Contact With Me ASAP To Get Best Price,send me email at the bottom of this page, I will reply you today!!!
