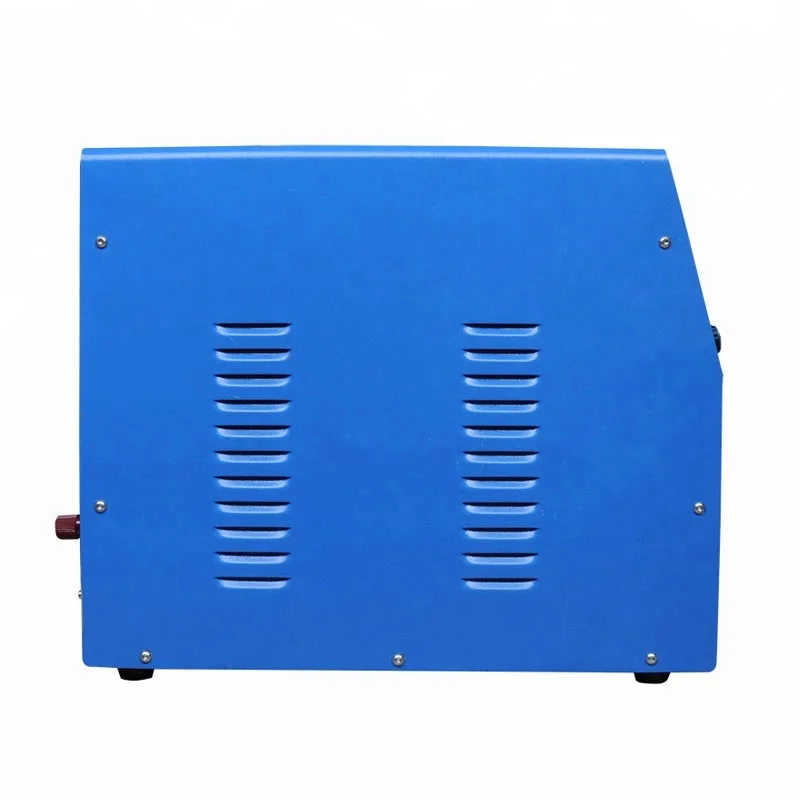

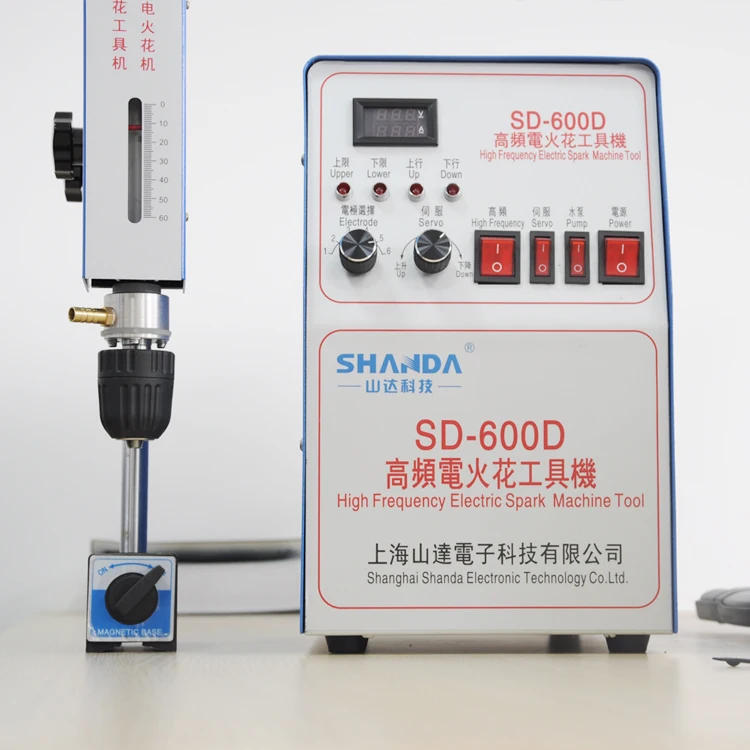

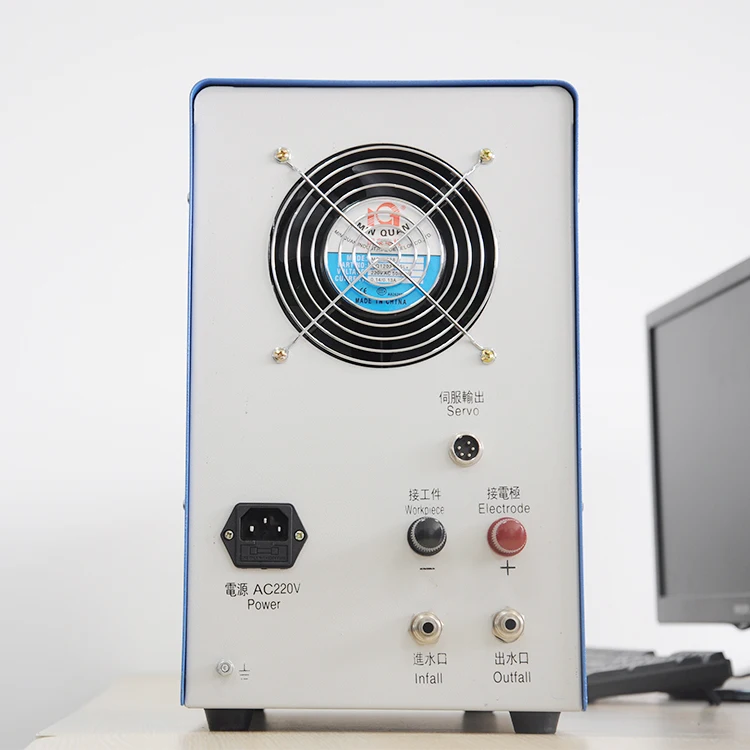

SD 600D EDM machine from Shanda electrical machine company

Product Overview

Description

SD-600D EDM machine from Shanda electrical machine company

Main data:

Model	SD-600D
Input	AC220V 50/60HZ
Power	600w
Voltage	80v
Electrode range	0.5-10mm
Manual travel	310mm
Automatic travel	60mm
Processing speed	≥1mm/min
Working liquid	Water
Weight	15kg

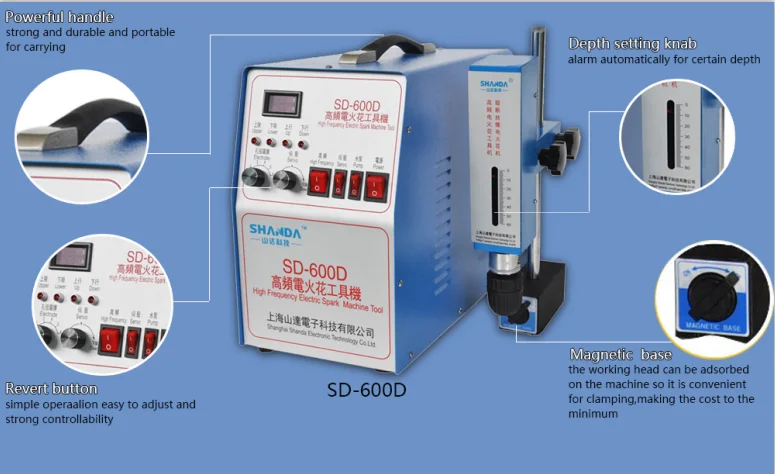

♦  Main Features

1, Cut off the tap,broken the bit

2, High frequency pulse width(PWM)technology.Digital display voltage,current

3, Limit upper and lower,motor protection

4, Self chuck,especially convenient for loading electrode

5, Using the principle of electrical erosion,processing the workpiece without force,do not damage the workpiece

6, Processing a variety of electrically conductive materials

7, Apply conversion electrode which can process 0.5mm to 30mm.

8, Various angles,different shapes from surface of electrodes,processing multiple holes



                          More details







♦ Packaging details: inner plastic, outer plywood case

♦ Delivery detail: 15-20 days afterpayment





Minimum order quality: 1 set

Port: Shanghai or any Chinese port

Payment Method: L/C, T/T, Western Union, MoneyGram

Supply Ability: 200 sets/month

Warranty period: 12 months



1. What’s your MOQ ?

2.  Could we use our own brand on your machine ?

     Yes, we would love to accept.

3. Could your engineers go to our factory to install the machine and train our workers?
       Yes, our engineers could go to your factory and assist you.
4. Whats your fast delivery time ?
    According to machine, our production time is from 7 days to 30 days, and some machines are in stock.
5. Could I visit your factory ?
     Yes, sure, welcome.

1.Warranty is one year and if any parts broken within one year(consumbles not included and under correct operation),we will send you new one by express for your change.
2.Your mail of problem will be replied within 24 hours and solution provide within 3 working days

3.Free Installation instructions and other helps from our engineers.

4.Cost-free training Video for you.

5.OEM available.
