Dn15 Class B R160 Brass Water Meter Body Single-Jet Dry Type Cold Water Meter
Why choose us
Product Description
Single-jet,dry-dial cold(hot) water meter
Application
Measuring the volume of cold potable water passing though the pipeline.
Feature
a)Single-jet,dry-dial,free rotating register,small size and lighet weight;
b)Magnetic drive,Resistance to exterior magnet interference;
c)Keep the reading clear in a long time;
d)Measuring conform to ISO4064 class B;
e)Good looking.
Working condition
Water temperature:0.1℃~40℃
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
(1). In lower zone from incluing the min flow to excluding the transitional flow:±5%.
(2). Inupper zone from incluing the transitional flow to including the max flow:±2%.
MAIN TECHNICAL SPECIFICATIONS
Type
Size(mm)
Class
Overload Flow
Permanent Flow
Transitional Flow
Min. Flow
Min. Reading
Max. Reading
m3/h
L/h
M3
LXSG-15S
15
B
3.0
1.5
120
30
0.000
199,999,999
LXSG-20S
20
B
5.0
2.5
200
50
0.0001
99,999,999
DIMENSION
Type
Size
Length
Width
Height
Connecting Thread
mm
LXSG-15S
15
110
75
72
G3/4B
LXSG-20S
20
130
75
72
G1B
If you are interested in our water meter, please feel free to contact us!

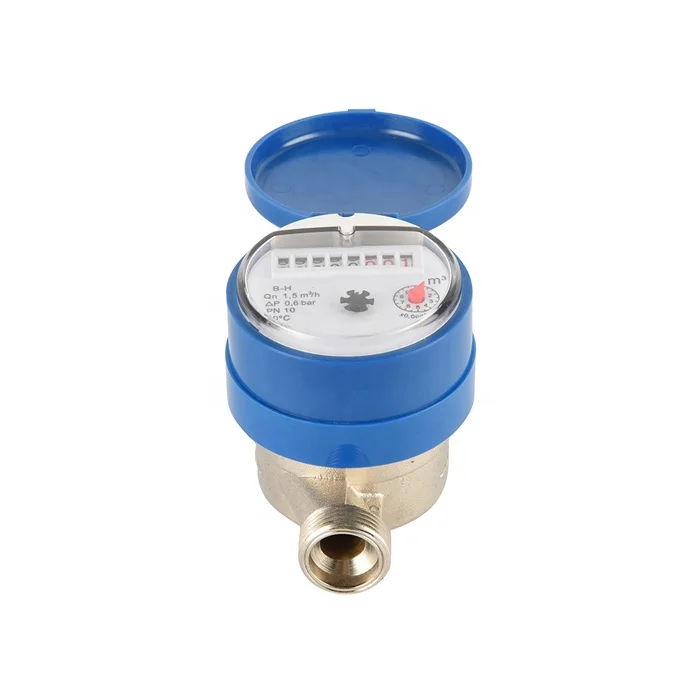

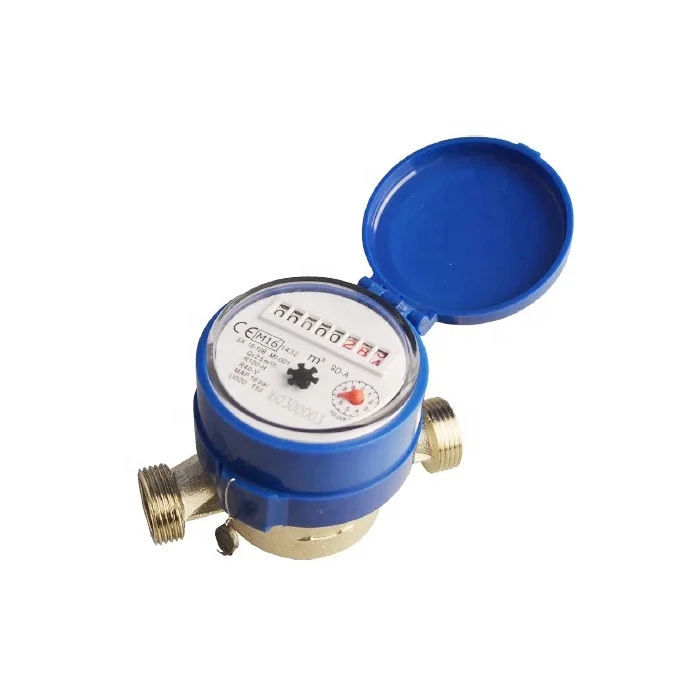

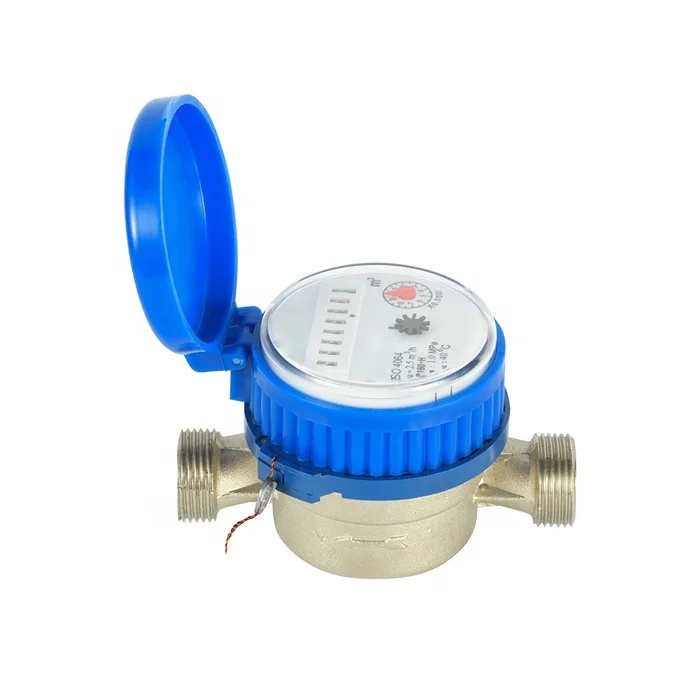

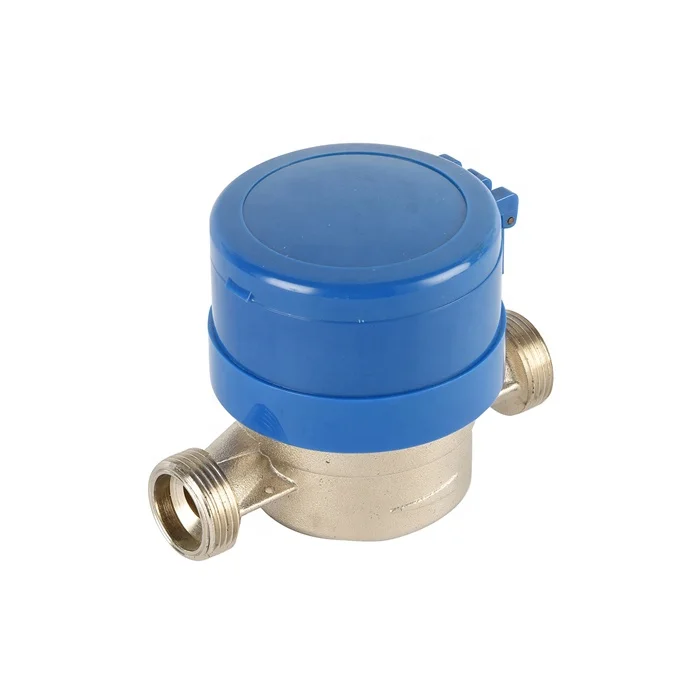

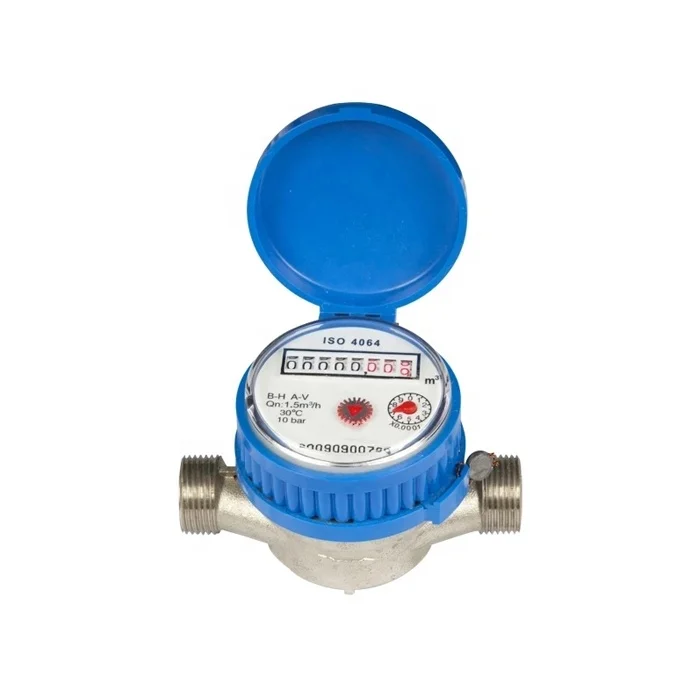

Detailed Images
