screw joint colored steel chicken house building machine

Product Overview

Description



company information:
Yingkou Samsung Roll Forming Machine Co., Ltd. is the first company in China to produce drag chain roofing machines since 1992. The only company with engineering qualifications. We are not only a mechanical professional, but also have project design experience.

technology:
The steel storage produced by the production line and silo manufacturing machines is connected to several steel plates, which will replace the traditional welding method. Easy maintenance, saving time and cost of installation and production. The silo will have a good seal and a curled five-layer spiral. Steel storage lines and silo manufacturing machines connect the steel very tightly, so that the silo is well tolerated even with chemicals or fumigated products.

process:

The steel will undergo five forming and bending procedures with strips 2 to 4 mm thick and 495 mm wide. It will then be forced to merge and spirally stitch into a 4-50 meter high cylinder of different diameters. Steel storage lines and silo machines also add sealant to the spiral joints for storing liquids and even wastewater.

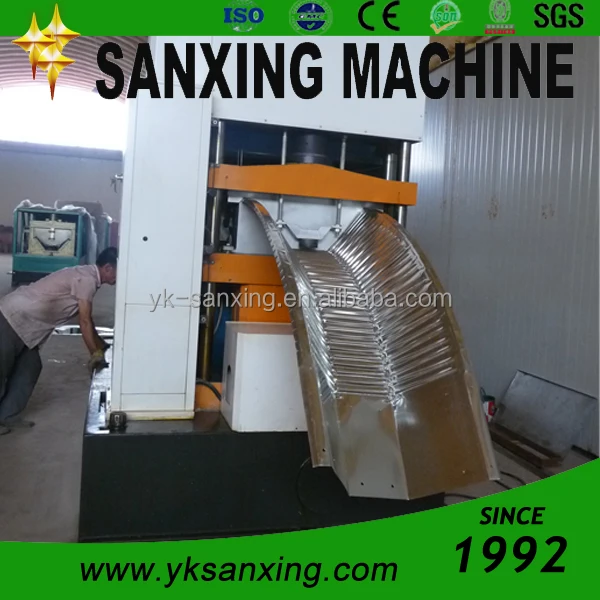

1. PUNCHING AND FORMING PART

1) Size: 11000mm×1500mm×2100mm

2) Total Weight: about 10000KG

3) Total Power: 16KW

4) Punching power: 5.5KW;

5) Forming power is 7.5kw;

6) Cutting power is 3.0kw

7) Controlling system: CNC and PLC

8) Step of rollers: 13 steps

9) Amount of holes: 8

10) Distance of holes: 360mm

11) Diameter of holes: 8mm

12) Working speed: 8m/min

13) Material of rollers: 45# steel, quenched HRC 58-62

14) Material of roller shafts: 45# steel, quenched HRC 58-62

15) Material of cutting blade: Cr12, 1 Mov steel

16) Feeding Width: 1000mm

17) Effective Width: 680mm

18) Thickness of the coil: 0.8-1.5mm

19) Operating factor of the panel: 68%

20) Electric Standard: 380V / 50 HZ / 3 PHASES

21) Proper span: ≤32m

Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of cold roll forming machine, we are also a supplier for lots of Chinese trading company and manufacturer.
Our main products include ultimate construction machine, automatic construction machine, screw joint roll forming machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, deck floor roll forming machine, sandwich panel roll forming machine, C/Z shape steel purlin roll forming machine, light steel frame roll forming machine, rolling door roll forming machine, etc.
Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company.
