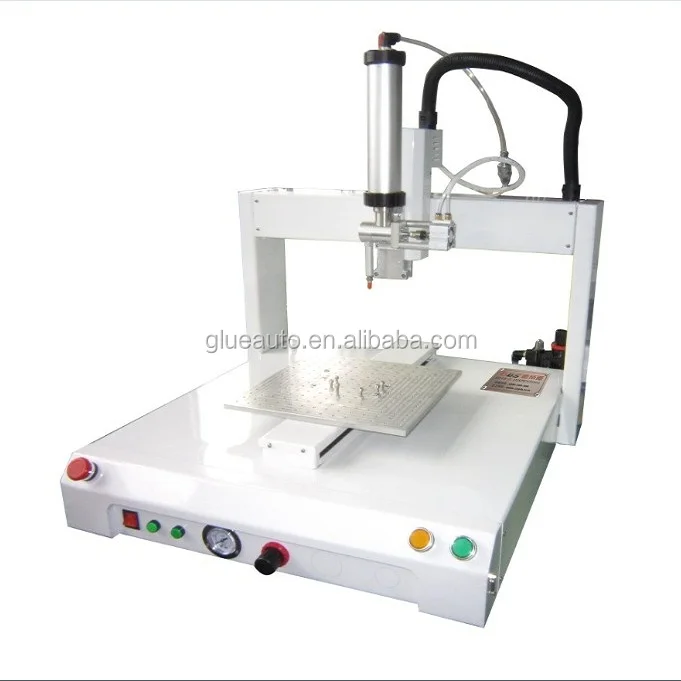

High speed and accuracy Desktop Three axis Glue Dispensing Machine automatic glue dispenser
- Category: Electronic Products Machinery >>>
- Supplier: Zhongshan GDS Automation Equipment Co. Ltd.
Share on (60479248012):
Product Overview
Description

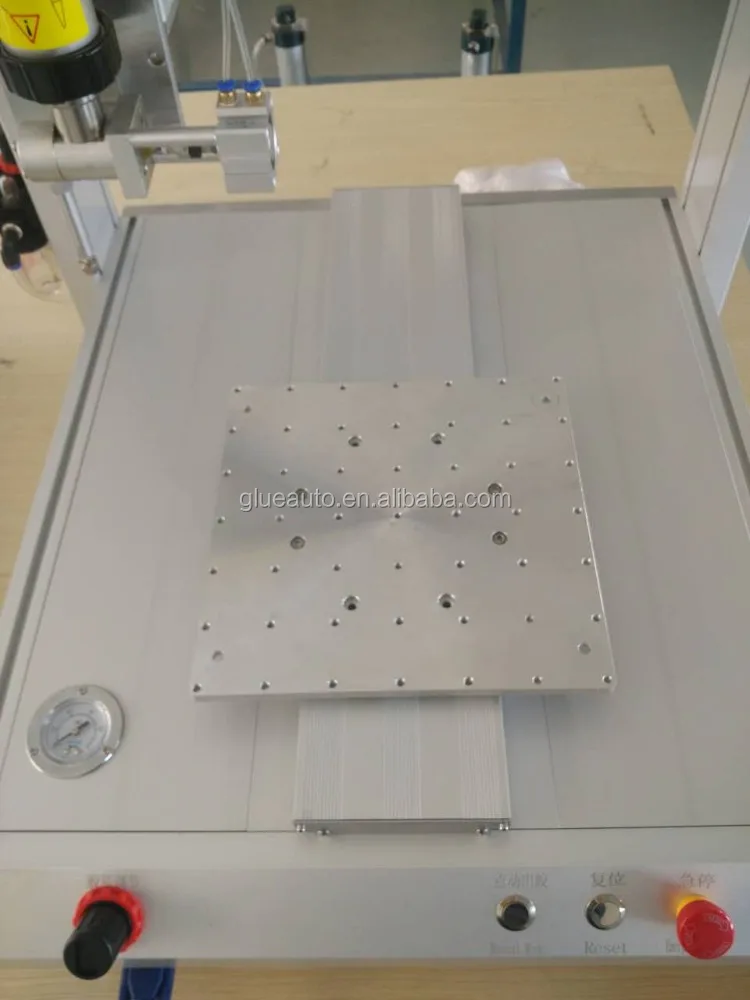

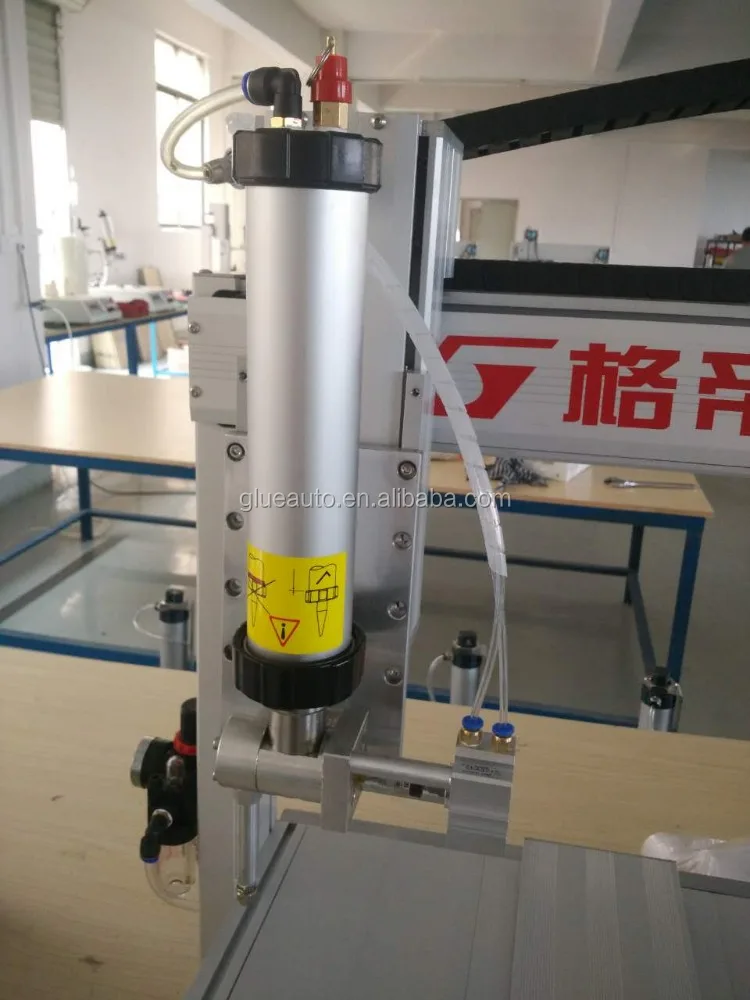

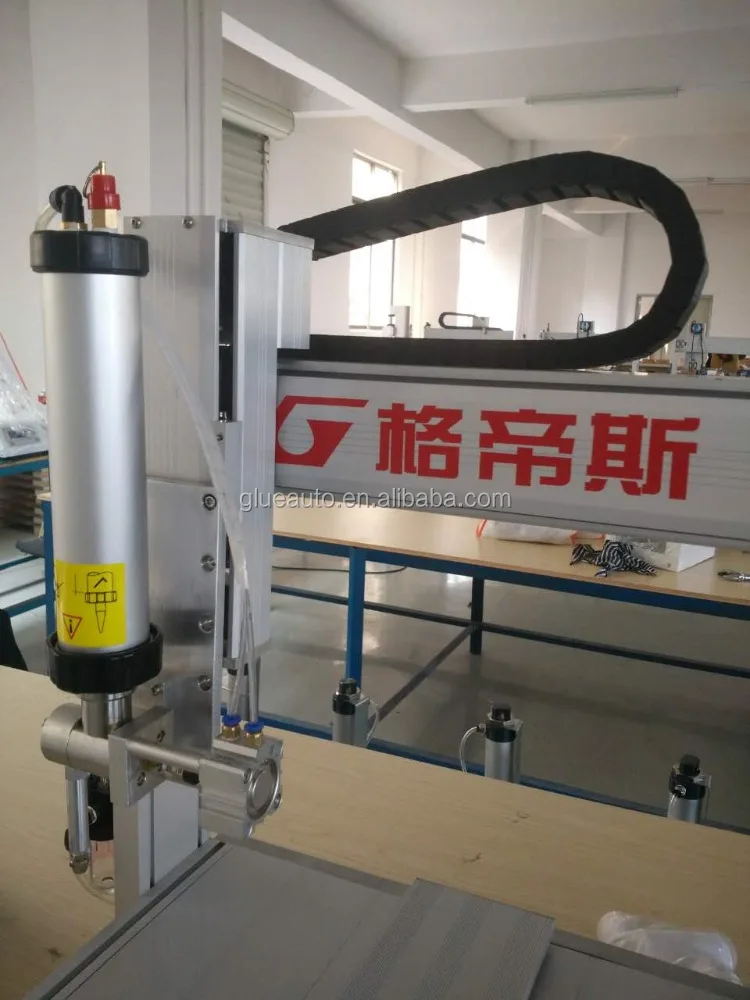

Three-axis Glue Dispensing Machine is suitable for single component glue and can be used for flood light and other outdoor lights gluing. The working theory is as following. Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air.
Machine Features

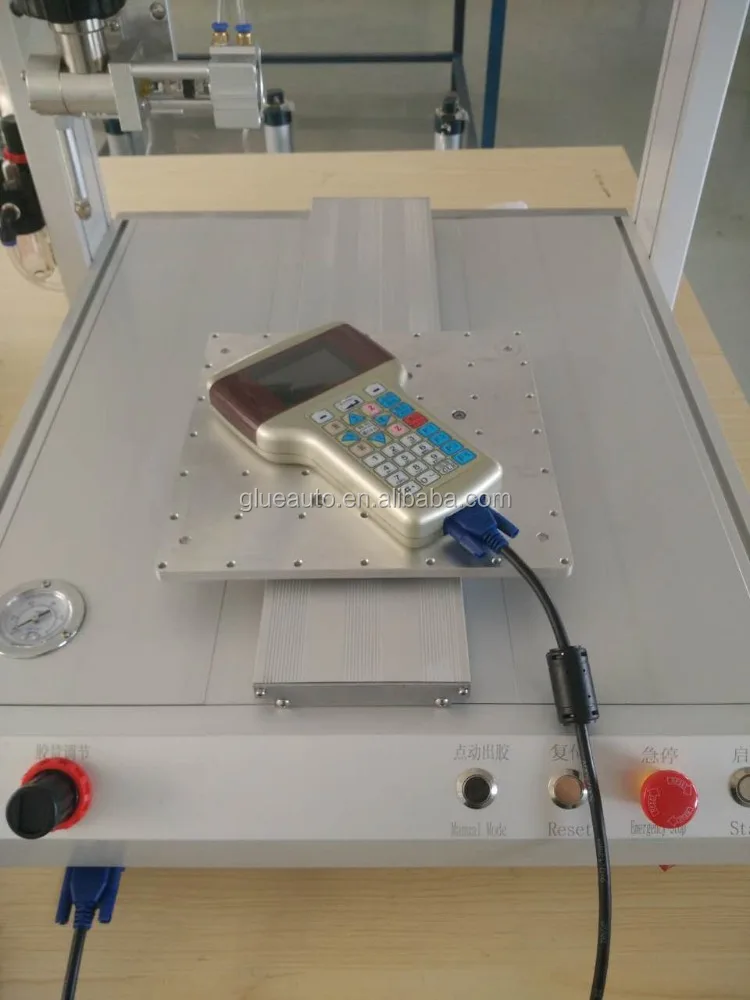

- Desktop design with hand programming controller, easy to learn and operate;
- Gluing track can be set as points, line, surface, full circle, arc and combinations etc;
- The instructions can be copied and arrayed;
- Equipped industrial PLC controller, for different glue with different settings ensure the best performance.
- Glue flow is stable without leakage and drawing.
Model | TD-400 |
| MCU | Three-axis Movement Controller |
| Programming Mode | Teaching programming case |
| Drive Mode | Precise stepping motor+synchronous belt+linear guide-way |
| Working Range | 400(X)*400(Y)*100(Z)mm(Non-standard can be customized) |
Max Moving Speed | MAX 500mm/sec |
Repeat Accuracy | ±0.02mm |
| Program Memory Capacity | About 10000 unit |
Dimension | L500*W850*H1300mm |
| Weight | 50Kg |
| Working Power | AC220V/50~60Hz/150W |
Working Air Pressure | 0.4 ~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature:0 ~ 40℃ humidity:20 ~ 90% |
Applications: Various lights, auto parts, digital products, optics lens, mechanic parts, semiconductor encapsulation etc.
