remote flow meter fluoroborate industrial effluent electromagnetic flowmeter
- Category: Flow Meters >>>
- Supplier: Hangzhou Meacon Automation Technology Co. Ltd.
Share on (60479538335):
Product Overview
Description
Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as:
Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
Nominal diameter | 15-2000mm | ||||||
Velocity range | 0－10m/s | ||||||
Degree of accuracy | ±0.1%R，±0.5%R，±1%R（＜DN20 ) | ||||||
Medium conductivity | ≥5uS/cm，Actual conductivity≥30uS/cm | ||||||
Nominal pressure | 1.0MPa | 1.6MPa | 2.5MPa | 4.0MPa | |||
DN15-DN800 | DN15-DN800 | DN15-DN600 | DN15-DN50 | ||||
Environment temperature | Sensor | 0℃ - +80℃ or -25℃ - +120℃ or + 70 -+ 250℃ | |||||
Compact type | -10℃ - +55℃ | ||||||
Highest medium temperature | Compact type | +80℃ | |||||
Remote type | CR chloroprene rubber liner (CR) | +80℃ | |||||
Polytetrafluoroethylene lining(F4) | +120℃ | ||||||
Politef lining(F46) | |||||||
Teflon(PFA) | +180℃ | ||||||
Fluorosilicone rubber(FVMQ) | +250℃ | ||||||
Output signal | 4-20mA；Pulse/Frequency 2kHz(Default)，5KHz(Max) | ||||||
Cable entry size | M20 × 1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector) | ||||||
Supply voltage | 110/220VAC(100-240VAC)，50Hz/60Hz；24VDC ±10% | ||||||
Power dissipation | ≤15VA | ||||||
Communication | RS-485,Support standard Modbus-RTU protocol;GPRS | ||||||
Electrode material | Stainless steel 316L,Hastelloy C,Hastelloy B,titanium, tantalum, platinum | ||||||
Form of electric pole | Interpolating, extrapolating electrode need to customize | ||||||
Number of electrodes | Standard configuration 3-4 electrodes (two measuring electrodes plus a grounding electrode) | ||||||
Flange Standard | Conform to the international GB9119 ( customize according to customer's demand) | ||||||
Flange material | Standard carbon steel and stainless steel are needed to be customized | ||||||
Grounding ring material | Stainless steel, and stainless steel that contains molybdenum, etc. | ||||||
DN15-DN450 | |||||||
Housing material | Standard carbon steel and stainless steel are needed to be customized | ||||||
Level of protection | Remote type | IP68、IP65 | |||||
Compact type | IP65 | ||||||
Cable length | 10m standard configuration connecting line, optional 15m, 20m, 25m, 30m. (Remote type) | ||||||
Accept OEM customization, Multi-language customization.

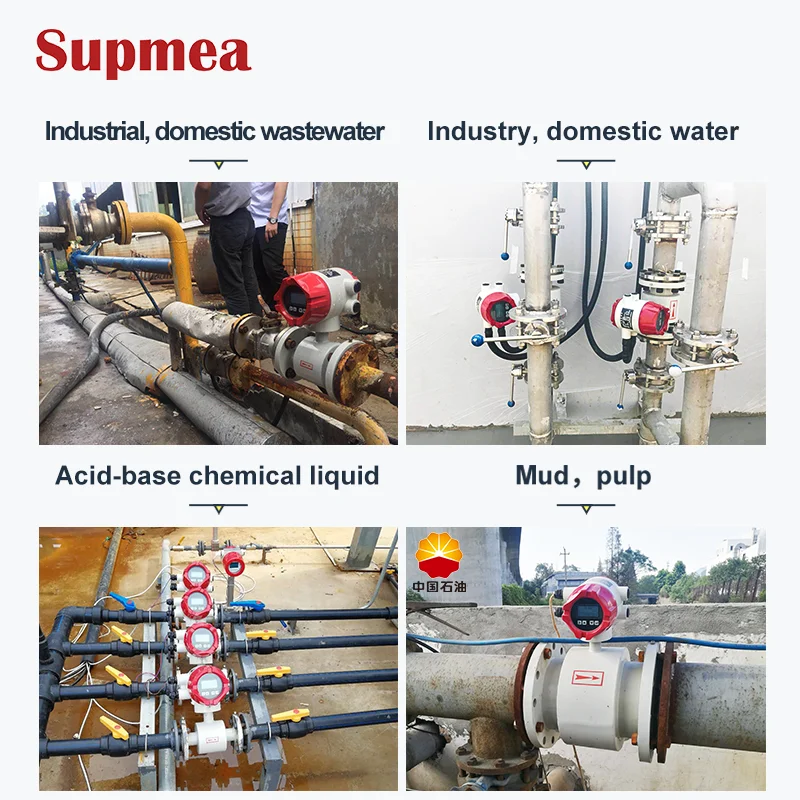

Application
Our Service
Professional engineers to provide one-on-one service
Response time: Online chatting within 1 minute,
inquiry within 5 minutes
After-sales service: 5-years warranty, free replacement for non-human-oriented operation during the warranty period
Overseas Service Center: Malaysia, Singapore
After-sales service process:
1.Contact us via Online chatting, inquiry, email or phone call(+8613777833374)
2.Confirm the problem, try to figure it out local
3.If can not be solved, send back to maintenance or replacement.
Related products
Certifications
Our Company
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
Packing & Delivery
Lead time : Most products within 3-5 working days(if have stock, could be sent same day), customized product would be longer
Delivery process：
1.Use customer’s own delivery account， or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)
2.Delivery time is 2-7 working days, some products have stock in Malaysia.
3.Help to do the destination customs clearance
