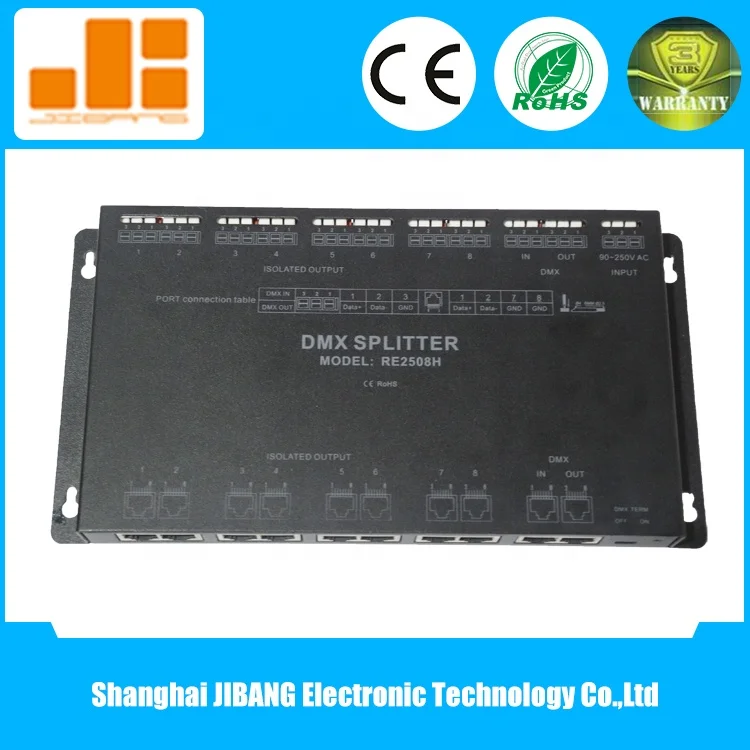

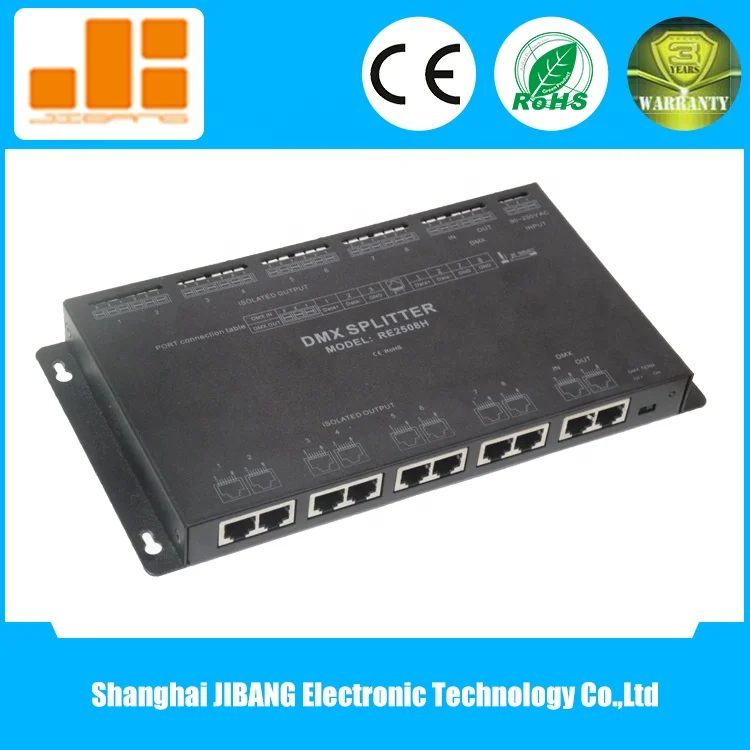

Press Button/RJ45 Optional 8 Channel DMX Splitter

Features of 8 Channel DMX Splitter :

1, RE2508H digital signal distributor is used to DMX512 digital lighting control signal for amplification and 8 channels distribution output, each input/output interface adopts high voltage isolation technology, applied to DMX512 signal via remote transmission attenuation after the plastic amplification processing, as well as various distribution output interface, between input interface and the distribution between output interface to complete electrical isolation use occasion. As a result of each interface between independent isolation, and it can be avoided by controlling circuit, scanner, silicon box problems and burned precision digital light console, to ensure the safe operation of digital light console, at the same time also guarantee DMX signal can normal transfer to all kinds of lighting equipment, so as to improve the whole digital lighting control system reliability.

2, Signal types: DMX512, and the RS-485 interface of various digital signal transmission.

3, Signals connected socket: RJ45, and 3 PIN pressure buckle terminals.

4, Output RJ45, 3 PIN pressure buckle terminals.

5, Input to output, output to output electrical isolation pressure: > 1000V.

Details of 8 Channel DMX Splitter :

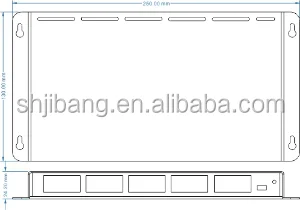

Size

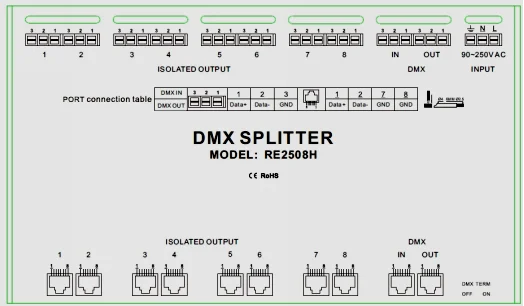

The Product of Operation

1:The power input terminals, DMX signal input: 3 PIN terminal , RJ45 network interface. See the panel to correct connection

2:DMX signal output: RJ45 double network interfaces, 3 PIN pressure terminals.

Product On-line

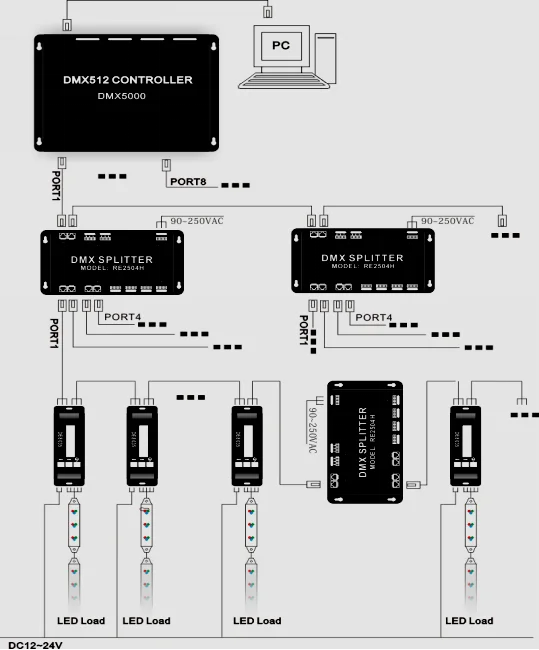

DMX-512 control signal connection

1. DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity.DMX512 controller output signal positive, signal negative, signal ground with DE8008 input interface corresponding connection.

2. DMX5000 output and DE8008's transmission lines can't be over 300 meters.

3. DMX5000 each interface can with not more than 170 DE8008. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights.

4. When contacting 32 DE8008, DMX signal must add a signal amplifier RE2508H . Cascade can't more than 4 PCS.
