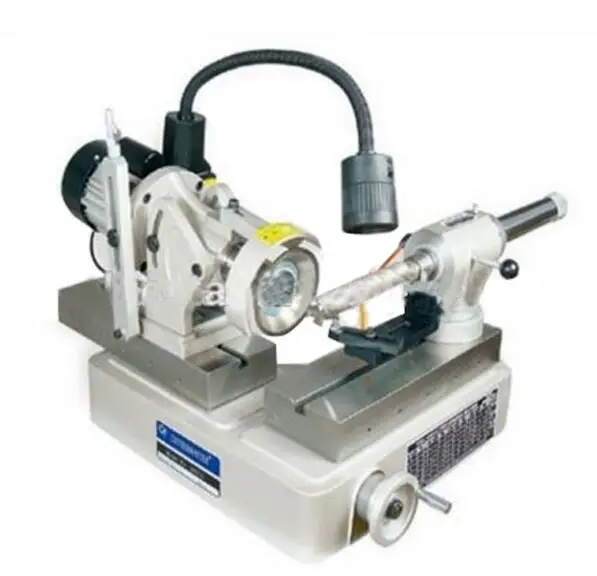

M0620 cutter polishing machine with CE standard

Product Overview

Description

Cutter sharpner M0620



Detailed specification:



	M0620
End mill capacity	Φ229×254mm
Longitudinal table travel (X Axis)	152mm
Cross travel of wheel table (Y Axis)	76mm
Maximum motor assembly travel across table	152mm
Maximum wheel	127×51×32mm
Motor	250W·1Phase
Tilt adjustment for wheel	+35°,-10°
Air bearing stroke	254mm
Table in feed graduation	0.254mm
Overall dimension	610×620×500mm
Weight of the grinder	73kg
