different multifunction Waste Management Garbage Truck Arm Roll Garbage Truck Hook lift Garbage Vehicle For Choice
- Category: >>>
- Supplier: Hubei Runli Special Automobile Co. Ltd.
Share on (60487471999):
Product Overview
Description
different multifunction Waste Management Garbage Truck Arm Roll Garbage Truck Hooklift Garbage Vehicle For Choice Call Ms.Pinky 0086 15897603919
Specification
Wast Management Garbage Truck with Gasoline Engine 53HP:
| Main specification Hydraulic Arm Garbage Truck | |||
| Product model and name | SCS5022ZXXS4 Hydraulic Arm Garbage Truck | ||
| Gross weight(Kg) | 1810 | Drive type | 4X2,LHD |
| Curb weight(Kg) | 1030 | Overall dimension(mm) | 3850X1480X1900 |
| Approach/departure angle(°) | 58/30 | Cab seats | 2 |
| Axle No. | 2 | Front/rear hang(mm) | 480/870 |
| Axle load(Kg) | 925/885 | Wheelbase(mm) | 2500 |
| Max speed(Km/h) | 98 | ||
| Chassis specification | |||
| Chassis model | SC1022DB4N | Manufacturer | Changan Motor Co., Ltd |
| Brand name | Changan | Dimension(mm) | 3800X1480×1810 |
| Tire specification | 165/70R13LT | Tire No. | 4+1(One spare tire) |
| Steel spring number | -/5 | Front track base(mm) | 1280 |
| Fuel type | Petrol | Rear track base(mm) | 1290 |
| Emission standard | Euro IV | Transmission | 5 forward gear |
| Cab | Single row,2 person allowed, with A/C | ||
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) |
| JL466Q4 | Chongqing Changan Engine Co.,Ltd | 1012 | 39(53HP) |
| Tank capacity(m³) | 2-3 | Garbage Bin material | QB235 Carbon steel |
| Discharge Method | Rear dump | Operation control system | Manual + electric |
| Main feature | |||
| 1,Detachable Container Garbage Truck also called pull arm garbage truck ; | |||
| 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; | |||
| 3,The truck compartment using fully enclosed design, there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; | |||
| 4,The truck can use with several refuse hoppers, one truck can maintain multiple garbage collection point operation, high efficiency. | |||
Detailed Images

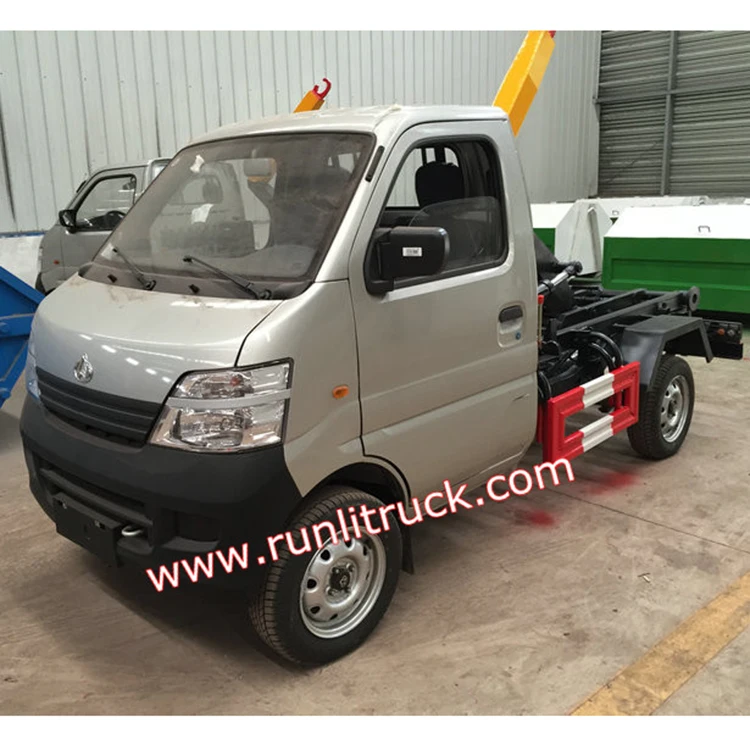

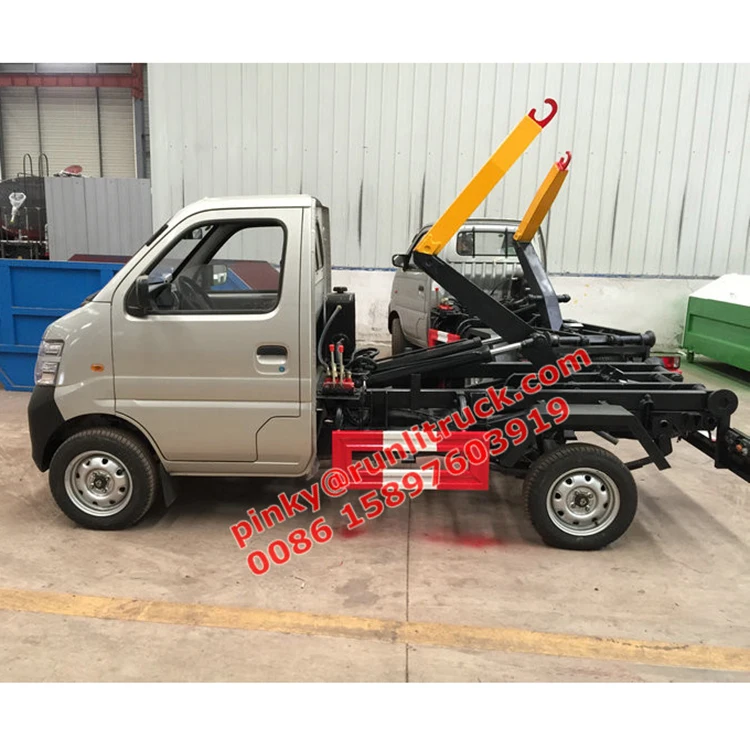

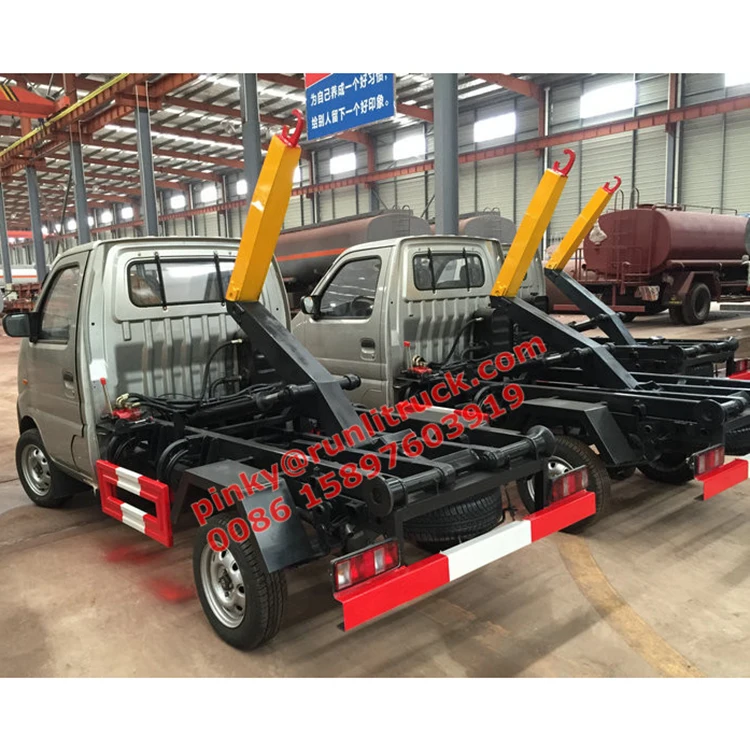

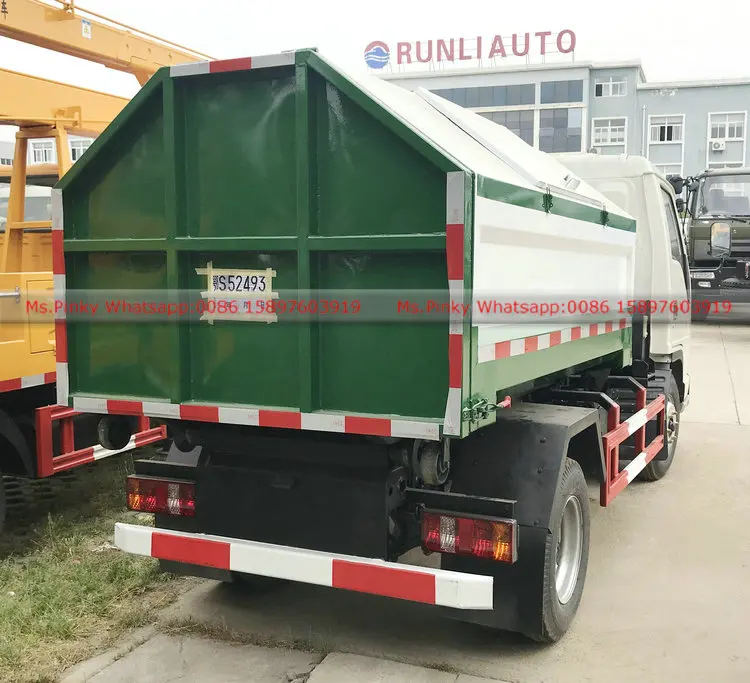

Detailed Photos of Mini Waste Management Garbage Truck:
One Unit garbage truck works with more one container garbage bins service one city. good quality, convenience transportation. different shape container garbage bin for choice. special color for customer.
Characteristic
More Product Features of Mini container garbage truck:
-Environmentally friendly vehicle, swing arm container garbage truck, is applicable for craning and transporting garbage box. It is featured with large capacity garbage box, high quality hydraulic parts, easy operation, maintenance and anti-secondary pollution. Then mechanization of cleaning and transporting garbage can be achieved.
-Function of Dongfeng Mini garbage truck:
1:The rubbish box can be hanged up and down;
2:One whole up and down operation takes about 60s;
3:The box can be detached from the truck body easily.
4:One vehicle can cooperate with several dustbins(box) to improve the ability of cycle operation, thereby improve transportation efficiency, especially it is suitable for short-distance transportation such as urban rubbish cleaning and transportation.
5:Equipped with dustbin, hydraulic system and operating system
6:Equipped with two advanced double acting hydraulically cylinder
Factory Workshop
Related Products
our company has specialized in producing the following series of automobile.
1. Liquefied gas tanker;
2. Chemical liquid tanker;
3. Fueling truck and Refueling tanker;
4. Asphalt truck;
5. Bulk powder goods tanker / Bulk cement tanker / Peak field cementing tanker;
6. Concrete mixer carrier;
7. Sprinkler truck/watering truck;
8. High-pressure cleaning truck;
9. Absorb-feces truck / Absorb-dirty truck;
10. Garbage truck;
11. Overhead working truck;
12. Road wrecker
13. Fire-fighting truck / rescue apparatus
14. Self-Motion transporter / Low platfore semitrailer transporter
15. Storage truck / Van semitrailer transporter.
Contact Information
More specs , photos, price, delivery time and other need,
please contact with Ms Pinky. Hotline: 0086 15897603919
Welcome to visit our company! suizhou city, Hubei Province
Offical Website: www.runlitruck.com
Transportation
Garbage Truck transported by RORO Bulk shipment, container, by Road or by Truck:
