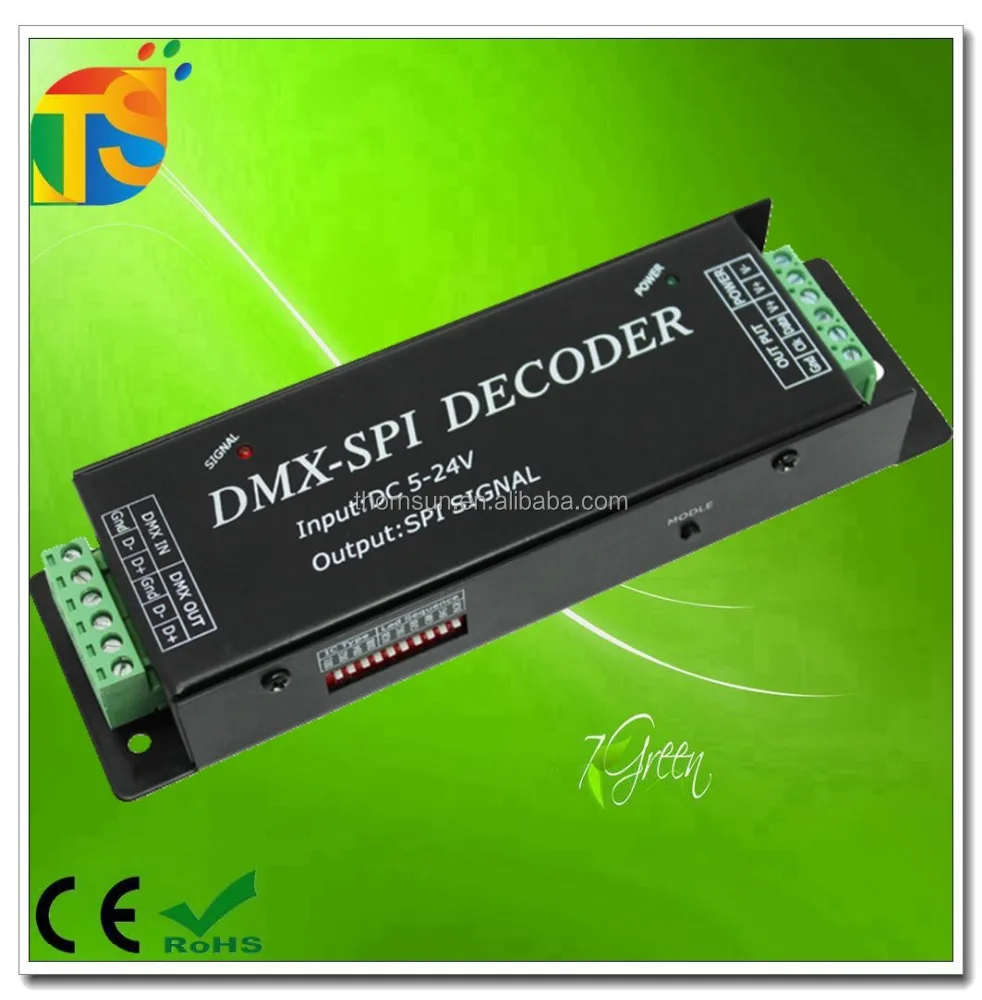

DMX digital default points is 512 DMX to SPI decoder
- Category: Dimmers >>>
- Supplier: Shenzhen Kaixinliang Technical Co. Limited
Share on (60490248971):
Product Overview
Description
Product DescriptionDMX digital default points is 512 DMX to SPI decoder
DMX digital default points is 512 DMX to SPI decoder
Features:
1,The DMX-SPI decoder adopts the advanced micro control unit.
2,it receives standard DMX-512 digital control signal that is widely used in the international
and transformes it into SPI signal to drive LED.
3,it supports 10 kinds of different model of lights.
at the same time the port of DMX signal has lighting protection measures;
4,you could connect the DMX decoder with DMX digital console to achieve dimming
or various changes in procedures.
5,Not connected with DMX console, you can choose select the built-in 35 kinds
of default patterns through the modle button, the default points is 512.
Supported chip
1,The DMX-SPI decoder adopts the advanced micro control unit.
2,it receives standard DMX-512 digital control signal that is widely used in the international
and transformes it into SPI signal to drive LED.
3,it supports 10 kinds of different model of lights.
at the same time the port of DMX signal has lighting protection measures;
4,you could connect the DMX decoder with DMX digital console to achieve dimming
or various changes in procedures.
5,Not connected with DMX console, you can choose select the built-in 35 kinds
of default patterns through the modle button, the default points is 512.
Supported chip
System architecture diagram
Working temperature: -20-60 ℃
Input voltage: DC5-24V
Output: SPI signal (DATA, CLK)
External dimension: L175 x W53 x H27(mm)
Packing size: L180 x W58 x H55(mm)
Net weight: 256.2g
Gross weight: 292.6g
Max output:480W
Detailed Images
