Aluminum PCB/PCBA LED custom Circuit Board manufacturer in CHINA
US $0.10-$10.00

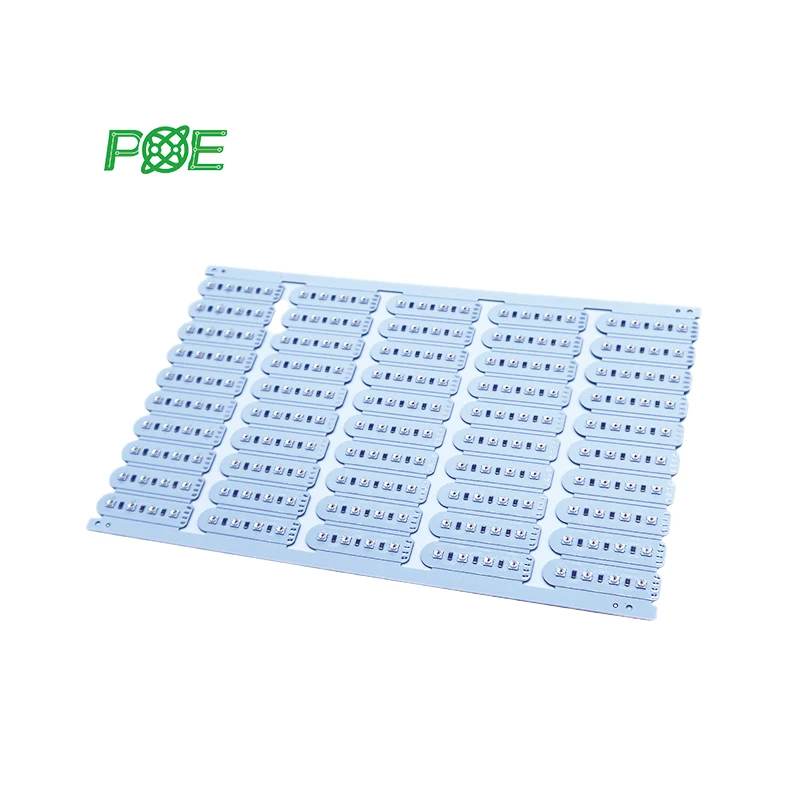

Competitive Price LED PCB Single layer Aluminum PCB Board
- Category: Aluminum PCB >>>
- Supplier: Shenzhen POE Precision Technology Co. Ltd.
Share on (60491473104):
Product Overview
Description
Company profile
POE Precision electronics is a branch company of POE Group Corporation Limited, which is specializing in electronic manufacturing services (world known as EMS).
POE established on April 25, 1996 with 1000 employees and 25000sq.m of production and office area. We can offer one-stop service from PCB designing, manufacturing to PCB assembling, testing and housing, with in- time delivery after more than 15 years of successful experience on the global EMS market. Our PCB production capacity can reach 40000sq.m.per month and EMS assembling capacity at 200,000,000 components per month.
Product Description

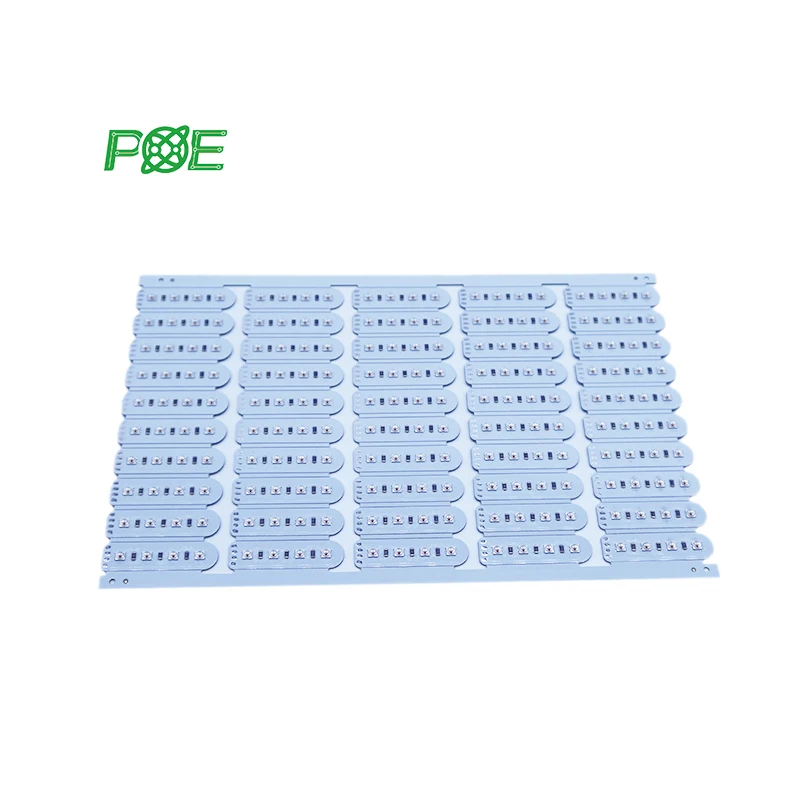

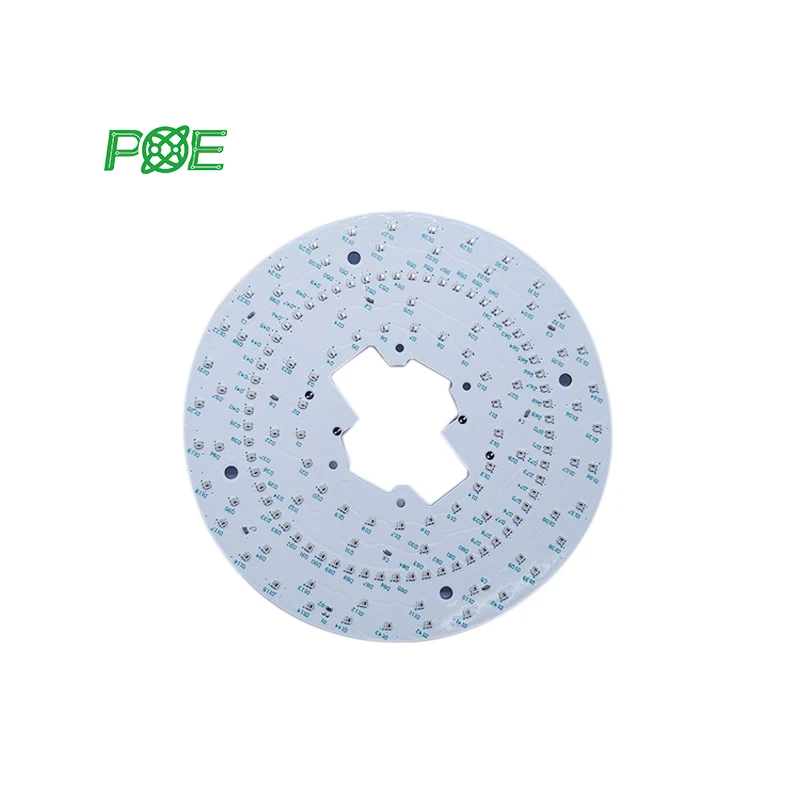

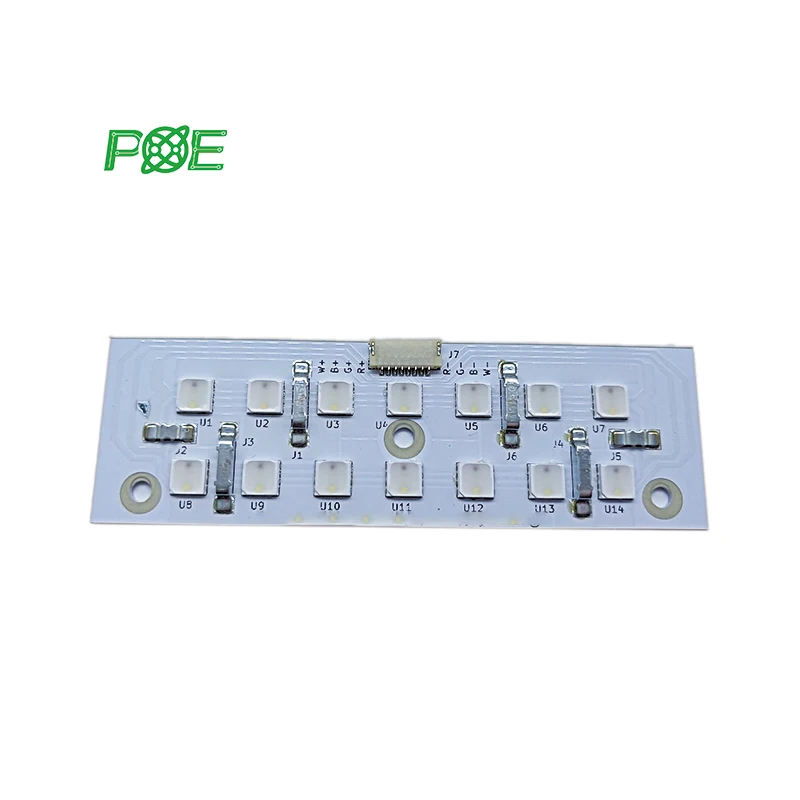

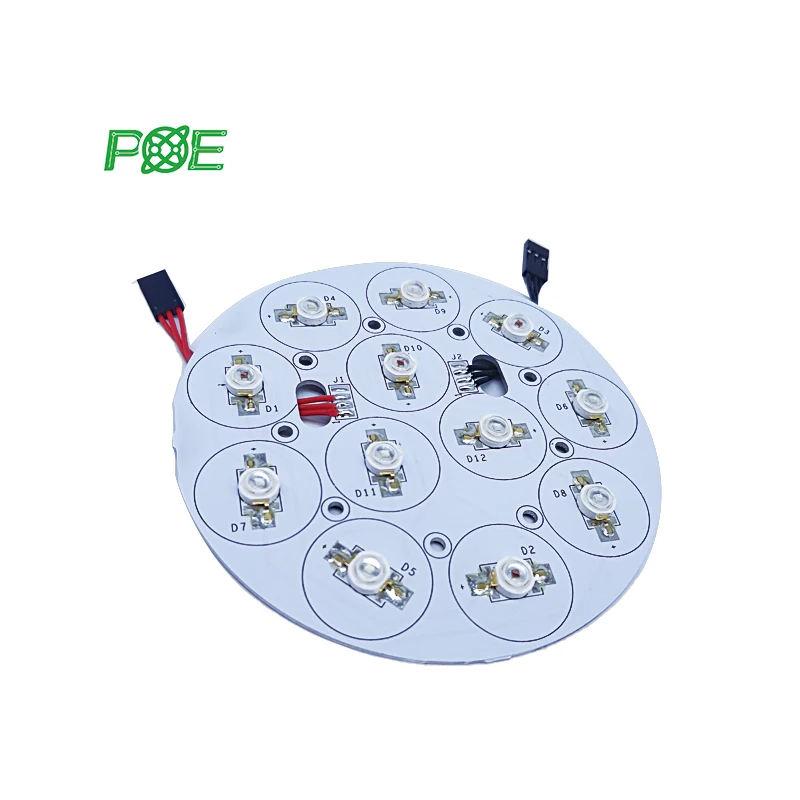

LED PCB showcase
Company Information
PCB Capability
Item | Capability |
1.Base Material | FR-4 / High TG FR-4 / Aluminum/Halogen Free material/Rogers/Arlon/Taconic/Teflon |
2.Layers | 1-22 |
3.Finised inner/outer copper thickness | 0.5-6OZ |
4.Finished board thickness | 0.2-7.0mm |
7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
9.Controlled Impedance | +/-5% |
13.Plugging vias capability | 0.2-0.8mm |
15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
16.Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
Lead Time
PCB
| 2L | 24hours/ 4-5days | 8-10days |
| 4L | 48hours/ 6-7days | 10-12days |
| 6L | 72hours/ 7-8days | 12-14days |
| 8L | 72hours/ 8-10days | 16-18days |
| 10L | 96hours/ 12-14days | 18-20days |
| ... | ... | ... |
Assembly
| Quantity | Usual Time |
| <20pcs | 2days |
| 20-100pcs | 3days |
| 100-1000pcs | 6days |
| >1000pcs | Depend on BOM |
Application Fields

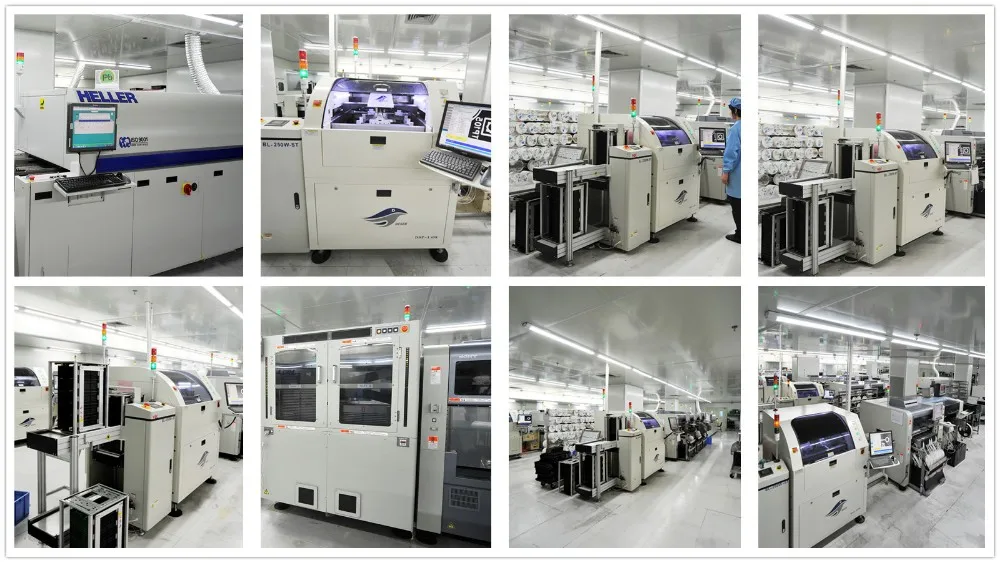

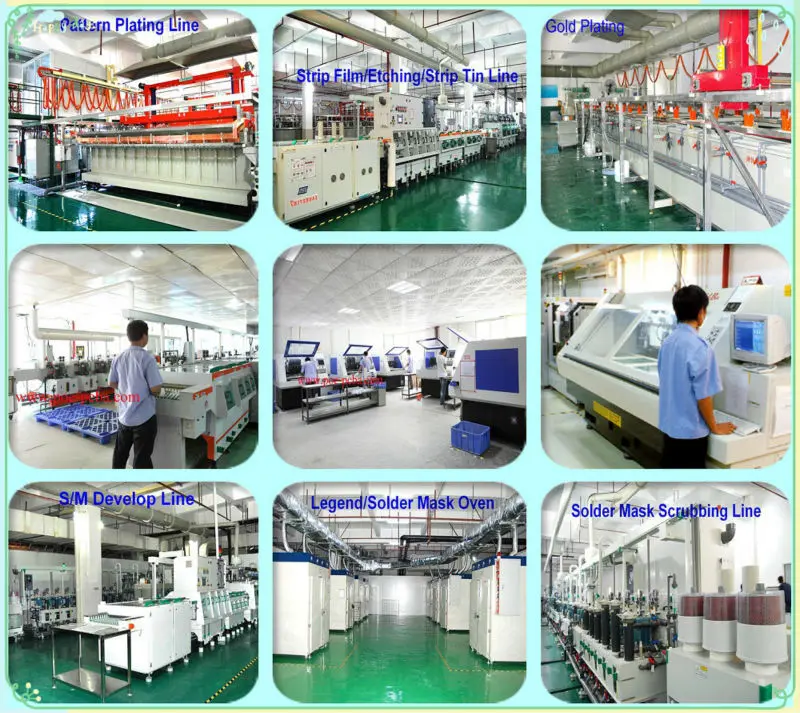

Production Line
POE has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI , Rigid, RF and high frequency PCBs, together with throught hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.
FAQ
Q1.What is needed for quotation?
- PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
- PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
- Gerber file: CAM350 RS274X
- PCB file: Protel 99SE, P-CAD 2001 PCB
- BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
