Hot Selling High Quality Professional LED Printed Circuit Board Custom PCB For LED Light Aluminum PCB Manufacturer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

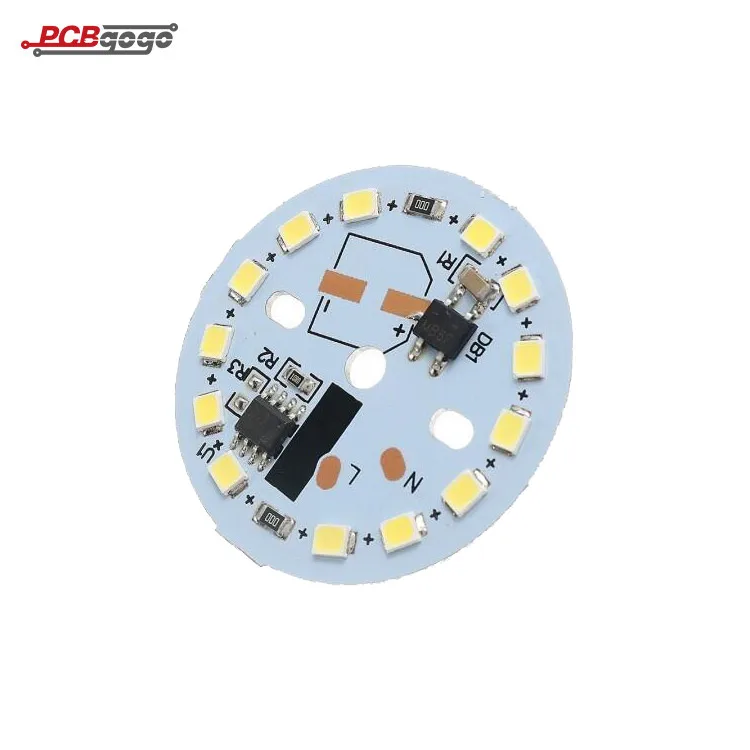

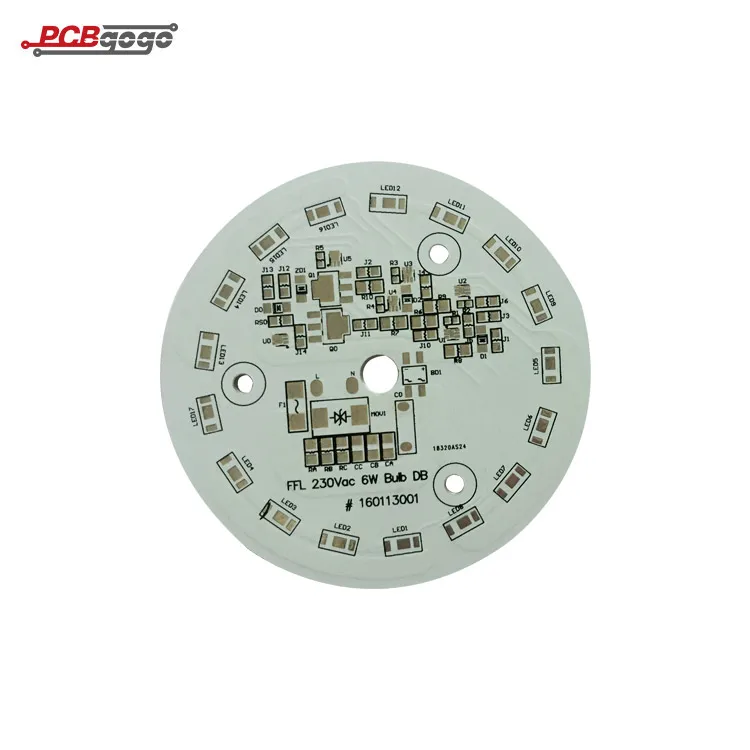

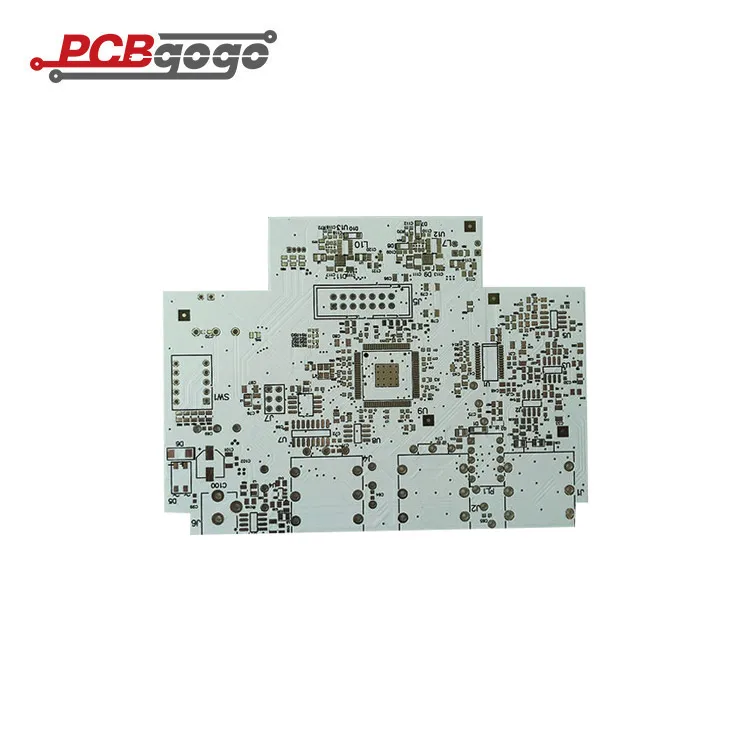

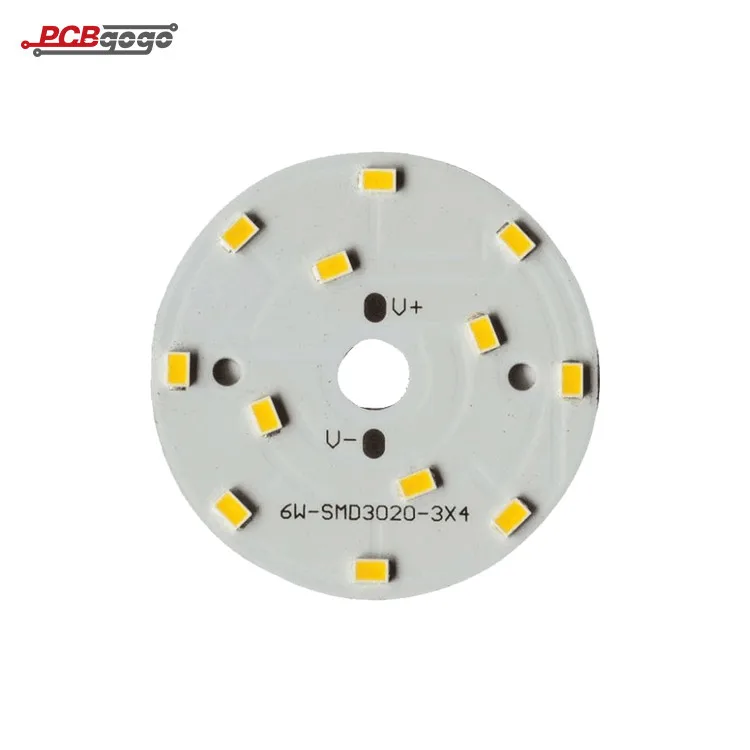

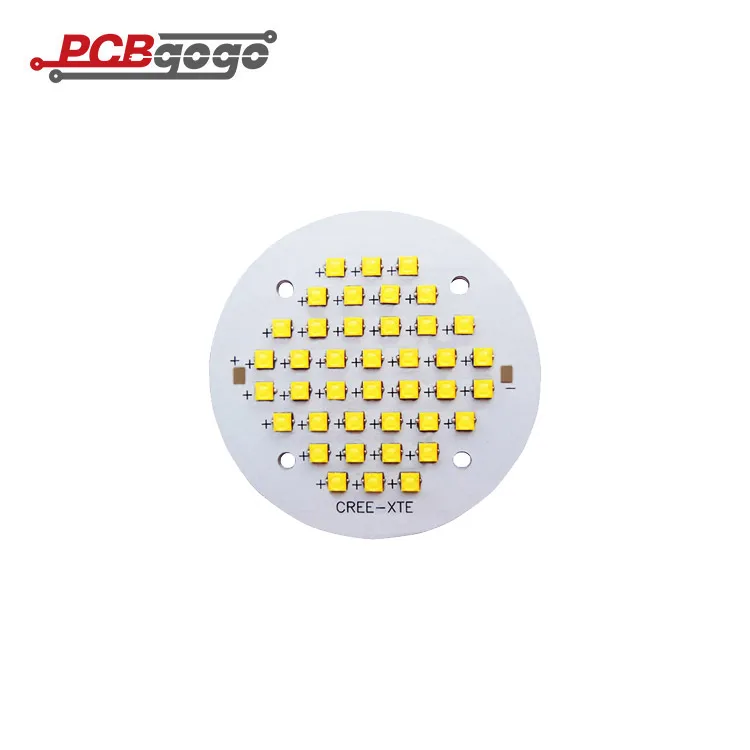

LED Printed Circuit Board Custom PCB For LED Light Quality Aluminum PCB Manufacturer
Product Description
We offer you low cost PCB prototype with high quality, MOQ is 5pcs. There are various shipping methods are available for you to choose from, such as DHL, UPS, EMS, FedEx and HK post. So we can offer PCB lead time as fast as 2-3 days and if your project is urgent we can offer you 12-24 hours expedited PCB fabrication. All of the circuit boards will be tested well before being shipped out. And you can track your PCB order status online, you will be updated on the PCB manufacturing process and the shipping status of your order regularly.

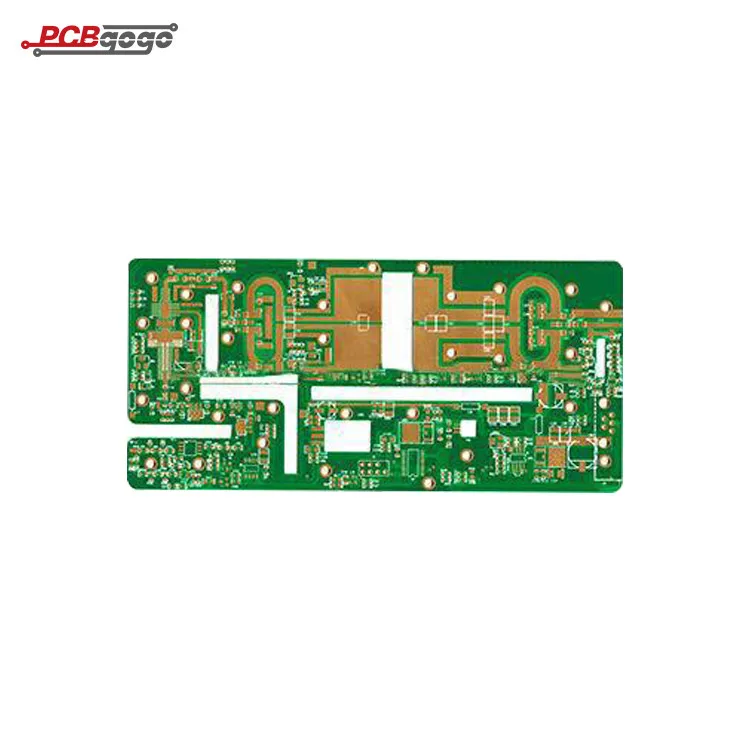

PCB Capabilities
Items
Fabrication Capabilities
Remarks
Layer Count
1-10 layers
if your PCB order is over 10 layers, please contact your customer service for quotation.
Material
FR-4 94V0/ Aluminum
For FPC, HDI, ROGERS, HALOGEN-FREE, HIGH TG ETC., contact your customer service.
Maximum Size
500x1100mm
The max. size of PCBGOGO PCB is 50*40cm. and we accept longer PCB board which max. length is 1100MM
Minimum Size
3mm*3mm
Maximum Panel Size
50cm*45cm
Minimum Panel Size
7.5*7.5cm
If you need v-cut, this is minimum panel size in PCBGOGO
Tolerance Size of Board
(Outline)
±0.2mm
CNC tolerance is ±0.2mm, v-cut tolerance is ±0.5mm
Board Thickness
0.4-2.4mm
Tolerance Thickness of Board
( t≥1.0mm)
±10%
Pay attention: as the capability (PTH, solder mask and others) will add the board thickness, we usually use Plus Tolerance.
Tolerance Thickness of Board
( t≥1.0mm)
±0.1mm
Pay attention: as the capability (PTH, solder mask and others) will add the board thickness, we usually use Plus Tolerance.
Min. Line Width
4mil(0.1mm)
Min. Line Width is 0.1mm;In terms of multi-layer PCBs, Min. Line Width for inner-layer is 0.175mm
0.1mm/4mil for outer layer. If the minimum line width is less than 6 mil, there will be an extra charge / fee.
Min. Line Space
4mil(0.1mm)
Min. Line Spacing is 0.15mm/6mil. If Min. Line Spacing is less than 6mil, it will charge extra fee.
Outer Layer Copper Thickness
35um/70um/105um
(1OZ/2OZ/3OZ)
It means the thickness of copper in outer layer. 1 OZ=35um, 2OZ=70um, 3OZ=105um.
Inner Layer Copper Thickness
35um/50um
(1OZ/1.5OZ)
Default is 1 OZ, but if you have special requirement, 1.5 OZ is acceptable.
Drill Diameter Range
0.2-6.3mm
Min. Size of drill via CNC is 0.2mm. 6.3mm is maximum size.
Annular Ring
≥0.1mm(4mil)
If Annular Ring is smaller but there is enough space, there is no limit for the Annular Ring size. But if there is not enough
space coupled with dense lines, the Annular Ring size should be over 0.1mm
Finished Hole Size
0.2--6.20mm
Because the copper will cover the surface of hole, the Finished hole size is smaller than it is in Gerber file
The Size Tolerance of Finished
Hole (CNC
±0.08mm
Tolerance of Finished Hole Size is ±0.08mm. For example, if the drill in the Gerber file is 0.6mm, the finished drill will be
0.52-0.68mm on standard.
Solder Mask Type
LPI
LPI is common use in the PCB fabrication.
Min. Width of Legend
≥0.15mm
Min. width of legend is 0.15mm, if it is smaller, the legend in the finished board will be not clear.
Minimum Height of Legend
≥0.8mm
Min. height of Legend is 0.8mm, if it is smaller, the legend in the finished board will be not clear
Legend Width/ Height
1:5
The suitable proportion of width and height is good for PCB fabrication.
Space between Trace and
Board Edge
≥0.3mm(12mil)
Routing: the space between line and frame should be over 0.3mm. V-cut panel: the space between line and v-cut line should be over
0.4mm.
Panelization
V-scoring, Tab-routing,
Tab-routing with Perforation
(Stamp Holes)
Leave min clearance of 1.6mm between boards for break-routing. For V-score panelization, set the space between boards to be zero.
Min. aperture in half-hole
technology
0.6mm
Half-hole is a special technology and the min. aperture must be over 0.6 mm
Packing & Delivery
Delivery Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, PCBGOGO
shipping department will ship your PCB quickly without any pending. For example, the 24 hours express PCB order will be shipped
out in 24 hours after it is fabricated. The same follows for the 48 hours express.
Shipping Package
To avoid shipping damage, we will pack our PCBs in several steps by difference package material.
Firstly, the PCB order will be packed by vacuum bubbles bag.
Secondly, after vacuum package it will be packed at our special carton boxes. We have designed several special carton boxes in
difference sizes to pack and ship the PCB orders.
At last, the package will be packed by shipping company bag or others wrapper.
PCBGOGO Delivery
Each PCB order from PCBGOGO will be delivered on time with fast lead times, 99% of our deliveries are always on-time. The fastest fabrication time is 2-3 days. There are various shipping methods available for you to choose from, such as DHL, UPS, EMS, FedEx and HK post.
Company Profie
About PCBGOGO
With over 10 years as an industry leader, PCBGOGO is one of the most experienced PCB and PCB assembly manufacturer in China.
We are proud to manufacture high-quality PCBs and provide the best PCB assembly services for our customers. At the same time, we provide a safe and prosperous environment for over 200 employees to work in.
Our goal is to be categorized as the easiest Printed Circuit Board manufacturer to do business with.
To achieve that goal, we prioritize our customers and make sure all their questions are duly answered. Our record of success sets us apart from our competitors.
More Products
Our Services
1. Quick Turn PCB Fabrication

24 Hours Lead Time
MOQ Is 5pcs
24 Hours Live Support
ISO9001 & UL & RoHS & REACH Certified
2-3 Days Delivery
Small Volume PCB Fabrication

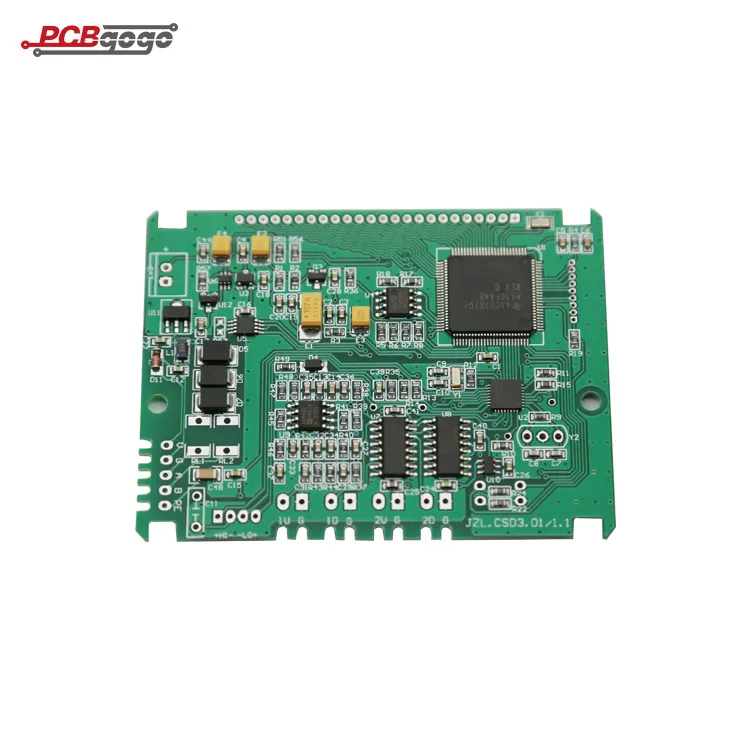

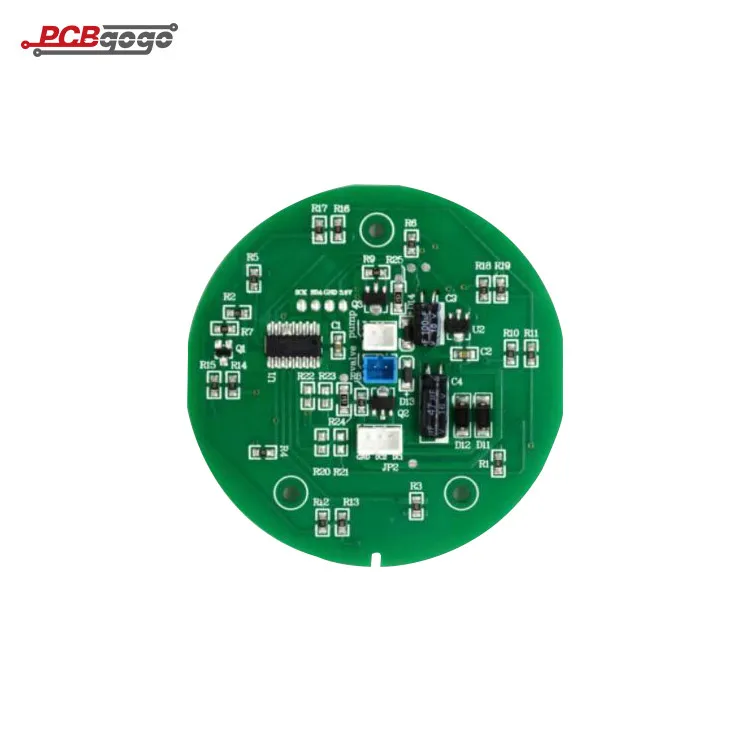

2. Turn-key PCB Assembly Services
24 Hours Component Quote
MOQ Is 1pcs
24 Hours Prototype PCB Assembly
8 Hours Expedited Services
3. PCB Layout
FAQ
1. How long has PCBGOGO been in business?
With over 10 years as an industry leader, PCBGOGO is one of the most experienced PCB and PCB assembly manufacturer in China.
2. What files do you need to manufacture my printed circuit board?
We require gerber files
3. Can you handle Controlled Impedance requirements?
Yes. Call your salesperson for more info.
4. Does PCBGOGO bevel gold fingers?
Yes. We do bevel gold fingers unless otherwise specified. We do NOT bevel solder fingers unless specified by customer.
5. What happens if I have a problem?
We are committed to your satisfaction and we ask that you contact your salesperson immediately if you have a problem of any kind.
If you ever feel that you've received a product or service that was below your expectation, please feel free to email directly
service@pcbgogo.com, also, we would like to hear any suggestions you may have for improvements.
6. Do you have UL approved RoHS boards?
Yes.
7. Can you process my dielectric requirements?
No problem. We will run this as a custom order. Be sure to send us your core and stackup details.
