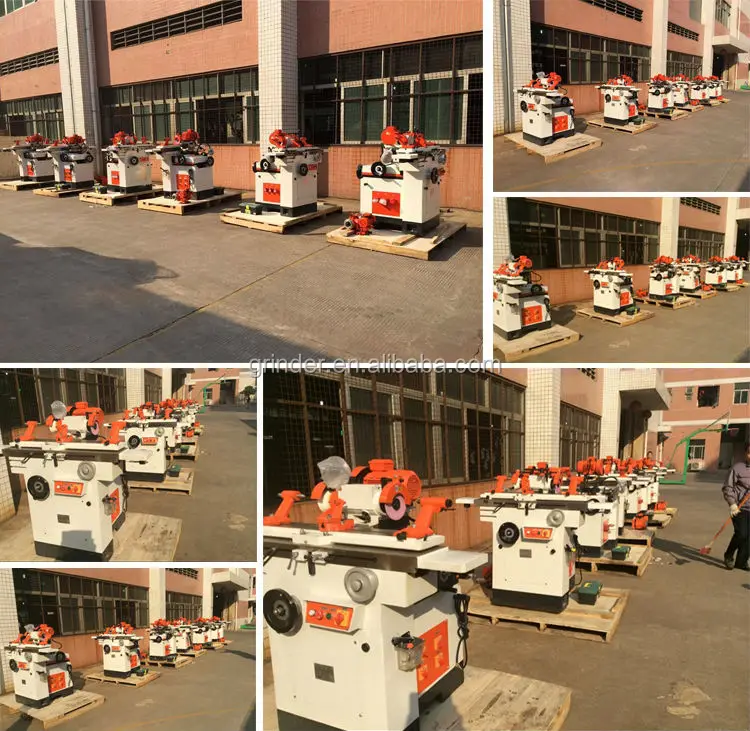

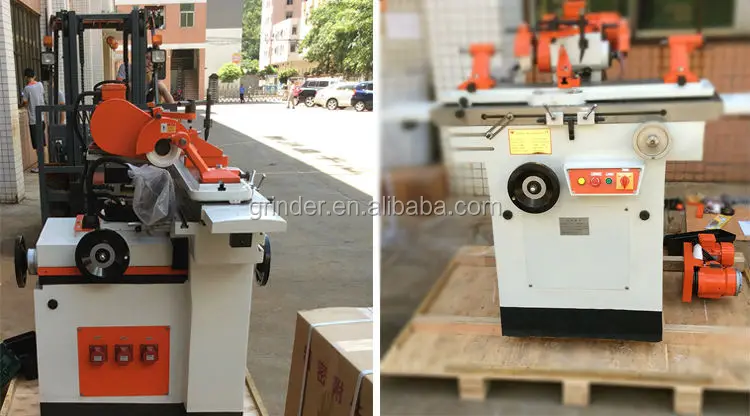

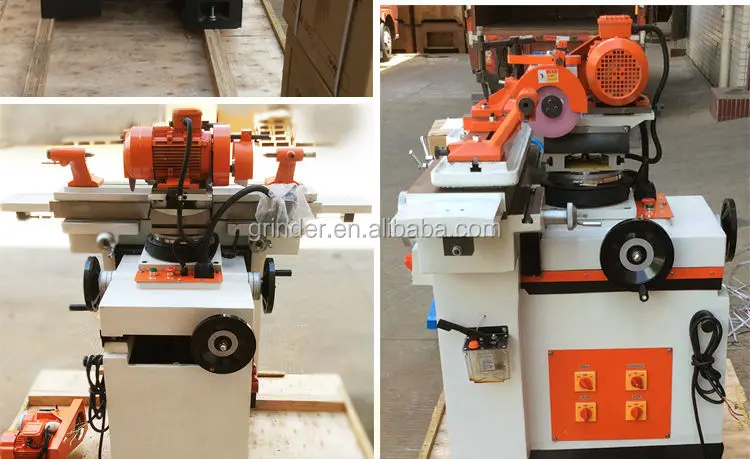

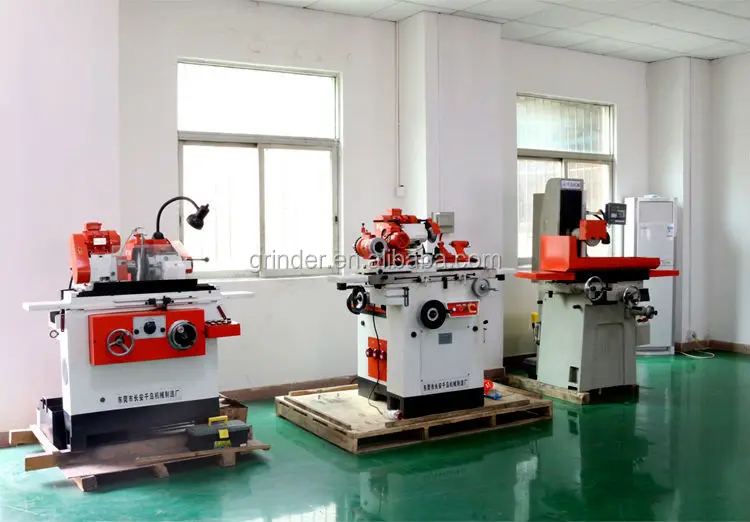

MQ6025A universal tool grinding machine ,Tool and Cutter grinder Machine
- Category: Other Grinding Machines >>>
- Supplier: Dongguan Qiandao Precision Machinery Manufacture Co. Ltd.
Share on (60491841037):
Product Overview
Description
Product name: | high quality CE-approved tool grinding machine MQ6025A multi-functional Universal sharpening tool grinder | ||
Model Number: | MQ6025A | place of origin: | Guangdong, China (Mainland) |
Brand Name: | QianDao | Manufacturers: | Qiandao Precision Machinery |
Type: | Universal | Certificate: | CE |
Features:
This series machine are specially suitable for shrpening tools in HSS, tungsten carbide and other materials, also for cylindrical, surface, slot and profile grinding wor. By using additionl attachments, you greatly extend the range of application of there machinery and can solve individual machining problems, such as grindign fo various hobs, tools, spherica cutters, twist drills and steep taper reamers, etc. The series machine wheelhead with two-dimensional setting(except MA6025B), workhead stock swivels with double dir. And supplied with ISO-50 taper hole. Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
Technical Dates
Max. swing dia. of work piece | 250mm |
Max. distance between centers | 700mm |
Working Surface of table | 940*135mm |
Max. longitudinal travel of table | 480mm |
Max. swing angle of table | ±30° |
Max travel of wheel head cross vertical | 270mm |
Max. swing angle of wheel head in horizontal plane | 360° |
Max. swing angle of wheel head in vertical plane | 30° ±15° |
The end taper of the spindle | MT 3# |
Main motor power | 0.85/ 1.1KW, |
The Speed of motor | 1400/ 2800rpm |
The speed of spindle | 3010/ 6010rpm |
The Motor of Cylindrical grinding attachment | 0.25KW 1400 rpm |
The size of the machine | 165*115*150cm |
The weight of the machine | 940kg |

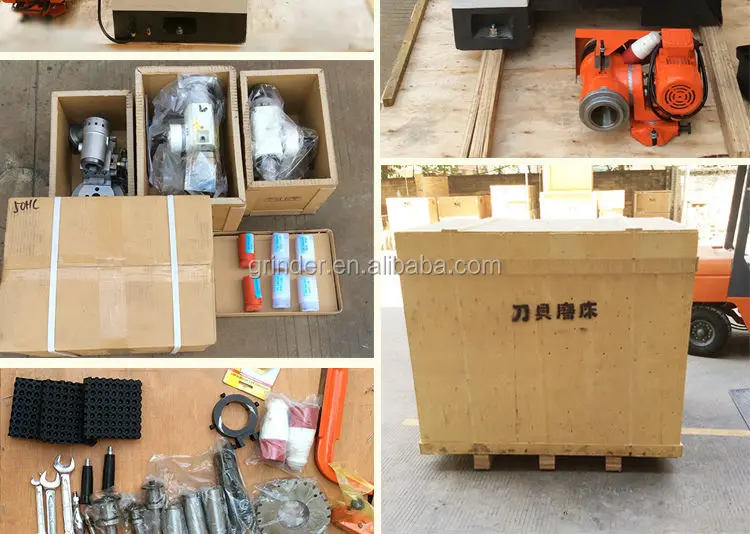

Standard accessories
Tail stock | 1 set (2 pcs : left+right ) |
Grinding Wheel Dresser | |
Grinding Wheel Guard | 2 pcs |
Grinding Inner Round Core Shaft | 1 pc |
Saw Cutter Support Attachment | 1 set |
Cutter Arbor φ22,27,32 | 1 pc/ size |
Pull Rod | 1 pcs |
Inner Hex Wrenches | 1 set |
Foot Pad | 3 pcs |
Grinding Wheel | 2 pcs |
Tool box | 1 pc |
Division Plate | 1 pc |
2# Core Clamper | 1 pc |
Lengthened Grinding Wheel Shaft | 1 pc |
Drill Holder | 3 pcs |
Center Gage | 1 pc |
Operation Instruction | 1 pc |
Special accessories |
| |
bob sharpehing accessories | 1set | |
divided plate | 1pcs | |
Drills grinding attachment | 1set | |
Taper reaming grinding attachment | 1set | |
Swing angle of table | 1set | |
3 jaw chuck | 1set | |
round magnetic chuck | 1set | |
universal-tilt rectangular magnetic chuck | 1set | |
Dust-free cleaner | 1set | |
cooling system | 1set | |
extral long wheel spindle | 1set | |
MT5# taper | 1set | |
Round spindle | 1set | |
electronic scale device | 1set | |
double-end wheel dresser | 1set | |
ball mill flank grinding atlachment | 1set | |
precision wheel dresser | 1set | |
machine vise | 1pcs | |
