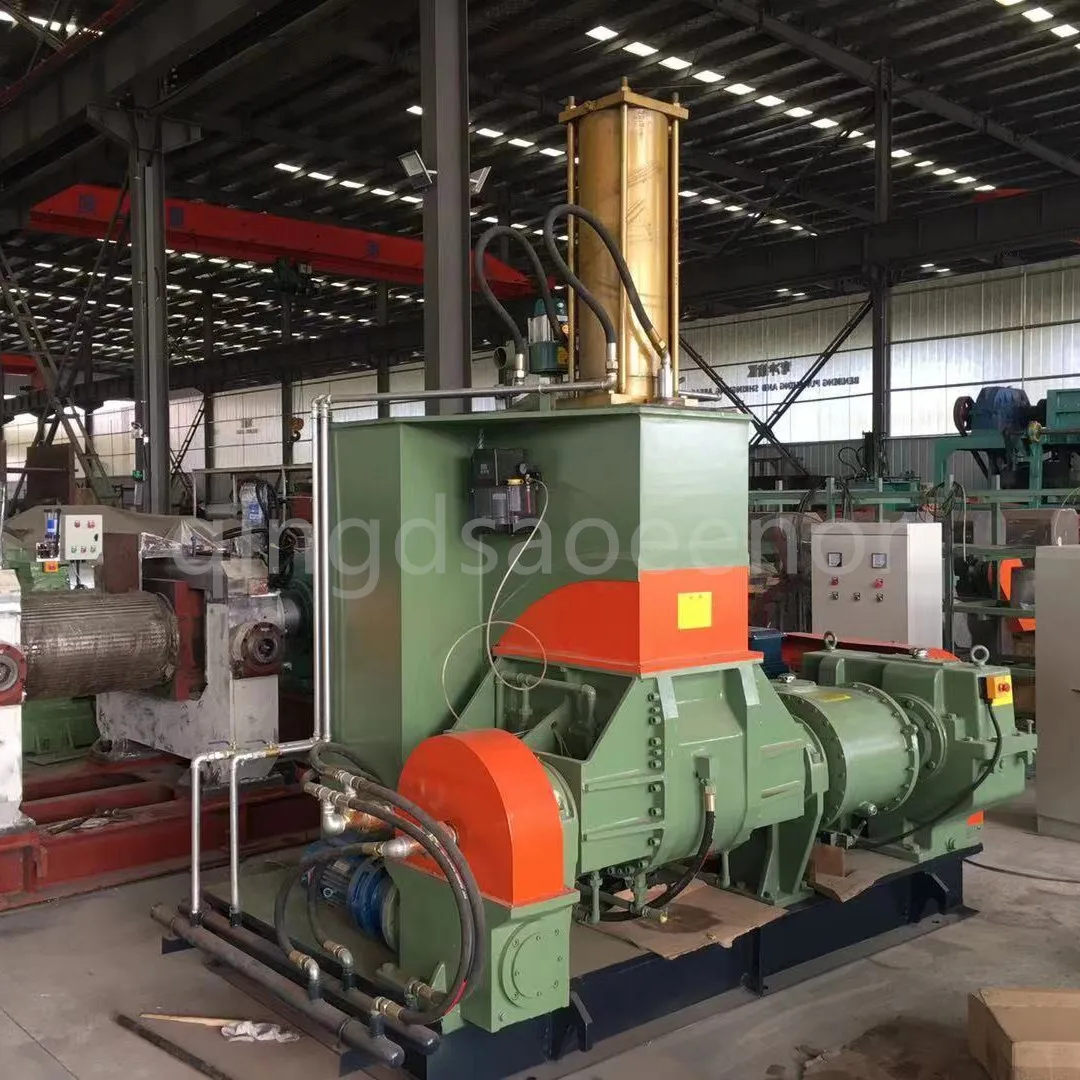

Машина для замешивания резины/машина для смешивания резины

Product Overview

Description

Rubber kneader machine /rubber retreading machine /rubber  mixing mill machine



1. features





• Materials are plasticizing and mixing in a closed, pressurized and temperature-controlled space, thus it can achieve high productivity, good and stable quality.


• Compared with open mixing mill, it is more energy effective and the capacity is 6-8 times more under the same power level.


• The special dust sealing unit provides reliable sealing.


• The machine is rather durable in use, because the rotor uses 42Crmo material and is plated by hard chrome so does the decelerator and gearbox.


• Effective temperature control - excellent cooling or heating effect (All the parts in contact with stock adopt jacket design in order to lead water/steam/medium oil to control the temperature.)


• The electrical control system adopts PLC, thus it provide perfect and reliable control, detection & alarm and the necessary safety interlocking functions.


•


  1.Blade of rotors are well designed for better dispersion&faster cycle time.




  2.Effective cooling system to control overheating.




  3.Easy Cleaning for color change.




  4.Hydraulic tilting system for trouble free working.




  5.Simple operation through quality designed electric panels&safety.






2. technical information:



Model	X(s)N-35x30	X(s)N-55x30	X(s)N-75x30	X(s)N-110x30
Total volume of mixing chamber(L)	75	125	175	250
Working volume of mixing chamber(L)	35	55	75	110
motor power(kw)	55	75	110	185
tilting motor power(kw)	2.2	2.2	2.2	5.5
tilting angle	140°	140°	140°	140°
speed ratio of rotors(r/min)	30/24.5	30/24.5	30/24.5	30/24.5
pressure of compressed air(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
comsumption of cooling water(Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	>=1.5
steam pressure(Mpa)	0.5-0.8	0.5-0.8	0.5-0.8	0.3-0.4
size(mm)	3200x1900x2945	3300x1900x2900	3760x2143x3135	4075x2710x3580
weight(kg)	6500	7800	10200	14900

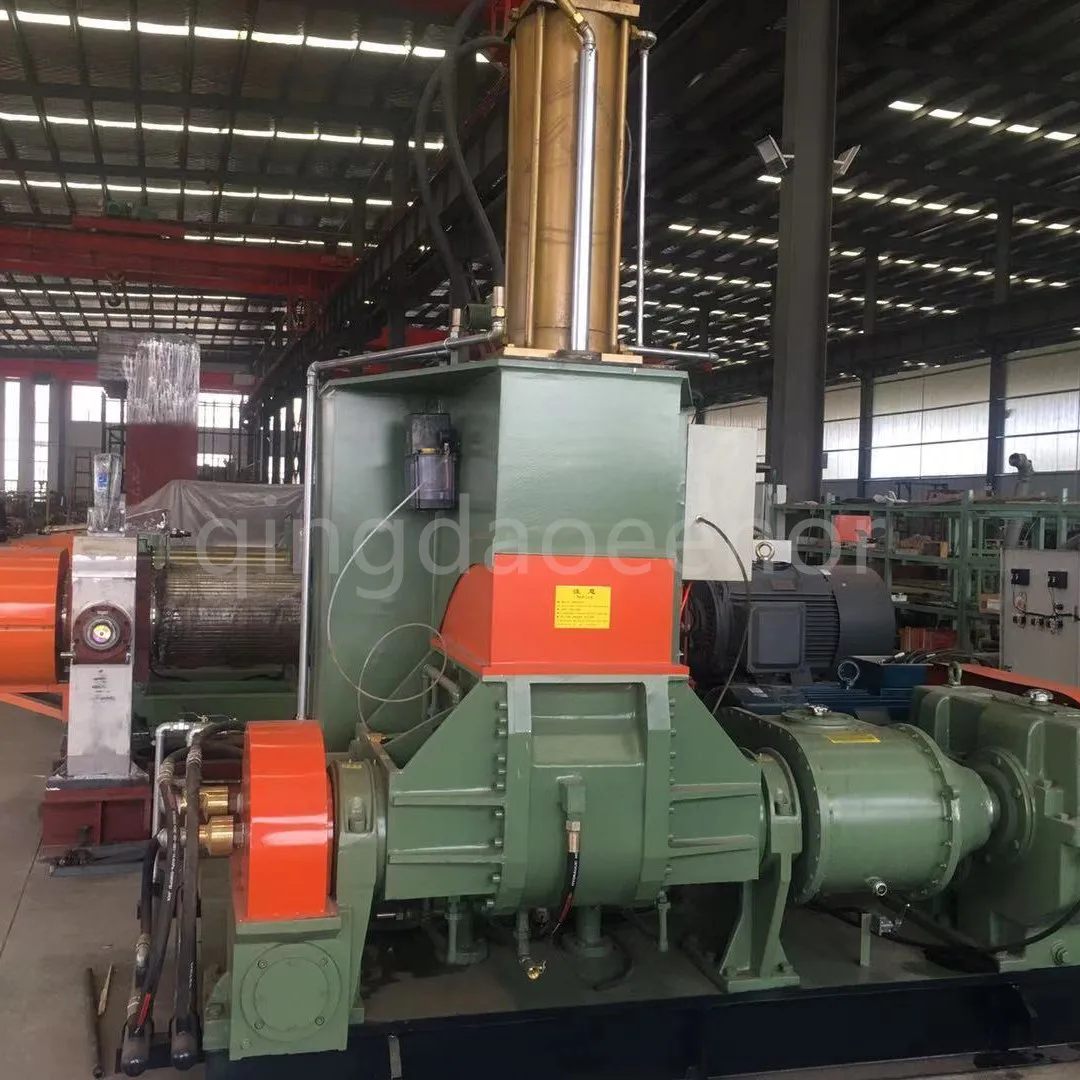

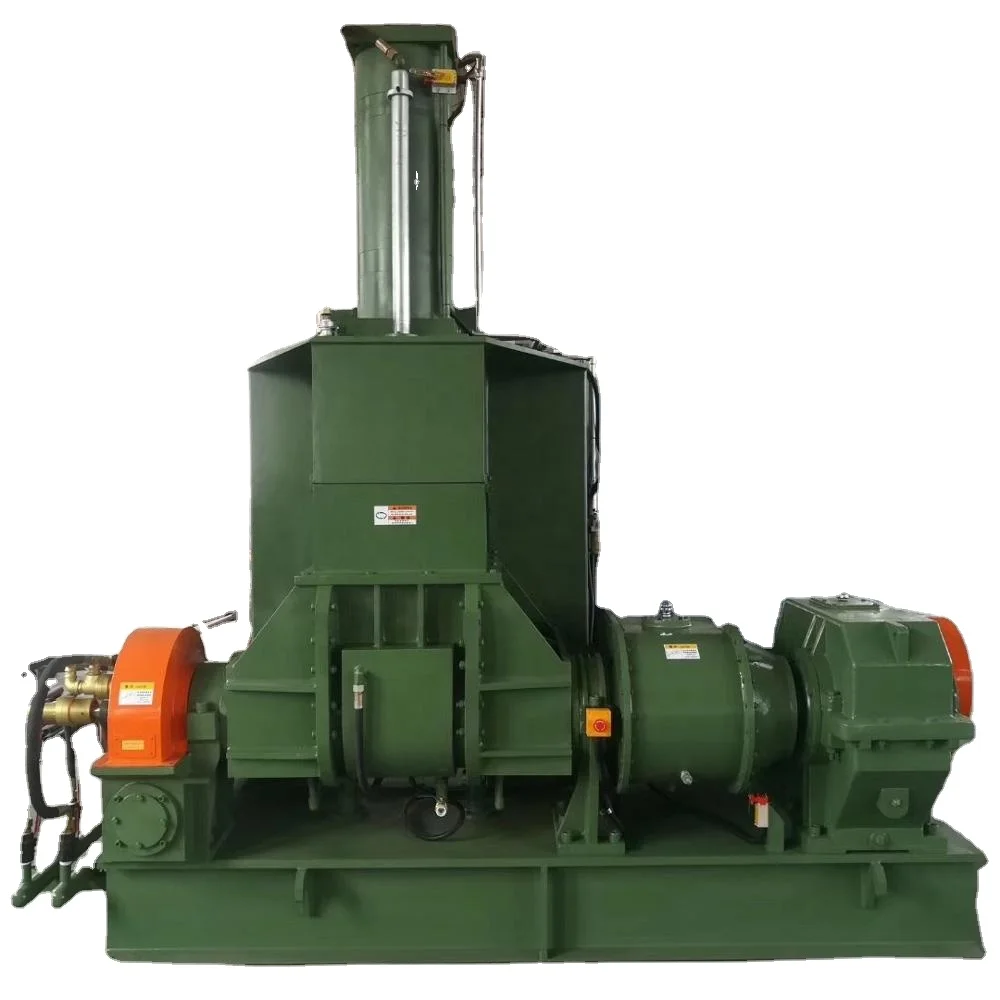

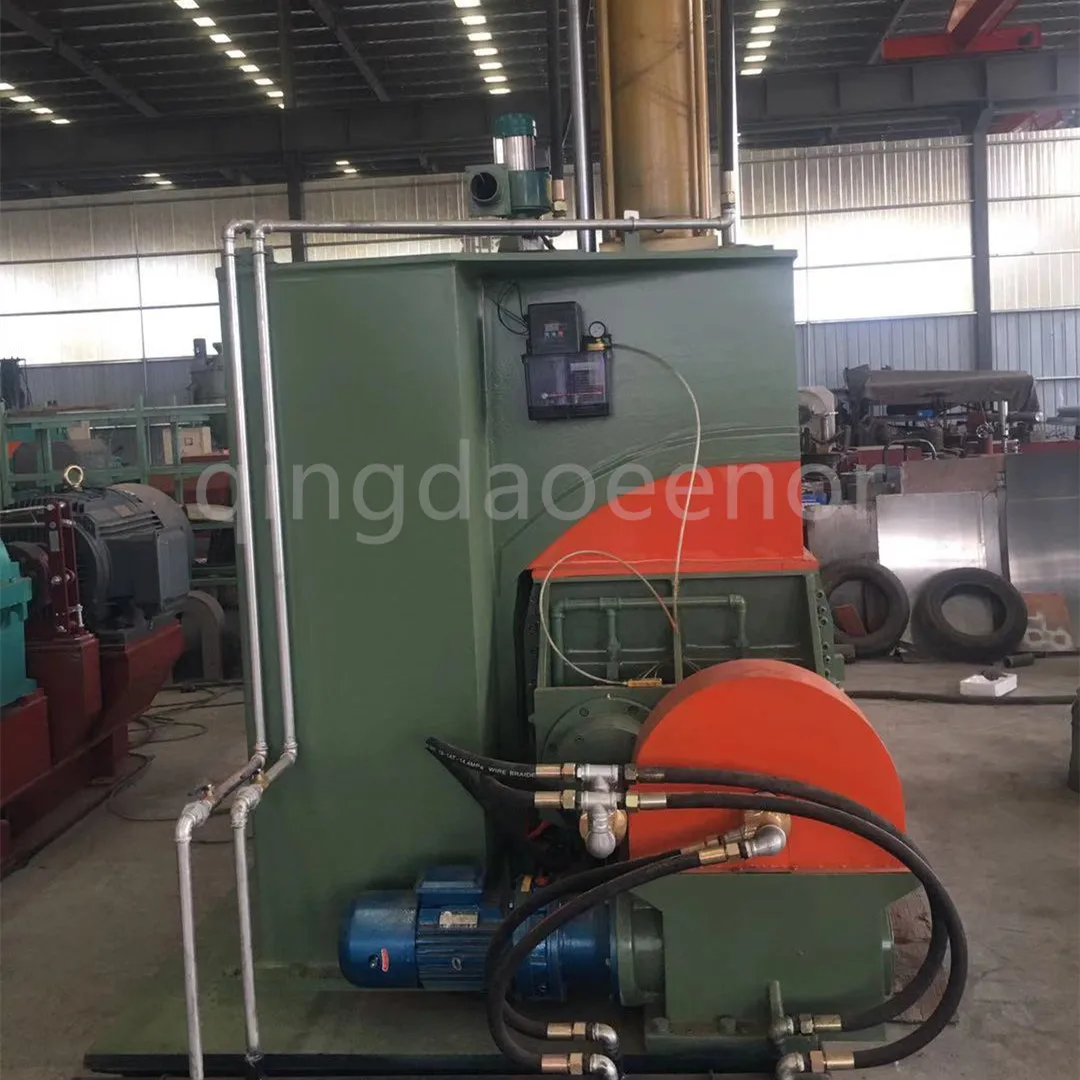

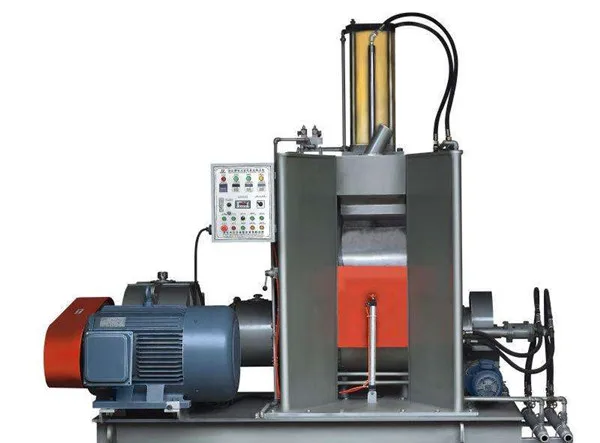

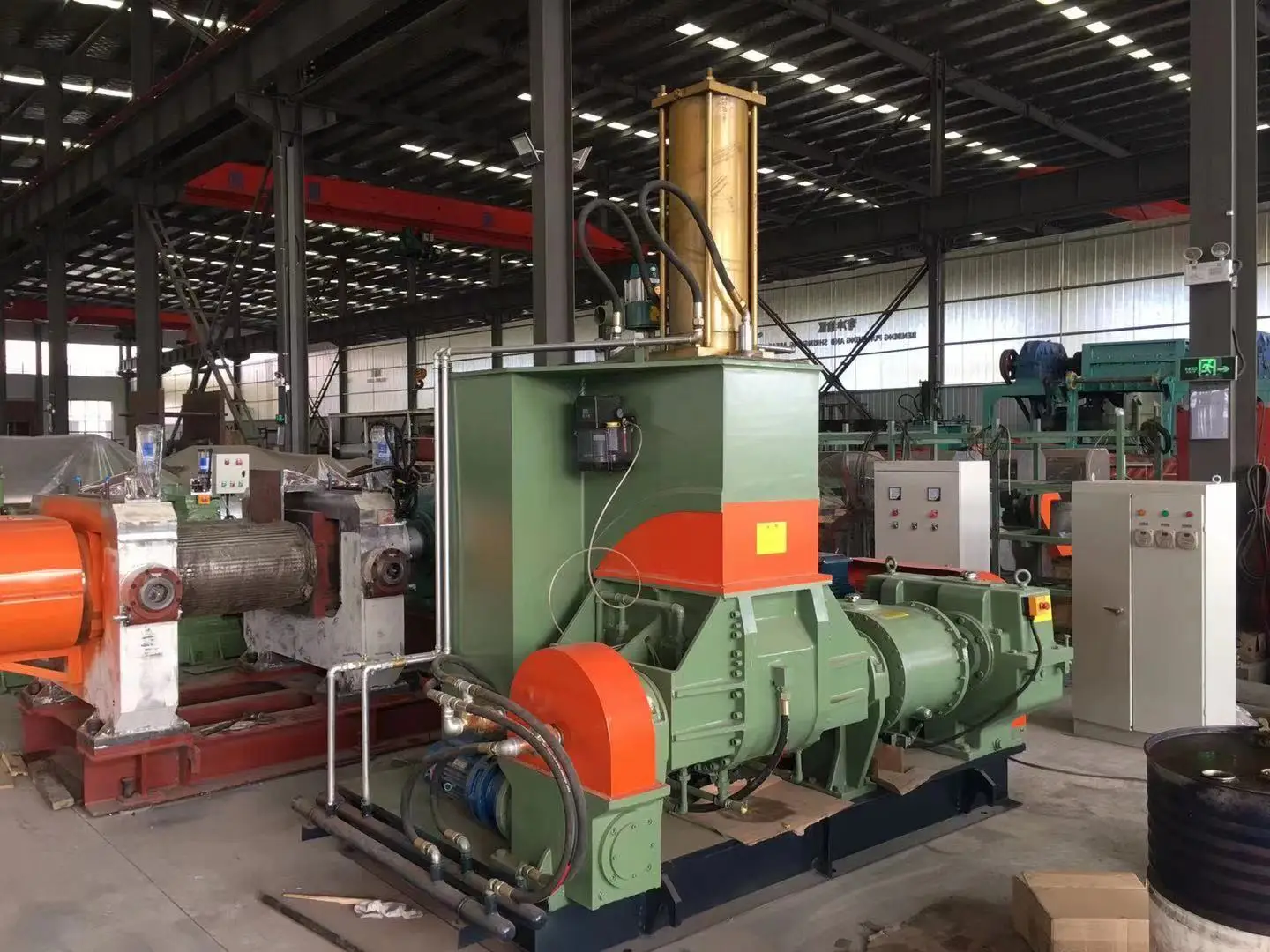

 3. More pictures



















4. Certifications
