The water well drilling machine occupies a small area (1 square meters), a height of 3 meters, less than ten minutes to install the operation.
1. Can be installed. Dismantling, dismantling the total length of less than 2 meters, the largest component is not more than 50 kg. Light weight, a person can move. wheel cart, can walk the village.
2, replace the drill bit, you can play 1 inches, 1.5 inches, 4 inches, 6 inches,etc. Well pipe fully closed, no leakage of shallow water, drinking water safety and health are guaranteed.
3 Using civil 220 volts, low voltage 60 V safety DC power supply, convenient, safety is guaranteed.
4, the use of electric lifting device, manual setting, even if a sudden power outage. You can cope freely.

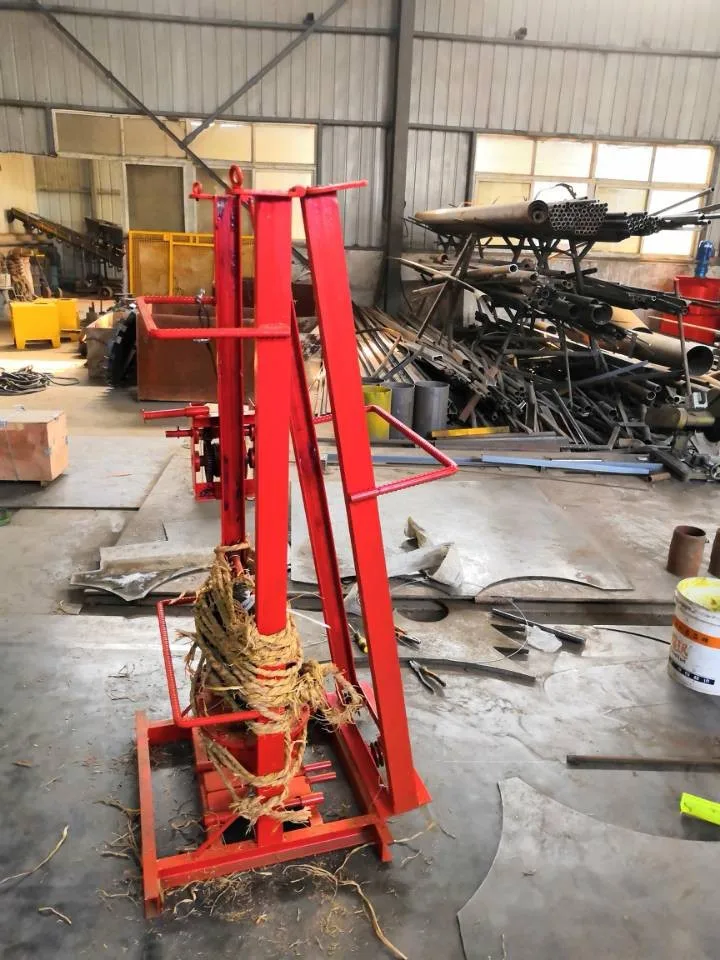

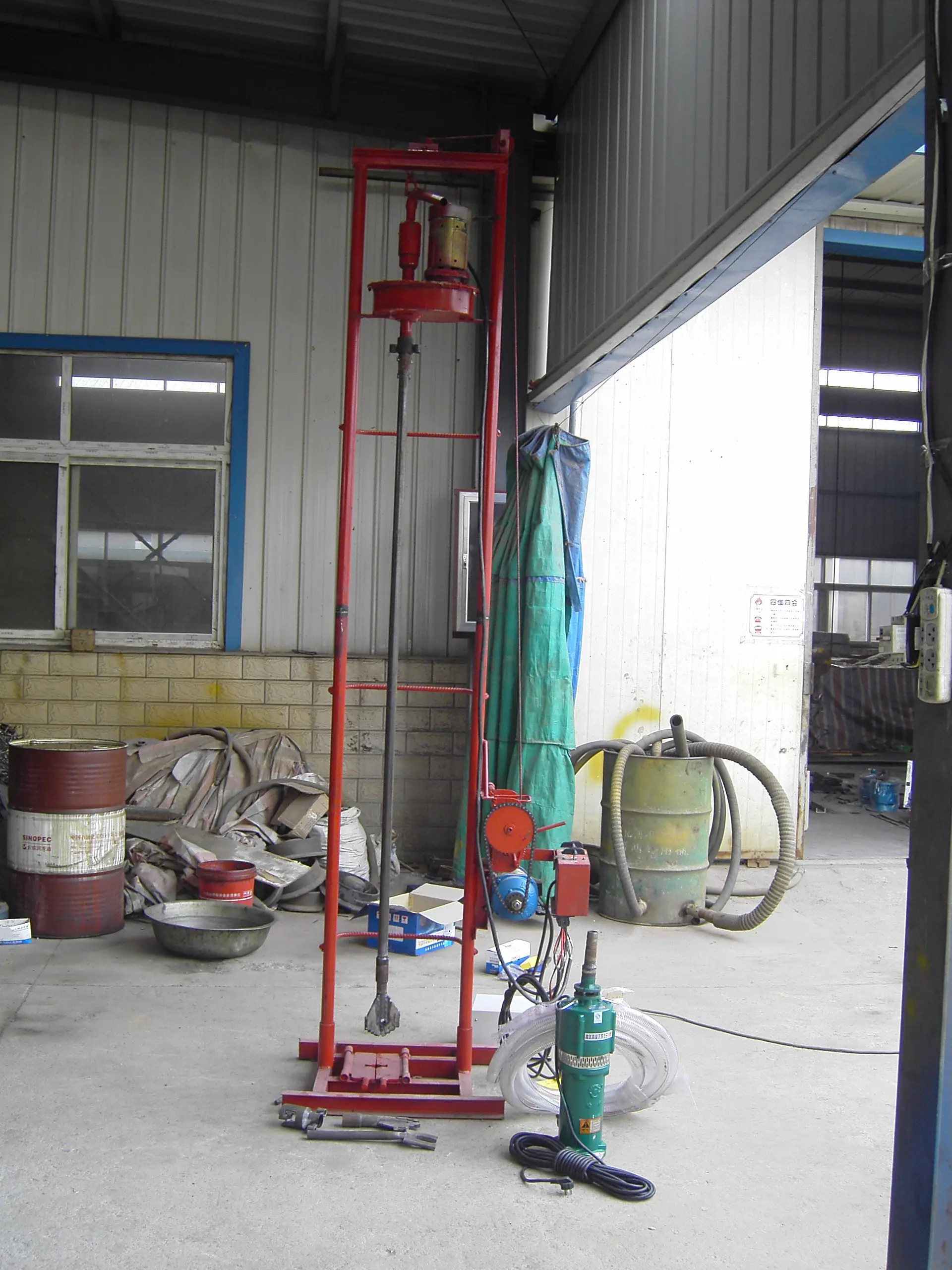

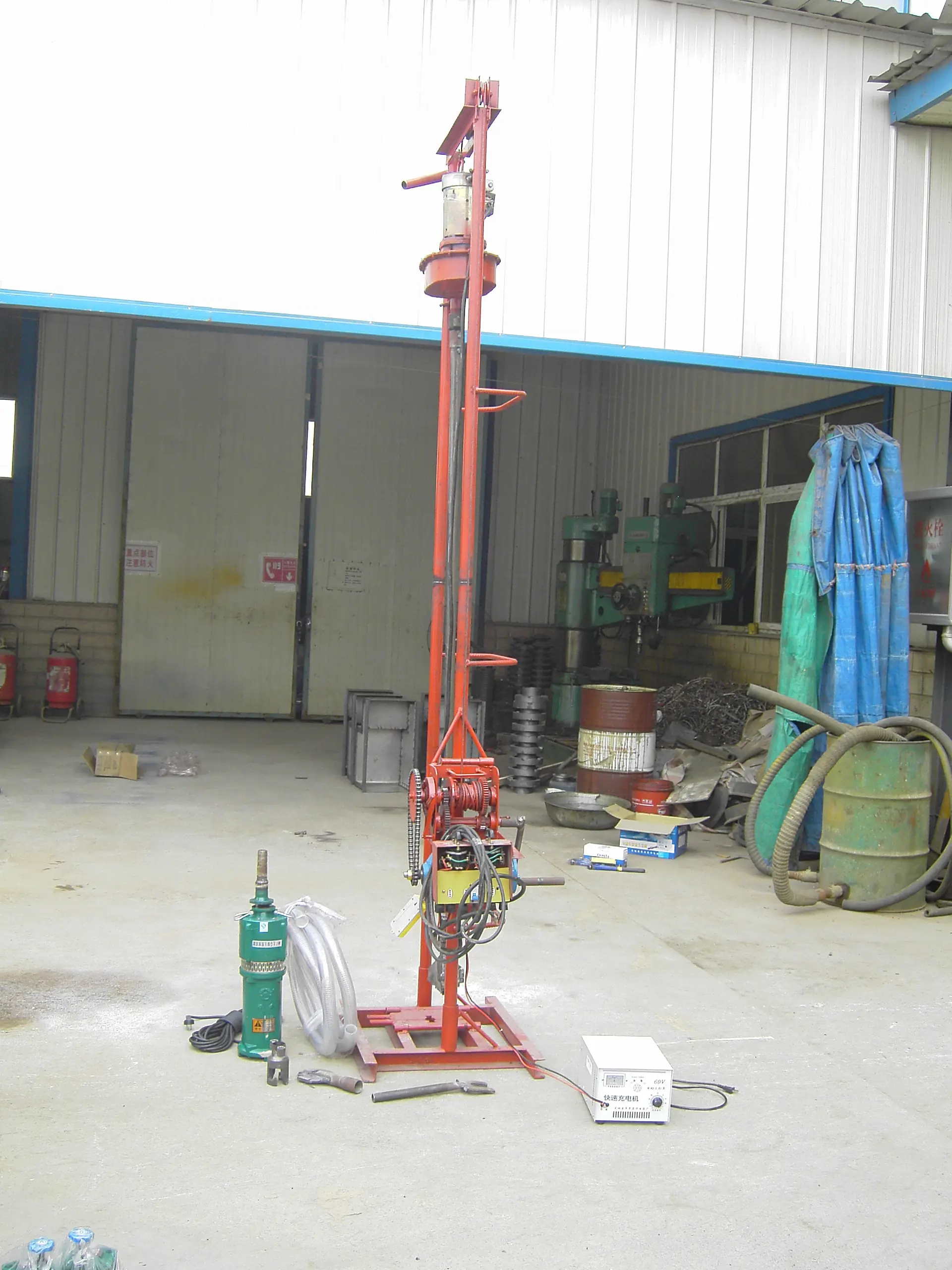

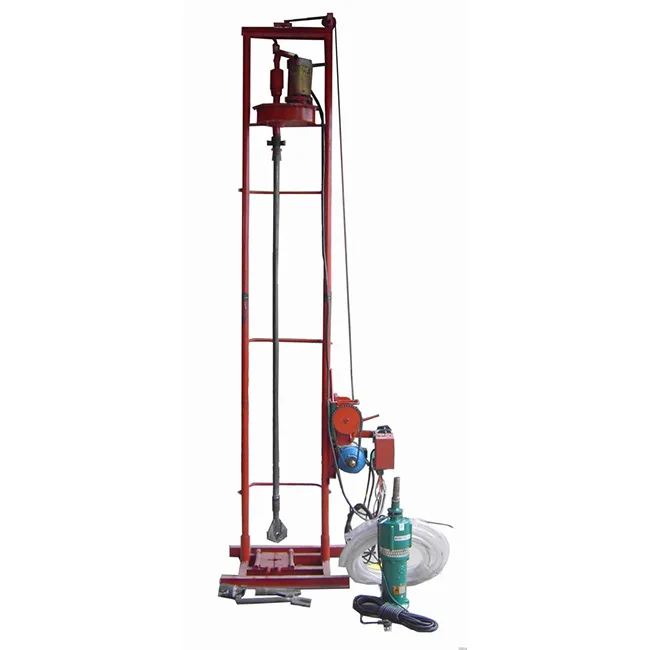

Detailed Images
Technical data
Drill pipe
2m
Weight
90kg
Motor
1.5kw,220V
Dimension
800*600*3000mm(LWH)
Hole diameter
80-240mm
Drilling depth
160m
Packing & Delivery
Customer Show
Our Company
1. Zhengzhou Xuda Machinery Co., Ltd. is a comprehensive manufacturing company with 20 years experience in Zhengzhou city.Our main product are Wet-mix shotcrete machine,Dry shotcrete pump,shotcrte machine, Hydraulic injection pump,Cement grouting pump,Squeeze pump,etc.
2. With a shotcrete machine manufacturing factory which cover about 1000 square meter,we employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years experiences.
