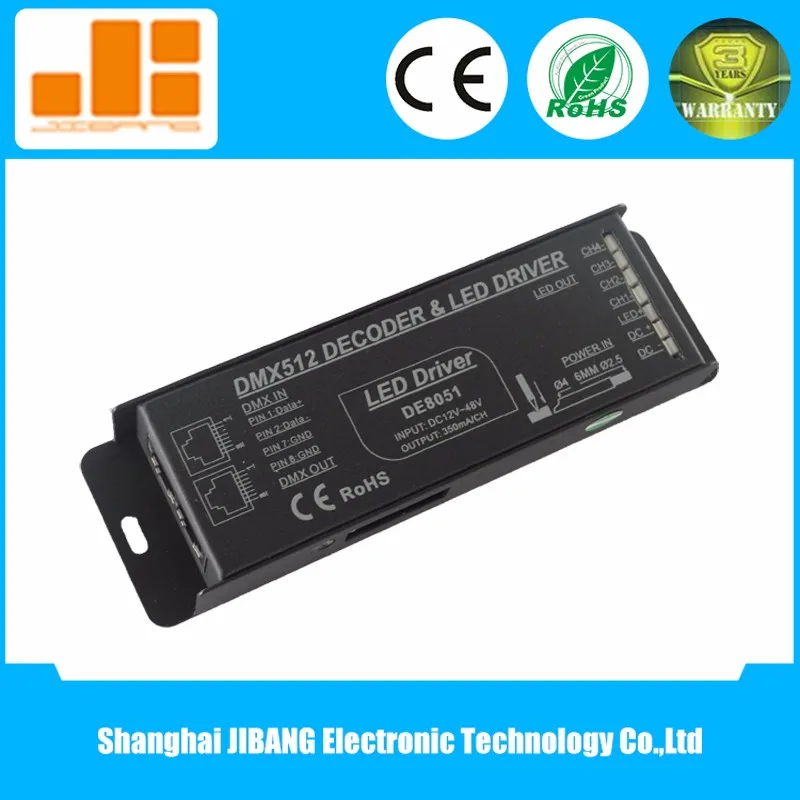

Standard constant current 350mA DMX512 controller DE8051

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features of 350mA Constant Current LED Decoder:

1,Meets DMX512/1990,with RJ45 DMX In/Out.

2,256-levels brightness,full-color with driver controls.

3,Output constant current 4 channels,Max350mA per channel.Max power is 64W.

4,Can achieve asynchronous color changes effect under working with controller.

5,Cooperate with control system, can realize rich change effect.

6,Setting up the DMX Address freely by Dip Switch.

7,Modularizing and can be matched with different LED module neatly.

8,Customized.

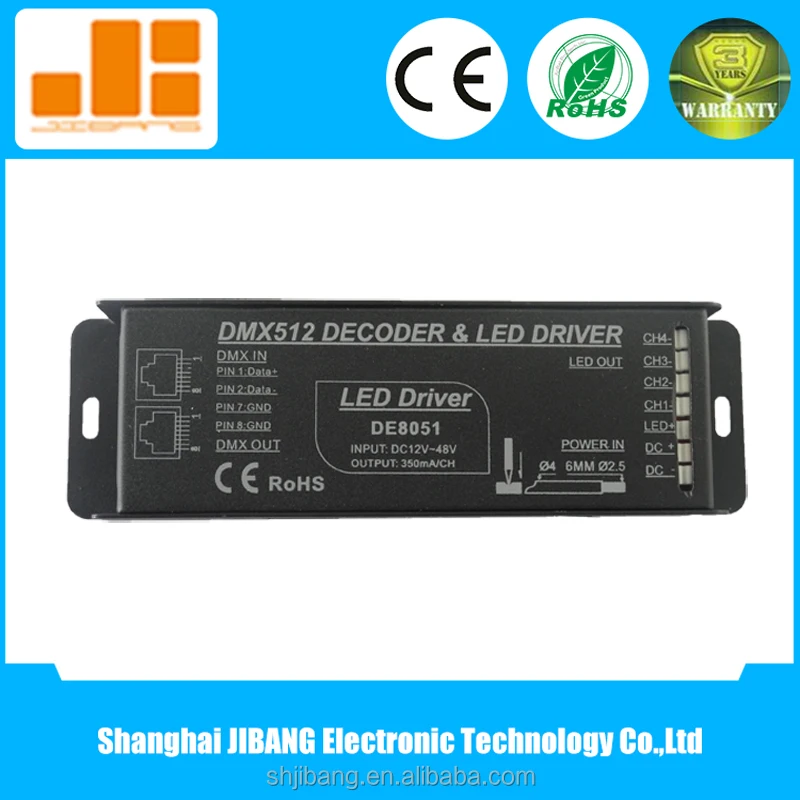

Details of 350mA Constant Current LED Decoder:

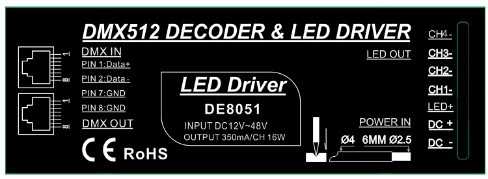

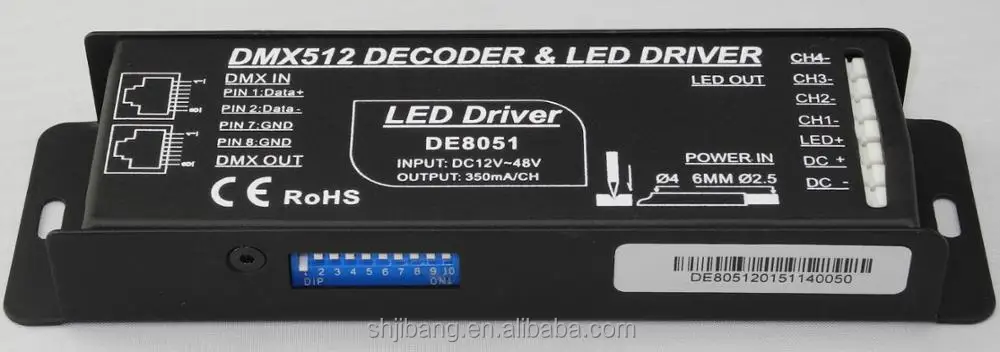

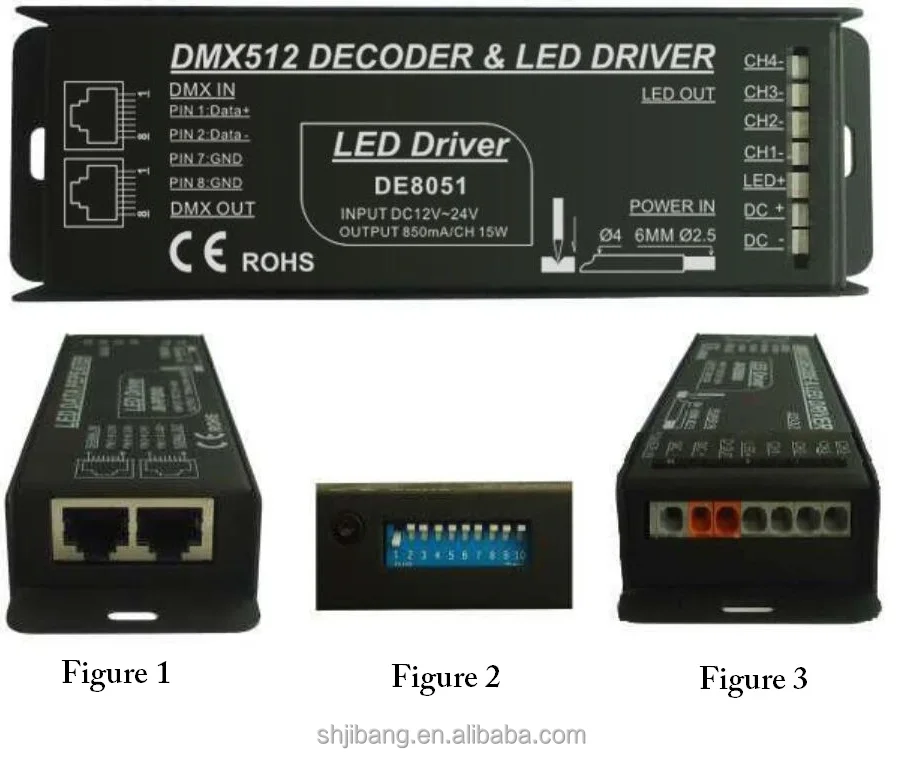

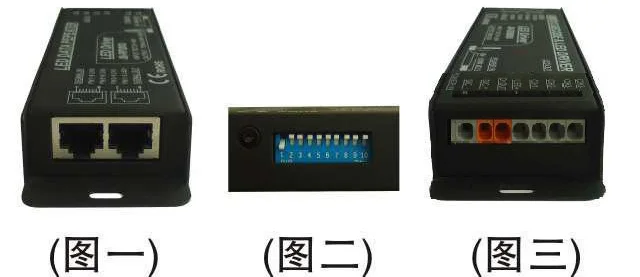

(Figure 1) DMX signal input/output interface (RJ45 interface)

(Figure 2)Address code set the switch interface (Using method see "DMX series address dial the meter")

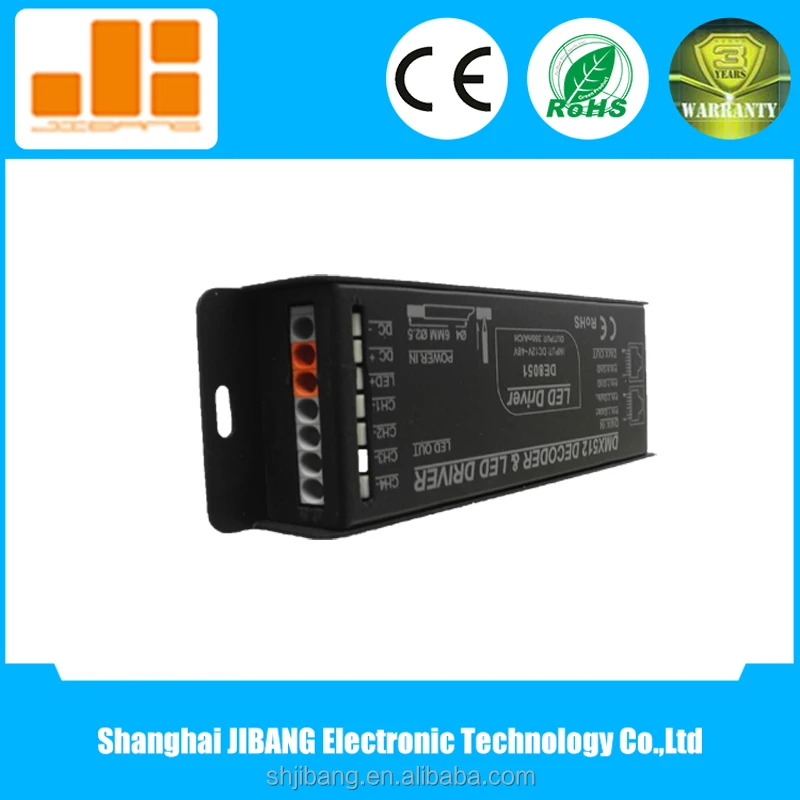

(Figure 3) 5PIN is driver output interface (4 channels. CH1-CH2-CH3- CH4-output interface, can contact all kinds of full-color module and monochrome module automatically according to the lamps module load adjust the output pulse). 2 PIN is the power input interface (DC 12 to 48 V input, supply the power for decoder itself and decoder with lamps ).With self test procedures, keep all dial switch off.

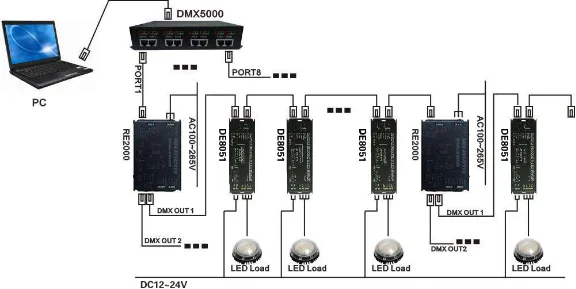

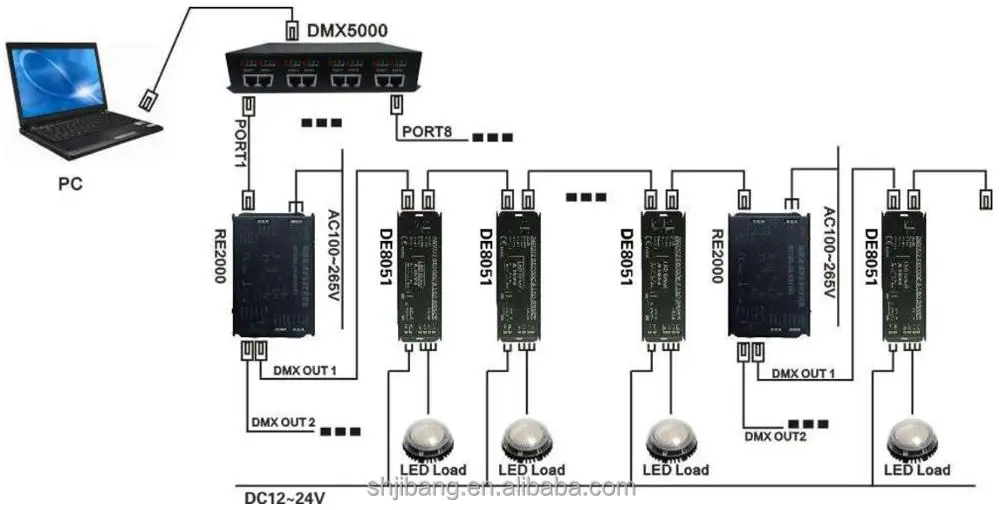

Wiring Diagram:

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output RJ45 interface: PIN1 signal positive, PIN2 signal negative, PIN7.8 signal ground, please corresponding polarity connection.

2, DMX5000 output and DE8051's transmission lines can't be over 300 meters.

3, DMX5000 each interface can with not more than 128 pieces of DE8051. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights.

4, When contacting 32 pieces of DE8051, DMX signal must add a signal amplifier RE2000 . Cascade can't more than 4 PCS.

5, At the end of the connection, we should connect a DMX signal finalizer ( Put down the code switch no.10 of DE8051 dial).
