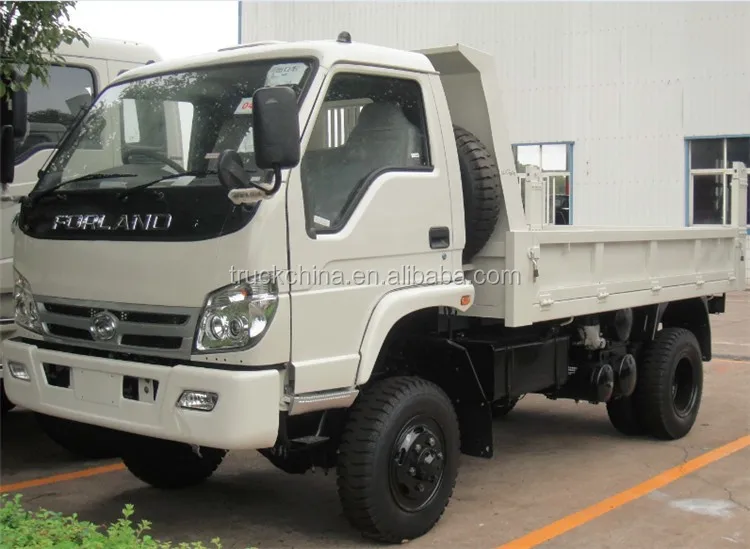

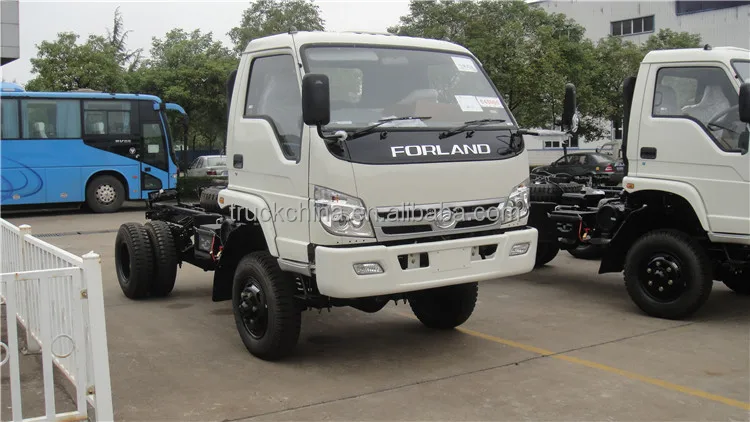

Foton Forland 4x4 Right Hand Drive Dump Truck
- Category: >>>
- Supplier: Qingdao Seize The Future Automobile Sales Co. Ltd.Qingdao Ltd.
Share on (60496199215):
Product Overview
Description
Foton Forland 4x4 Right Hand Drive Dump Truck
Main Spec.:
1. 4ton standard load capacity
2. Right hand drive
3. 4x4 dump truck
Product Description
Vehicle model | BJ3042V3PBB-A2 | ||
Cabin model | right hand driving,single row,flat head,D1900 | ||
Emission Standard | Euro-I | ||
Whole vehicle main dimensions | Overall dimensions (L×W×H)(mm) | 5650×2060×2420 | |
Inner dimensions of the cargo body (L×W×H)(mm) | 3600x1900x400/3x2 | ||
Driving type | 4*4 | ||
Wheel base(mm) | 3100 | ||
Wheel track (front/rear)(mm) | 1658/1550 | ||
Weight data | Curb weight(kg) | 4290 | |
Rated payload(kg) | 6000 | ||
seating capacity | 3 | ||
Whole vehicle main performance | Max. speed(no load)(km/h) | 80 | |
Maximum grade ability (%) | ≥25% | ||
engine | Model | YN4100QB-2 (Euro I) | |
type | vertical/in-line/water cooling/four stroke | ||
Displacement(L) | 3.298 | ||
Rated Power(kw/rpm) | 66.2/3200 | ||
Gearbox | Modle | WLY540 | |
Rear axle | Main reduction ratio | 6.167 | |
Steering gear | power steering | ||
tire type/number | 7.50-16/6+1 | ||
Brake system | Service brake | drum type, air braking | |
Parking brake | Energy storage spring rear wheel braking | ||
Rate Voltage(V) | 24 | ||
Capacity of fuel tank(L) | 110 | ||
standard configurations | spare tire, electric controlled flameout, adjustable steering wheel, air-conditioner | ||
Other Products
Packaging & Shipping
Our Service

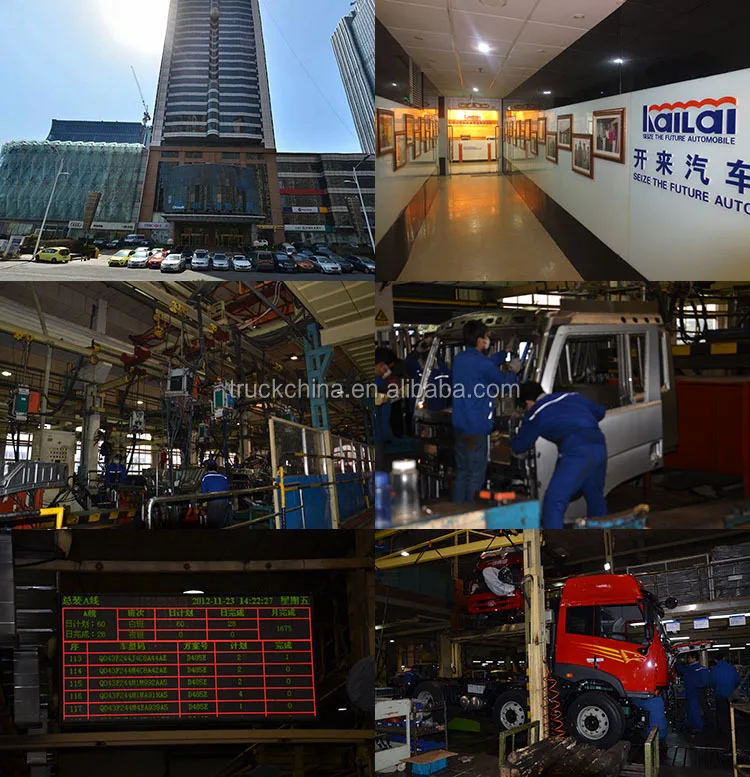

Conpany Information
