Cement Mortar Mixing Pumping Screeding Grouting Spraying Wall Plastering Rendering Machine

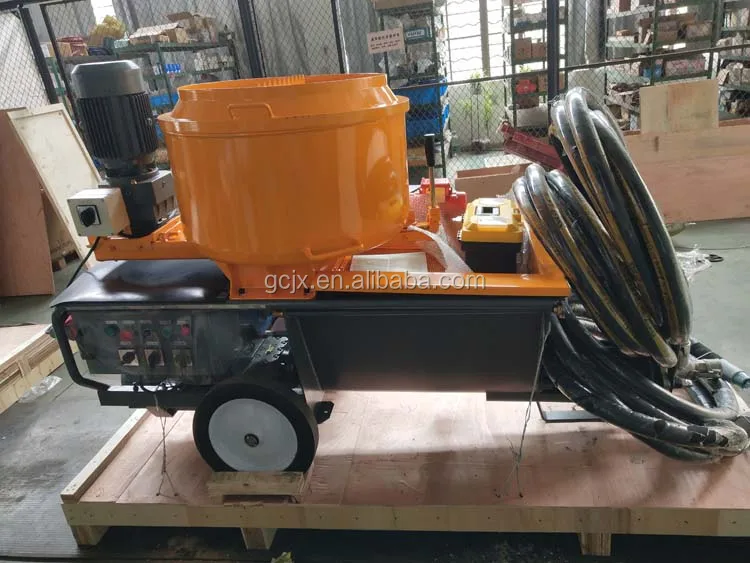

JP70 mortar spraying machine

JP70 is the application of modern technology - a large capacity mortar spraying machine, which has pump conveying, bonding, spraying functions. High conveying efficiency, long pumping distance, easiness of pumping large particles of material, these can be used for spraying already-mixed mortar and field mixing mortar. Set the screw pump anti-wear control mechanism; with a direct separation of the screw rotor and stator on machine; adjust the displacement and remote control functions, pressure sensor control. It is suitable for conveying and spraying variable kinds of plastering mortar, insulation mortar, bonded mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fire mortar, refractory mortar, self-leveling mortar, masonry mortar, reinforced mortar, fill mortar and pouring mortar.

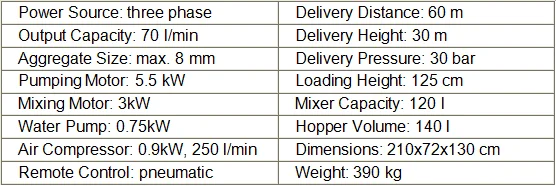

**The modular system of the JP70 is based on a worm pump with a powerful 5.5 kW drive.The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.

**JP70 works with Continuous mixer machine:

**JP70 works with SWJ-160 mixer machine:

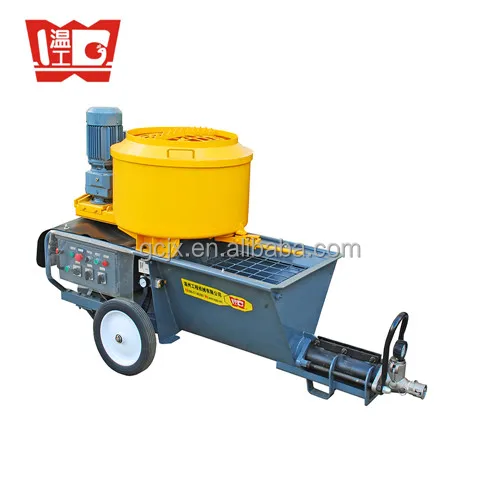

**JP70 works with pan mixer machine:

(could be seperatedly also)

Infinite number of possible applications

 **Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing

**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more

Welcome to our factory!!!

It would be our great honor to show & test our machine for you.

***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.

***Exhibition every year---Welcome to our fair

***Wooden case packing

Full container shipment---wooden pallent package

LCL shipment----wooden carton package

Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.

Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.

Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
