High quality PCBA source and Printed Circuit board assemblies with 13 years professional experience
- Category: PCB & PCBA >>>
- Supplier: Shenzhen Ousai Electronic Material Co. Ltd.
Share on (60500458518):
Product Overview
Description
High quality PCBA source and Printed Circuit board assemblies with 13 years professional experience
Capability:
layer | 1-50 layer |
Material type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness | 0.21mm to 7.0mm |
Copper thickness | 0.5 OZ to 6 oz |
Size | Max. Board Size: 580mm×1100mm |
Min. Drilled Hole Size: 0.2 mm (8 mil) | |
Min. Line Width: 4mil (0.1mm) | |
Min. Line Spacing: 4mil (0.1mm) | |
Surface finishing | HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating |
Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
Tolerance | Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |
Certificate | UL, ISO 9001, ISO 14001 |
Special requirements | Buried and blind vias+controlled impedance +BGA |
Profiling | Punching, Routing, V-CUT, Beveling |

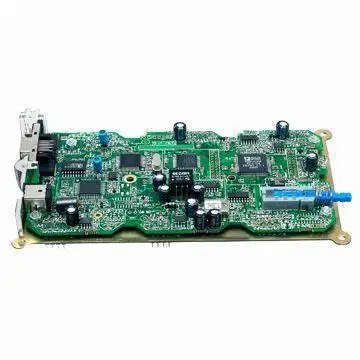

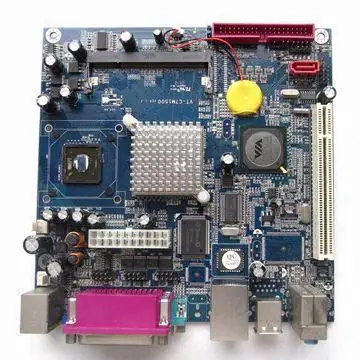

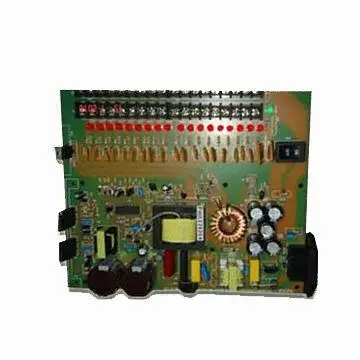

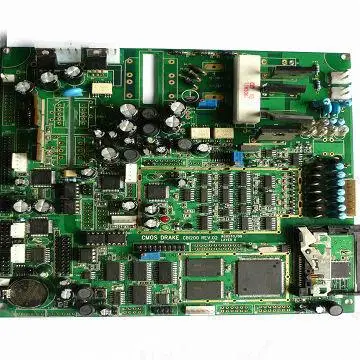

PCB product showcase:
PCB application:
PCB production line:
Our Services:
Lead Time & Payment:
Shipping Methods:
Buying Guides
If you need PCB, Could you send us your files(gerber preferred) and tell me following information if it is not included in your files? | ||
|
|
|
| Your parameter | The normal value for your reference |
Layer counts: |
|
|
Material: |
|
|
Surface finished: |
| HAL lead-free or immersion gold….? |
Solder Mask color: |
| White |
Legend color: |
| Black |
Board thickness: |
| 1.6mm |
Copper thickness: |
| 1OZ |
Size: |
|
|
The quantity you need: |
|
|
| ||
If you need PCB assembly service, could you please offer us the following information? | ||
1. Gerber file of the bare PCB board | ||
2. BOM (Bill of material) for assembly | ||
To short the lead time, please kindly advise us if there is any acceptable components substitution. | ||
3. Testing Guide & Test Fixtures if necessary | ||
4. Programming files & Programming tool if necessary | ||
5. Schematic if necessary | ||
Please provide us your PCB & PCB Assembly file! We will quote you as soon as possible.
