Lab paint coating industrial oven
- Category: Vacuum Drying Equipment >>>
- Supplier: Sailham Equipment (Dongguan) Co. Ltd.
Share on (60507240927):
Product Overview
Description

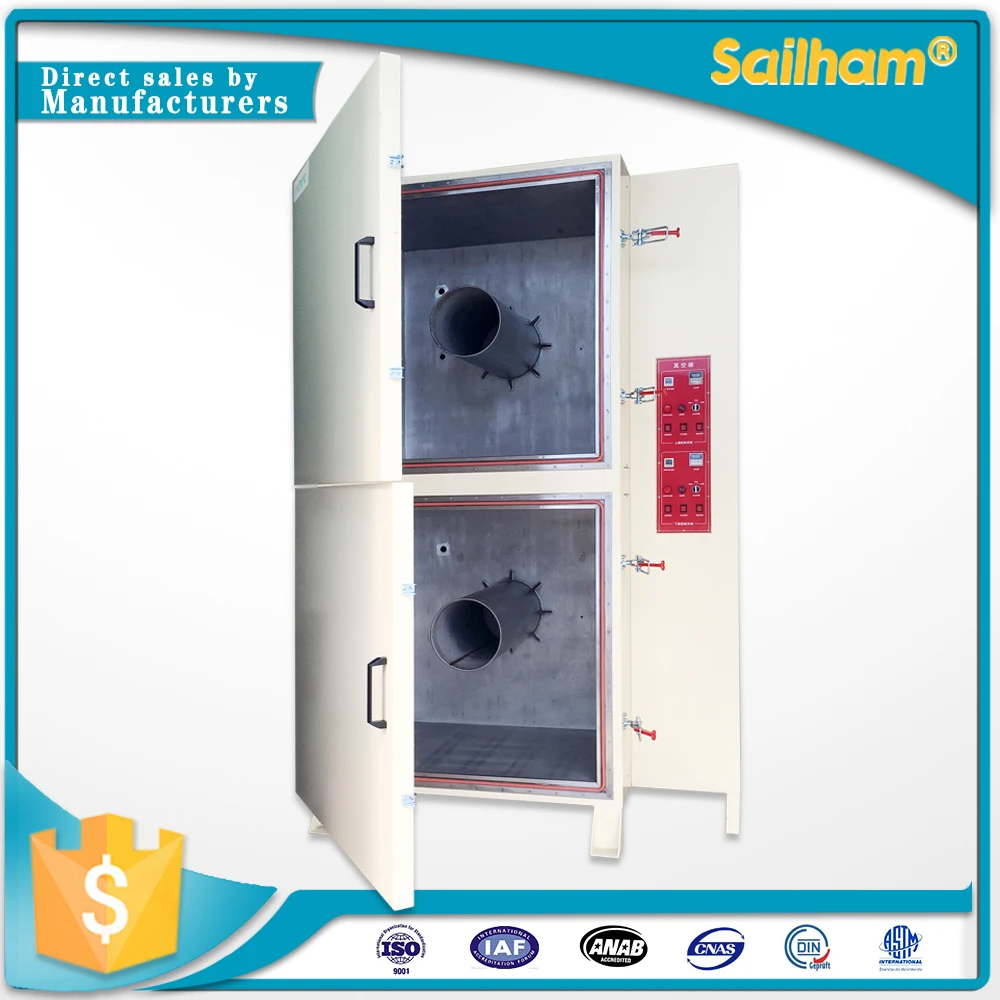

Lab paint coating industrial vacuum dry oven
Product Description
Lab Vacuum Drying oven is used for drying and heating test in vacuum condition of objects in scientific research units, specialty universities, industrial and mining enterprises’s laboratories together with production field, etc.
Achieve maximum temperatures of 300°C (572°F) with Thermo Scientific™ Vacuum Ovens, while benefiting from two control configurations and display options. These ovens feature independent vacuum and purge needle valves. Radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications.
Technical parameters
| Model | ZH-ZKGW-30 | ZH-ZKGW-40 |
Internal Dim.W×H×D(cm) | 30*30*30 | 40*40*40 |
| External Dim.W×H×D(cm) | 60*92*52 | 70*128*62 |
| Material | Exterior chamber material :Stainless steel plate+ Power Coated Inner chamber material: SUS#304 stainless steel | |
| Temp Range | Room Temp.+10°C~+300°C (Customization is available) | |
| Temp.Uniformity | ±0.1°C AT 200°C;±1.5%AT300°C | |
| Heat-up Time | Approx.40min | |
| Wind Circulatin | Sirocco fan | |
| Heating system | SUS#304 stainless steel high-speed heater | |
| Temperature sensor | K type thermocouple | |
| Controller | PID + SSR + Timer(Programmable touch screen controller, Customization is available) | |
| Vacuum degree range | 0Mpa~-0.1MPa,vacuum degree:≤133P | |
| Vacuum pump selection | The standard 4L (8L, 15L etc. can choose vacuum pump) | |
| Vacuum control mode | Manual control, start, stop, decompression | |
| Other Components | loading shelves(2pcs for free) ;Cable port(50mm) | |
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |
| weight (kg) | 90 | 220 |
Vacuum oven advantages :
1.The patented air jacket system guarantees temperature uniformity on all racks for reproducible results and provides a safe guided solvent flow for a condensation-free interior.
2.vacuum drying oven provides maximum safety features required when drying organic solvents.
3.The vacuum ovens are available as a coordinated oven/pump/vacuum module system. This modular system provides low noise and seamless connectivity with a connection kit for easy assembly delivering optimized space and performance.
Sailham Equipment (Dongguan)CO., LTD.is a leading manufactuer that specializes in manufacturing and marketing the cost effective& nbsp;and reliable environmental test chambers. Our main products includes:environmental test equipment and mechanical/optical equipment, such as:programmable constant temperature humidity test chamber, high - low temperature cycling test chamber,thermal shock test machine(2zone or 3zone), high-low temperature shock chamber,Highly pressure accelerated aging test machine,rapid temperature change test chamber, walk-in constant temperature humidity chamber,high temperature oven, vacuum chamber, uv test chamber, xenon lamp aging test chamber, IP56 rain-resistant test chamber, IPX(Level 1 to 8) sand and dust test chamber, Ozone ageing test chamber, salt spray test machine,radial-boom impact test machine,container compressure tester,vibration test machines,drop test machines,tensile test machins etc .More>>
Our Team
Maching workshop
Certifications
Exhibitions and customers visit our factory
Packaging and shipping
Our partner
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
