Product Overview

Description


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor



Product Description


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor




With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.



Product Feature


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor





  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.

  2. proof water, fire, moisture and explosion

  3. can work in humid, high temperatures, high dust and other proof working environment

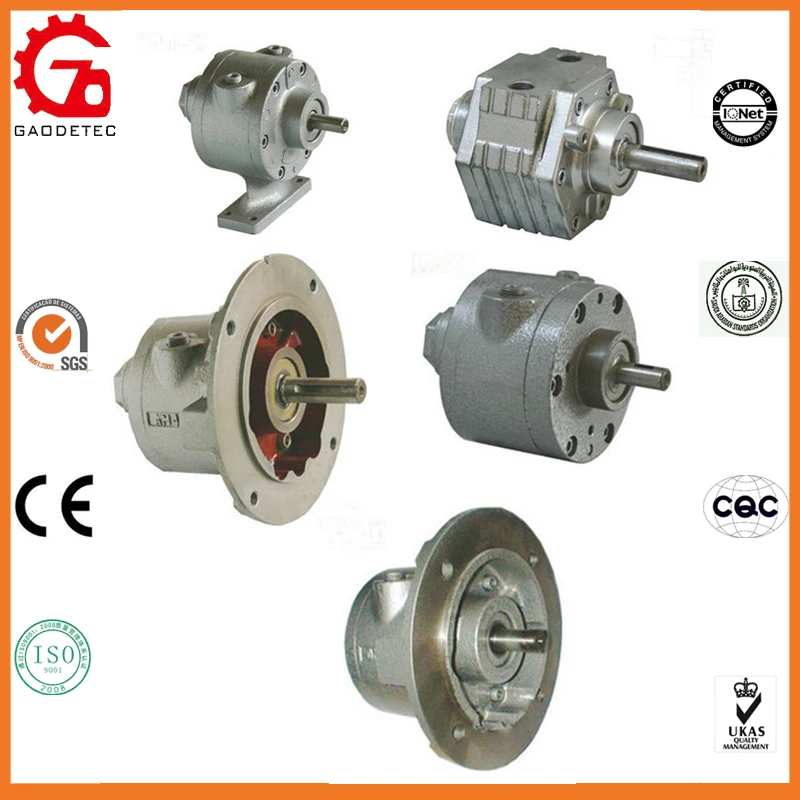

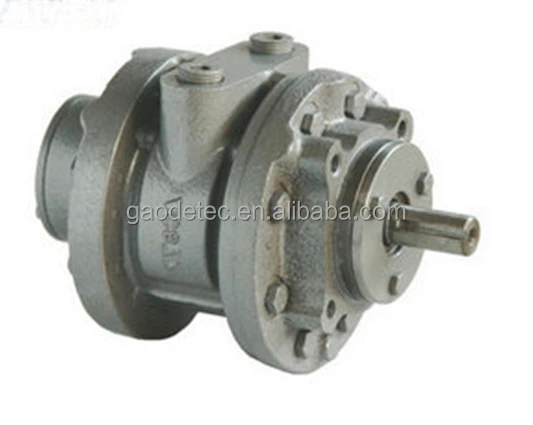

Product Picture


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor:

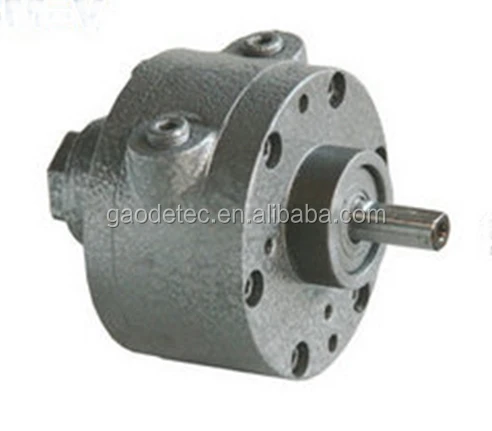

2AM-V:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor

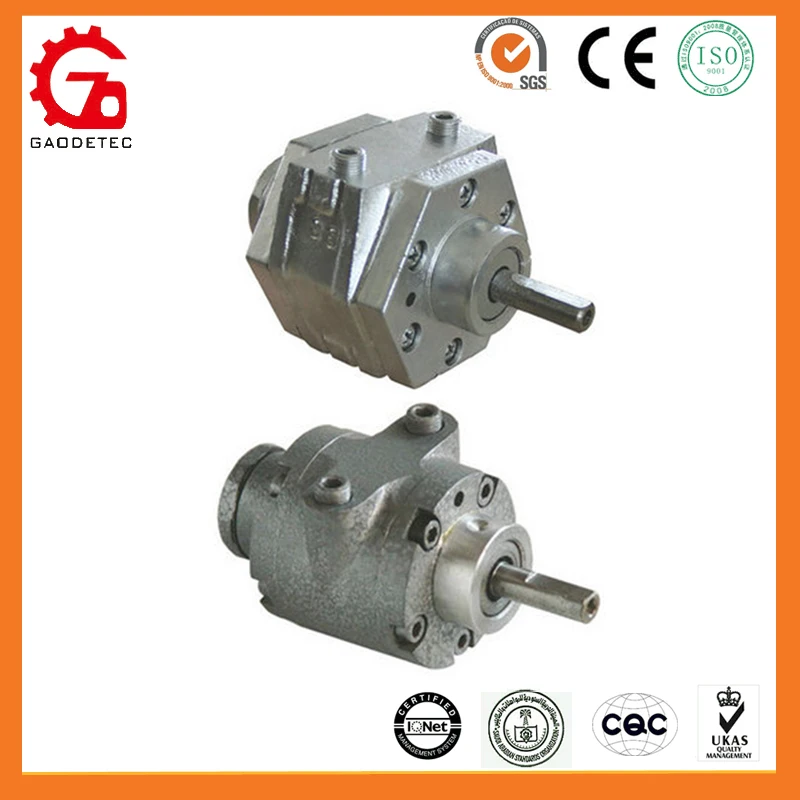

2AM-H:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor

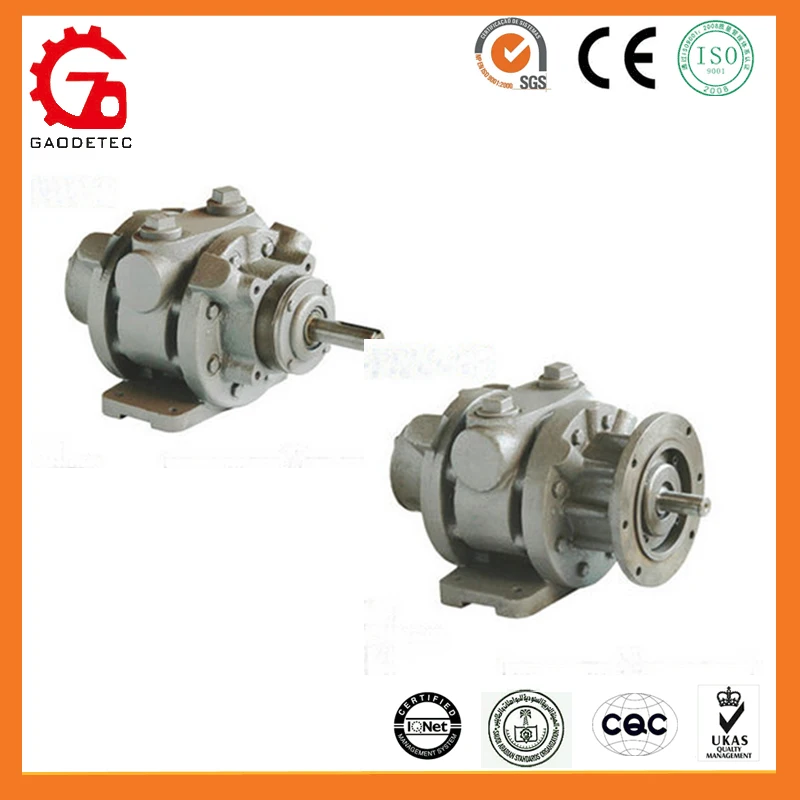

2AM-F110:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor

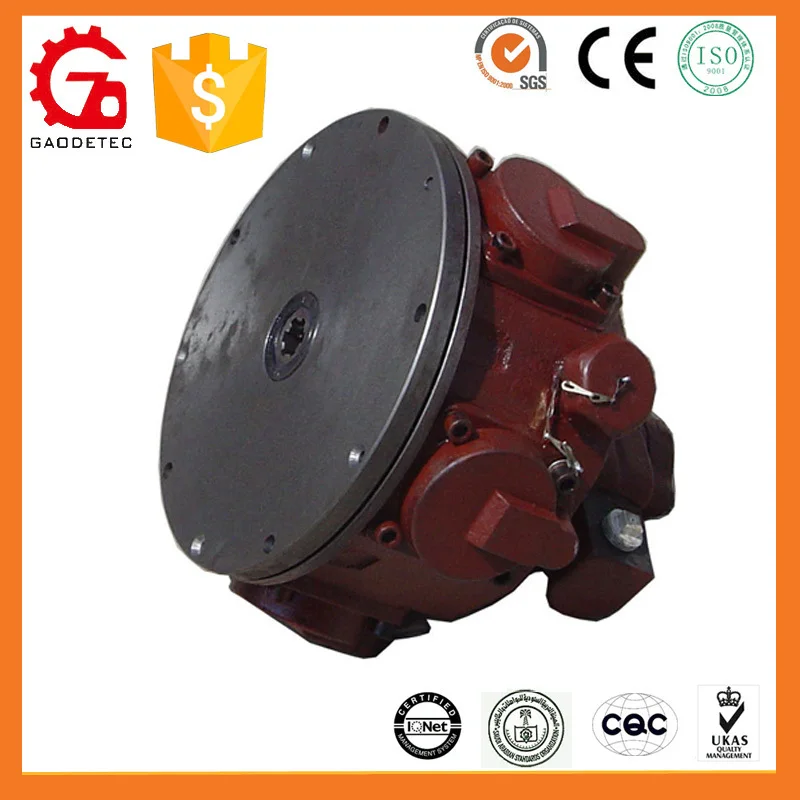

2AM-F114.3-15:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor




















Technology Parameter


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor




























































































































Model



Maximum Speed



Maximum Torque



Power



Torque



Rotate Speed



Air consumption






Rotate Speed



Torque



hp



kw



Nm



lb.in.



rpm



m3/h



cfm



rpm



Nm



lb.in.



1AM



0.45



0.33



0.31



2.75



10000



35.1



20.5



650



0.65



5.6



 1UP



0.45



0.33



0.58



5.25



6000



47



27



500



0.68



6.0



2AM



0.93



0.68



2.20



19.50



3000



49.5



30



350



3.05



26.1



4AM



1.70



1.30



4.10



36.00



3000



132.5



78



300



6.3



56



6AM



4.00



3.00



10.00



84.00



3000



228



128



300



13



115



8AM



5.25



3.90



14.40



132.00



2500



293



175



300



21



185



16AM



9.50



7.00



34.00



290.00



2000



475



275



300



43



372






 0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor

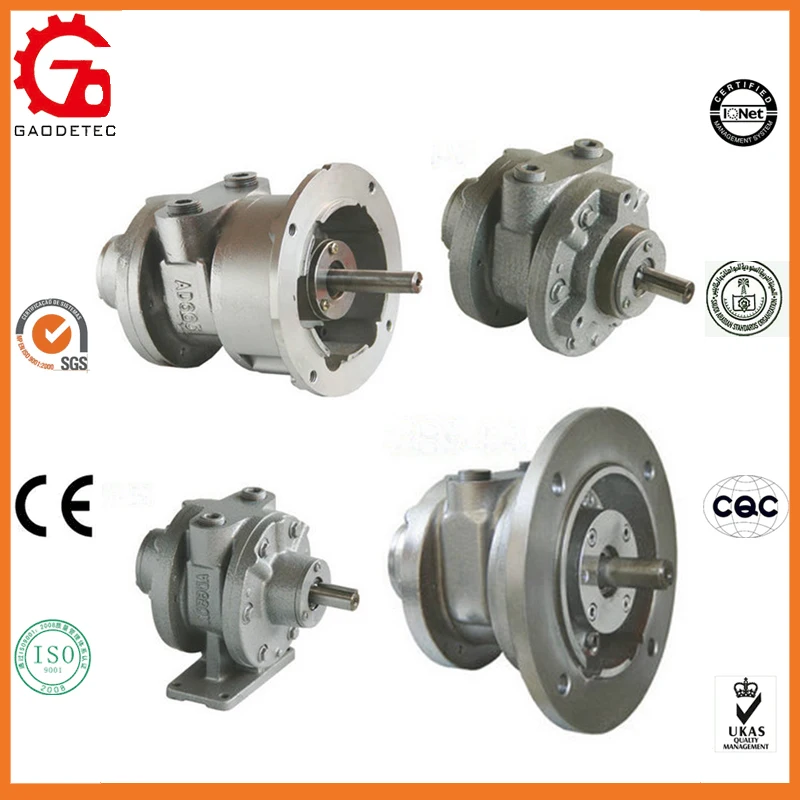

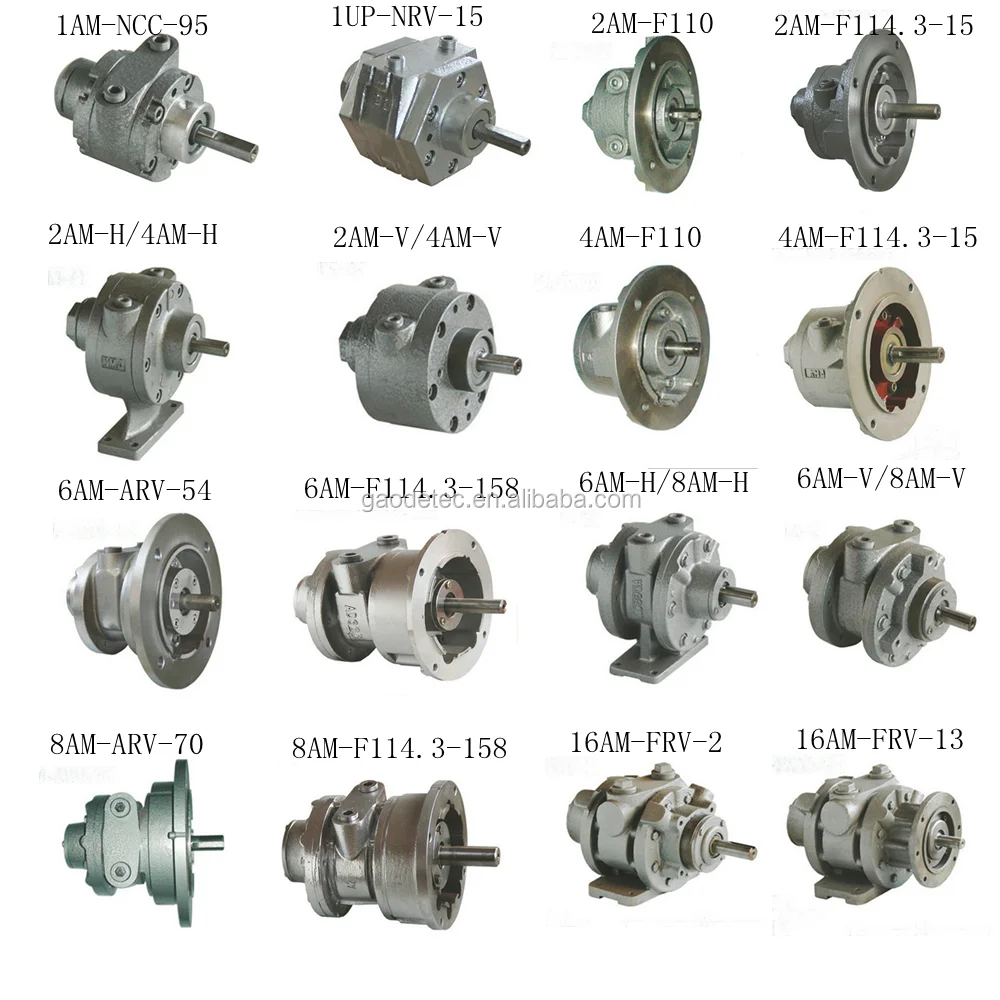

Other Model Vane Air Motor:


1AM:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor





1UP:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor


4AM:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor





6AM:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor


8AM:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor





16AM:


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor









Related Products

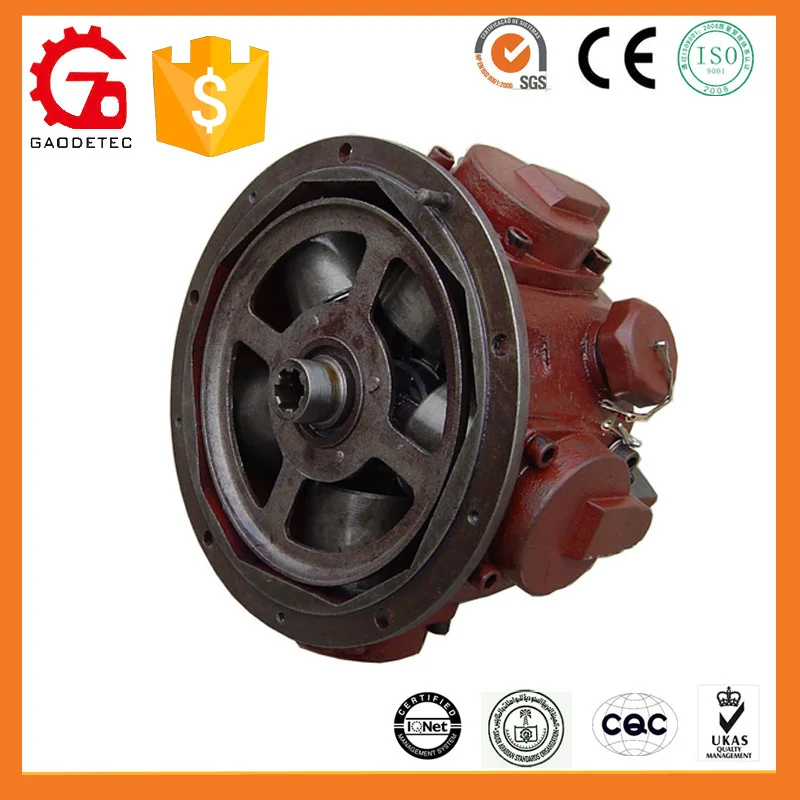

Other Type Air Motor: Piston Air Motor




Parameters of Piston Air Motor:



































































































































Model



Rated Power      Kw(hp)



Rated Rev.


RPM



Rated Torque


NM



Starting Torque


 NM



Air Consumption


m3/min(CFM)



Working Pressure


Mpa(PSI)



Weight


KG(lbs)



GMH3



3(4)



2800



10



13



3.6(129)



0.5(66)



24



GMH3B



GMH3D



GMH3.2



3.2(4.4)



1000



30.5



39.7



3.84(137)



0.5(66)



22



GMH4



4(5.4)



2000



21.4



27.9



4.8(171)



0.63(83)







GMH4D



4(5.4)



1000



38



49



4.8(171)



0.63(83)



30



GMH4A



GMH6



5.88(8)



900



62.6



81



8(286)



0.63(83)



72



GMH6A



GMH8



8(10.9)



650



117.5



152



9.4(336)



0.63(83)



74



GMH15



14.7(20)



650



216



280



17(607)



0.63(83)




GMH15A



GMH18.4



18.4(25)



600



286



371



21.5(768)



0.63(83)




GMH22



22(30)



600



300



400



21(750)



0.63(91)




GMH25



25(34)



600



380



480



27.3(975)



0.8(115)







0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor


0.93Hp 0.68Kw 2.2Nm Vane Air Motor, Vane Pneumatic Motor, Blade Air Motor


Troubleshooting chart:































Symptom



Possible Causes



Corrective Action









Doesn’t run.




  1. Dirt or foreign material.

  2. Internal rust.

  3. Motor is jammed.

  4. Worn vanes.

  5. Bearing failure.




  1. Inspect and wash.

  2. Inspect and wash.

  3. Disassemble and clean.

  4. Inspect and replace.

  5. Inspect and replace.







Runs well then


slows down.




  1. Restricted exhaust.

  2. Motor requires cleaning.

  3. Air source inadequate.

  4. Air source far from motor.

  5. The sealant is corrosion.




  1. Inspect and repair.

  2. Disassemble and clean.

  3. Check air resource.

  4. Adjust air resource.

  5. Inspect and replace.









Low torque.




  1. Dirt or foreign material.

  2. Low air pressure.

  3. Motor requires cleaning.

  4. Worn out bearings.

  5. Worn air motor vanes.

  6. The sealant is corrosion.







  1. Disassemble and clean.

  2. Increase pressure.

  3. Disassemble and clean.

  4. Inspect and replace.

  5. Inspect and replace.

  6. Inspect and replace.












Low speed.




  1. Dirt or foreign material present.

  2. Internal rust.

  3. Low air pressure.

  4. Air source restricted.

  5. Restricted exhaust.

  6. Motor is jammed.

  7. Air source CFM inadequate.

  8. Air source far from motor.

  9. Worn vanes.




  1. Disassemble and clean.

  2. Inspect and wash.

  3. Increase pressure.

  4. Check air hose.

  5. Inspect and repair.

  6. Disassemble and clean.

  7. Check air resource.

  8. Adjust air resource.

  9. Inspect and replace.

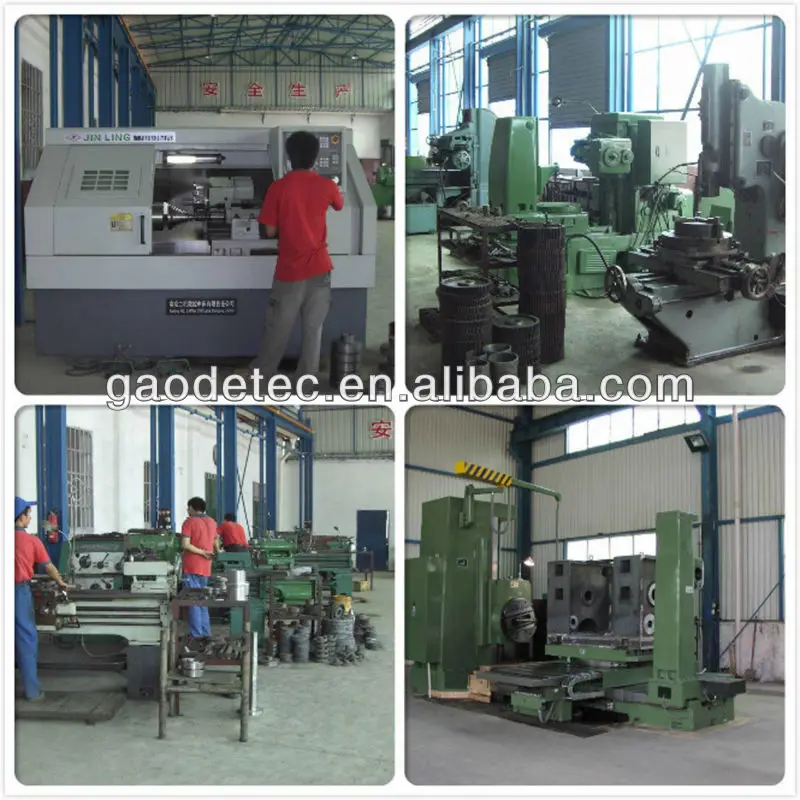

Workshop
