Малый размер CCD аудио камера 34x34 мм 2,1/2,5/2,8/3,6/4,2/6/8/12/16 мм объектив 700TVL 800TVL 1000TVL 1200TVL аналоговая камера
- Category: Surveillance Products >>>
- Supplier: Shenzhen HDV Electronics Co. Ltd.
Share on (60510721910):
Product Overview
Description

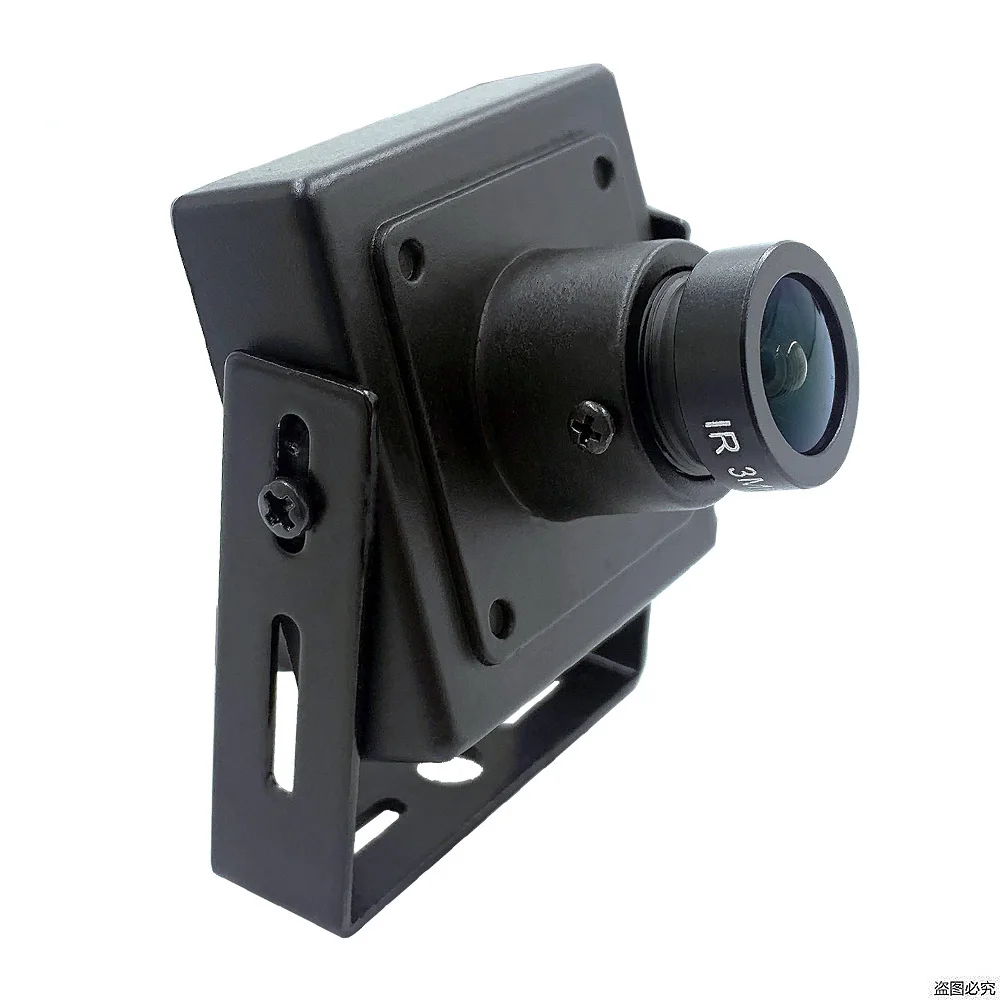

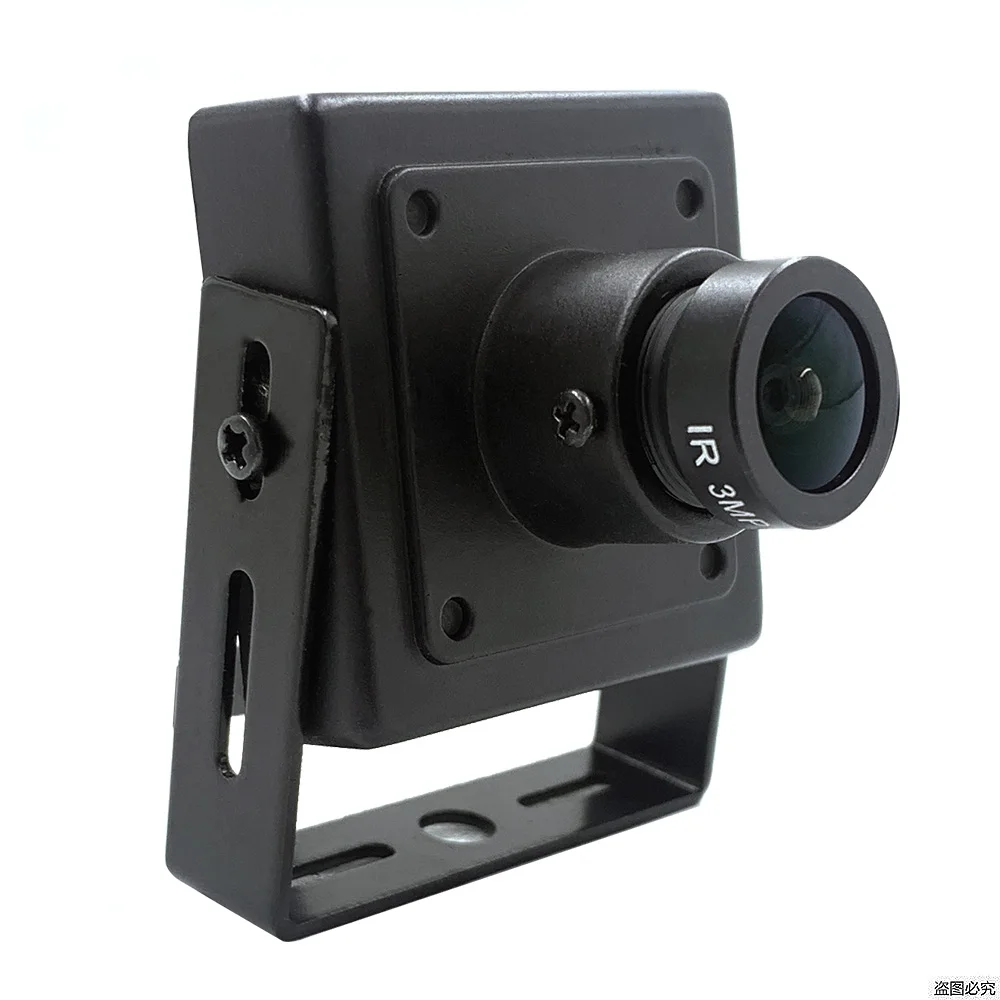

MINI CCD Camera with Audio 34*34mm With Aduio / With Pickups / with MIC 420TVL 480TVL 550TVL 600TVL 700TVL 0.01Lux 2.1/2.5/2.8/3.6/4.2/6/8/12/16mm board Lens
Order symbol:
HDV-M34A-L3.6-MIC 420TVL MINI CCD Camera with 3.6mm Lens with Audio
HDV-M34B-L3.6-MIC 480TVL MINI CCD Camera with 3.6mm Lens with Audio
HDV-M34C-L3.6-MIC 550TVL MINI CCD Camera with 3.6mm Lens with Audio
HDV-M34D-L3.6-MIC 600TVL MINI CCD Camera with 3.6mm Lens with Audio
HDV-M34E-L3.6-MIC 700TVL MINI CCD Camera with 3.6mm Lens with Audio
Featues:
- 1/3" Sony CCD with Audio with pickups with mic
- M12 Board lens
- 34*34mm, 85g
- 0.5Lux, Day to Night
- DC 12V, 80mA, Optional 5V
- PAL or NTSC optional
- Manual focus
- Angle of view around 80 degrees (without any distortion)

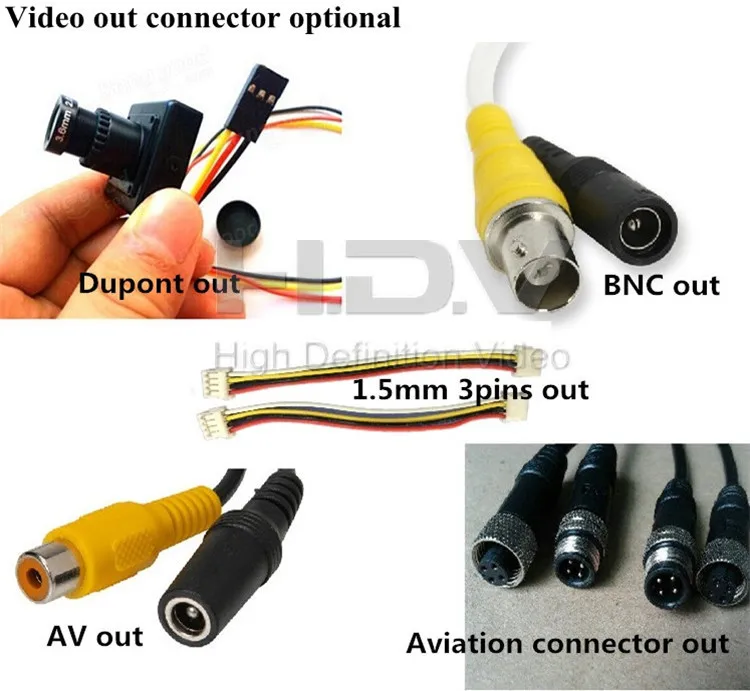

- BNC Connector Standard,
- Used: Banks'ATM, FPV
- Features:Pinhole, Day to Night,White Balance,Auto
- Can be customized by your requirements
Product Description
| M34 Series | Model | M34A-L3.6 | M34B-L3.6 | M34C-L3.6 | M34D-L3.6 | M34E-L3.6 |
| Name | Sony Mini ccd Camera with audio | |||||
| Camera | Image Sensor | 1/3"Sony Super HAD II CCD | 1/3"Sony 960H CCD | |||
| DSP | Sony IC | Sony IC | Sony IC | Nextchip 2040 | Sony Effio | |
| Resolution | 420TVL | 480TVL | 550TVL | 600TVL | 700TVL | |
| Min.Illumination | 0.5Lux | 0.5Lux | 0.01Lux | 0.01Lux | 0.01Lux | |
| Effective Pixels | PAL: 500(H)x582(V) NTSC:510(H)x492(V) | PAL:976(H)x582(V) NTSC:976(H)x494(V) | ||||
| Frame | PAL 25fps, NTSC 30fps | |||||
| Standard Lens | 3.6mm board lens @ F1.2 View angle:90° | |||||
| Optional Lens | 1.8/2.1/2.5/2.8/3.6/4.2/6/8/12/16mm lens | |||||
| Elec Shutter | 1/50(1/60)s to 1/100,000s | |||||
| Day& Night | Electronic Day& Night | |||||
| White Balance | Auto | |||||
| Synchronization | Internal Synchronization | |||||
| Video Output | 1Vp-p Composite Output (75Ω/BNC) | |||||
| S/N Ratio | More than 48dB | |||||
| BLC | Auto | |||||
| AGC | Auto | |||||
| Industrial Standard | Power Supply | 12 V DC ± 10% | ||||
| Working Temp | -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing) | |||||
| Impact Protection | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. | |||||
| Output | RCA Connector | |||||
| Shell Color | Black | |||||

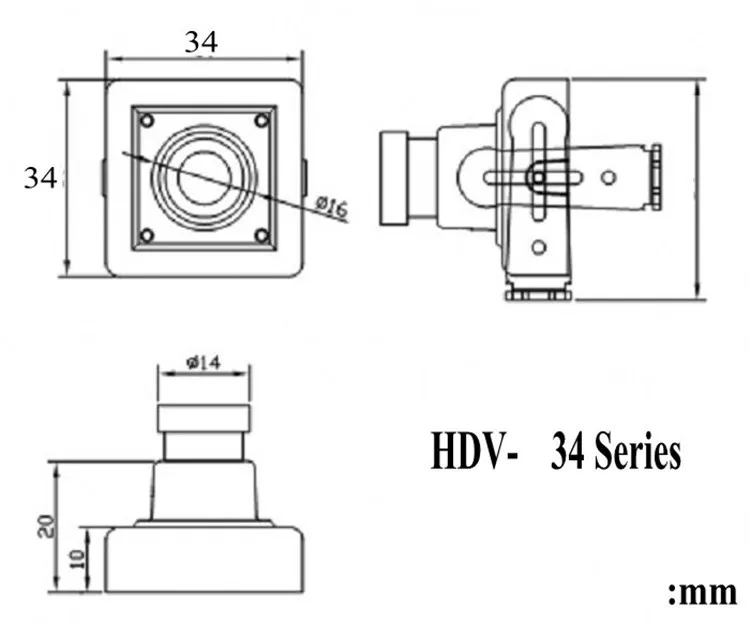

| Dimension | 34*34mm | |||||
| Weight | 38g | |||||
| Accessories | Free | Brackets *1,Screw *2,Cable *1,Manul book *1 | ||||
| OSD Menu Over 600tvl | Adjust | HLC/D-WDR/White balance/Gain Control/Shutter speed/Privacy Mask/ Motion Detenction/ OSD LanguageBLC/ 2 DNR/ATR Setting/Display/ Definition/Day/Night | ||||

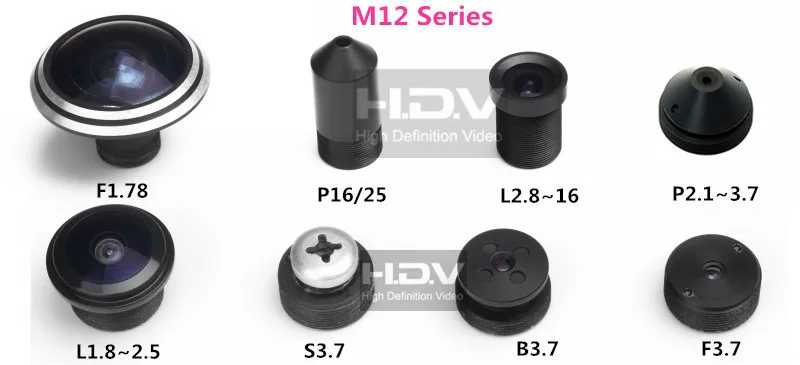

Lenses Optional
Packaging & Shipping
Packing List:
1pc cctv camera
1pc manual
1pc color box
Single Size: 95*65*65mm(LXWXH)
Shipping information:
1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option
when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.
2.Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other
major shipping companies established a good and close relations of cooperation.
