PE thick garbage bag machine with flying knife cutting system bottom sealing cutting heavy duty ice cube flat bag making machine
- Category: Bag Making Machines >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (60512998841):
Product Overview
Description
Product Description
with flying knife cutting system and bottom sealing and cutting heavy duty bag making machine

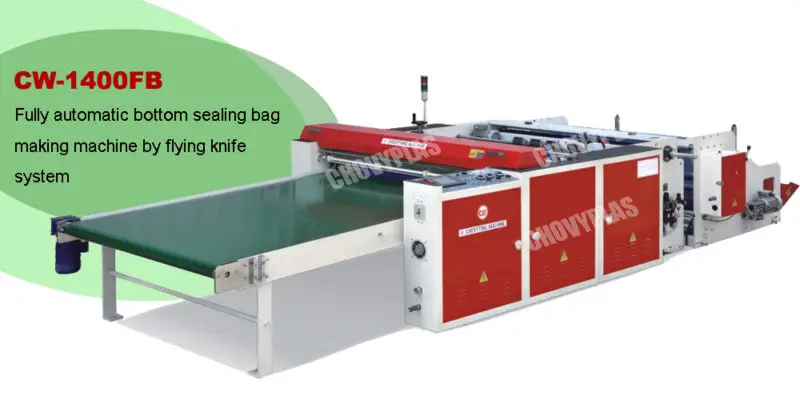

high speed plastic ice cube bag making machine (CW-1400FB)
This machine without tensile force design,specially for making more thickness packing bag
Produce:
bottom sealing bag/ice cube bag/flat bag/ garbage bag/waste bag/rice bag/thick bag
Features:
1.new design flying knife cutting system,easy to exchange
2.double heat coil heat sealing design,sealing firmly
3.the entire stack, the entire output
4.can make multi-lane non-print bag .
Optional:
1.handle hole puncher device
2.Vtype sealing device
3.surface friction unwinding device
4.double servo feeding for producing double lane print bag
Produce:
bottom sealing bag/ice cube bag/flat bag/ garbage bag/waste bag/rice bag/thick bag
Features:
1.new design flying knife cutting system,easy to exchange
2.double heat coil heat sealing design,sealing firmly
3.the entire stack, the entire output
4.can make multi-lane non-print bag .
Optional:
1.handle hole puncher device
2.Vtype sealing device
3.surface friction unwinding device
4.double servo feeding for producing double lane print bag
Model | CW-1000FB | CW-1200FB | CW-1400FB | CW-1600FB |
Bag making width | 900mm | 1100mm | 1300mm | 1500mm |
Bag making length | 200-3000mm | 200-3000mm | 200-3000mm | 200-3000mm |
Mechanical speed | 80pcs/min | 80pcs/min | 80pcs/min | 80pcs/min |
Line speed | 60m/min | 60m/min | 60m/min | 60m/min |
Applied film thickness | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 |
Power | 7.5KW | 8KW | 9KW | 10KW |
Machine dimension | 6*1.8*1.3mtr | 6*2.2*1.3mtr | 6*2.4*1.3mtr | 6*2.4*1.3mtr |
Bag Samples

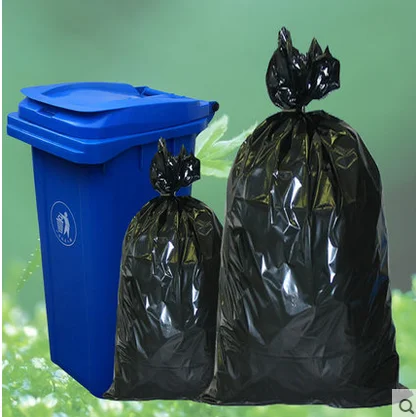

Garbage bags

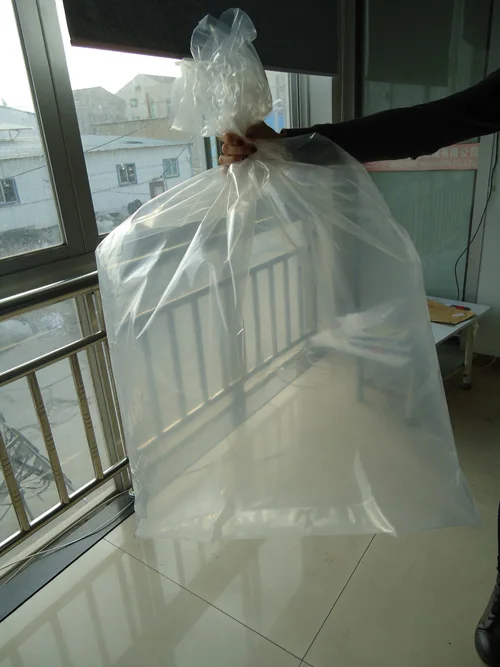

Large garbage bag
Details Images

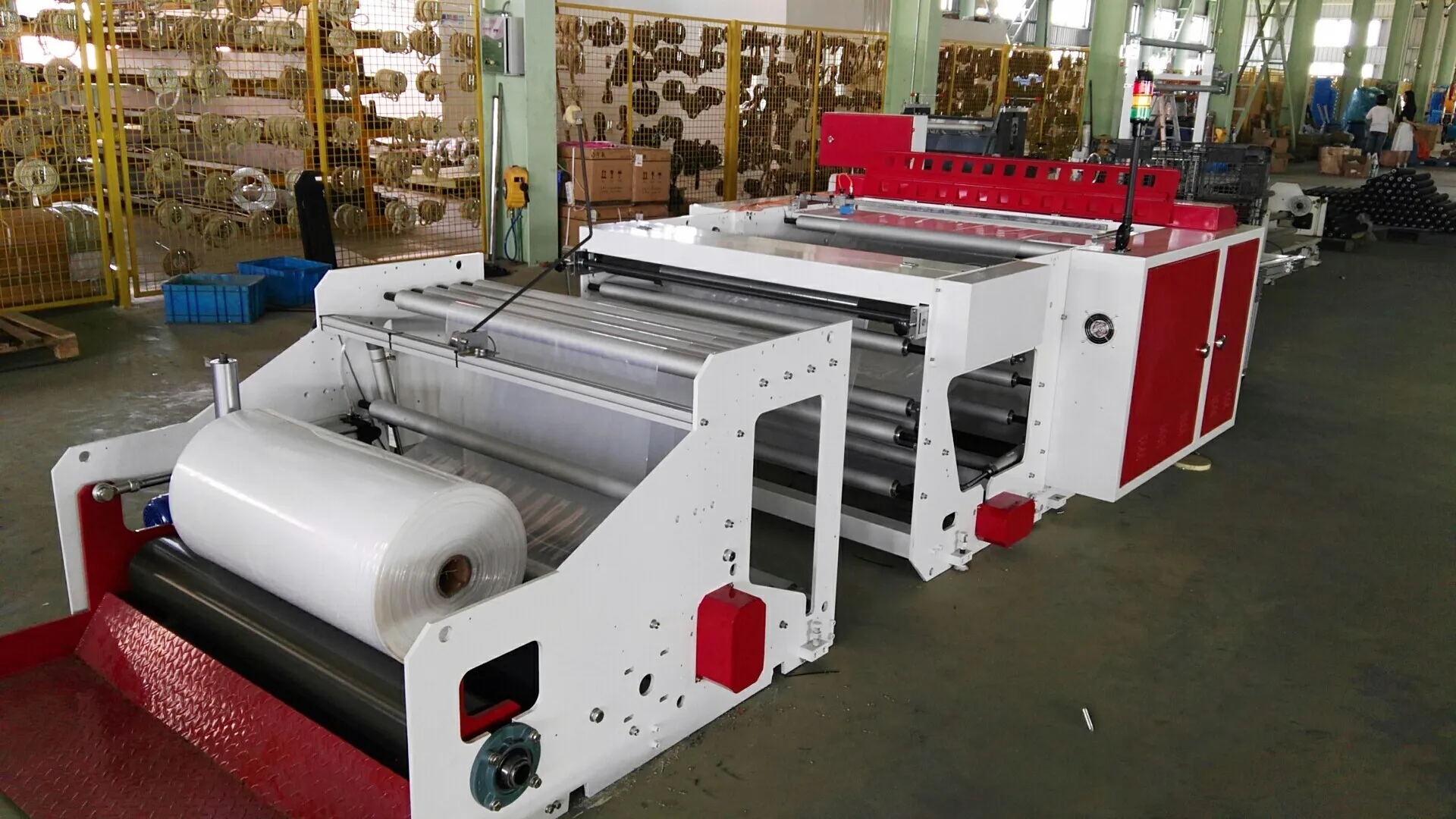

Pneumatic unwinder for jumbo roll

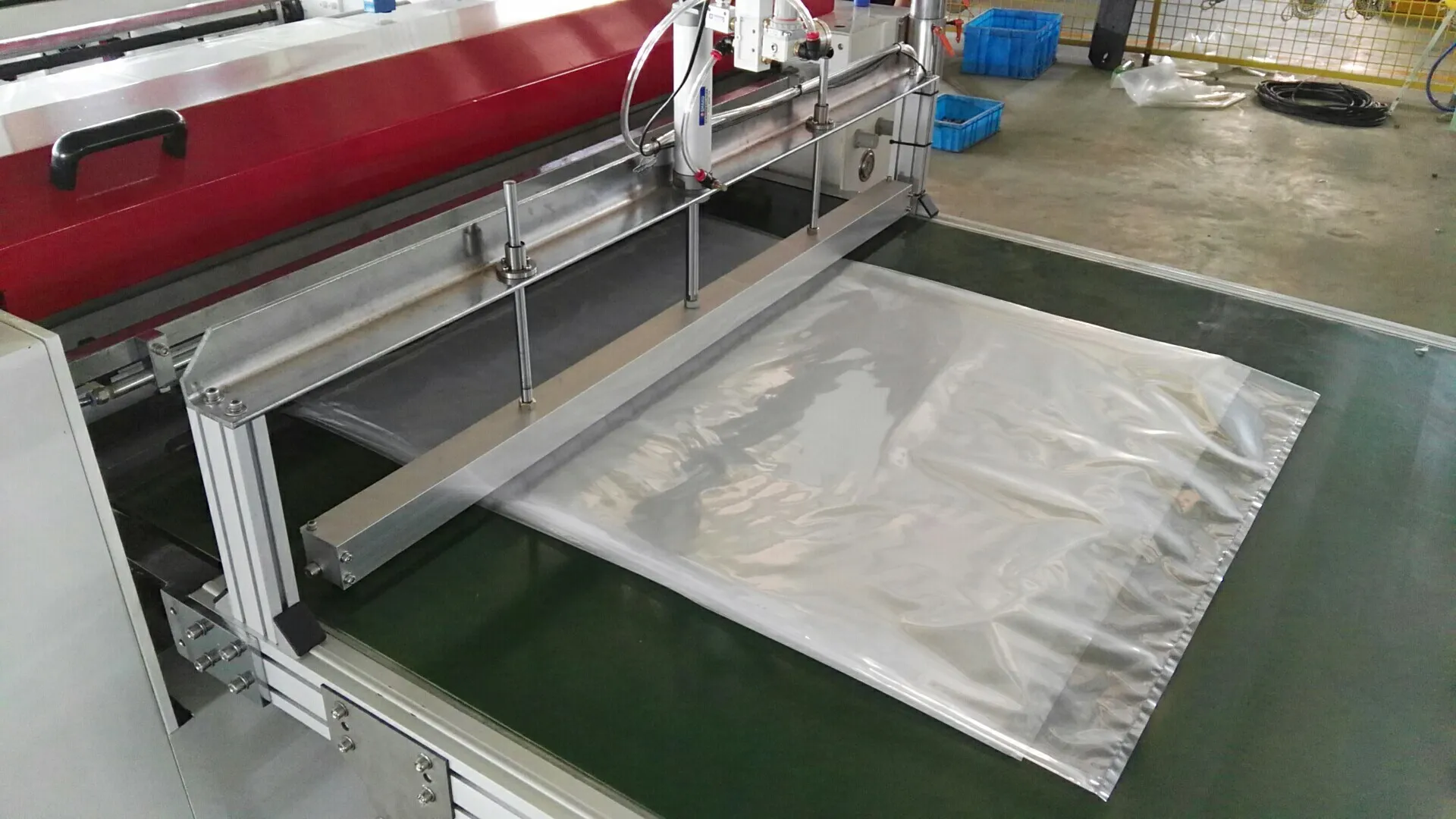

Bag stack conveyor

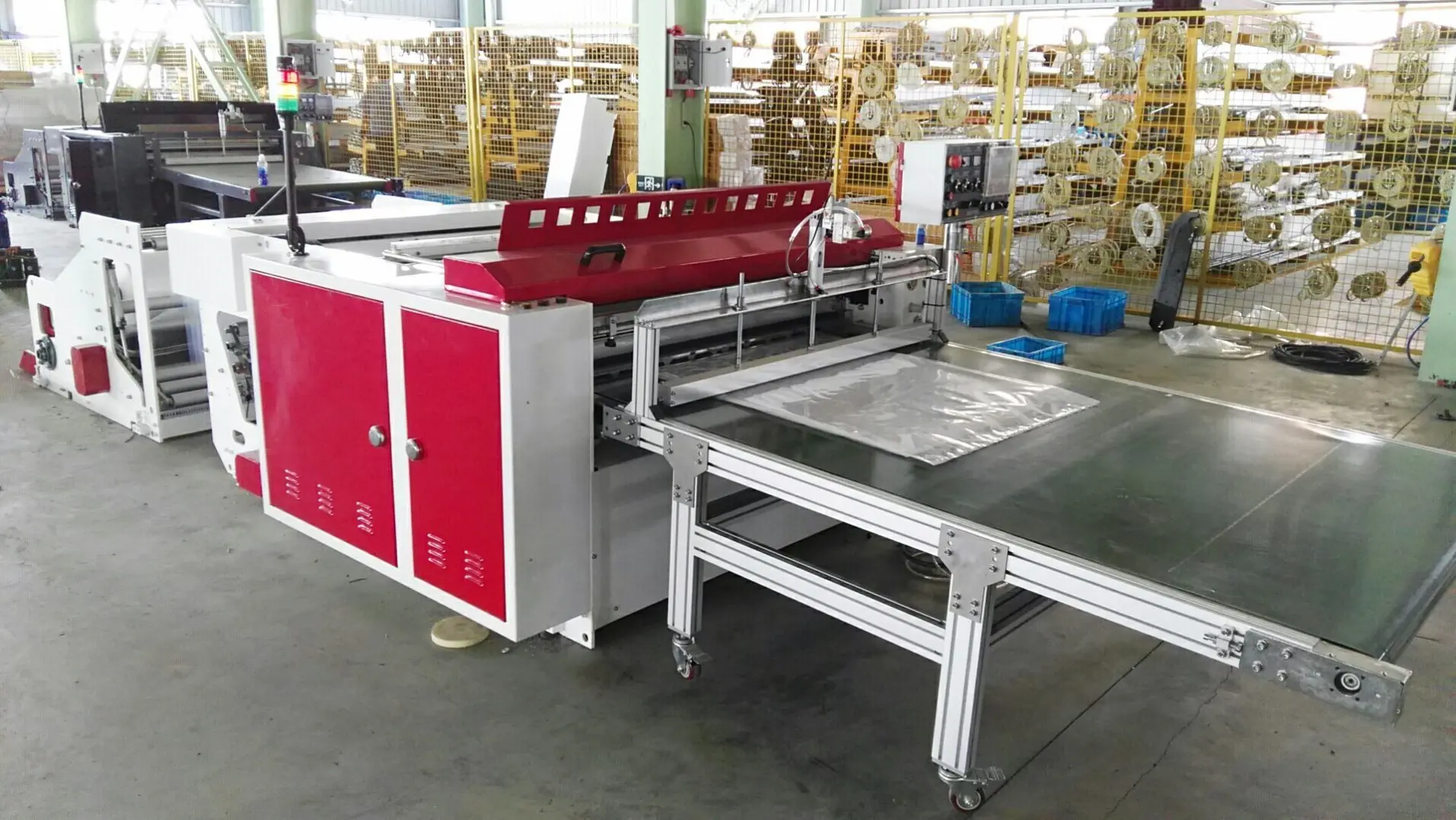

complete machine
Control Panel with touch screen display
Product packaging
Company Profile
CHOVYTING HISTORY
- 1999 SET UP
- 2004, the first four functional bag making machine of China mainland has been made. It
is a real classic of CHOVYTING now.
- 2005 - 2007,the first glue patch bag Making Machine of China was built up which break technology monopolization for years.
- 2008, the first servo motor driven wicket collecting system bag making machine of China was manufactured.
In 2009, the first flying knife type bottom sealing bag making machine of China was made.
- 2010, the most fastest T-shirt bag making machine of China in time was manufactured. The speed was reaching 300 pcs/minute.
- 2011, the multi-layer valve bag making machine was manufactured, only CHOVTING has the technology in the world at that time.
- 2012, CHOVYTING launched China's first bottom sealing soft loop bag machine leading the trend of fully automatic production for
bottom sealing loop handle bags.
- 2013,the first high speed side sealing soft loop handle bag making machine of China was manufactured. It was the fastest in
China at time.
- 2014, the first fully automatic sin wave bag making machine of China was built which
without wave bag production wastes. CHOVYTING became the third manufacturer in the world that has the technology to produce it.
- 2015, the first overlapping draw string bag making machine of China was built. This machine made a big change of turning
China's traditional waste bag usage into draw string garbage bags using.
- 2016, CHOVYTING’s new plant construction was completed, during which machine with 1,000 pcs/ minute speed were manufactured. It
was the first multi-lines bottom sealing bag making machine of China.
- 2017, moving into the new factory CHOVYTING started to research and develop the fully automatic eight side sealing bag making
machine at the same time comprehensive 6S management was carried out.
- 2018 CHOVYTING has become the largest manufacturer for bag making machines in China.
- 2004, the first four functional bag making machine of China mainland has been made. It
is a real classic of CHOVYTING now.
- 2005 - 2007,the first glue patch bag Making Machine of China was built up which break technology monopolization for years.
- 2008, the first servo motor driven wicket collecting system bag making machine of China was manufactured.
In 2009, the first flying knife type bottom sealing bag making machine of China was made.
- 2010, the most fastest T-shirt bag making machine of China in time was manufactured. The speed was reaching 300 pcs/minute.
- 2011, the multi-layer valve bag making machine was manufactured, only CHOVTING has the technology in the world at that time.
- 2012, CHOVYTING launched China's first bottom sealing soft loop bag machine leading the trend of fully automatic production for
bottom sealing loop handle bags.
- 2013,the first high speed side sealing soft loop handle bag making machine of China was manufactured. It was the fastest in
China at time.
- 2014, the first fully automatic sin wave bag making machine of China was built which
without wave bag production wastes. CHOVYTING became the third manufacturer in the world that has the technology to produce it.
- 2015, the first overlapping draw string bag making machine of China was built. This machine made a big change of turning
China's traditional waste bag usage into draw string garbage bags using.
- 2016, CHOVYTING’s new plant construction was completed, during which machine with 1,000 pcs/ minute speed were manufactured. It
was the first multi-lines bottom sealing bag making machine of China.
- 2017, moving into the new factory CHOVYTING started to research and develop the fully automatic eight side sealing bag making
machine at the same time comprehensive 6S management was carried out.
- 2018 CHOVYTING has become the largest manufacturer for bag making machines in China.
