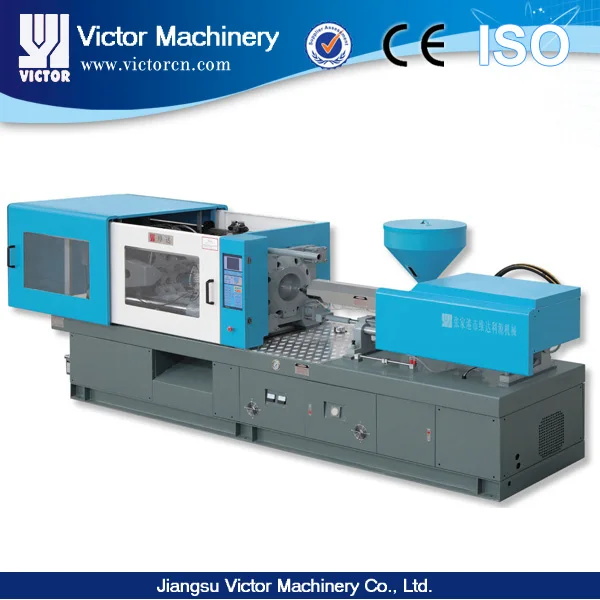

NEW Types Small Plastic Bakelite 300 Ton Injection Blow Molding Machine
- Category: Injection Molding Machines >>>
- Supplier: Jiangsu Victor Machinery Co. Ltd.
Share on (60521607896):
Product Overview
Description
NEW Types Small Plastic Bakelite 300 Ton Injection Blow Molding Machine
Product Description
 |  |
 |  |
Features
Our company is a special manufacture who is mainly engaged in producing the plastics injection molding machine that the clamping force is from 40T to 1000T and the theoretical injection capacity is from 70cm3 to 6200 cm3. The plastics injection molding machines in LY series from our company have following characteristics: advanced technology, high efficiency, energy saving, safety and reliability, high economical benefit, etc.
Technical Parameter
Specification Item | Unit | LY88 | LY140 | LY180 | LY200 | LY240 | |||||||||
Screw Diameter | mm | 35 | 40 | 40 | 45 | 50 | 50 | 55 | 60 | 50 | 55 | 60 | 55 | 60 | 65 |
Screw L/D Ratio | L/D | 21.5 | 18.8 | 23.6 | 21 | 22 | 22 | 20 | 20 | 23.1 | 21 | 19.3 | 22.9 | 21 | 19.4 |
Max .Theoretical Injection capacity | cm3 | 144 | 188 | 257 | 326 | 383 | 383 | 466 | 551 | 490 | 593 | 706 | 712 | 848 | 995 |
Max. Shot Weight(PS) | g | 129 | 169 | 234 | 296 | 342 | 342 | 416 | 491 | 441 | 534 | 636 | 641 | 763 | 895 |
oz | 4.4 | 5.9 | 8 | 10 | 12 | 12 | 14 | 17 | 15 | 18.9 | 22.4 | 22.6 | 27 | 31.6 | |
Max. Injection Pressure | kg/cm2 | 2037 | 1560 | 2080 | 1645 | 1915 | 1915 | 1582 | 1330 | 2120 | 1752 | 1473 | 1933 | 1624 | 1384 |
Max .Theoretical Injection Rate | cm3/s | 78 | 102 | 100 | 127 | 145 | 145 | 178 | 210 | 163 | 198 | 235 | 182 | 216 | 254 |
Screw Stroke | mm | 150 | 205 | 195 | 250 | 300 | |||||||||
Screw Torque | kg.m | 62 | 90 | 140 | 160 | 200 | |||||||||
Screw Speed | r.p.m | 10-240 | 10-225 | 10-180 | 10-210 | 10-160 | |||||||||
Screw Force/ Stroke | ton/mm | 4/250 | 5.65/300 | 5.65 /350 | 6/400 | 5.77/350 | |||||||||
Heating Capacity | kw | 7 | 11.85 | 13 | 14 | 19 | |||||||||
Max.Clamping Force | kn | 800 | 1400 | 20000 | 2000 | 20000 | |||||||||
Max.Opening Stroke | mm | 320 | 400 | 460 | 500 | 500 | |||||||||
Mould Thickness | mm | 135-350 | 175-460 | 200-560 | 200-560 | 220-620 | |||||||||
Max. Distance Between Mould Platens | mm | 670 | 860 | 1020 | 1060 | 1120 | |||||||||
Space Between The Bars(V×H) | mm | 355×355 | 420×400 | 465×465 | 510×510 | 560×560 | |||||||||
Mould Platen Size(W×H) | mm | 515×515 | 635×615 | 705×705 | 740×740 | 820×820 | |||||||||
Bar Diameter | mm | 60 | 80 |
| 120 |
| |||||||||
Ejector Force/ Stroke | ton/mm | 3/80 | 2.75/100 | 4.4/150 | 4.5/140 | 4.4/150 | |||||||||
Ejector Quantity | pc (s) | 1 or 5 | 1 or 5 | 1 or 5 | 1 or 5 | 1 or 5 | |||||||||
Pump Motor Power | kw | 11 | 15 | 18.5 | 22 | 22 | |||||||||
Pump Q. MAX | L/min | 55 | 75 | 110 | 130 | 136 | |||||||||
Oil Tank Capacity | L | 270 | 350 | 450 | 200 | 350 | |||||||||
Machine Size(L×W×H) | m | 4150*1100*1600mm | 4200*1200*1800mm | 5300*1200*2000mm | 5300*1200*2000mm | 6000*1400*2000mm | |||||||||
Machine Net Weight | ton | 3 | 4.5 | 5.5 | 7 | 8.8 | |||||||||
Packaging & Shipping
Company Information
Factory Show
VICTOR Machinery, one leading manufacturer of plastics machines for packing industrial,
we make plastic extruder and sheet extrusion line, injection blow molding machine and moulds,

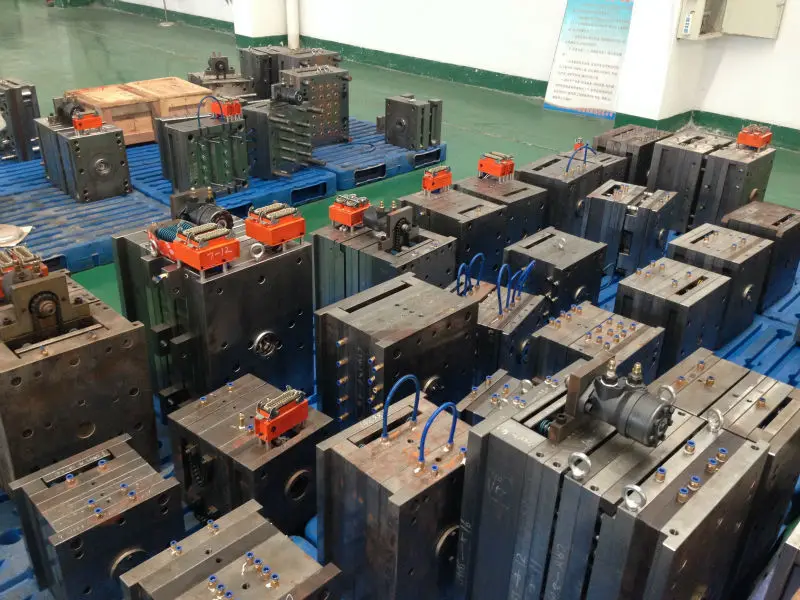

also many precision moulds for caps.
Workshop quality control
Exhibition
certificate
FAQ
What after-salese service VICTOR Machinery Co.,Ltd can offer you ?
Q1:Are you a trading company or a manufactory?
A1:We own a factory ourselves, and we can assure the quality we manufactured.
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:How about the spare parts?
A4: we will offer you a spare parts list for your reference
Related Products

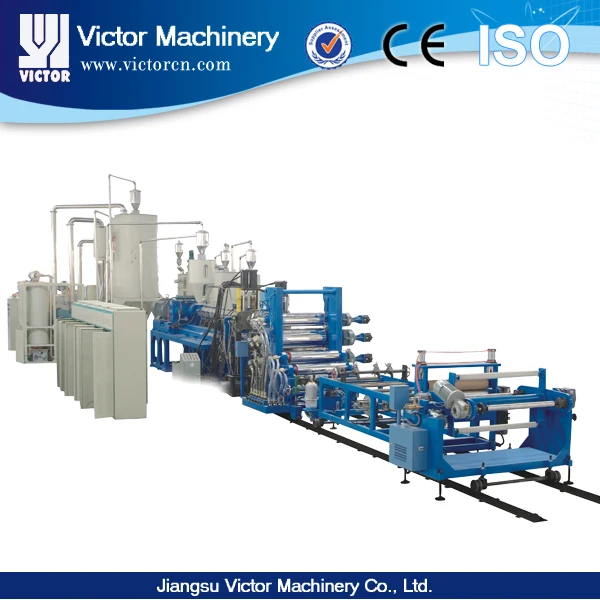

Plastic plate extrusion line Plastic sheet extrusion line
