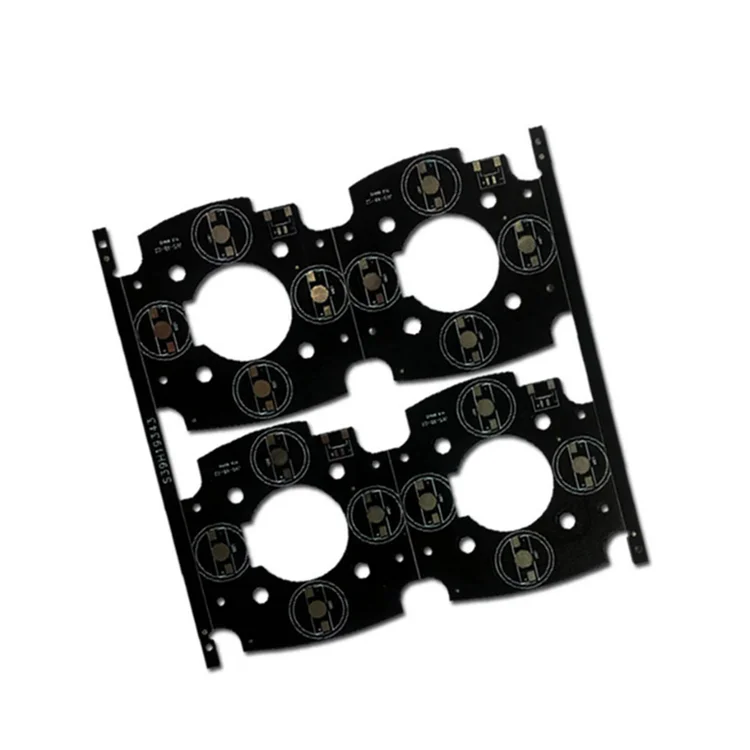

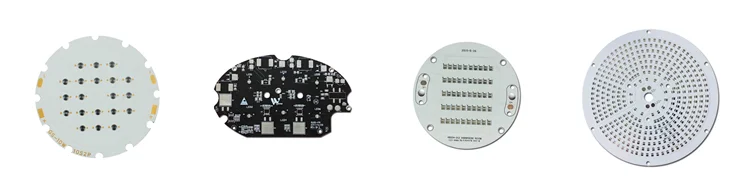

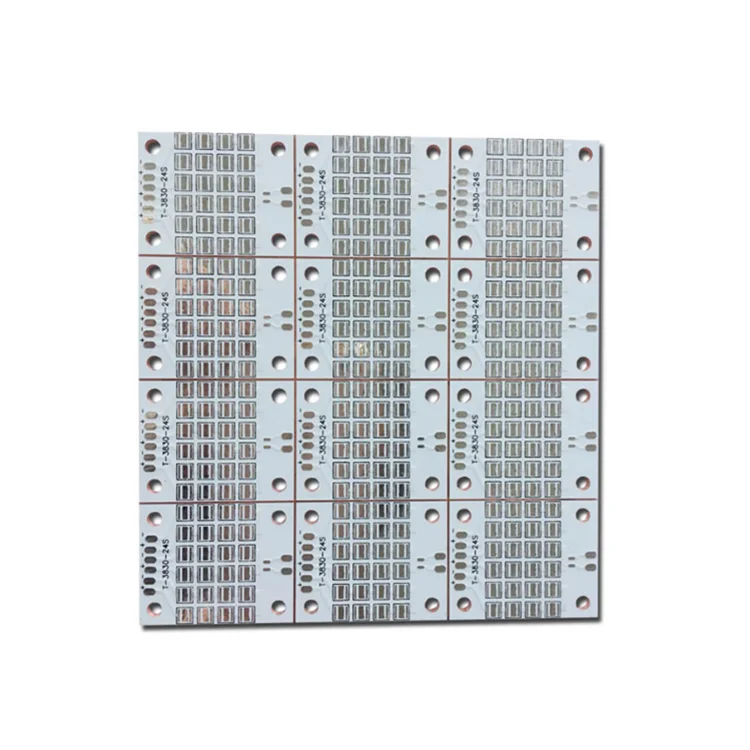

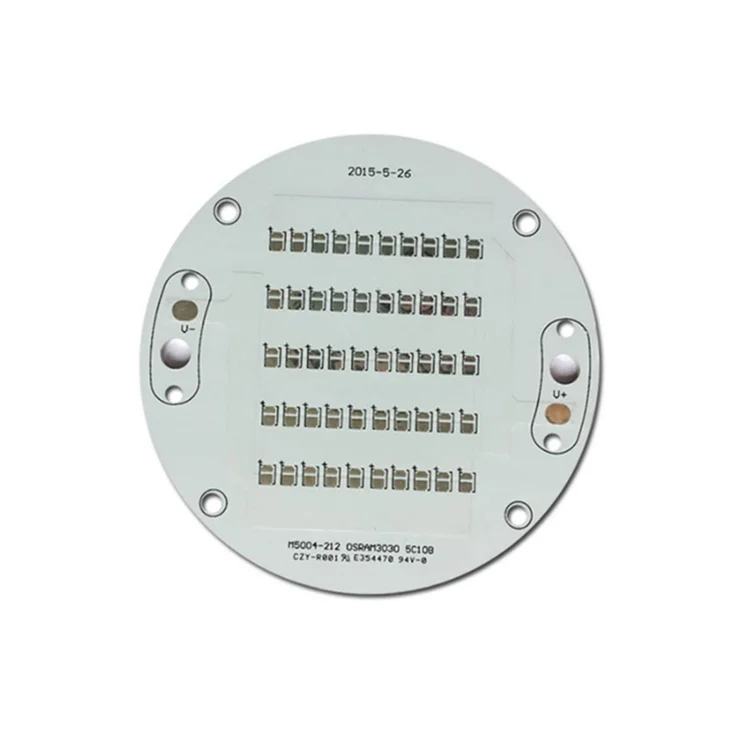

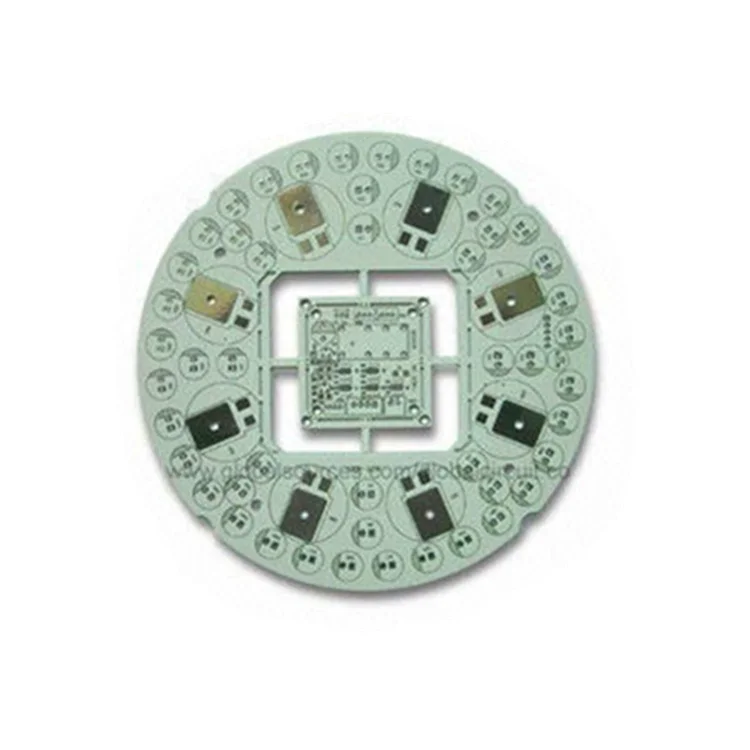

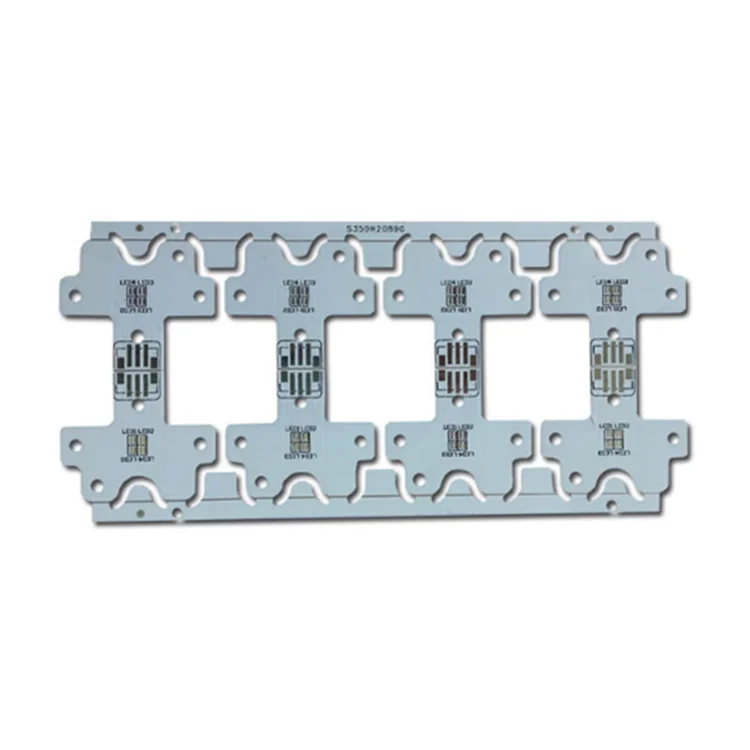

Smart Electronics Customized Printed Circuit Board Aluminum PCB High Quality, usb flash drive,star

PCB Capacities and Technical Specification

Order Quantity

1-500,000

Layer

1, 2, 4, 6, up to 24 layer

Material

FR-4, High Tg, Isola, Aluminum, Rogers, etc

PCB type

Rigid, flexible, rigid-flexible

Shape

Rectangular, round, slots, cutouts, complex, irregular

Max PCB dimensions

1200mm*600mm

Thickness

0.2~4.0mm, Flex 0.01~0.25''

Thickness tolerance

± 10%

Copper thickness

0.5-6 oz

Copper thickness tolerance

± 0.25oz

Surface finish

HASL, LF HASL, Imm Gold, Imm Silver, OSP etc

Solder mask

Green, red, white, yellow, blue, black, orange, purple

Silk screen

White, black

Silk screen min line width

0.006'' or 0.15mm

Min drill hole diameter

0.01'', 0.1mm or 10 mil

Min trace/gap

0.075mm or 3mil

PCB cutting

Shear, V-score, tab-routed
