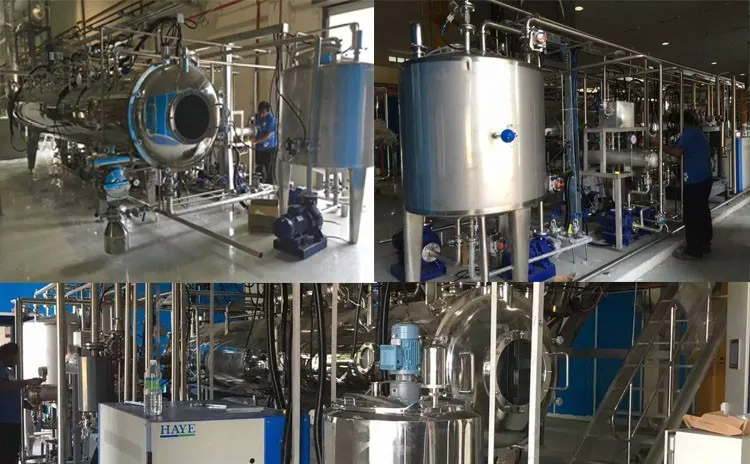

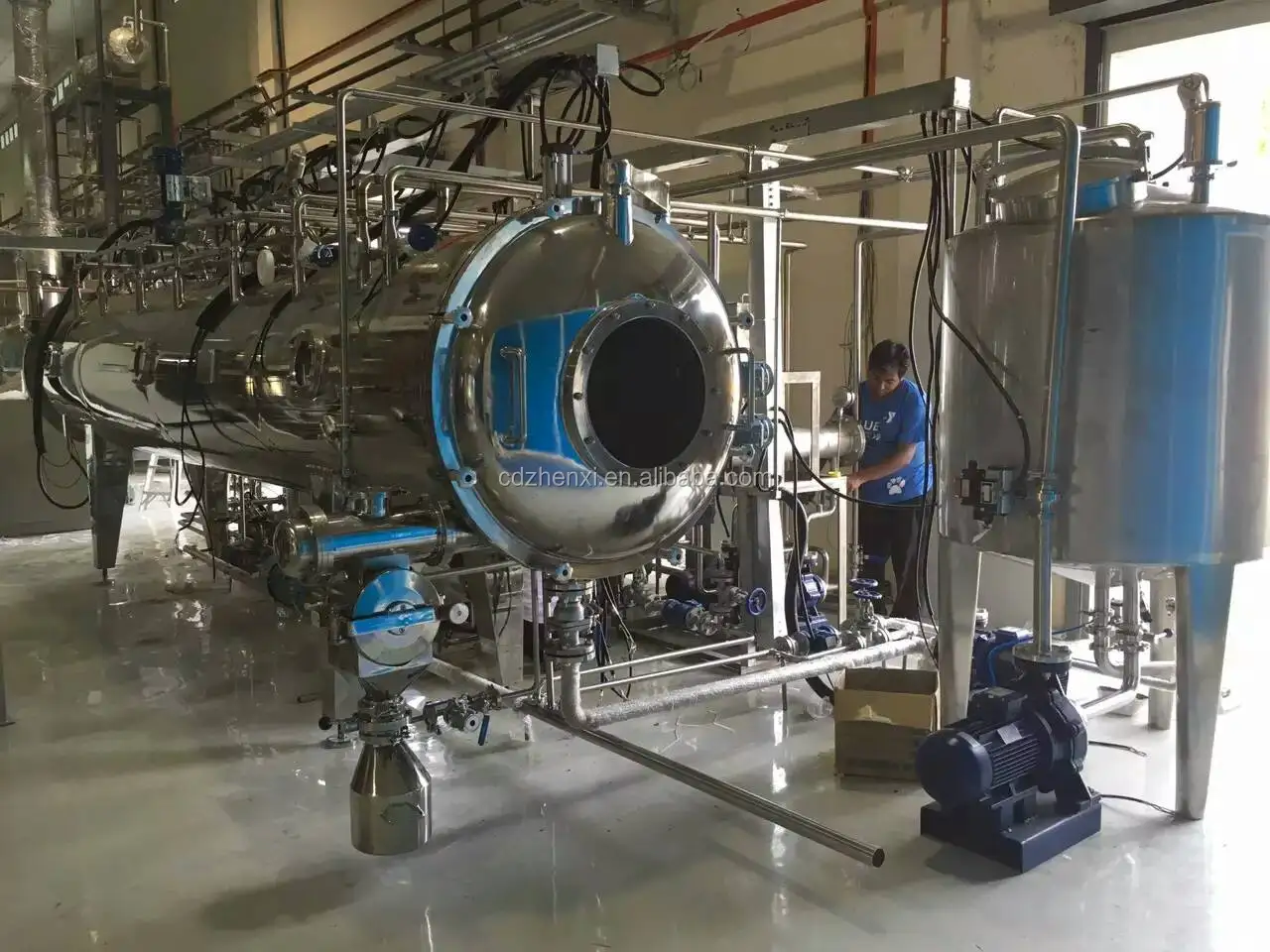

Low Temperature Continuous Herbal Extract Vacuum Belt Dryer

Use

Low Temperature Continuous Herbal Extract Vacuum Belt Dryer aimed at the feature of Chinese medicine extraction and the requirement of medicine, foodstuff production management rule, introduced the domestic and abroad the latest technical achievement, designed and manufactured by ourselves, developed our new Chinese medicine drying machine, and this machine are used in pharmaceutical factory's industry application, and the user are very satisfied by this machine drying effect. And this equipment is also suitable for foodstuff and chemical production drying.

Working Principle

In the high vacuum degree container, the material are continuous coated in the slow moved belt, formed thin coating; the belt deliver the material into the heating section, make the material heating and slough moisture, and then enter into the cooling section cooling the material to brittleness, and collected in the terminal. Because drying in the high vacuum degree condition, the low drying temperature, are good at keep extract original taste. Meanwhile, the drying whole process continuous auto running, accord with the requirement of GMP clean production, and is the best choice of Chinese medicine modernization.

Feature

1. Main body structure is stainless steel sealing container, work continuously, feed material continuously, discharging continuously.

2. The unit heating source adopts hot water and pressured hot water, equipped with water cooling system. Heating source adopts steam and electric heating ways.

3. The charging amount can fine-tuning and auto control, even if in the condition of charging amount is so less, the coating device can coating uniformly, so as to optimizing drying technology; every belt is equipped with solely screw pump as the feed pump.

4. The belts are imported Teflon belt, resist stick, resist chemical products, resist temperature from -70 ℃~260 ℃.

5. Due to the thermal sensitivity of natural medicine, adopts low temperature drying way, in the drying process the products temperature are generally at 40 ℃~50 ℃.

6. Vacuum belt type dryer adopts PLC control, through the PC man computer interface to operate the equipment, meanwhile in the discharge area and nearby of dryer set the operation panel to operate in the work area. It can auto run and also can manual operation.

7. The unit has reasonable temperature measured point, and measured the temperature in time and reliable, and auto control the operation parameters.

8. The terminal outlet use the pneumatic vacuum butterfly valve blocked the vacuum then continuous drain out the drying material.

9. The discharge outlet has the function of smash and pelleting the dry power granular size can accord to the customer's requirement to set.

10. The unit equips the high pressure water cleaning device.

11. Vacuum auto belt type dryer are widely usage, and drying all kind of natural medicine extracts, include the thermoplastic products (polysaccharide, colloid, lipid ingredient, etc) and other difficult dried products.

12. Herbal Medicine Extract Liquid Vacuum Belt Dryer has the belt tension device (can set the tension) and correct errors device prevent the belt run deviation.

Technology Parameter

Model	ZDG101-0.4	ZDG101	ZDG205	ZDG210	ZDG330	ZDG450	ZDG570	ZDG690	ZDG8140
Evaporation capacity(kg/h)	0.5~1	1~2	5~0	10~15	25~35	50~65	70~90	80~110	120~160
Inner diameter of main machine(mm)	600	800	1000	1400	1600	1900	2300	2500	3000
Length of main machine(mm)	4000	7500	9000	11000	13500	15500	15500	18500	20000
Height of main machine(mm)	1800	2000	2200	2200	3200	3500	3800	4000	4200
Width of belt(mm)	380	460	700	900	900	1200	1200	1200	1200
Heat exchange area(m²)	0.5	1	5	10	30	50	70	90	140
Area of condenser(m²)	3	5	10	15	20	35	45	52	70
Total Installing power(kw)	4.5	7.5	14	17	23	45	65	90	120
