Product Description
Product Application
The plastic intensive dispersion kneader is widely used in rubber and plastic industries.
It is applicable for plasticating, mixing and refining of rubber and plastics, and mixing of rubber and synthetic rubber.
The plastic intensive dispersion kneader feature is as below:
1. The plastic dispersion kneader is an internal mixer with intermeshing rotors. The wings and the working surfaces of the rolls, the internal surfaces of the mixing chamber, and the working surfaces of the pressing ram device and the discharge device are all put on with wearable hard alloy by built-up welding method, which are durable and corrosion proof and have a longer life of service.
2. The shape of the rotors is cylindrical. As it has big wings with large cooling area, it can improve the quality of the mixing rubber and thus increase the productive efficiency. It may shorten two mixing periods into one.
3. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
4. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be
dispersed uniformly.
5. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
6. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam
heating effect and fit in with the needs of plastics and rubber processing technology.
7. Feeding from back door on the frame (or separate top door) is convenient for continuous process operation in production line.
The mixing chamber is able to turn forward by 140 around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
8. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.
9. The WIRE of kneader motor is Made of COPPER, the motor adopted is China famous brand. It's very durable and can longtime continuous running in scurviness condition (the working environment full of dust, as you can see from the above picture).
The plastic intensive dispersion kneader is widely used in rubber and plastic industries.
It is applicable for plasticating, mixing and refining of rubber and plastics, and mixing of rubber and synthetic rubber.
The plastic intensive dispersion kneader feature is as below:
1. The plastic dispersion kneader is an internal mixer with intermeshing rotors. The wings and the working surfaces of the rolls, the internal surfaces of the mixing chamber, and the working surfaces of the pressing ram device and the discharge device are all put on with wearable hard alloy by built-up welding method, which are durable and corrosion proof and have a longer life of service.
2. The shape of the rotors is cylindrical. As it has big wings with large cooling area, it can improve the quality of the mixing rubber and thus increase the productive efficiency. It may shorten two mixing periods into one.
3. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
4. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be
dispersed uniformly.
5. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
6. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam
heating effect and fit in with the needs of plastics and rubber processing technology.
7. Feeding from back door on the frame (or separate top door) is convenient for continuous process operation in production line.
The mixing chamber is able to turn forward by 140 around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
8. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.
9. The WIRE of kneader motor is Made of COPPER, the motor adopted is China famous brand. It's very durable and can longtime continuous running in scurviness condition (the working environment full of dust, as you can see from the above picture).
Mixed Rubber
Detailed Images
We always pay our great attention on every detail processing and treatment.So our machine quality is assured, long service life and trouble free.

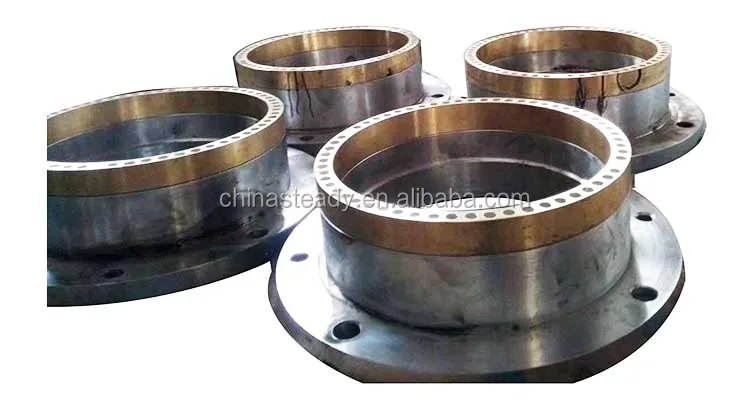

The sealing face of stationary ring is weld up hard alloy and bronze , it is dissection structure and easy for take-down ,cleaning and change.
Basic Structure
mixing chamber is bore cooling ,circulation cooling forced ( warm water circulation system)guarantee the better temperature for mixing .
Mixing Chamber
The mixing chamber adopts cast steel, inside is chrome plated and polish to mirror effect. And the sides are drilled for good water cooling effect.
Electronics
Adopts international famous brand electronics, the work is reliable. Inside control box all electronics and wires are well
designed, rational arrayed. So the wire connection and operation is easy and maintenance is easy.
designed, rational arrayed. So the wire connection and operation is easy and maintenance is easy.
Control Panel
Our kneader machine adopts international famous brand control system. The work is stable and accurate, reliable, trouble free.
Size Information
Common Models for Reference

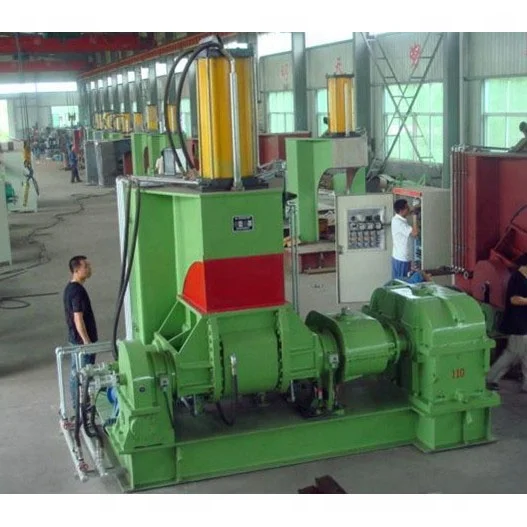

Customer Photos
Packing&Shipping
Small model machine is packed into fumigation free weeden box for LCL delivery.

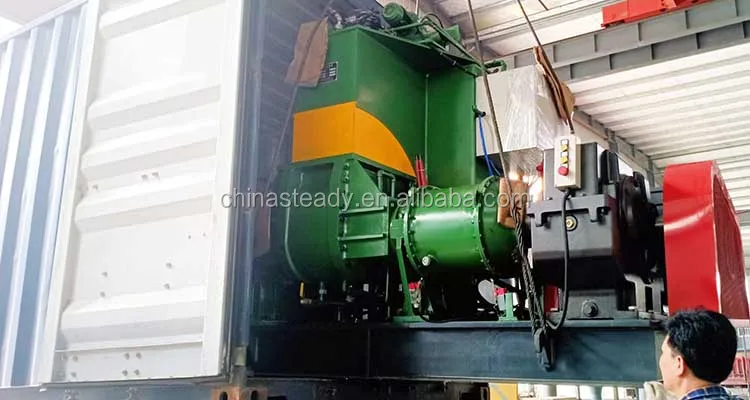

Big model(size) machine is directly loaded into container, well fixed and protected for long distance sea transport.
Related Goods Loading
After Sales Service
Technical Support
Training customers‘ how to use the machine and how to make the production. And machine maintenance. And according to customers'
condition, we can help customers decide what configuration and size machine to use.
condition, we can help customers decide what configuration and size machine to use.
Even reference some rubber formular.
