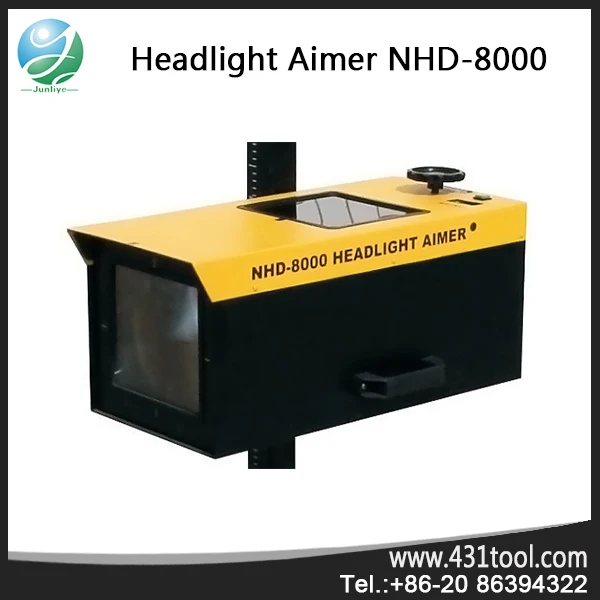

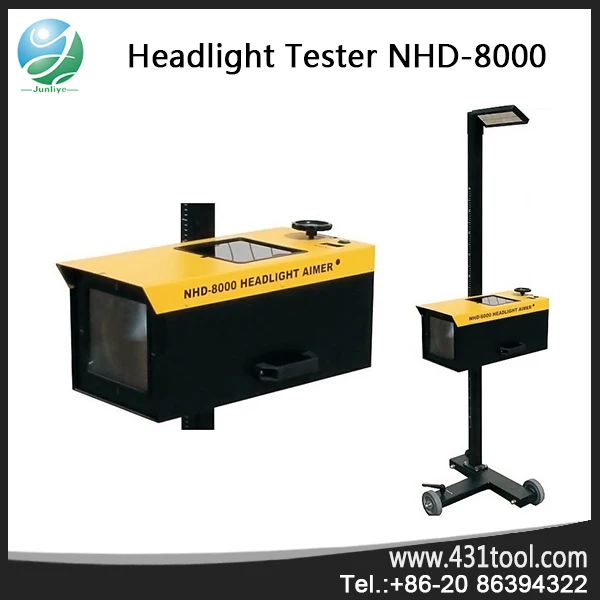

High Quality Auto Headlamp Aligner headlight tester
- Category: >>>
- Supplier: Guangzhou Junliye Import & Export Co. Ltd.
Share on (60526516478):
Product Overview
Description
High Quality Auto Headlamp Aligner headlight tester
Product Description
Features:
Measure light intensity of high beam.
Manually observe the central deviation of the iptical axis of headlight.
Manually observe the relative position of the turning point of the cut-off light of low beam.
Manual measure the height of headlight.

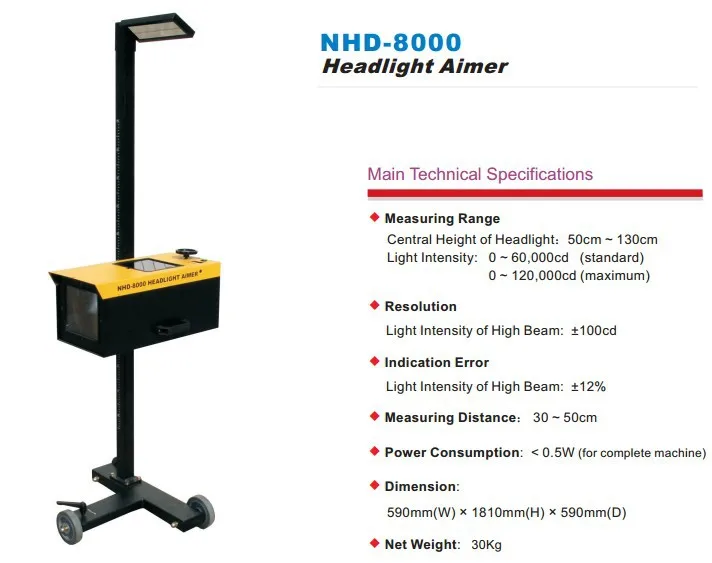

Measuring Range
Central Height of Headlight: | 50cm~130cm | |
Light Intensity: | 0~60,000cd (standard) | |
0~120,000cd (maximum) | ||
Resolution: | Light Intensity of High Beam: ±100cd | |
Indication Error: | Light Intensity of High Beam:±12% | |
Measuring Distance: | 30~50cm | |
Power Consumption: | <0.5W(for complete machine) | |
Dimension: | 590mm(W) × 1810mm(H) × 590mm(D) | |
Net Weight: | 30kg | |
Environmental Temperature: | 5~40°C | |
| Relative Humidity: | Less than 95% | |
| Atmosphere Pressure: | 70.0~106.0KPa | |
| Power Supply: | 1unit of DC9V(Cigar Lighter or Storage Battery can be used ) If AC power is used ,an inverter should be applied | |
| Ground: | The Headlight Aimer and the car should be on the same ground . the horizontal error of the ground should not be more than1% | |
Related Model:
NHD-1050
Related Products
3D wheel Alignment Machine
Model | Monitor | Pillar | Voice Instruction | Speaker | Front Camera |
CWA38S | 21.5"Acer | Fixed | No | No | No |
CWA58S | 32"Acer | Fixed | Yes | Yes | Yes |
CWA78S | 21.5"Acer | Manual lifting | Yes | Yes | Yes |
Remark | |||||
Front Camera to guide the vehicle pack in the specific location | |||||
Voice Instruction to provide operation instruction | |||||
Lifelong update without charge | |||||
Our Services
1. One year warranty.
2. One order available.
3. We will reply you for your inquiry within 24 hours.
4. After sending, we will make the necessary documents for your Import customs clearance.
When you receive the car headlight tester NHD-8000 , please give me a feedback. If you have
any questions about the problem, contact with us, we will offer the solution for you as the situation.
