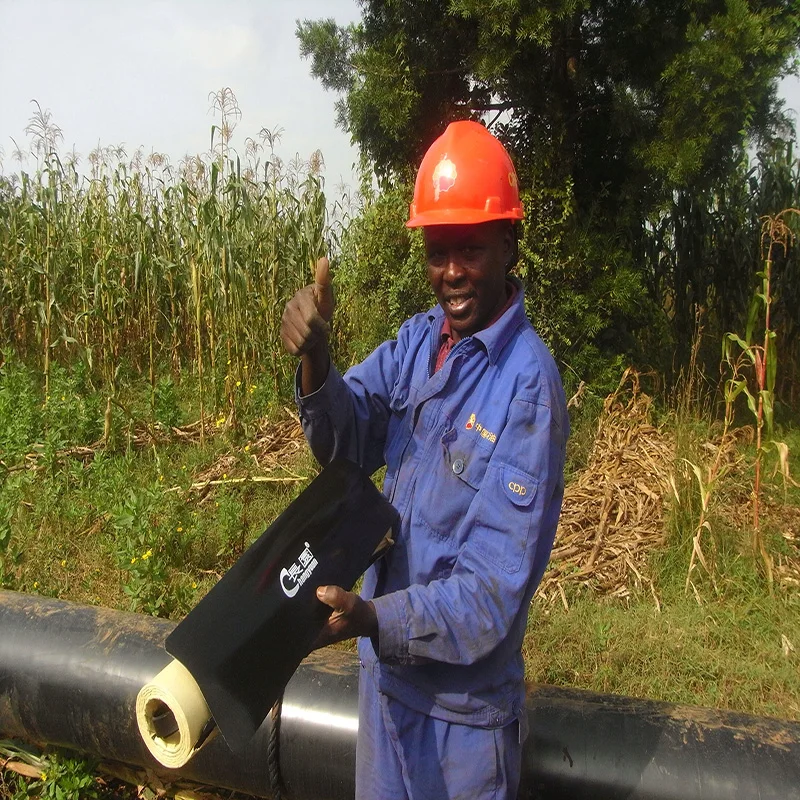

Pipeline Field Joint Coating
Product Description
Field Joint Coating Description :

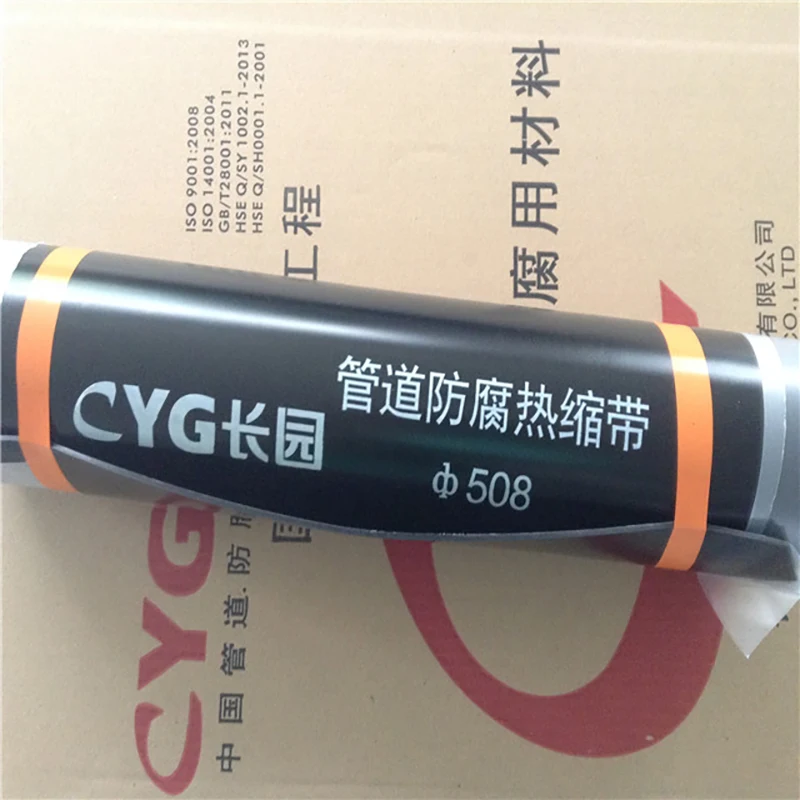

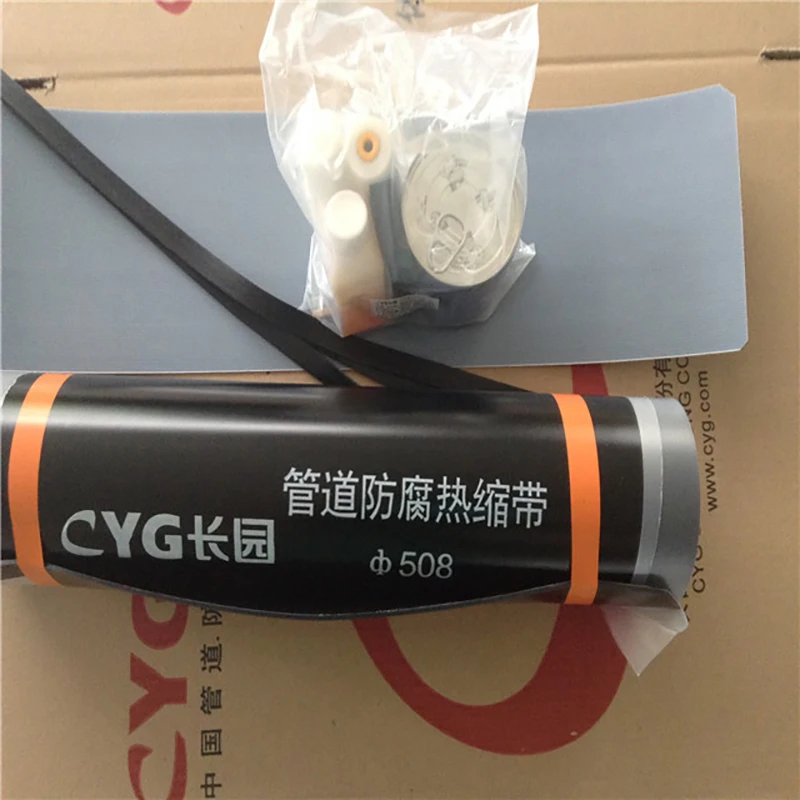

CYG Field Joint Coating- heat shrink wrapping coating consist of cross linked polyethylene backing, hot melt and primer. It is compatible with and made from similar materials as Pre–manufactured Three Layers anticorrosion tape.

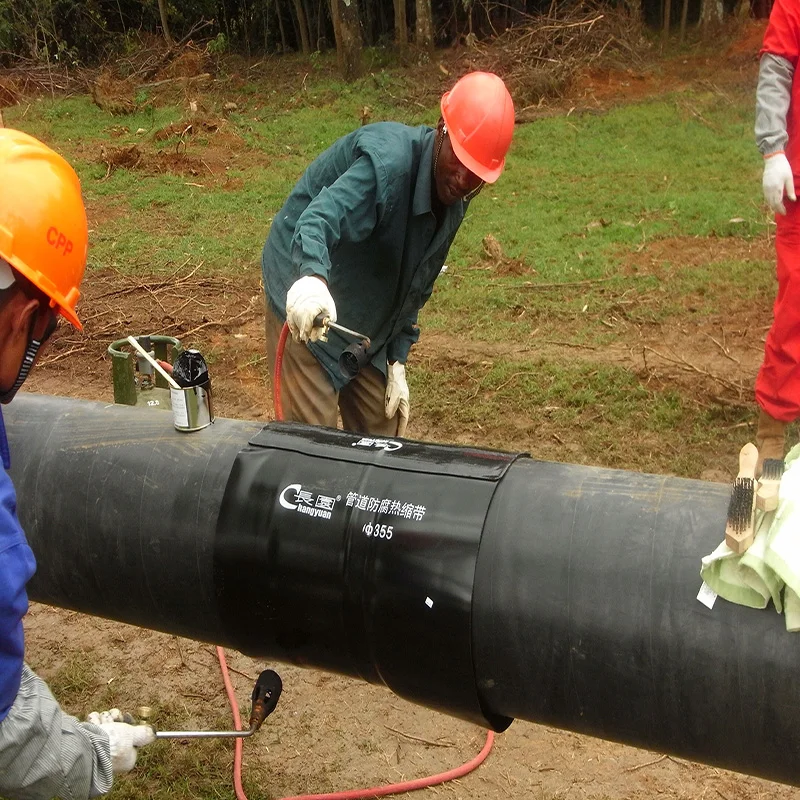

CYG Field Joint Coating mainly used in coating the weld joint of buried steel pipeline, Elbow, Tee joints ect.
The steel substrate, FBE primer and plant-applied polyethylene coatings excellently to form a continuous and durable anti-corrosion system on the pipeline.
Field Joint Coating Features:
Excellent adhesion to steel pipe
Long term corrosion protection , Resistant to UV
High chemical resistance under service temperature.
Outstanding electric property and permanent adhesion.
Perfect abrasion resistance performance
CYG Filed Joint Coating- FRDP heat shrink sleeve is Germany DVGW certified.
Field Joint Coating technical data:
Property
| Test temp.
| Unit
| Requirement
| Test result
| Test method |
Thickness | — | Mm | ≥ 0.85 × nominal value | - | Annex A ISO21809-3 |
Holiday detection at 5 kV/mm + 5 kV | — | — | no holiday
| no holiday
| Annex B ISO21809-3 |
Impact resistance (holiday detection at 5 kV/mm 5 kV after recovery) | 20℃ | J/mm | equal or more than 5 | 6 | Annex G ISO21809-3 |
Indentation resistance (holiday detection at 5 kV/mm 5 kV after recovery) Residual thickness | 80℃ | N/mm2 | 10.0 | 10.0 | Annex H ISO21809-3 |
— | Mm | equal or more than 0.6 | 1.30 | ||
Cathodic disbondment at 30 days
| 23℃ | Mm | equal or more than 8.0 | 5.0 | Annex F ISO21809-3 |
80℃ | Mm | equal or more than 15 | 11 | ||
Peel strength at 10 mm/minto pipe surface primed with epoxy and to plant coating | 23℃ | N/mm | equal or more than 2.50 | 13 | Annex D ISO21809-3 |
80℃ | N/mm | equal or more than 0.20 | 0.5 | ||
Peel strength at 10 mm/min to pipe surface and to plant coating after 28-day hot-water immersion test at Tmax limited as per Annex I | 23℃ | N/mm | equal or more than 1.50 | 7.8 | Annex I ISO21809-3 |
Lap shear strength at 10 mm/min
| 23℃ | N/mm2 | equal or more than 1.0 | 3.8 | Annex L ISO21809-3 |
80℃ | N/mm2 | equal or more than 0.07 | 0.1 | ||
Thermal ageing resistance (aged at Tmax + 20 °C) – Elongation at break (E100/E0) – Peel strength to pipe surface (P100/P100)
| 23℃ | E100/E70 | equal or more than 0.75 | 0.95 | Annex N ISO21809-3 |
23℃ | P100/P70 | equal or more than 0.75 | 0.93 |
Field Joint Coating specification:
Product No. | Length of Heat Shrinkable Tape per Roll | ||
A | B | C | |
FRDS A/B/C*100-1.2/0.8 | 10 m | 15 m | 20 m |
FRDS A/B/C*150-1.2/0.8 | 10 m | 15 m | 20 m |
FRDS A/B/C*200-1.2/0.8 | 10 m | 15 m | 20 m |
FRDS A/B/C*250-1.2/0.8 | 10 m | 15 m | 20 m |
Company Information
CYG Changtong a state level High-Tech enterprise with registered capital of RMB 55,555,500 Yuan.
Specialty in R&D, production, sales and application service of new materials for protection of pipelines.
Provide inspection and repair services for pipes, storage tanks and stations
Provide customers with all-in-one service for corrosion control and protection.
With several proprietary intellectual property rights.

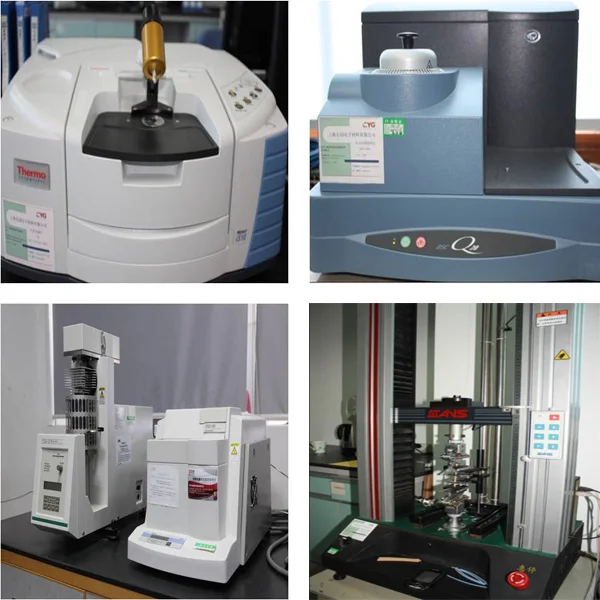

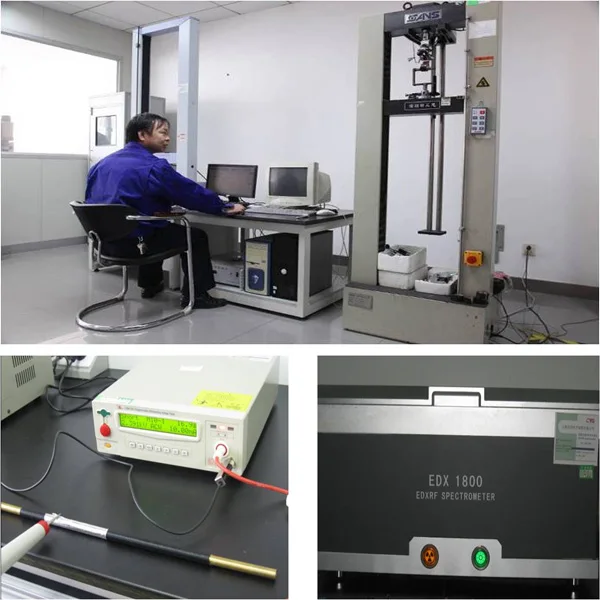

CNAS approved state level testing center and Guangdong provincial engineering technology center.
Our Services
CYG Service for Pipe wrap tape :
FAQ

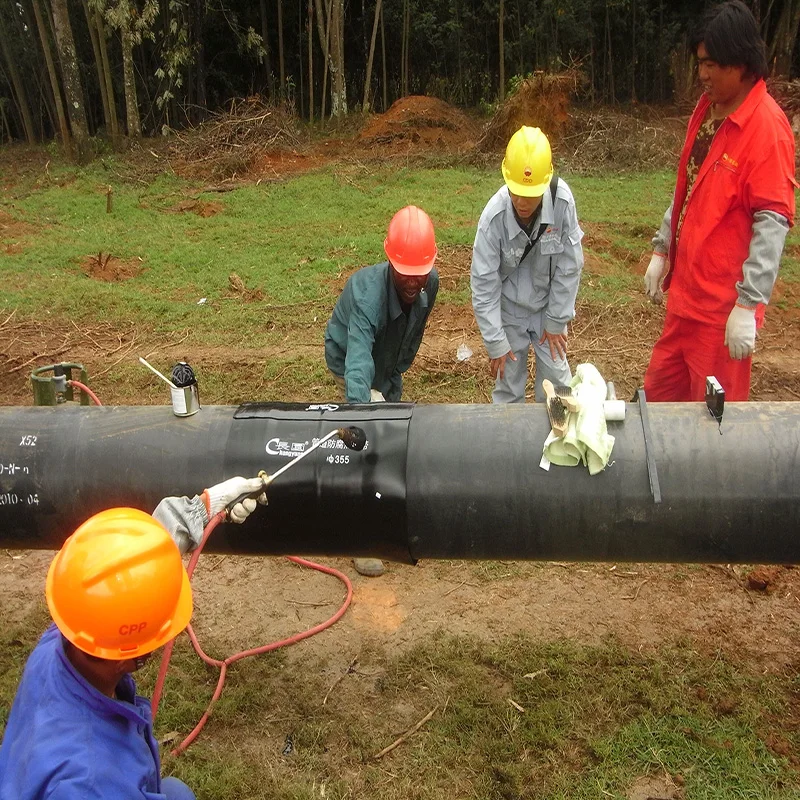

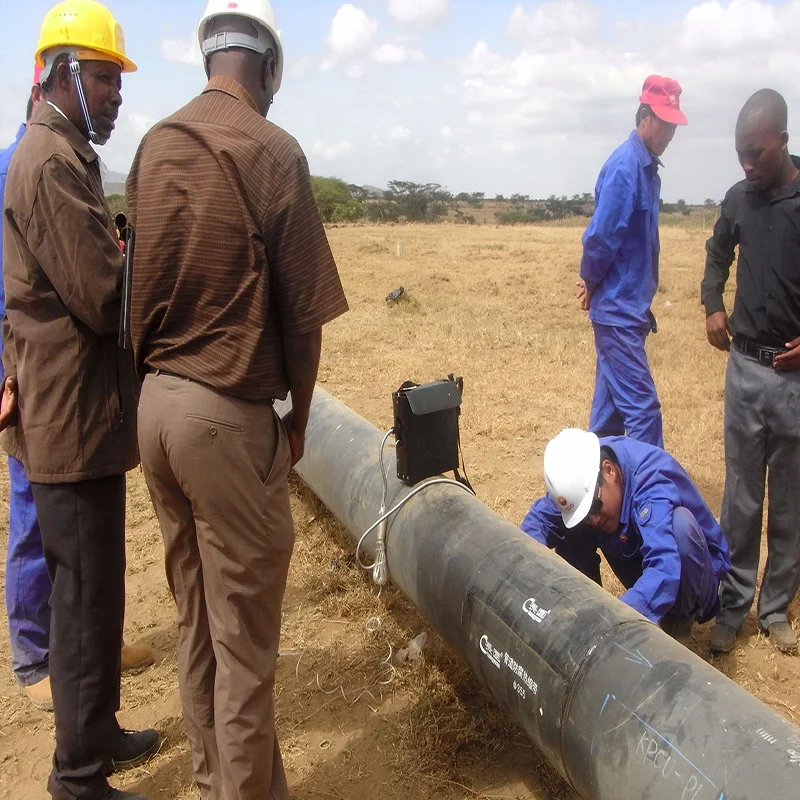

CYG has more than 15 years' experience in the field of Gas pipe tape. Below is some projects we have done and our DVGW certification :
Besides, for special requirements, we can produce sample according to your requirements for your evaluation.

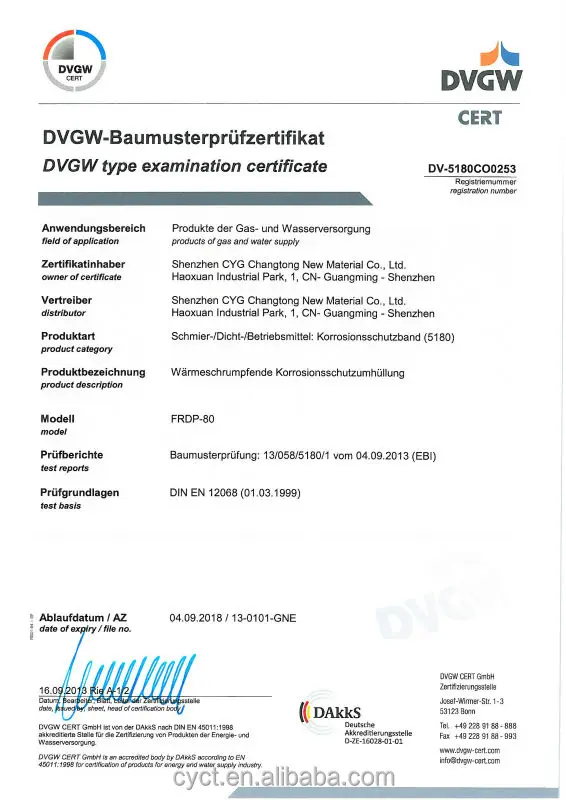

Germany DVGW certification for 3LPE Field Applied Coating:
Pls. feel free to contact me for more information of Field Joint Coating.
