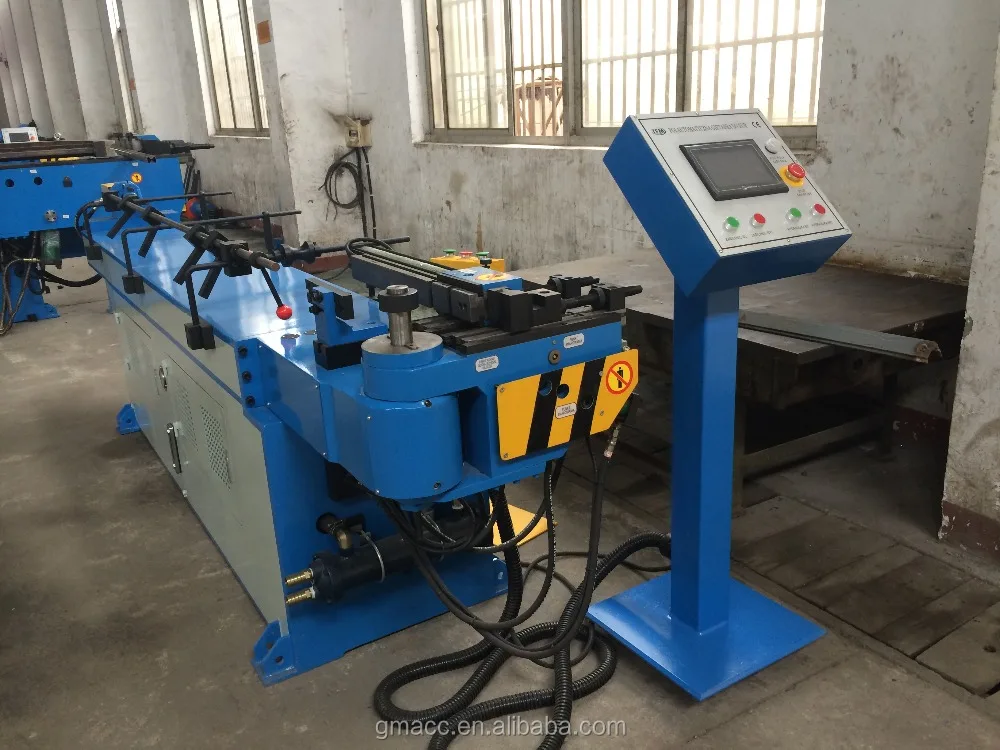

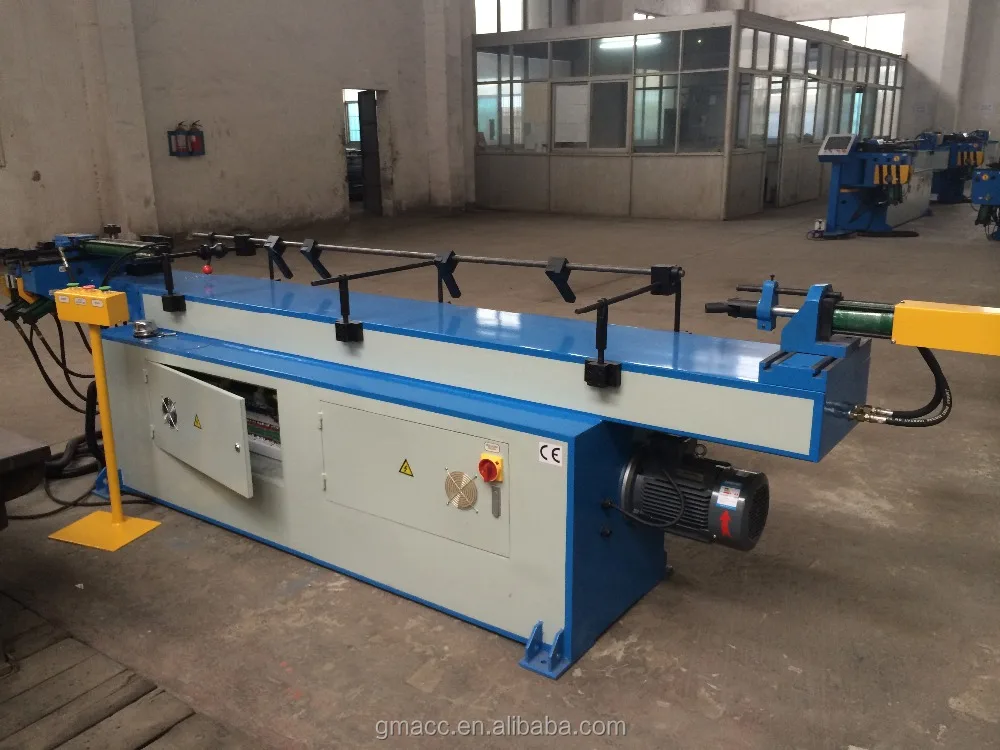

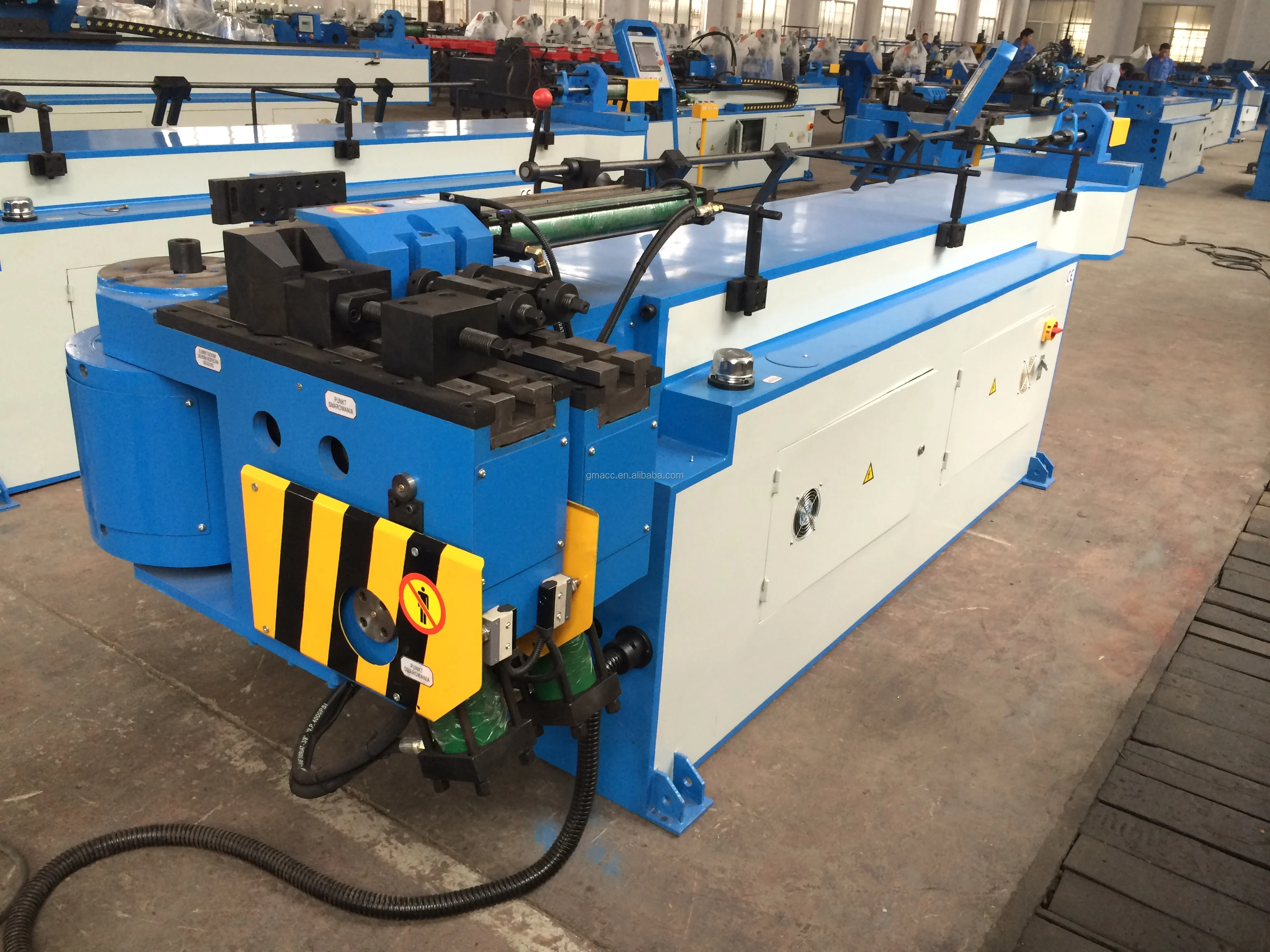

stainless steel pipe bending machine GM SB 38NCB

Product Overview

Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-38NCB

Machine Characteristic

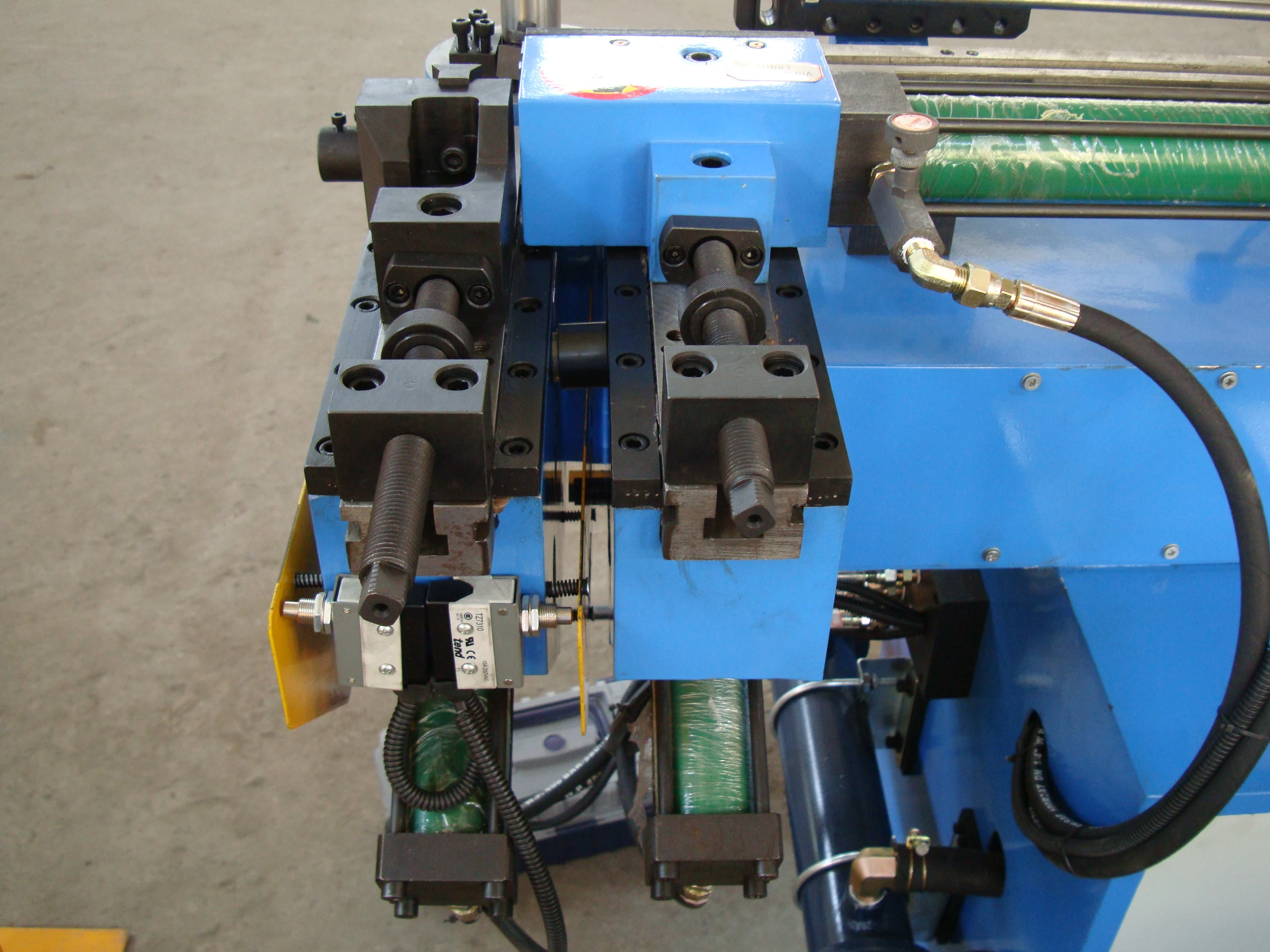

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Main Technical Parameter



Name	Unit	Parameter
Max. Bending Capacity	mm	38*2
Bending Radius Range	mm	20-200
Max. Bending Angle	°	190°
Though Effective Distance	mm	3000
Bending Speed	°/sec	60
Bending Precision	°	±0.10
System Motor Power	KW	4
Oil Pump Delivery Volume	L	14
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	3200*700*1300
Machine Weight	T	1.5

 Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Siemens or Suzhou Runmali

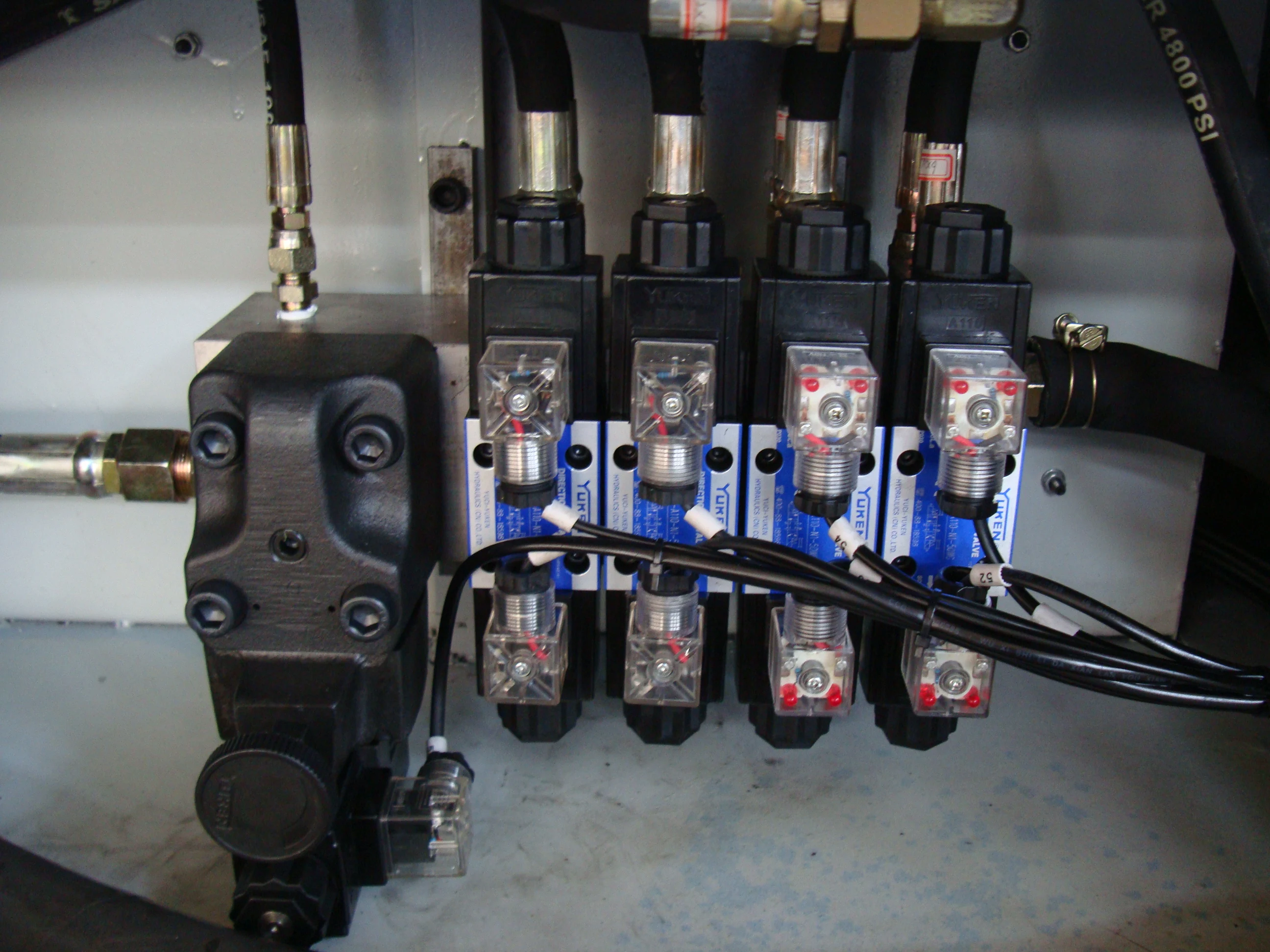

Hydraulic Valve	Japan Yuken
Over Flow Valve	Japan Yuken
Encoder	Japan Nemicon
Hydraulic Pump	Wuxi Tuoli
Sealing Element	Shanghai Qifan
Contactor	Schneider
Over-Thermal Relay	Schneider
Proximity Switch	Omron
Power Switch	Taiwan Mingwei
Tansformer	Wuxi Xingyu
Oil Tube	Zhejiang Tongxin
Touch screen	Taiwan Weinview

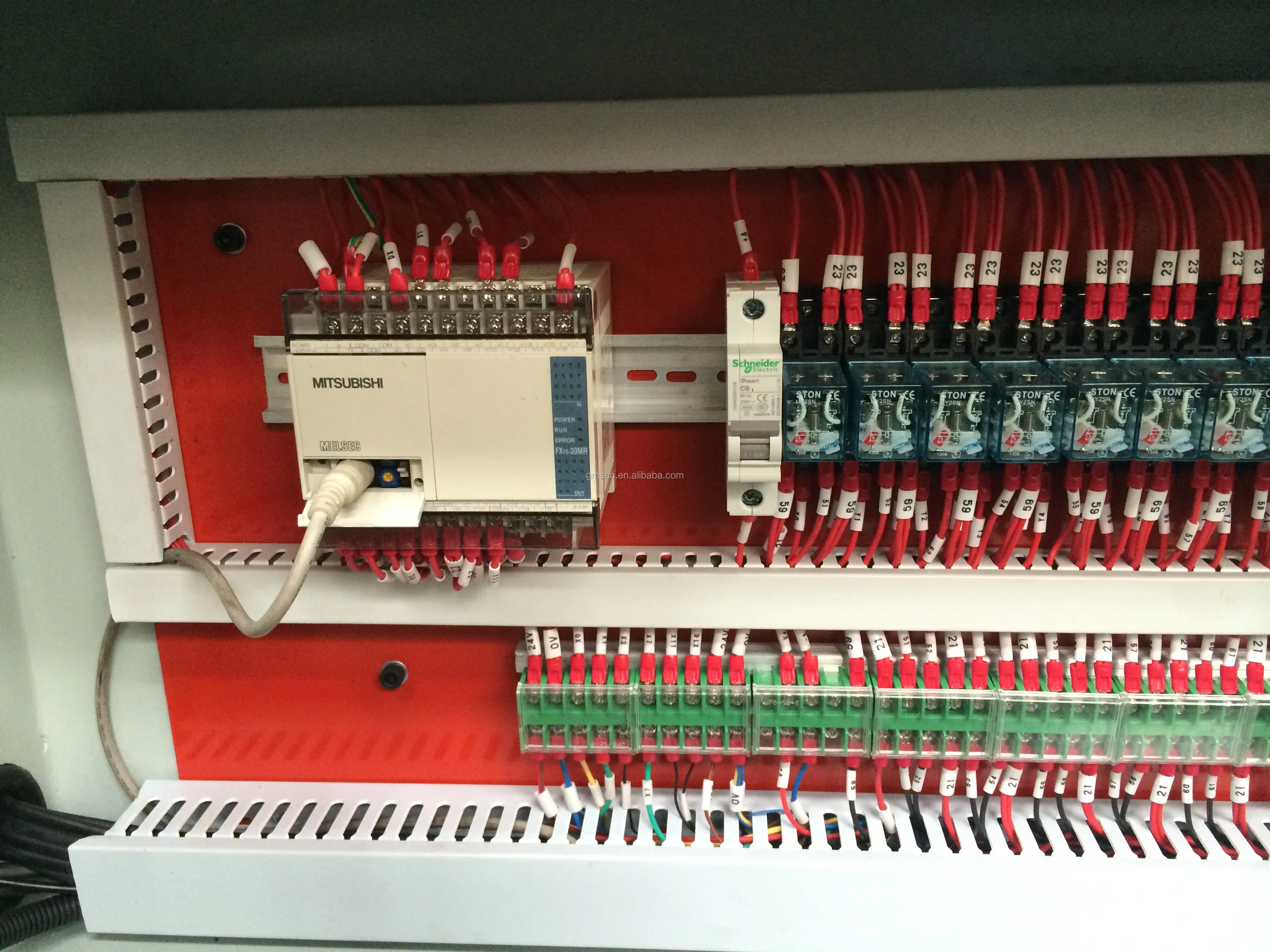

PLC	Japan Mitsubishi
