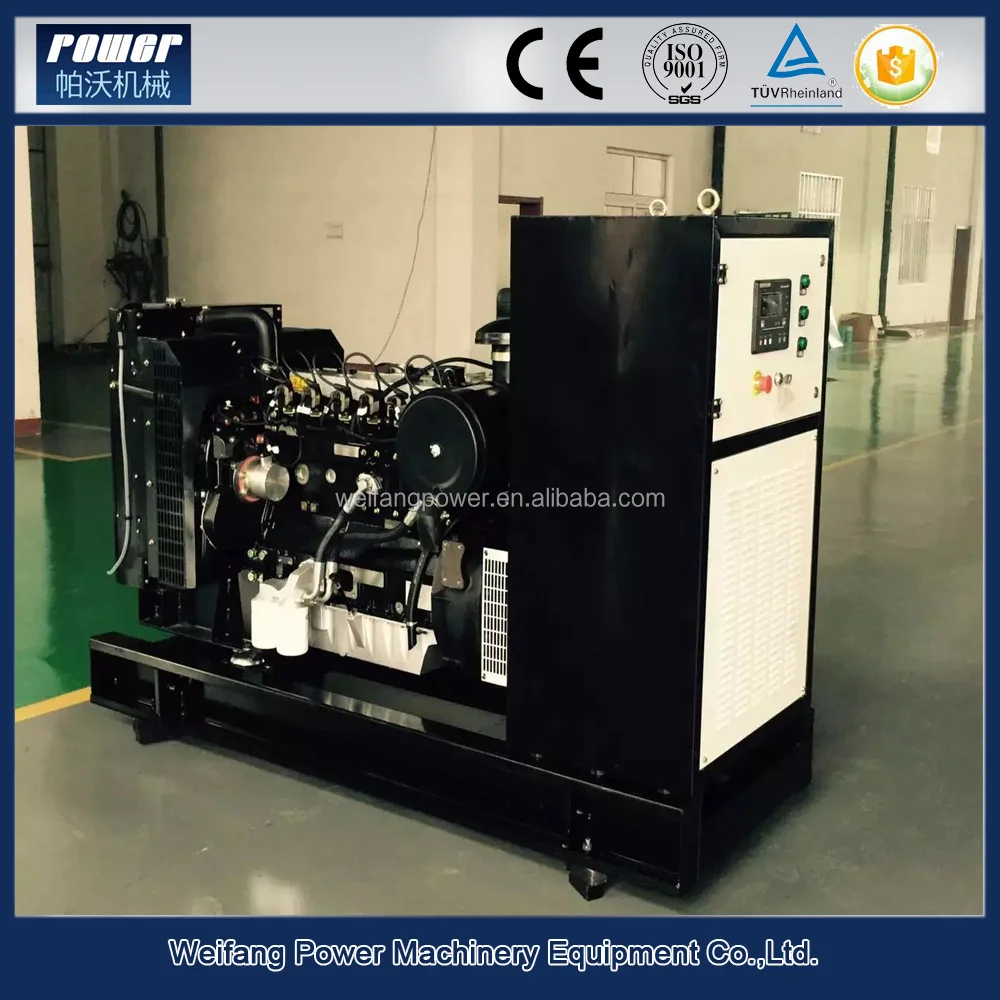

Ac alternators genset 220v 30kw waukesha gas generator price

Ac alternators genset 220v 30kw waukesha gas generator price meeting the requirements of environmental protection and new mareket environment. The fuel can be natural gas, biogas or LPG. They are widely used in areas of oil fields and regions abundant in natural gas or biogas. The genset is quick to start and easy to operate with complete protection system. Most of its economic parameters are capable of leading this industry. The gensets can be used as power stations for oil fileds and local enterprises.

Technical Advantages:

1. Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.

2. Main control parts are imported from USA and Italy, to make more stable and reliable running.

3. Several gensets can be parallel connection , which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.

4.  Low gas pressure is acceptable,  no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .

5. Self-contained parts of gensets needs few accessories

6. Economical and low-cost running.

7.The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.

8. The installation of  high-quality control cabinet set enable multiple protection, which enhance the safety for the running of gensets.

Gas Generator Set working condition:

Normal working conditions:

Atmospheric Pressure: 100kPa,  Ambient Temp: 25°C, Relative Humidity: 30%, Altitude: ≤1000m

Gas requirement:

Applied gas type :

Nature Gas, Biogas, LPG, CNG, LNG, oil field gas, Syngas, Coal bed methane, straw gas,wood gas etc.

Gas inlet pressure: 0.8-2.0kPa, higher water pressure must use additional decompression machine.

Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).

Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.)

The gas must be to desulfurize and dehydrate and dust removal.

 H2S ≤ 200mg/Nm3

 NH3 content≤20mg/Nm3

 Impurity granularity ≤ 5 μm

 Impurity content ≤ 30 mg/Nm3

 No liquid ingredients (not including free water, light hydrocarbon)

 CH4 content ≥ 55%

Open type gas generator

Silent type gas generator with CHP
