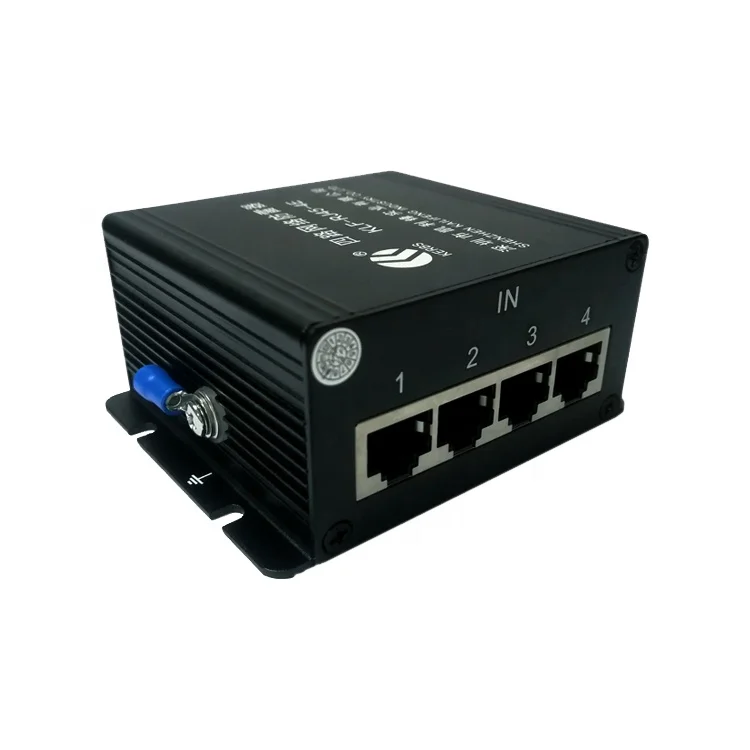

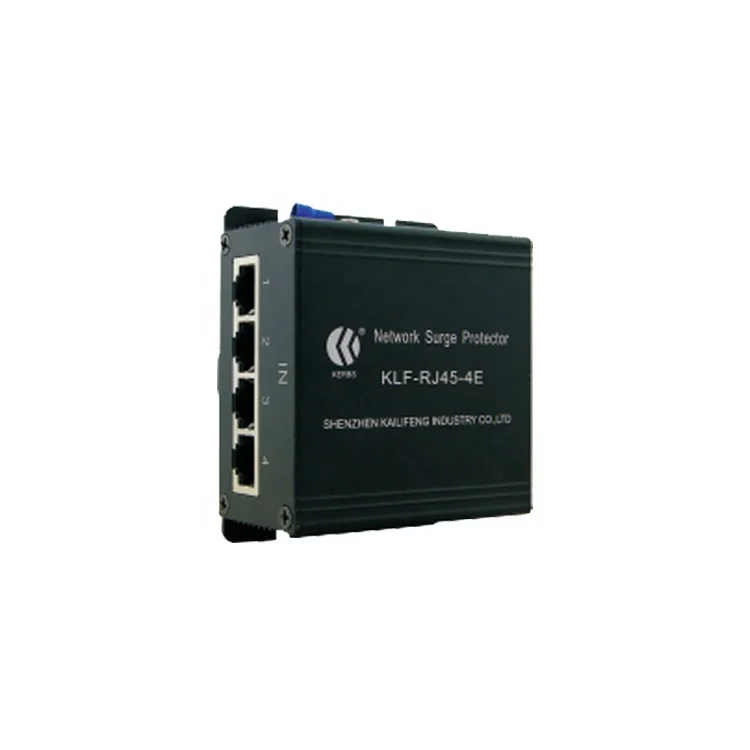

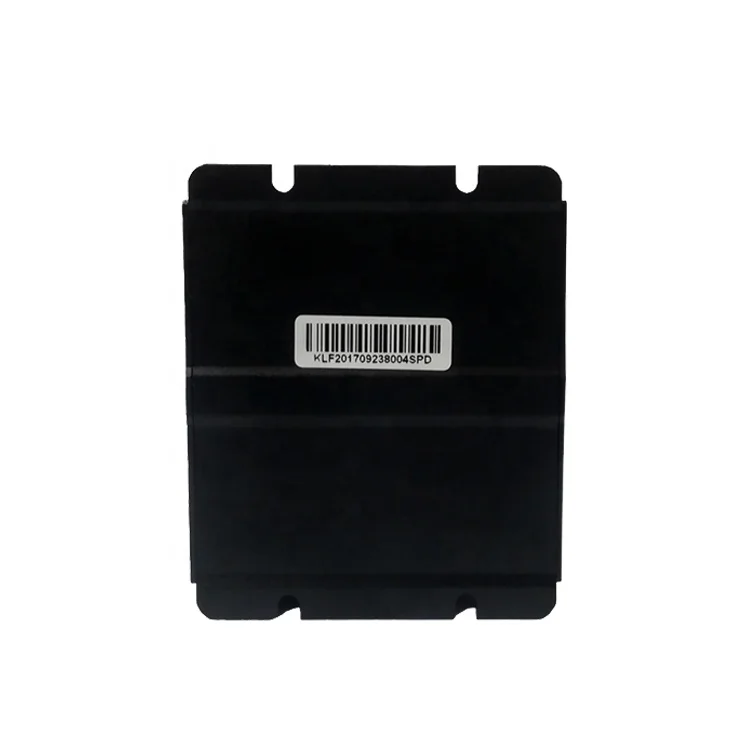

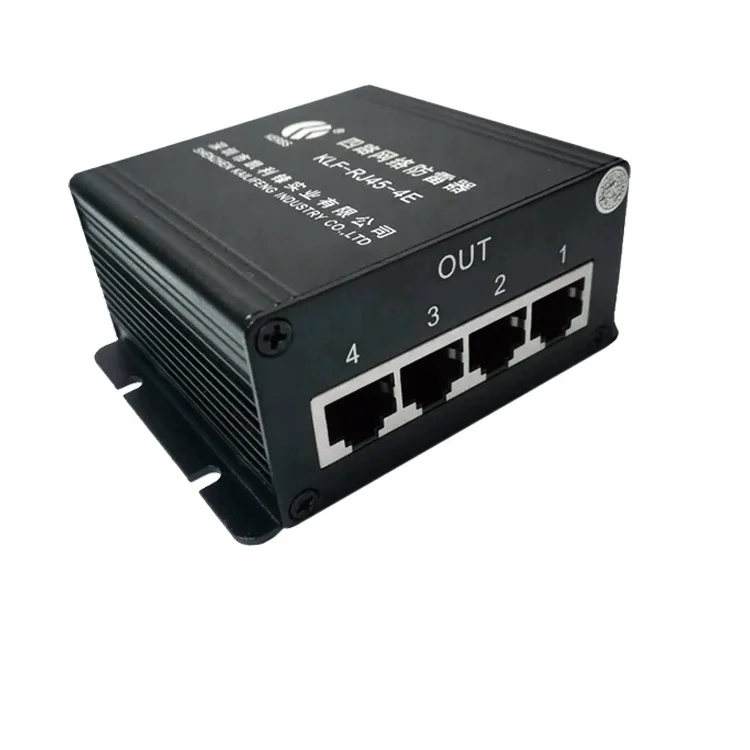

Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м
Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м
Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м
Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м
Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м
Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м

Сетевой фильтр RJ45 cat5 cat6, с 4 портами 10/100/1000 м

Share on (60533578575):


Price:

Quantity:


Product Overview

Description





Product Description


This product is designed according to IEC and National relevant standards, used for lightning protection of computer data interface or network data system of electronic equipment.

◆ Adopt principle of discharging, clamping and voltage stabilization to realize effective and reliable anti-shock high-voltage pulse and accurate clamping voltage.
◆ Core components are selected international brands, with advantage of multi-level protection, low residual voltage, fast response time.
◆ Low-volume design, low insertion loss, excellent transmission performance, large intake capacity, and long life time.
◆ Easy install and simple maintenance.
◆ Apply to lightning protection of the web server, router, network switch, HUB, computer network,100/1000M ethernet, IP telephone.




Specification

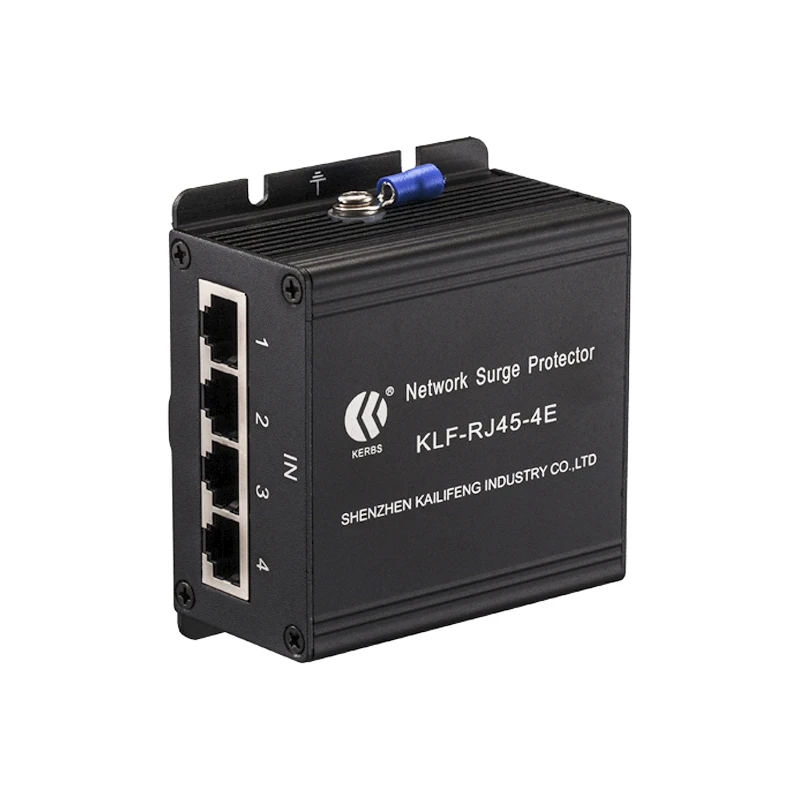

RJ45 Surge Arrester TYPE:
KLF-RJ45-4E
Operating Voltage (Un):
5V
Nominal Discharge Current (8/20μs) (In):
5KA
Limit voltage:
≤15V
Transmission rate (bit / s):
10/100/1000M
Insertion Loss (dB):
≤0.2dB
Interface Model:
RJ45
Protected Core Wire:
1.2.3.6 line
Protect the port quantity:
4
Working Environment:
Temperature-25°C+80°C;Relative humidity<95%;
Dimension:
73*88*40mm
Weight:
0.29kg




Packing & Delivery


Each rj45 surge protector is packed by shrink film and white box,then carton box for air or sea shipment.
Custom LOGO,brand is accepted.
