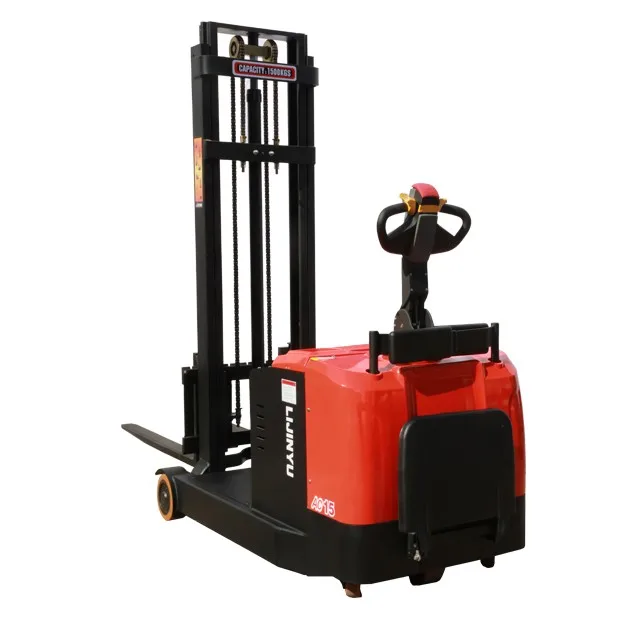

1.5 Ton Counterbalanced electric pallet stacker/ forklift extensions

Zhejiang Yujie Intelligent Equipment Co.,Ltd is a manufacturer that have more than 10 years of production experience and development. We mainly supply electric pallet stacker ,manual lift,forklift and so on.

Company is ISO 9001:2008 certificate,which can ensure quality and efficiency.
Today, the company has grown into a well-known domestic warehouse transport vehicle manufacturing enterprise.
It covers over 30000 square meters and our produsts are more and more popular.

Product Parameter

Electric pallet stacker is one of the easy lifting equipments. With good quality and easy to use.

electric pallet stacker
Model		CD-D15AD(PZ)
Load Capacity	kg	1500
Load Center Distance	mm	500
Front wheel		Φ180*70
Balance Wheel		Φ252*88
Front wheel Base	mm	745
Driving Wheel Base	mm	640
Fork Lift Height	mm	1600/2000/2500
Min.Fork Ground Clearance	mm	85
Overall Height	mm	1450
Overall Length	mm	2700
Overall Width	mm	860
Length of Fork	mm	900
Width of Fork	mm	100
Min.Turning Raduis	mm	1900
Max.Gradeability(loaden/unload)	%	6/10
Battery	V/AH	24/210
Lifting Moter Power	Kw	2.2
Driving Motor Power	Kw	1.2
Lifting Speed(loaden/unload)	mm/s	80/100
Falling Speed(loaden/unload)	mm/s	150/120
Travelling Speed(loaden/unload)	km/h	4.2/5.6
Type of Drive Control		AC
	km/h	4.2/5.6
Type of Drive Control		AC

Advantages

1. Electric pallet stacker with full power, curtis controller,easy to handle.

2. Electric pallet stacker with low speed, high toque brushless DC motor and advanced electric control system will support stable running power.

3. Electric pallet stacker with ok Quality  and Price competitive.

4. Intelligentzed regenerative brake system make this electric stacker more safety.

Zhejiang Yujie Intelligent Equipment Co.,Ltd take good materials and good techology to make sure the quality of all products.

It covers over 30000 square meters and our produsts are more and more popular. Electric stacker became more and more popular.

Fairs&Certifications

Related Products

                  CD-D10G

                         CD-D10AD(ES)

                       CD-D10AD

FAQ

1. What's the warranty?

A: All main parts of the electric stacker have 1 year warranty. Any technology questions can contact us any time.

2. What's the delivery time?

A: Normally after the order requirements 15-30 business days.

3. How about the package?

A: Normally with bare package.

Can customized.

More questions about the new electric pallet stacker can leave us a message or contact us directly.
