Best Selling Automatic Suppository Filling Machine with Suppository Molds or Mould
Product Description
I. Features:
1.PLC inspection function:through PLC online monitoring function can inspect automatic running fault and alarm as the same time show the reason of running fault its convenient operator to remove the fault timely
2. The filling part with removing static electricity system
Note:before forming shell reach filling place if without this device because trace drug filling and close shell top position will along the shell wall climb up a small hill under the static electricity function reach suppository sealing part will affect the quality of behind the seal
3. Stirring barrel speed adjustable system
Note: because of the drug material different and the viscosity different maybe the same stirring result can not mix drug uniform before filling so that affect finished suppository products drug content.
4. Cooling speed adjustable system
Note: because of different drug different components maybe need different cooling speed; when the cooling speed too slow will reduce the whole machine production efficieny;if the cooling speed too high maybe due to drug suddenly drop temperature then fracture therefore cooling speed need adjustable
5. Shearing granules quantity can adjustable system
Note: according to customer s requirement can convenents set up finished products granules as 4/5/6/7granules.
PVC/PE
II. Techincal Parameter:
Output/hour
1200-1800 pieces/h
Single dosage
0.5—5ml
Dosage allowance
<±2%
Suppository application form
Bullet-head form,duck-mouth form and other special forms
Adapt to the host
Synthesis of glycerin fatty acids,glycerin gelatin,polyethylene glycol etc
Tank capacity
20L
Working pressure
0.6Mpa
Gas consumption/minute
0.6m3
Water consumption / hour
15kg (recycle)
Operating Voltage
three phase AC 380V
Total power
2.5KW
External dimension
3200mm×1530mm×1600mm
Packaging Film
PVC\PE film thickness 0.15mm
Total weight
300kg

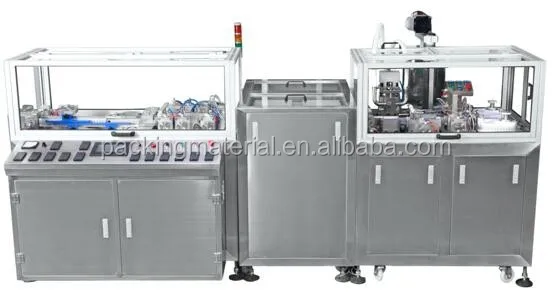

Machine Show
product samples
Packaging & Shipping
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
