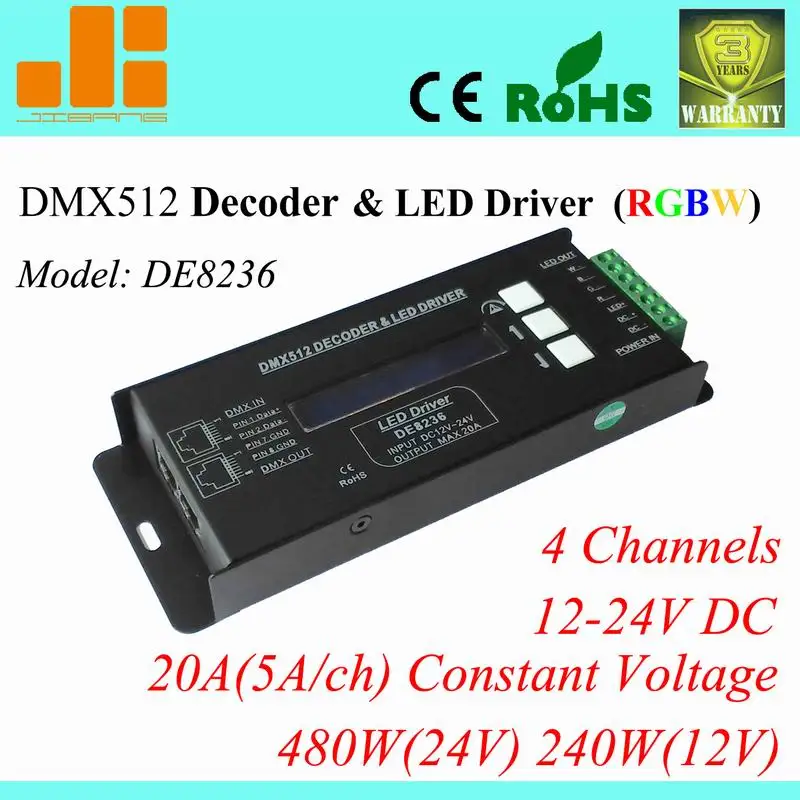

RGBW DMX decoder & led driver DE8236

Product Overview

Description

Model: DE8236

DMX RGBW decoder, 4CH DMX512 LED driver, RJ45 DMX,  20A/960W





Features



1.Meets DMX512/1990.

2.256-levels brightness,full-color with driver controls.

3.Power without flashing, low jitter free.

4. 4 output channels, single channel maximum 10A output drive, total output is less than 20A.

5.Can achieve asynchronous color changes effect under working with controller.

6.With the light color selected mechanism, and be able to control the light with 1~4 colors.

7.Setting the DMX address freely by LCD screen display .

8.Modularizing and can be matched with different LED module neatly.

9.Through the LCD1602 screen display menu.

10.Custom-made available.



Tech-parameter



Input: DC12-24V	Output: <20A(5A/CH)	Control channels:4CH
MAX Power: <960W	Frequence: 500HZ or 5000Hz	Signal Input:DMX-512/1990 Digital signal
Work Temp.:-30~70°	The light gray level: 256	Protection grade: IP40

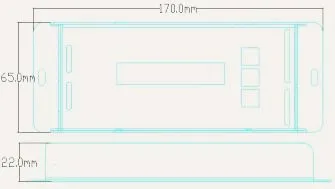

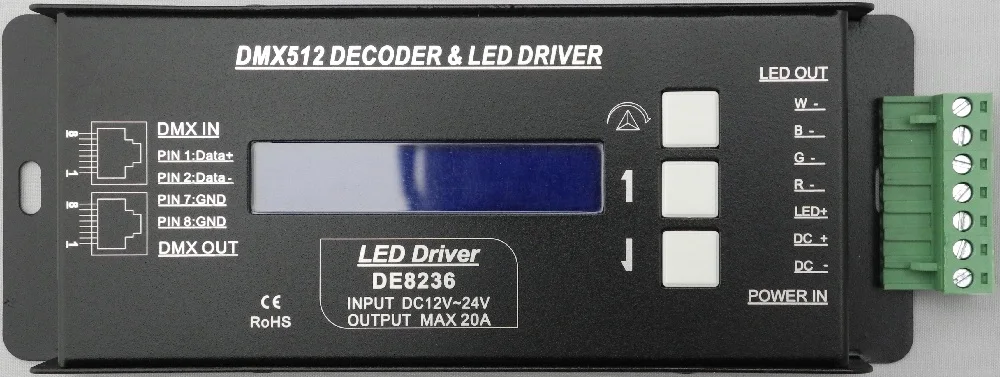

Product panel operating instructions, can through LCD screen display to show the program, switching menu options through mechanical switches,Press HOME button,Recall the first program menu,through DOWN, UPup or down to choose the function.Press HOME to confirm.Setting the DMX address and dimming the lighting can press DOWN, UP to adjust.If don’t have any operating within 5s,the LCD screen will be locked,if need to unlock,please press HOME button to unlock.



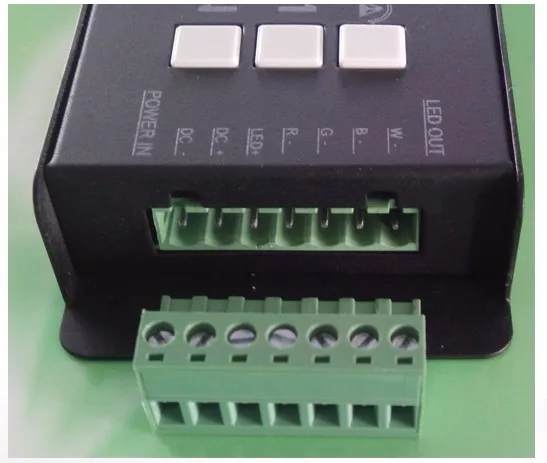

Wiring Diagram

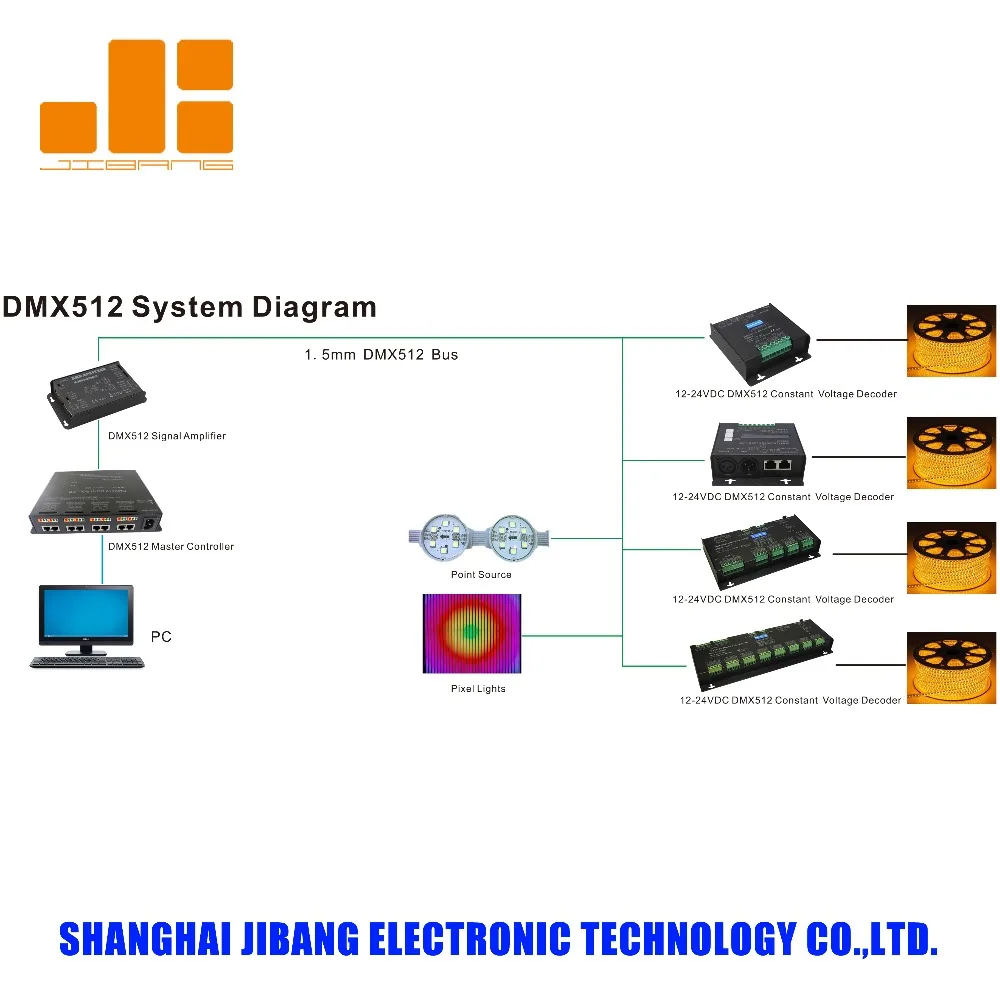

DMX-512 Control signal connection

1.DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output RJ45 interface: PIN1 is signal positive, PIN2 is signal negative, PIN7.8 is signal ground, please corresponding polarityconnection.

2.DMX5000 output and DE8356's transmission lines can't be over 300 meters.

3.DMX5000 each interface can with not more than 170 pieces of DE8356. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite connect the DMX lights.

4.When contacting 32 pieces of DE8356, DMX signal must add a signal amplifier RE2000 . Cascade can't more than 4 PCS.

5.At the end of the connection, we should connect a DMX signal finalizer ( Put down the code switch no.10 of DE8356 dial).



Exception Handles

Malfunction	Causation	Solution
No light	1. No power from plug 2. At black mode 3. Overload Recovery 4. Incorrect connection	1 Change the socket 2. Change the running mote 3 Lighten load, react 4 Check the connection
Incorrect Color No Synchronous	5. Wrong RGB connection 6 Wrong Sync Cable Connection	5 Check RGB connection 6 Check Sync cable connection
