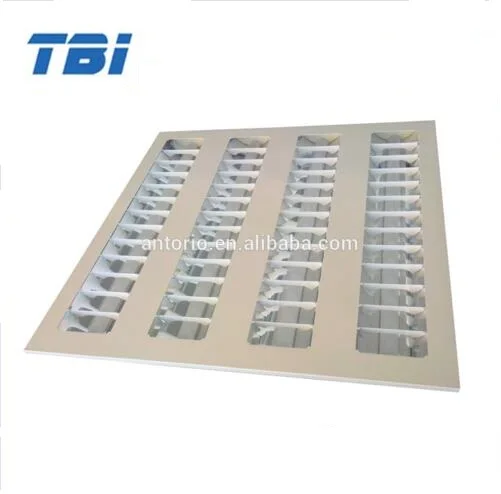

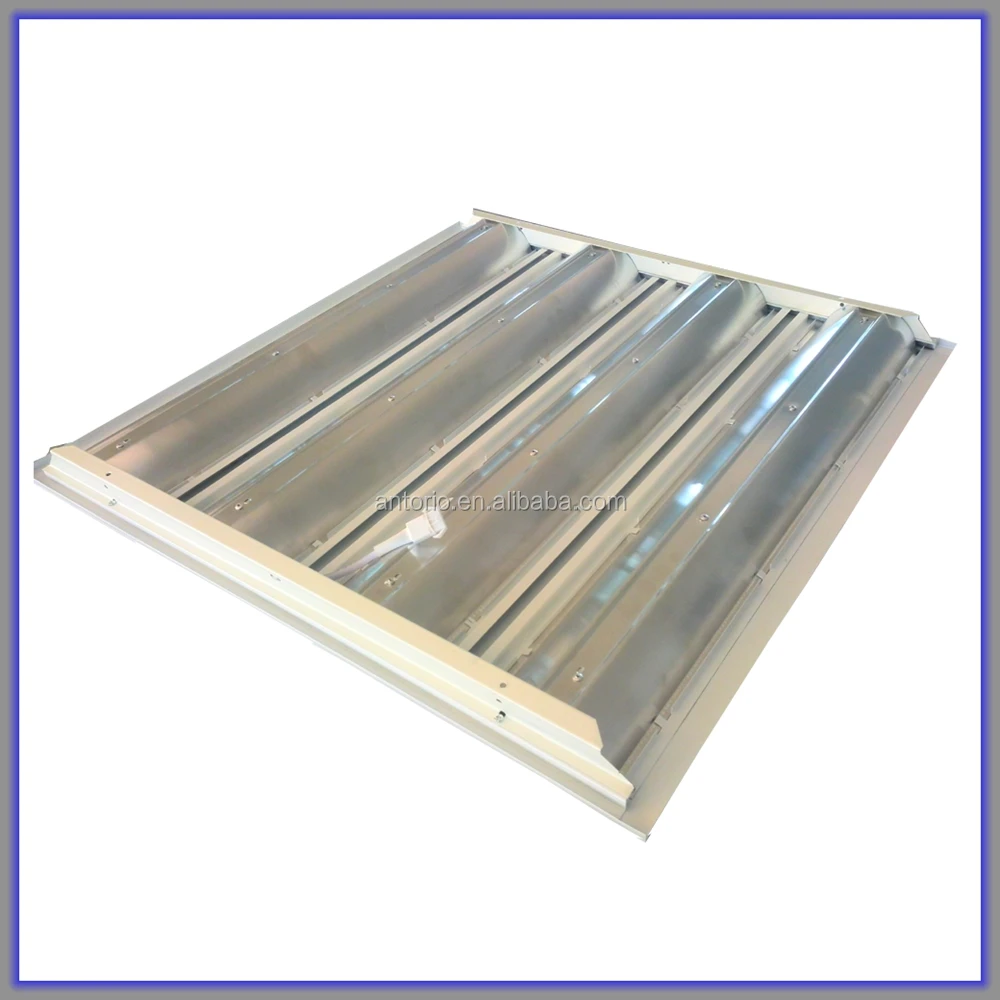

600*600 T 8 fluorescent or LED grille light fixture recessed louver light fixture

Product Overview

Description

• Housing is made of high quality cold rolled steel.


• Refletor is high quality  aluminium alloy


• High efficiency LED, 30,000hours lifetime


• High quality painted cold rolled steel body, no fade color with special surface treatment.







Detailed pictures:

























Advantages:

• Separate design, suitable for various installation, patented technology.


• Professional glare-resistance and scientific light distribution design.


• External constant current driver, it is very convenient to install and shunt the heat of power supply and light source.


• It can be dimmable control according to the customer's requirement, there are various color temperature for option.







Application :



office, marketplaces, hospital, business hall, factory, supermarket and some indoor using.





Description of type:





Technical specification:



Ordering Code	Type	Wattage	CCT	Luminance	Beam angle	CRI	L	W	H	Carton Size	Packing
600*600
497890	TBI LL 220/30 RR.A.B.07.P	30W	6000K	3000	100°*90°	≥ 80	597	597	35	650*640*120	2pcs/5.6kg
498360	TBI LL 220/30 RN.A.B.07.P	30W	3000K	2800	100°*90°	≥ 80	597	597	35	650*640*120	2pcs/5.6kg
498370	TBI LL 220/30 RL.A.B.07.P	30W	4000K	2950	100°*90°	≥ 80	597	597	35	650*640*120	2pcs/5.6kg
498320	TBI LL 220/40 RN.A.B.07	40W	3000K	3200	100°*90°	≥ 80	597	597	35	650*640*120	2pcs/5.6kg
497970	TBI LL 220/40 RL.A.B.07	40W	4000K	3200	100°*90°	≥ 80	597	597	35	650*640*120	2pcs/5.6kg
1200*300
498380	TBI LL 220/28 RR.A.A.07.T.P.J	28W	6000K	3000	100°*90°	≥ 80	1197	297	35	1220*320*120	2pcs/5.6kg
498400	TBI LL 220/28 RN.A.A.07.T.P.J	28W	3000K	2800	100°*90°	≥ 80	1197	297	35	1220*320*120	2pcs/5.6kg
498390	TBI LL 220/28 RL.A.A.07.T.P.J	28W	4000K	2950	100°*90°	≥ 80	1197	297	35	1220*320*120	2pcs/5.6kg
1200*600
498560	TBI LL 220/42 RR.A.B.07.P.J	42W	6000K	6000	100°*90°	≥ 80	1197	597	35	1220*640*120	2pcs/11.2kg
498570	TBI LL 220/42 RN.A.B.07.P.J	42W	3000K	5600	100°*90°	≥ 80	1197	597	35	1220*640*120	2pcs/11.2kg
498580	TBI LL 220/42 RL.A.B.07.P.J	42W	4000K	5900	100°*90°	≥ 80	1197	597	35	1220*640*120	2pcs/11.2kg







You may want:

            (click the picture!)

































   Why choose us? Our advantages:

1. We are a professional manufacturer with 10 -year experience in this field.

2. Super brightness, low decay.

3. No flicker, no mercury, eco-friendly.

4. High quality with competitive price & excellent after-sale services.

5. Free samples & freight charge available.

6. OEM/ODM service acceptable.

7. Long lifespan 30000 hours(average) with 3-year warranty.
